HELLA Position Light - Shapeline Style Wing - LED - 12/24V 2PF013325-031

Position Light - Shapeline Style Wing - LED - 12/24V - Glued/mounting - SAE/ADR/GGVS - Lens Colour: Crystal clear - Plug: AMP - Left Front - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation

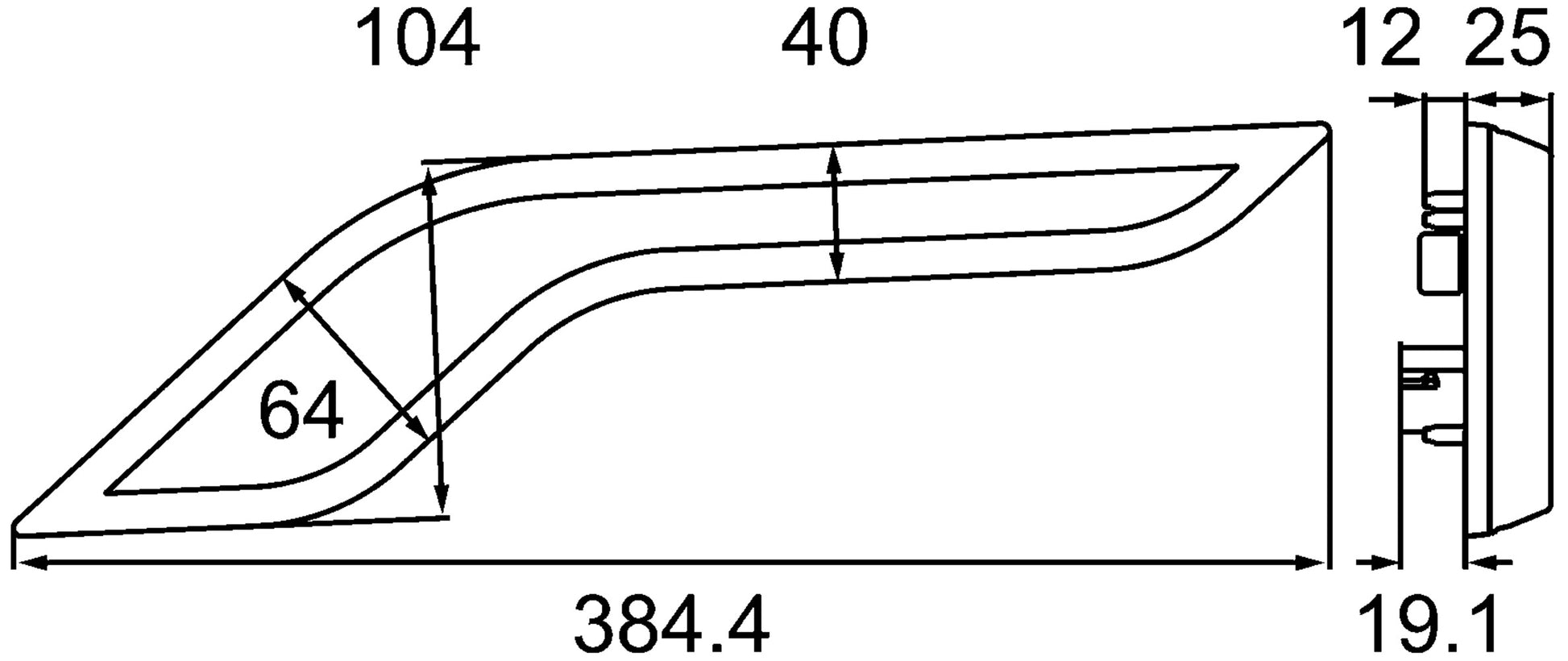

• Length: 384mm - Width: 104mm - Height: 44mm - Lamp Type: LED - Number of LEDs: 30
• Light functions: 1 - with position light (LED)

Item Attributes:
Mounting Type: Glued / mounting
Fastening Type: for vertical fastening
Fitting Position: Left Front
Lamp Type: LED
Light Function: with position light (LED)
Light Design: LED
LED colour: white
Voltage: 12 V / 24 V
Power consumption: 9.5 W
Length: 384 mm
Width: 104 mm
Height: 44 mm
Plug: AMP
Housing Colour: black
Lens Colour: Crystal clear
Prot.type (IP Code): IP6K7 / IPX9K
fulfils ECE standard: R7
Quantity: 1
Light functions: 1
Number of LEDs: 30
SVHC: 7439-92-1; Lead
Registration Type: SAE / ADR/GGVS
Design by: Wing
Assembly by qualified personnel required!
