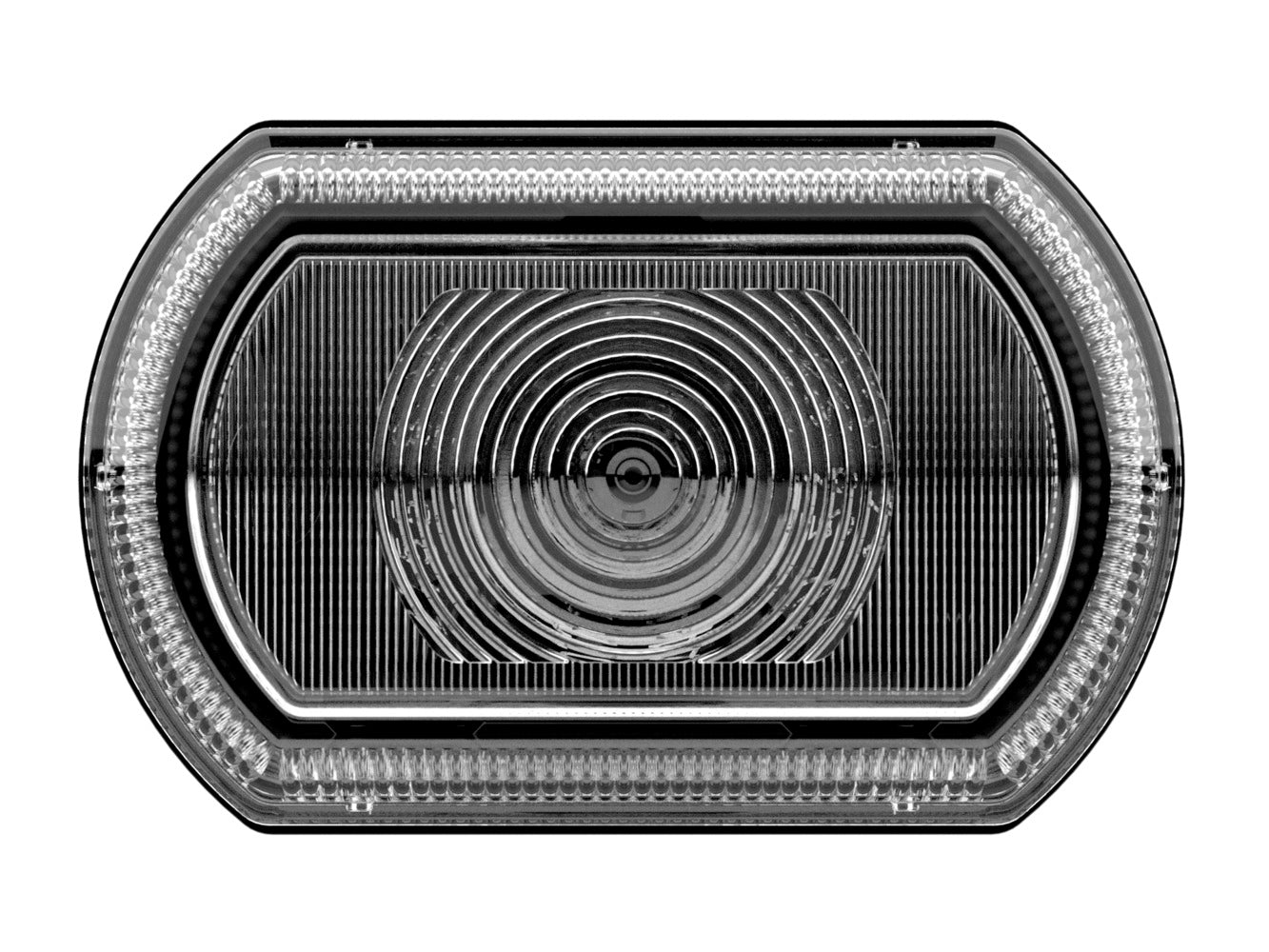

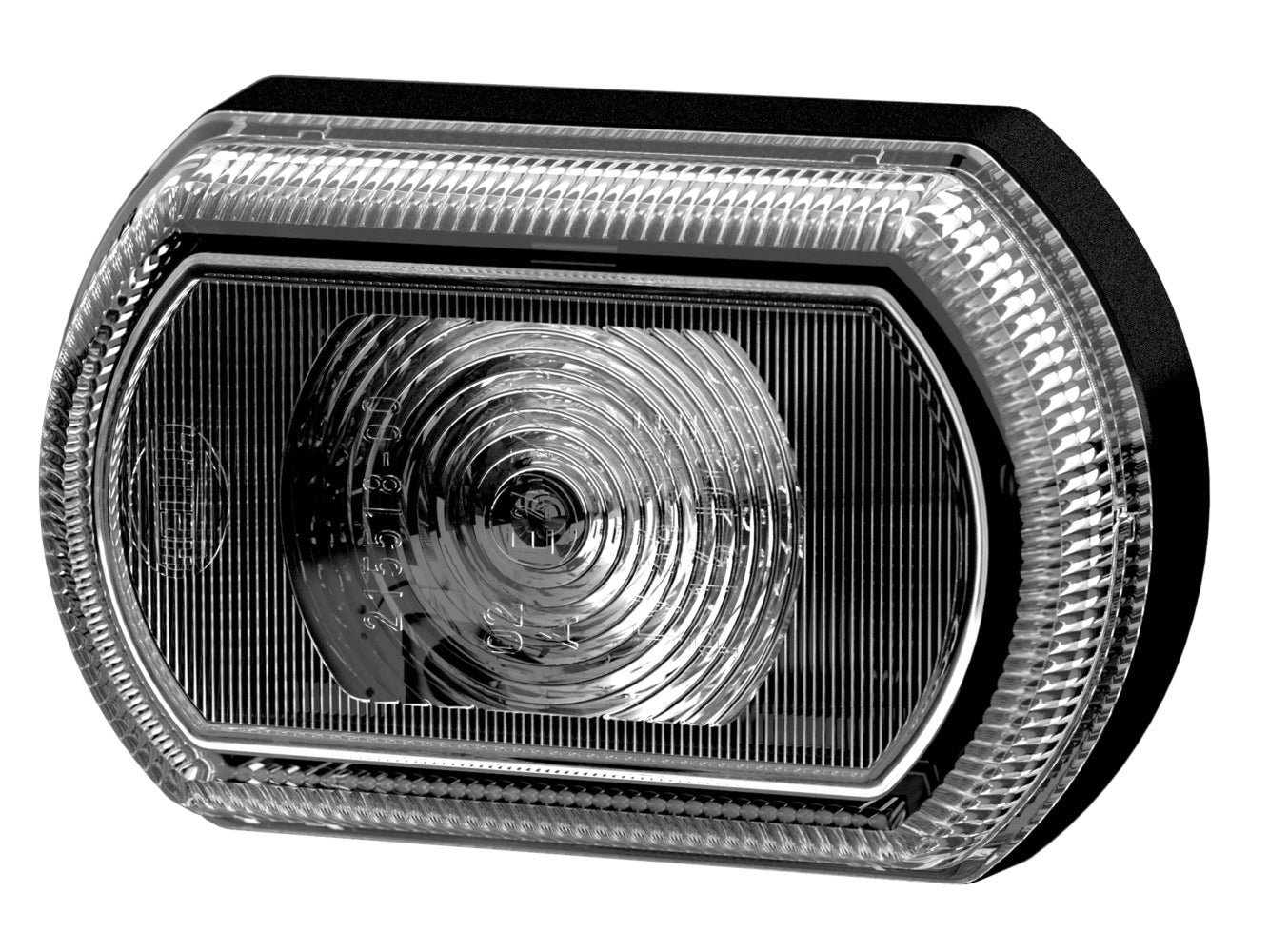

HELLA Position Light - Shapeline Tech - LED - 12/24V 2PF013323-221

Position Light - Shapeline Tech - LED - 12/24V - Slim - Glued/mounting - SAE/ADR/GGVS - Lens Colour: Grey - Cable: 250mm - Plug: open cable ends - Left Front/Right Front - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation
• Length: 62mm - Width: 40mm - Height: 25mm - Lamp Type: LED - Number of LEDs: 1
• Light functions: 1 - with position light (LED)

Item Attributes:
Mounting Type: Glued / mounting
Fastening Type: for horizontal fastening
Fitting Position: Left Front / Right Front
Lamp Type: LED
Light Function: with position light (LED)
Light Design: LED
LED colour: white
Voltage: 12 V / 24 V
Power consumption: 0.9 W
Length: 62 mm
Width: 40 mm
Height: 25 mm
Cable: 250 mm
Plug: open cable ends
Housing Colour: black
Lens Colour: grey
Prot.type (IP Code): IP6K7 / IPX9K
fulfils ECE standard: R7
Quantity: 1
Light functions: 1
Number of LEDs: 1
SVHC: 1317-36-8; Lead monoxide (lead oxide) / 7439-92-1; Lead
Registration Type: SAE / ADR/GGVS
Shape: slim
Assembly by qualified personnel required!

OE references: FAUN 5646353; FLIEGL ETZXXX911583
