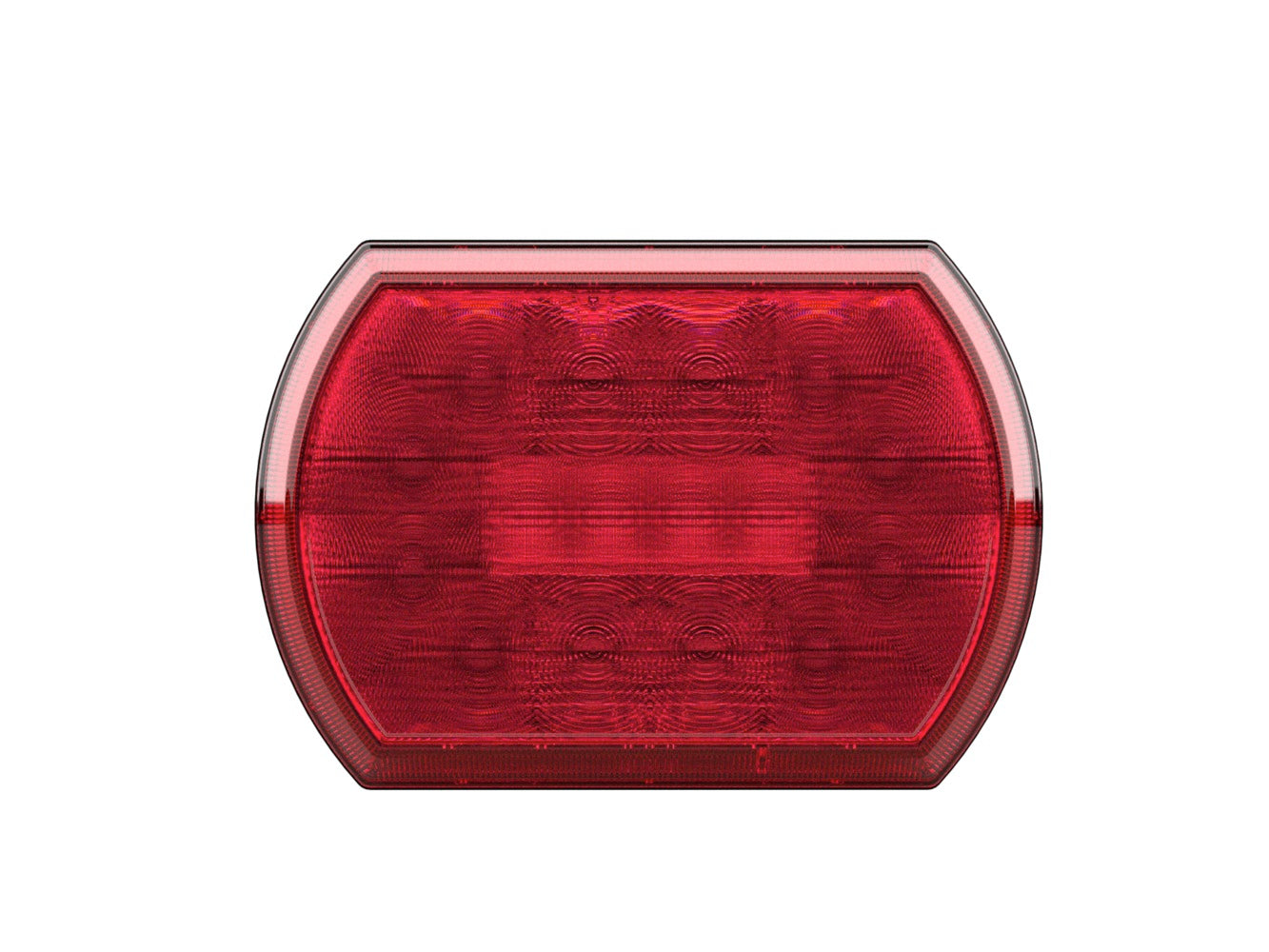

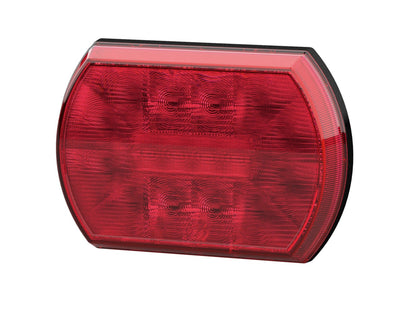

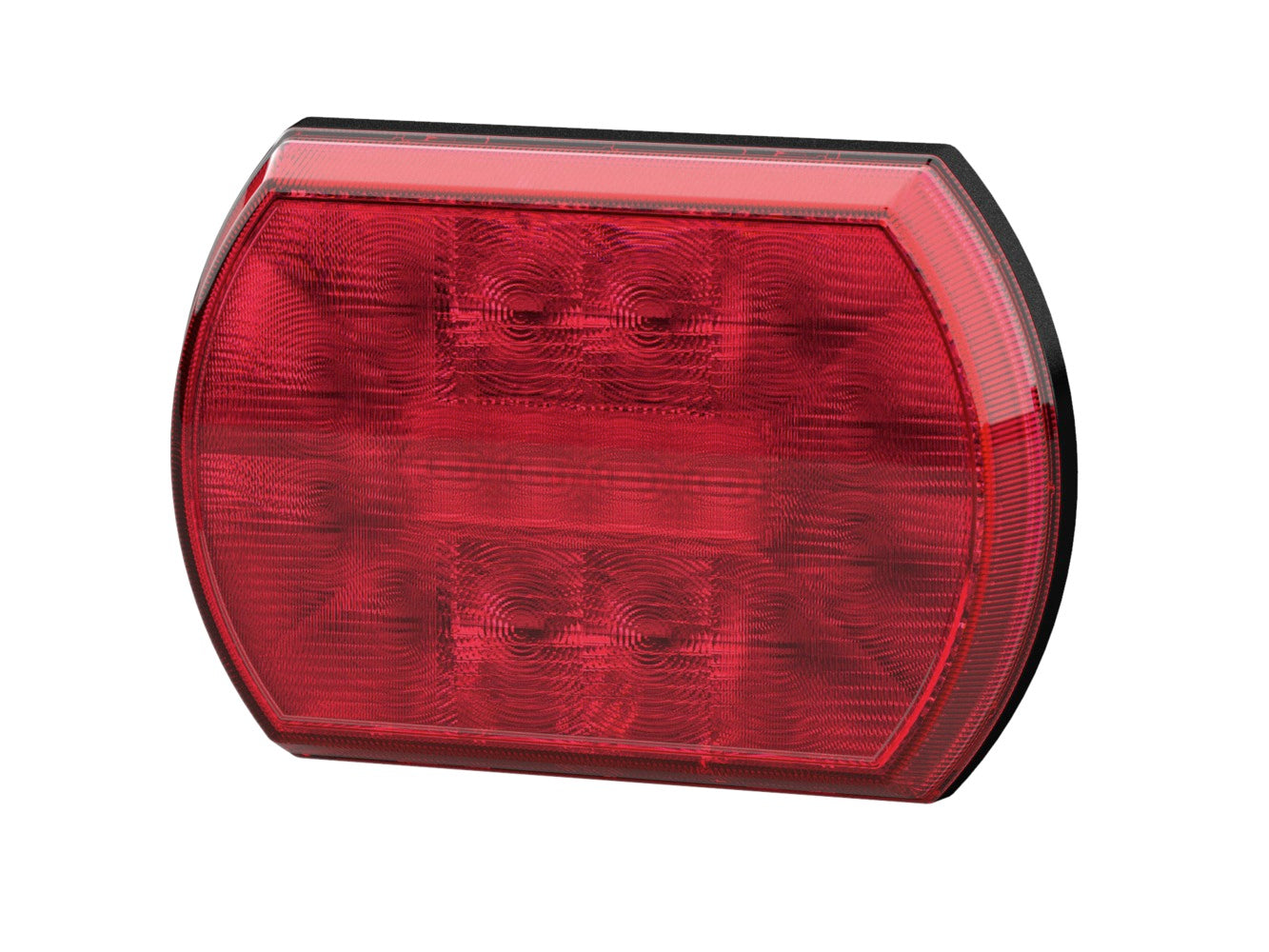

HELLA Rear Fog Light - Shapeline Tech - LED - 12/24V 2NE013344-001

Rear Fog Light - Shapeline Tech - LED - 12/24V - Bolted - SAE - Lens Colour: red - Plug: AMP - 2-pin connector - left/right

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation
• Length: 149mm - Width: 104mm - Height: 25mm - Lamp Type: LED - Number of LEDs: 12
• Light functions: 1 - with rear fog light (LED)

Item Attributes:
Mounting Type: Bolted
Fastening Type: for horizontal fastening
Fitting Position: left / right
Lamp Type: LED
Light Function: with rear fog light (LED)
Light Design: LED
Voltage: 12 V / 24 V
Length: 149 mm
Width: 104 mm
Height: 25 mm
Plug: AMP
Number of pins: 2 -pin connector
Housing Colour: black
Lens Colour: red
Prot.type (IP Code): IPX9K / IP6K7
fulfils ECE standard: R10 / R38 / R23
Light functions: 1
Number of LEDs: 12
SVHC: 7439-92-1; Lead
Registration Type: SAE
Assembly by qualified personnel required!
