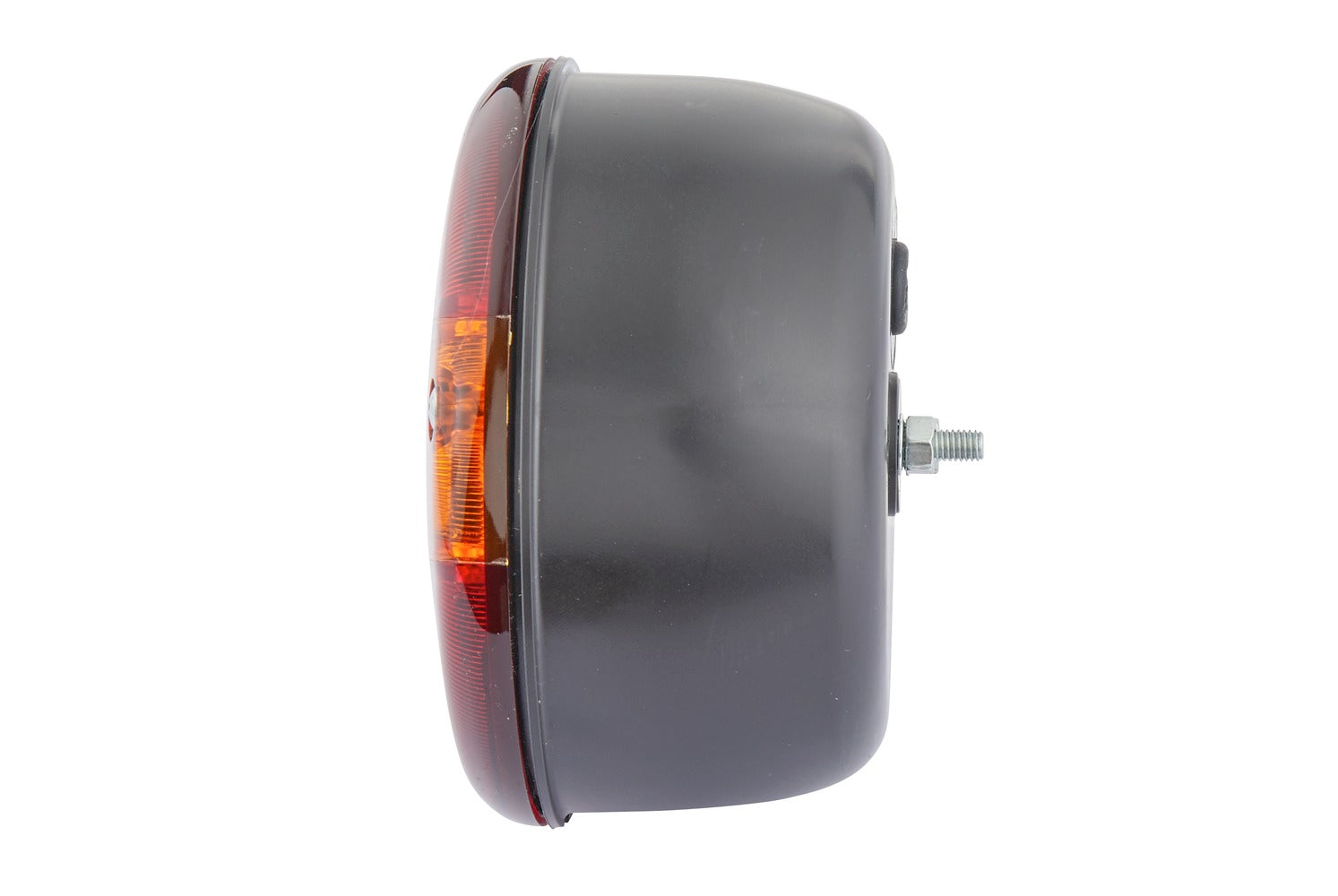

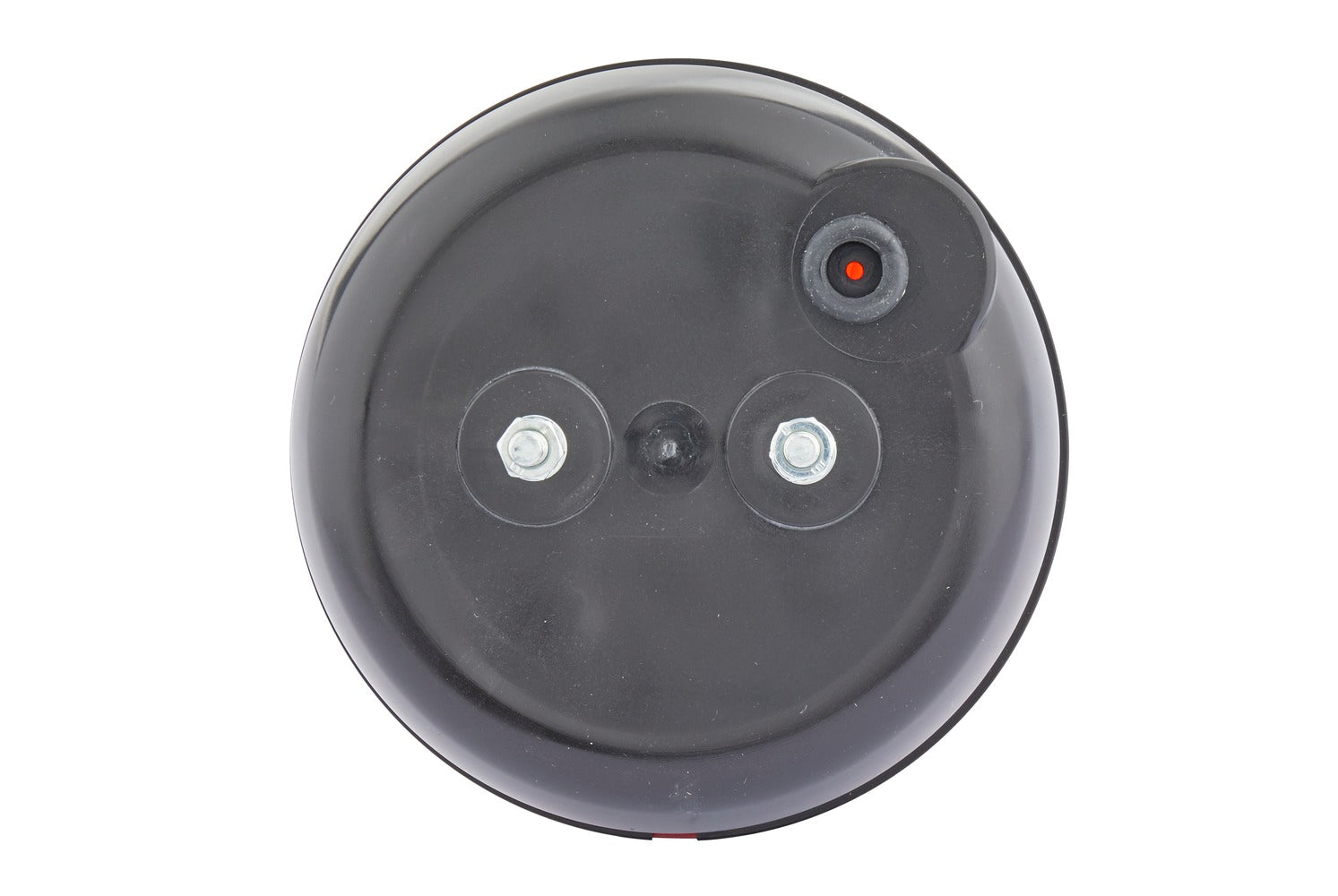

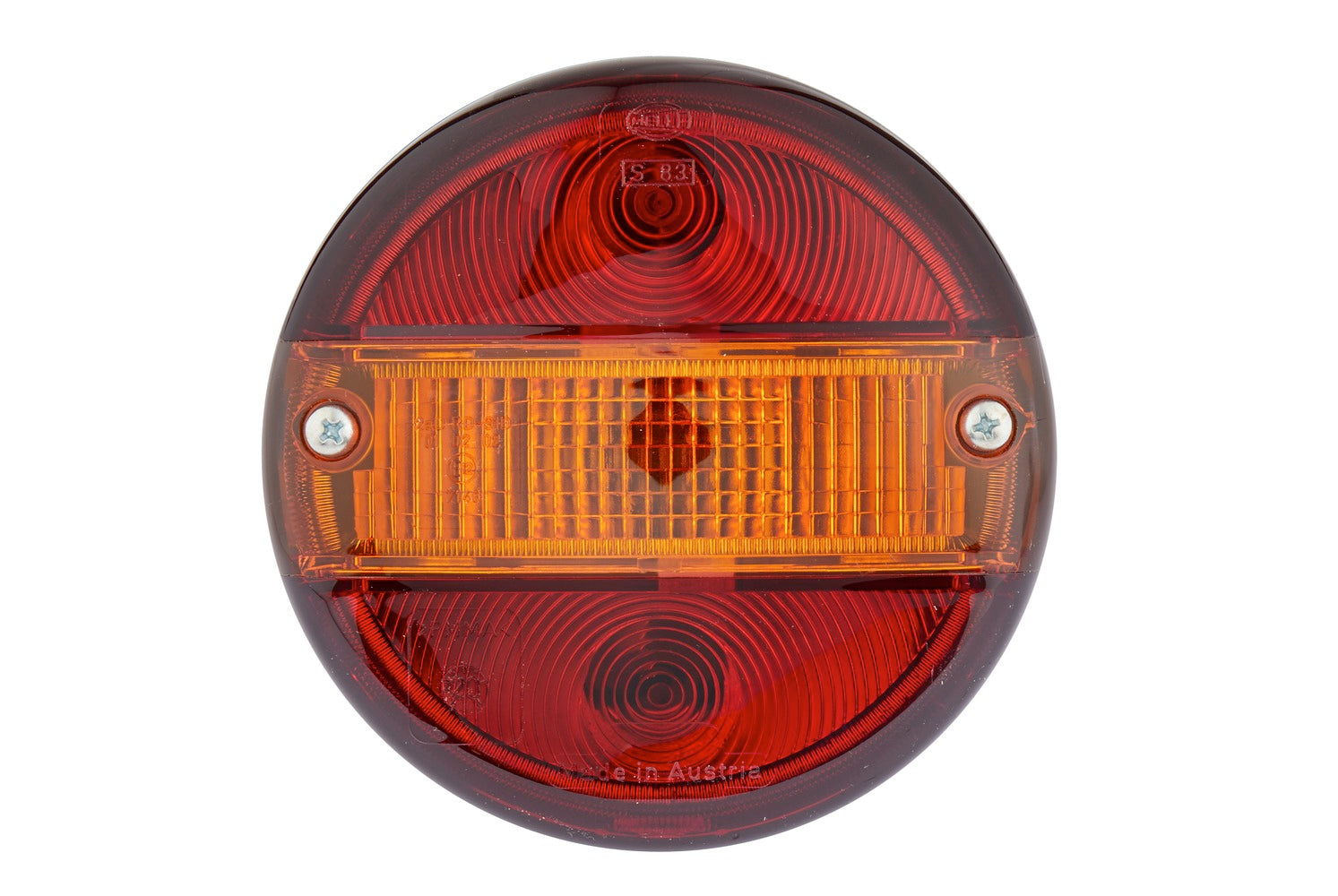

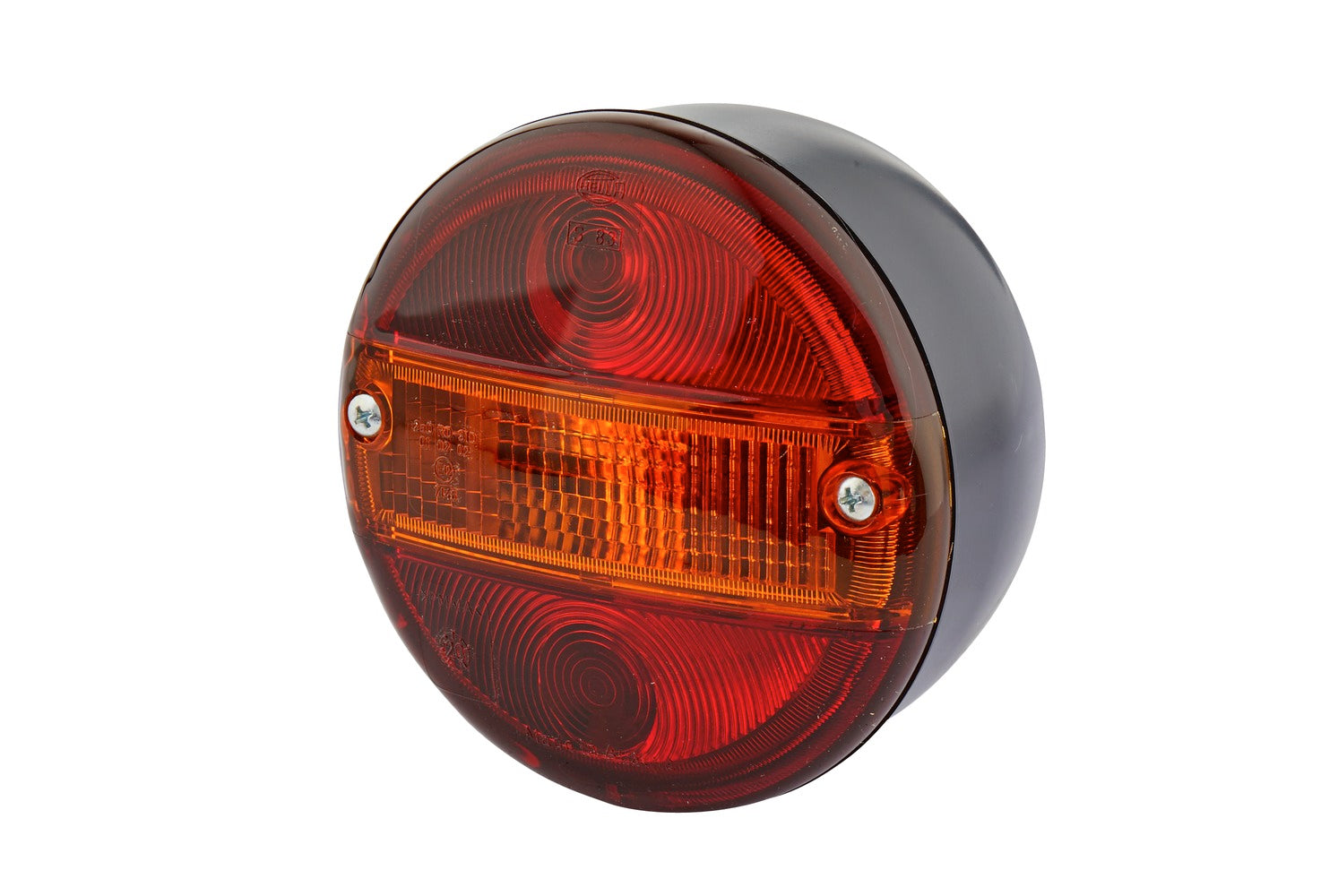

HELLA Rearlight - Bulb - 12/24V 2SD001685-211

Rearlight - Bulb - 12/24V - Bolted/mounting - ECE/ADR/GGVS - Lens Colour: red/yellow - Plug: Blade Terminal - left/right - Quantity: 1

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

• Tail-stop-indicator light Ø 140 mm for horizontal mounting on towing vehicles and trailers (left / right) - with ECE approval, ADR/GGVS-tested, E-type approved
• The combination rearlight has 3 light functions: Brake light / Tail light / Indicator light
• Lamp type: P21W/R5W, without bulbs, without vibration damping, with grommet, tail light and brake light red, indicator light yellow, housing made of black plastic, 2 fixing screws M6
• Length: 140mm - Height: 80mm - Lamp Type: P21W/R5W - without bulbs/with bolts/screws/without indicator failure control
• Light functions: 3 - with indicator/with stop light/with taillight
• Registration Type: ECE/ADR/GGVS - Prot.type (IP Code): IP5K4K
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Red/Yellow

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Fitting Position: left / right
Lamp Type: P21W / R5W
Light Function: with stop light / with indicator / with taillight
Light Design: Bulb
Voltage: 24 V / 12 V
Length: 140 mm
Height: 80 mm
Plug: Blade Terminal
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: red/yellow
Prot.type (IP Code): IP5K4K
Quantity: 1
Light functions: 3
SVHC: 80-05-7; 4,4-isopropylidenediphenol
Registration Type: ECE / ADR/GGVS
Supplementary Article/Supplementary Info 2: without bulbs / with bolts/screws / without indicator failure control
Assembly by qualified personnel required!

OE references: AEBI 97702634; AHLMANN 4160513A; ALEXANDER DENNIS DP012166; ATLAS COPCO 0337846; BUCHER 7653-3220; CARNEHL 5254; DAF 563048; DEMAG 641987; DOLL 8176131; FAYMONVILLE 3360; FELDBINDER 004918; FIAT 42024987; FRUEHAUF L-SX0435-888; GOLDHOFER 152626; HOLMER 1020000350; HYDREMA 10001450; HYUNDAI 21EK-10180; HYUNDAI (CNJ) 21EK-10180; IVECO 3416722; IVECO 41200526; IVECO 42024987; JOHN DEERE 16 51 4023; KÖGEL 77896; KOMATSU X 842 070 990 002; KOMATSU X 860 400 050 250; KOMATSU X 880 000 922 244; KRONE 5802071; KRONE 5802071/0; LIEBHERR 6 071 065 01; MAFI 000,580,0500; MAN 90.81615-9135; MANITOU 4160513A; MASSEY FERGUSON 56091; MERCEDES-BENZ 001 544 63 03; MERCEDES-BENZ A 001 544 63 03; O&K 0718942; O&K 4158831; OPEL V27600050; PUTZMEISTER 235733003; REISCH 5002586; ROSENBAUER 022345; SCANIA 1934225; SCANIA 20223824; SCHMITZ CARGOBULL 060516; SCHWARZMÜLLER 2749; SOMMER 2800036001; SPIERINGS 402131; TEREX 0337846; TEREX 641987; VÖGELE 3515160139; WIELTON M0703020216
