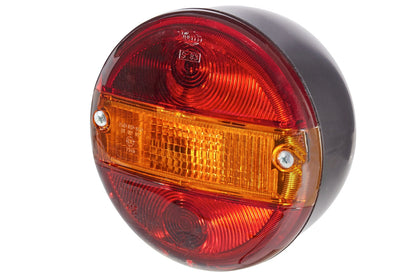

HELLA Rearlight - Bulb - 12/24V 2SD001685-231

Rearlight - Bulb - 12/24V - Bolted/mounting - ECE/no SAE/ADR/GGVS - Lens Colour: red/yellow - Plug: Blade Terminal - left/right - Quantity: 1

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

• Tail-stop-indicator Ø 140 mm for horizontal surface-mounting (left / right) - with ECE approval, ADR/GGVS-tested, E-type approved
• The combination rearlight has 3 light functions: Brake light / Tail light / Indicator light
• Lamp type: P21W/R5W, without bulbs, with vibration damping and grommet, tail light and brake light red, indicator light yellow, housing made of black plastic, 2 fixing screws M6
• Length: 140mm - Height: 80mm - Lamp Type: P21W/R5W - without bulbs/with bolts/screws/Electromagnetic Compatibility (EMC)/without indicator failure control
• Light functions: 3 - with indicator/with stop light/with taillight
• Registration Type: ECE/no SAE/ADR/GGVS - Prot.type (IP Code): IP5K4K
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Red/Yellow

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Fitting Position: left / right
Lamp Type: R5W / P21W
Light Function: with indicator / with stop light / with taillight
Light Design: Bulb
Voltage: 12 V / 24 V
Length: 140 mm
Height: 80 mm
Plug: Blade Terminal
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: red/yellow
Prot.type (IP Code): IP5K4K
Quantity: 1
Light functions: 3
SVHC: 7439-92-1; Lead
Registration Type: no SAE / ECE / ADR/GGVS
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC) / with bolts/screws / without indicator failure control / without bulbs
Assembly by qualified personnel required!

OE references: AEBI 12-97702634; AHLMANN 1229007; ALEXANDER DENNIS DP012260; ASTRA 60230006; BROSHUIS 35185253; BUCHER 46/155; BUCHER EV00102; CARNEHL 13736; CASE IH 4158-831; CATERPILLAR 211-9862; CATERPILLAR 415-8831; CATERPILLAR 653-1869; DAF 1283167; DOLL 7100452; DOLL 8176128; FAUN 4158-831; FIAT 99446125; FRUEHAUF L-SX0161-001; HITACHI E4803218; HÜFFERMANN 2-EL0001-6000; IVECO 99446125; KAMAG 75078; KAMAG 80075078; KÄSSBOHRER 7-526-136-000; KEMPF 20942; KEMPF 4001005; KÖGEL 6603082; KÖGEL 75076; KÖGEL 75078; KÖGEL 80075078; KRAMER 56361; KRONE 0944977/0; KRONE 500944977; KRONE 505336610; KRONE 5327089/0; KRONE 5327282/0; KRONE 5327283/0; KRONE 5327355/0; KRONE 5336610/0; LANGENDORF 1084088; LIEBHERR 6 071 314 08; LIEBHERR 6 931 489 14; MAN 81.25225-6402; MASSEY FERGUSON 56091; NÄRKO 2172100400; NOOTEBOOM 0225401; O&K 4158831; PACTON 181506; RENDERS 30000130; RENDERS 99700121; SCANIA 1906707; SCANIA 2164194; SCHMITZ CARGOBULL 060516; SCHMITZ CARGOBULL 740021; SCHMITZ CARGOBULL ELO007-0073; SCHMITZ CARGOBULL ELO007-0074; SCHMITZ CARGOBULL ELO007-0081; SCHMITZ CARGOBULL ELO007-0083; SCHMITZ CARGOBULL S060516; SENNEBOGEN 002759; SISU 187-301-0187; SISU 187-301-0287; TEREX 5350658376; VAN HOOL 660739902; VOLVO 4803218
