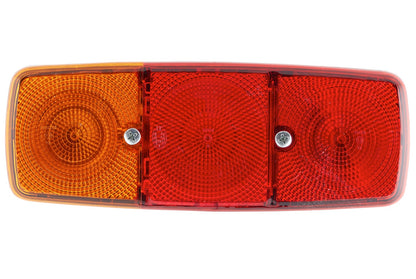

HELLA Rearlight - Bulb - 12/24V 2SD001699-511

Rearlight - Bulb - 12/24V - mounting/Bolted - ECE/ADR/GGVS - Lens Colour: Red/Yellow - Plug: Blade Terminal - left - Quantity: 1

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

• Tail-stop-indicator lamp for horizontal surface-mounting (left) - with ECE approval, ADR/GGVS-tested
• The combination rearlight has 3 light functions: Stop light / tail light / indicator - tail light and stop light red, indicator yellow

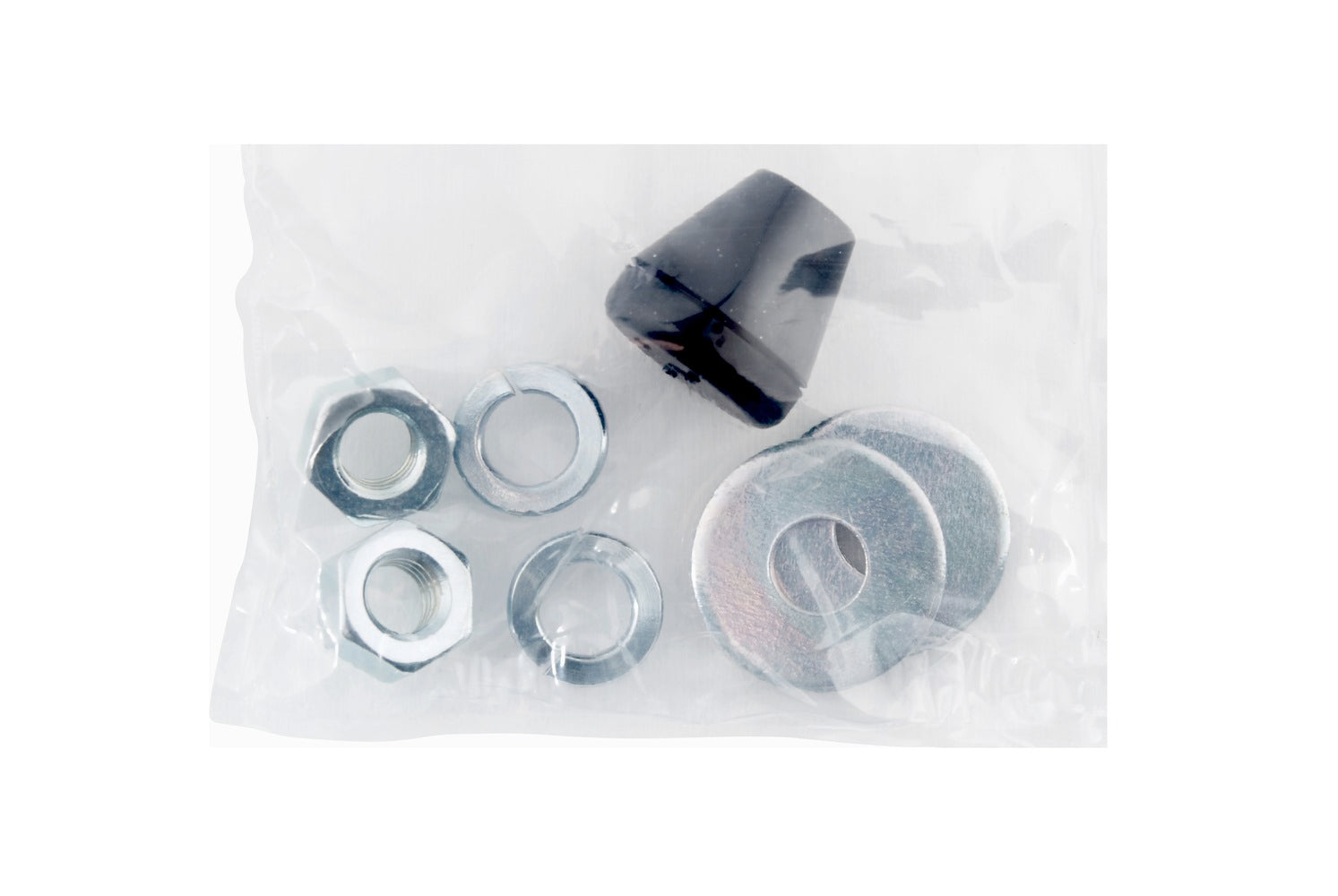

• Lamp type: P21W/R10W, without bulbs, with seal, lamp holder with vibration damping, housing made of black plastic, 2 fixing screws M8
• Length: 282mm - Width: 105mm - Height: 76mm - Lamp Type: P21W/R10W - without bulbs
• Light functions: 3 - with stop light/with indicator/with taillight
• Registration Type: ECE/ADR/GGVS
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Red/Yellow

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Light Design: Bulb
Lamp Type: R10W / P21W
Voltage: 24 V / 12 V
Fitting Position: left
Height: 76 mm
Width: 105 mm
Length: 282 mm
Light Function: with indicator / with stop light / with taillight
Light functions: 3
Plug: Blade Terminal
Registration Type: ECE / ADR/GGVS
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: red/yellow
Tightening Torque: 0.5 Nm
Supplementary Article/Supplementary Info 2: without bulbs
Quantity: 1
paired article number: 2SD 001 699-061
Assembly by qualified personnel required!

OE references: CASE IH 8412672; DAF 1427054; FELDBINDER 011287; JOHN DEERE 14 13 0022; KAMAG 77894; KAMAG 80077894; KEMPF 20944; KEMPF 4001010; KÖGEL 77894; KRONE 0944017/0; LANGENDORF 1084097; LANGENDORF 27001-310501; LIEBHERR 6 201 493; MAFI 000,580,0579; MASSEY FERGUSON 56068; MERCEDES-BENZ 000 544 99 03; MERCEDES-BENZ 001 544 05 03; MERCEDES-BENZ 001 544 46 03; MERCEDES-BENZ A 000 544 99 03; MERCEDES-BENZ A 001 544 05 03; MERCEDES-BENZ A 001 544 46 03; O&K 8412672; OPEL PRK000607; ROSENBAUER 044792; SCHMITZ CARGOBULL 06 05 63; SCHWARZMÜLLER 8742
