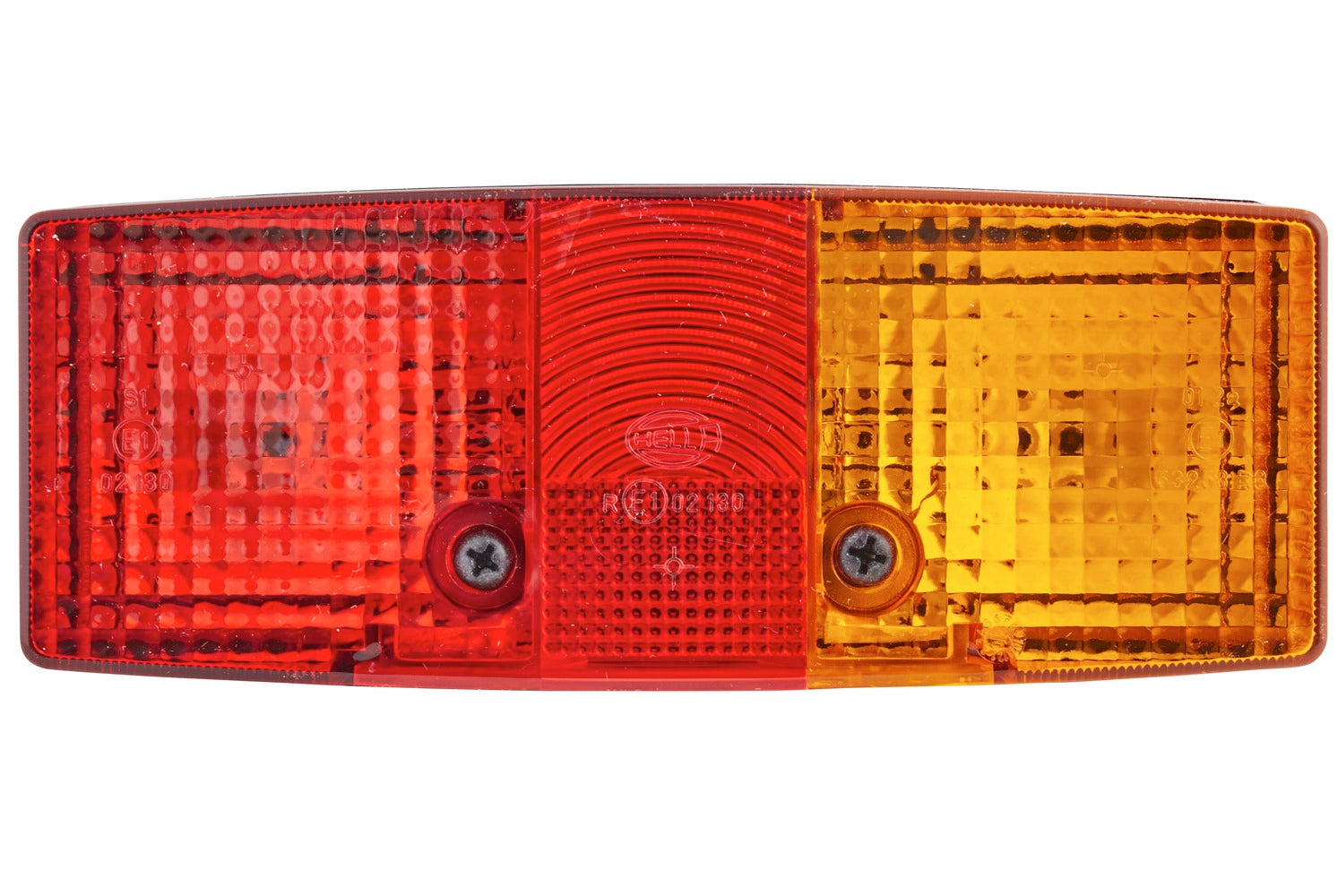

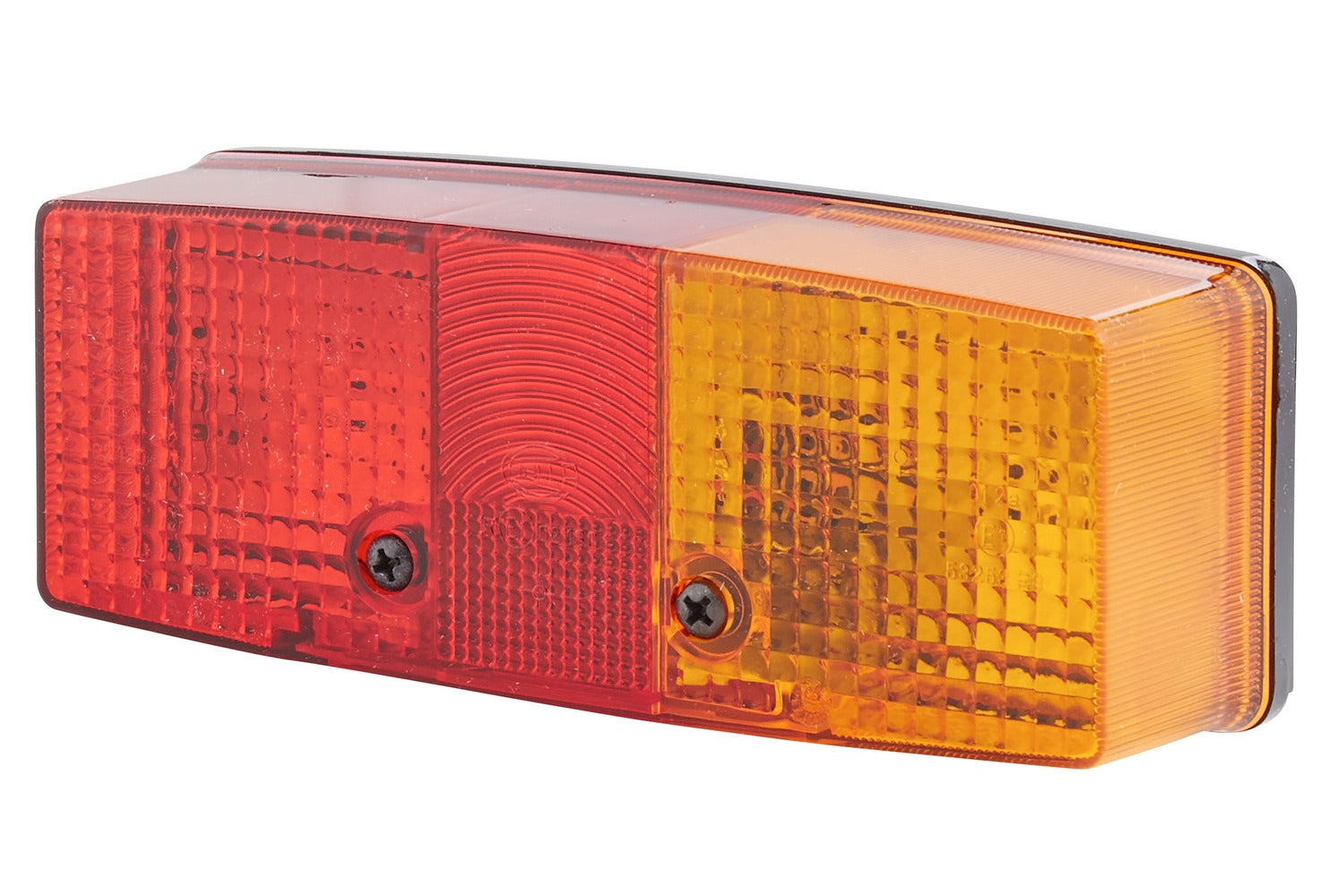

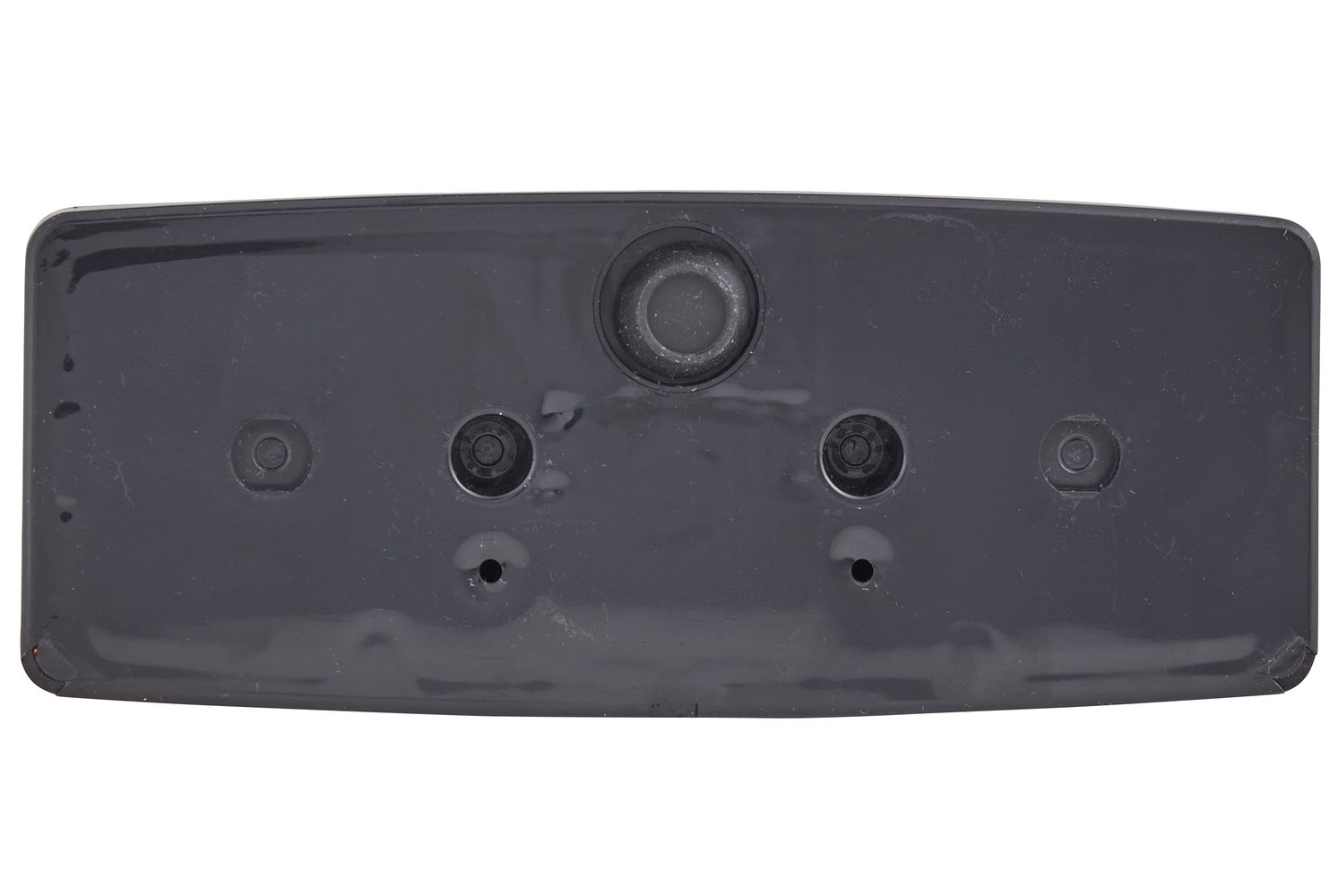

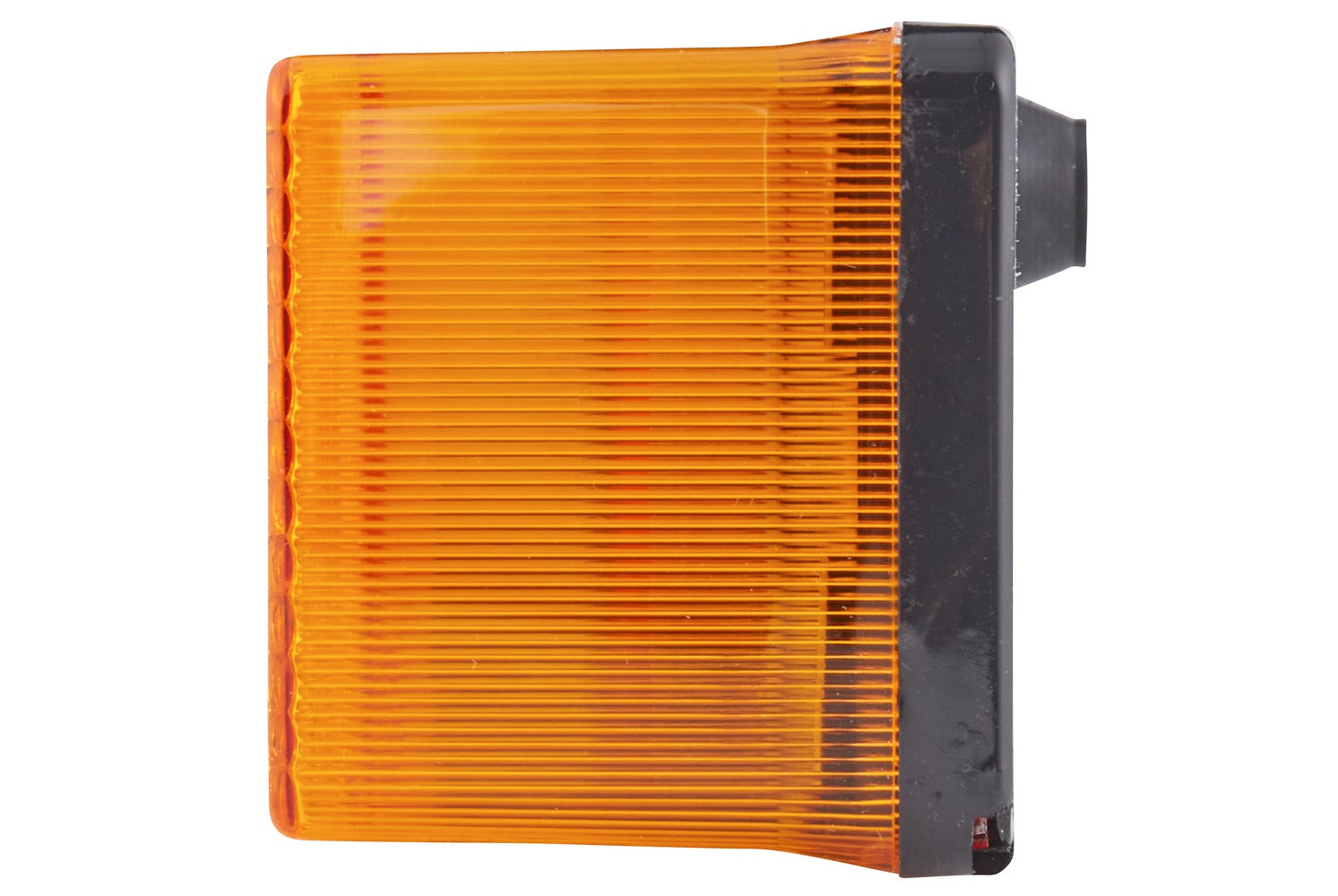

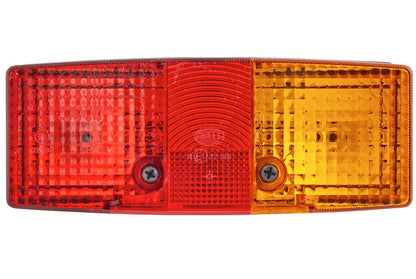

HELLA Rearlight - Bulb - 12/24V 2SE003184-101

Rearlight - Bulb - 12/24V - mounting/Bolted - ECE - Lens Colour: Red/Yellow/White - Plug: Blade Terminal - right - Quantity: 1

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

• Tail-brake indicator lamp for horizontal surface-mounting (right) for licence plates 340 x 240 mm - with ECE approval
• The combination rearlight has 4 light functions: Stop light / tail light / indicator light / number plate light - tail light and stop light red, indicator light yellow, number plate light crystal clear

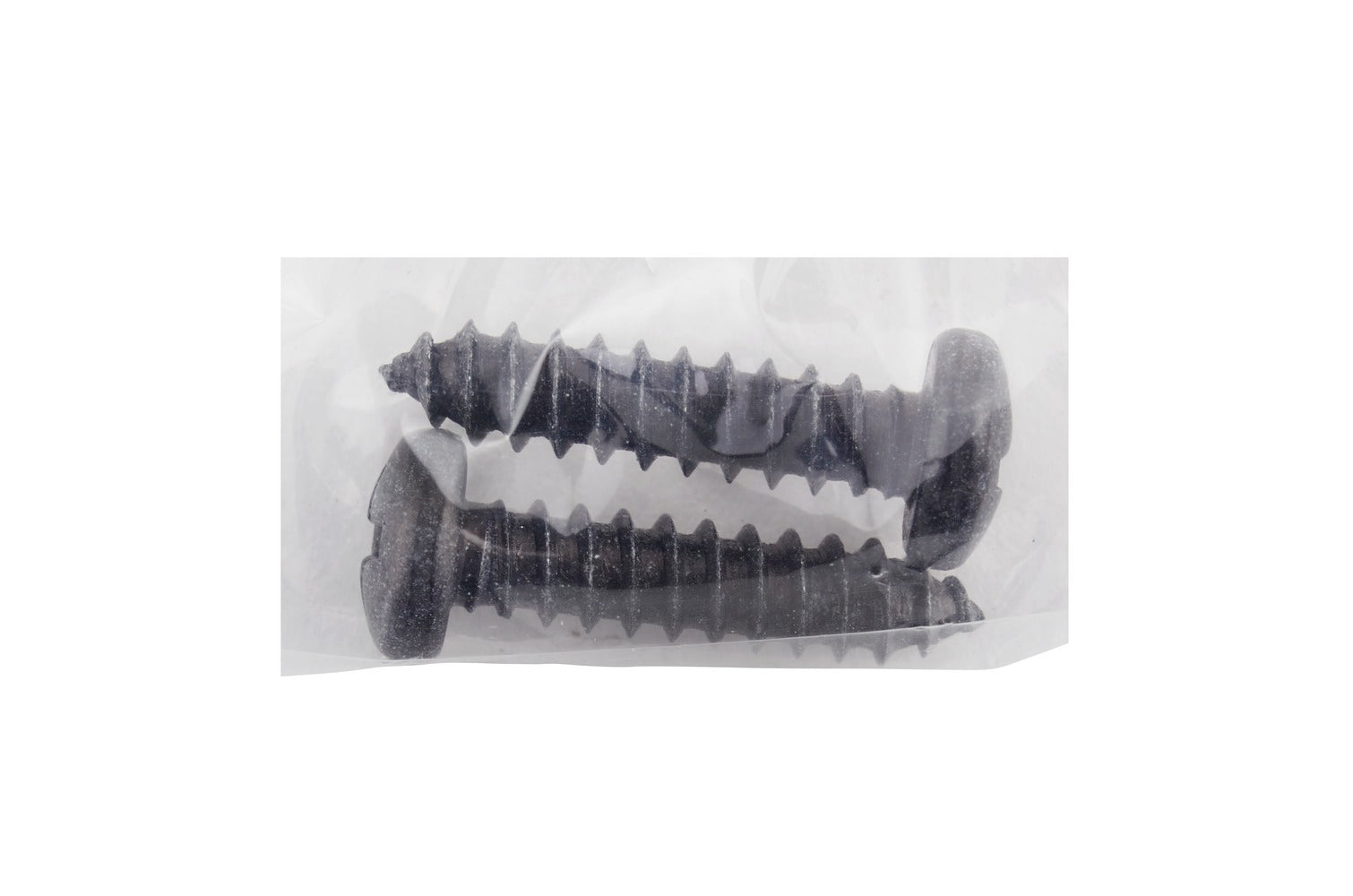

• Lamp type: P21W/R10W, without bulbs, with grommet, 2 fixing screws B3.9 x 16
• Length: 158mm - Width: 64mm - Height: 51mm - Lamp Type: R10W/P21W - without bulbs
• Light functions: 4 - with stop light/with indicator/with licence plate light/with taillight
• Registration Type: ECE
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Red/Yellow/White

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Light Design: Bulb
Lamp Type: P21W / R10W
Voltage: 24 V / 12 V
Fitting Position: right
Height: 51 mm
Width: 64 mm
Length: 158 mm
Light Function: with indicator / with taillight / with licence plate light / with stop light
Light functions: 4
Plug: Blade Terminal
Registration Type: ECE
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: red/yellow / white
Tightening Torque: 1.5 Nm
Supplementary Article/Supplementary Info 2: without bulbs
Quantity: 1
Assembly by qualified personnel required!

OE references: AEBI 18-3410776; KOMATSU 326-06-13760; KOMATSU 362-06-13760; STILL 534115
