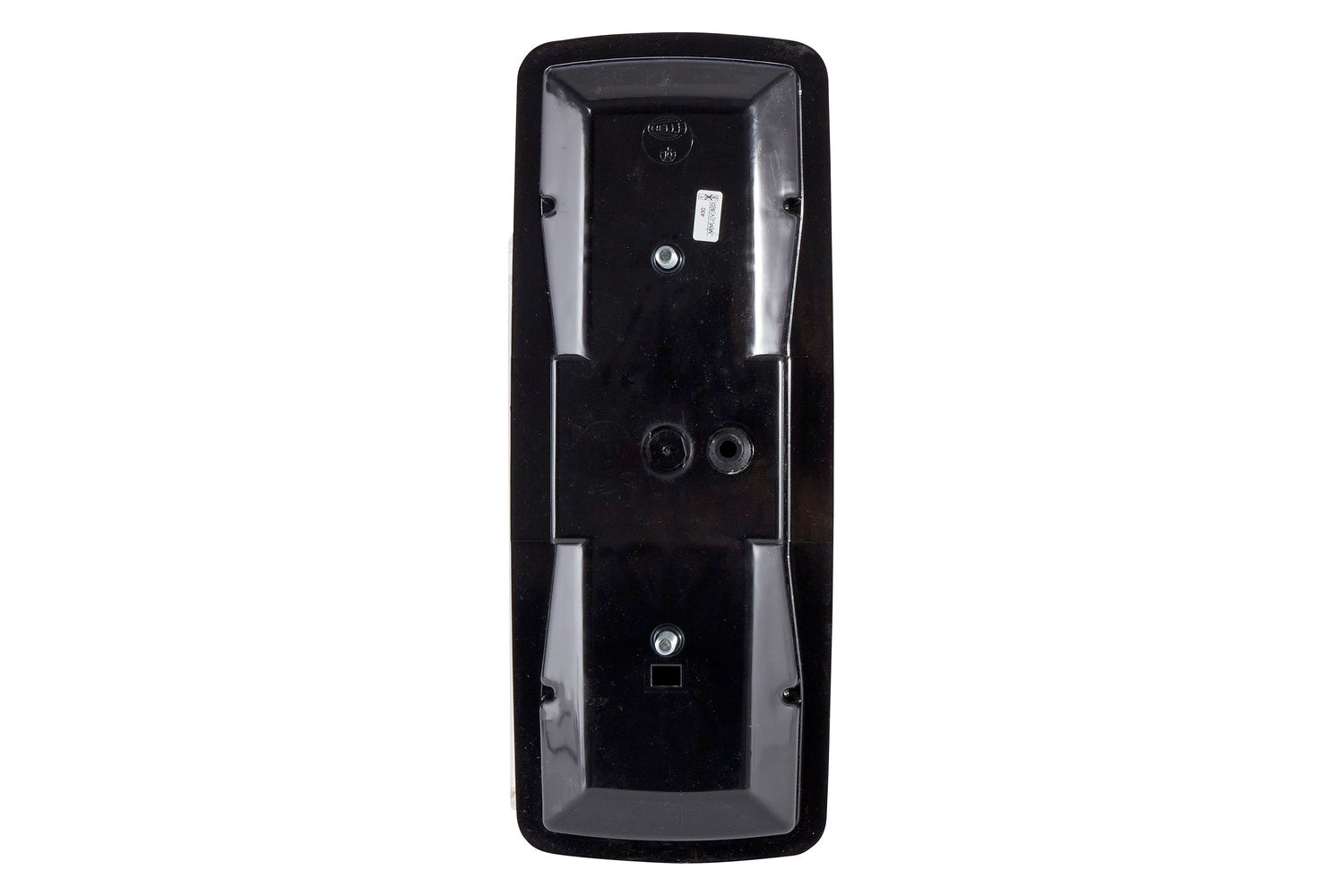

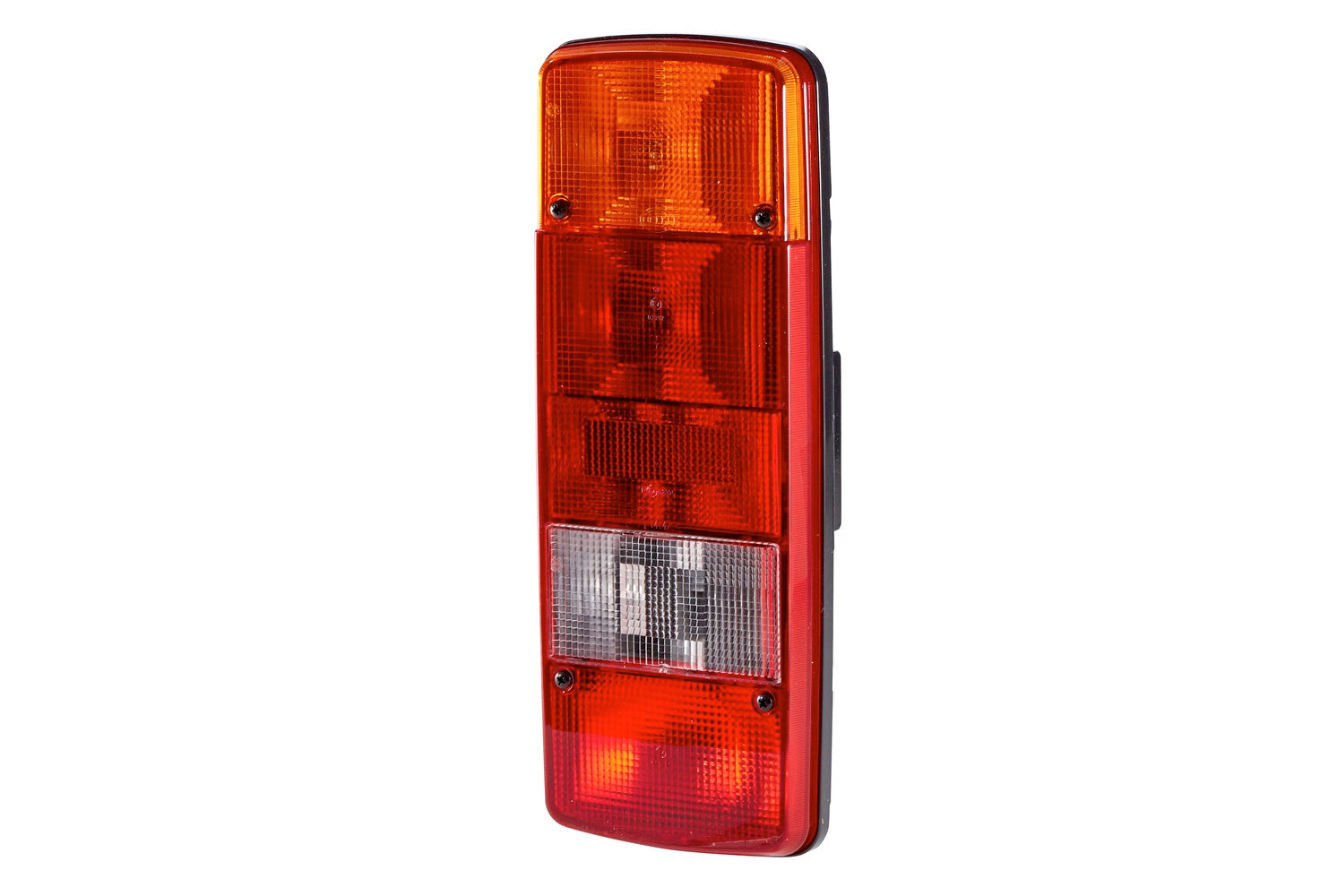

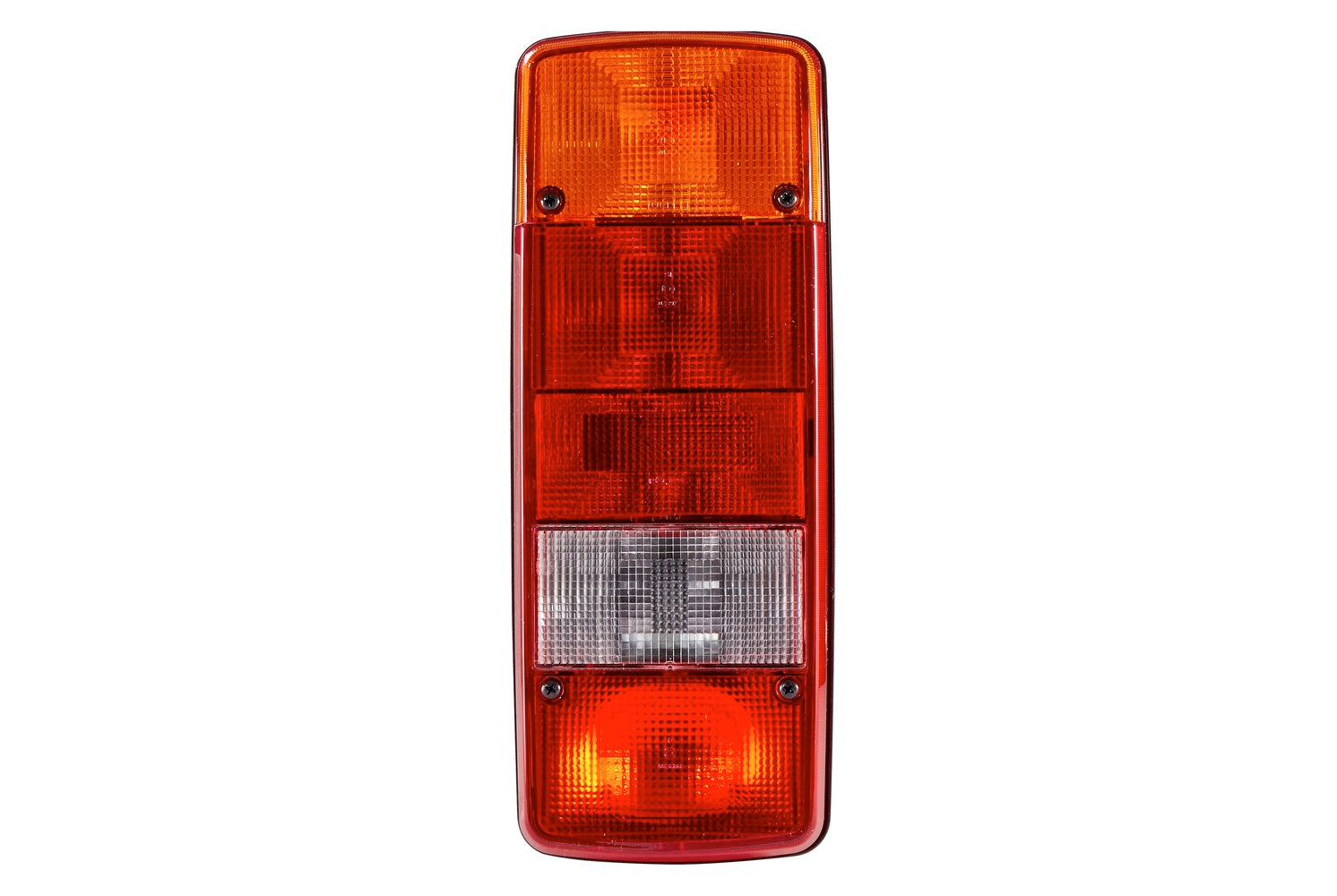

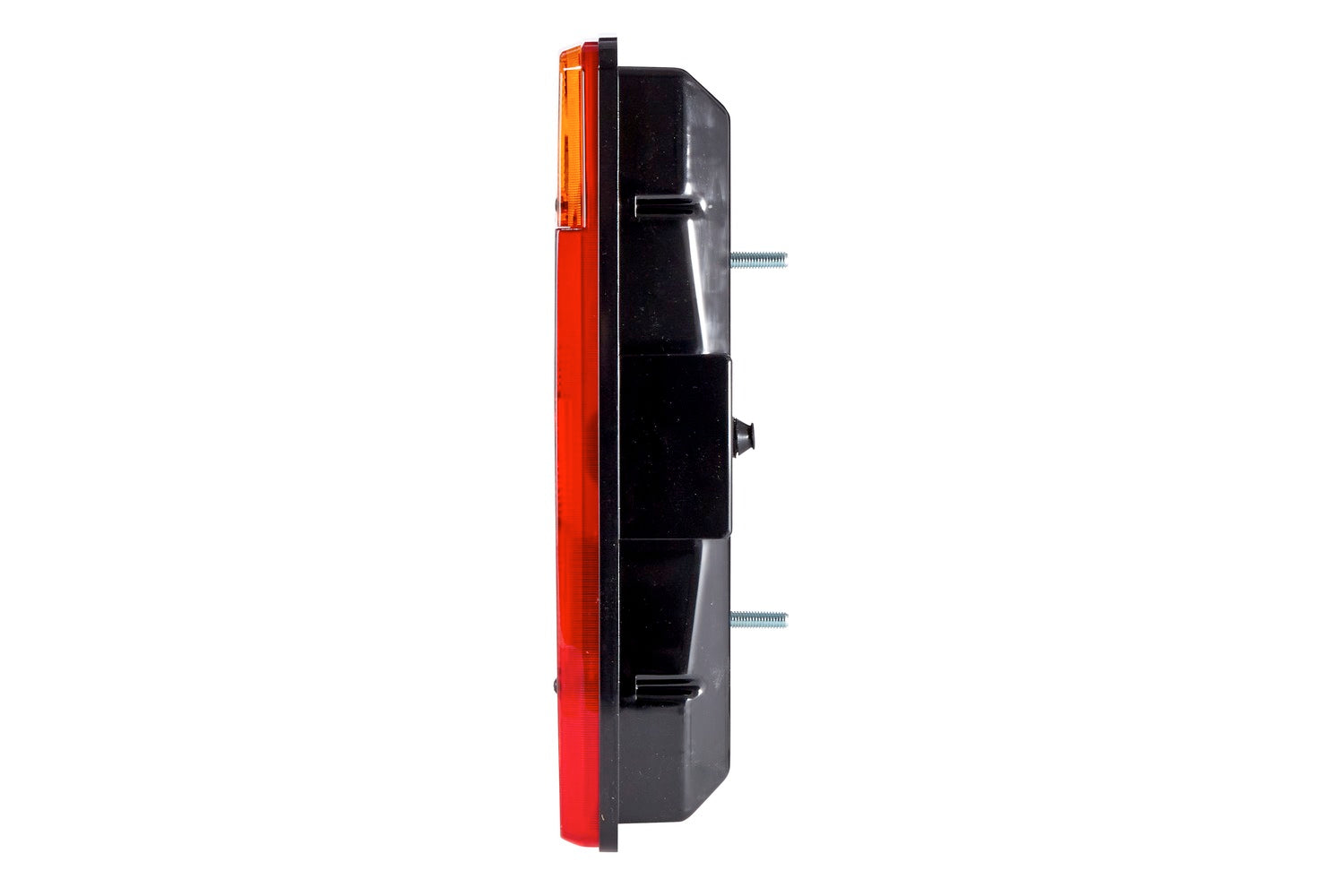

HELLA Rearlight - Bulb - 12/24V 2SK003567-661

Rearlight - Bulb - 12/24V - Fitting/Bolted - ADR/GGVS/no SAE/ECE - Lens Colour: Multi-coloured - Plug: Screw Contact - right - Quantity: 1

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

• Tail-stop-indicator-reversing lamp, with double bulb fitting in the tail light field for horizontal or vertical mounting on trailers (right) - with ECE approval, ADR/GGVS-tested
• The combination rearlight has 5 light functions: Brake / tail / indicator / rear fog / reversing light - tail, brake and rear fog light red, indicator yellow, reversing light white
• Lamp type: P21W/R10W, without bulbs, black plastic housing, 2 fixing screws M8
• Length: 343mm - Width: 133mm - Height: 75mm - Lamp Type: R10W/P21W - without bulbs
• Light functions: 5 - with stop light/with reverse light/with taillight/with indicator/with rear fog light
• Registration Type: ADR/GGVS/no SAE/ECE - Prot.type (IP Code): IPX9K/IPX4K
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Multi-coloured

Item Attributes:
Mounting Type: Fitting / Bolted
Fastening Type: for horizontal fastening / for vertical fastening
Light Design: Bulb
Lamp Type: R10W / P21W
Voltage: 24 V / 12 V
Fitting Position: right
Height: 75 mm
Width: 133 mm
Length: 343 mm
Light Function: with reverse light / with taillight / with stop light / with rear fog light / with indicator
Light functions: 5
Plug: Screw Contact
Prot.type (IP Code): IPX4K / IPX9K
Registration Type: no SAE / ECE / ADR/GGVS
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: Multi-coloured
Tightening Torque: 1.2 Nm
Supplementary Article/Supplementary Info 2: without bulbs
paired article number: 2SK 003 567-651
Quantity: 1
Assembly by qualified personnel required!

OE references: AEBI 18-3410567; AGCO E400124; AUWÄRTER 11025089; AUWÄRTER 14022.000; AUWÄRTER 1502.205.00; BROSHUIS 35188429; DAF 1487290; FAYMONVILLE 2713; FELDBINDER 011468; FENDT E400124; KÄSSBOHRER 8.933.741.204; KEMPF 35295; KÖGEL 323910; LANGENDORF 1084117; MAN 150220500; MAN N1.011025089; NEOPLAN 1102 508 9; NEOPLAN 1502.205.00; NEOPLAN N1.01102-5089; NOOTEBOOM 0225426; PACTON 183193; SCANIA 1906713; SCANIA 20223970; SCHMITZ CARGOBULL 062375; SOMMER 2800040006; SPIERINGS 402423; VAN HOOL 10525539; VDL 10525539; VDL 30061083; WEIRO 10371; ZIEGLER 173136
