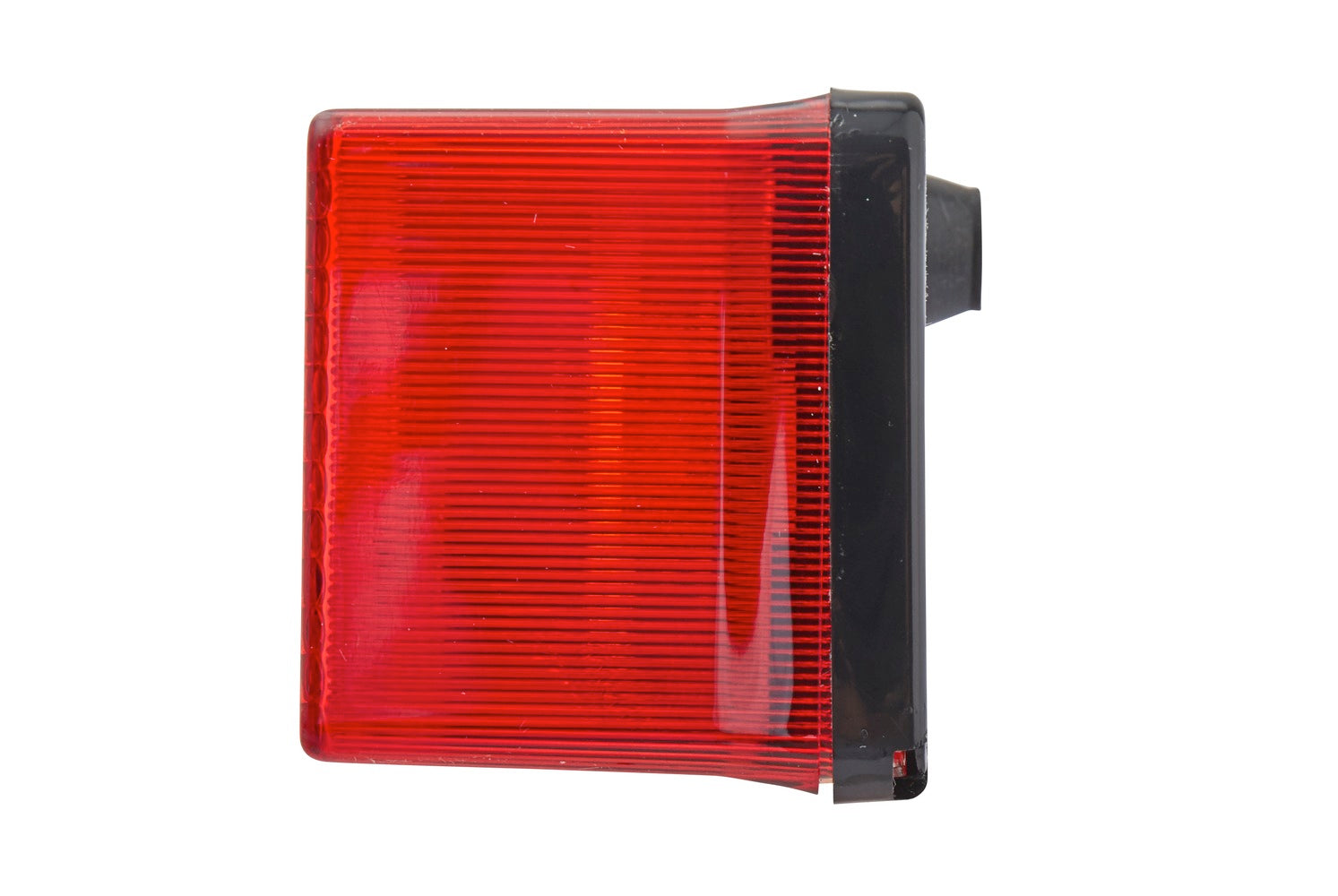

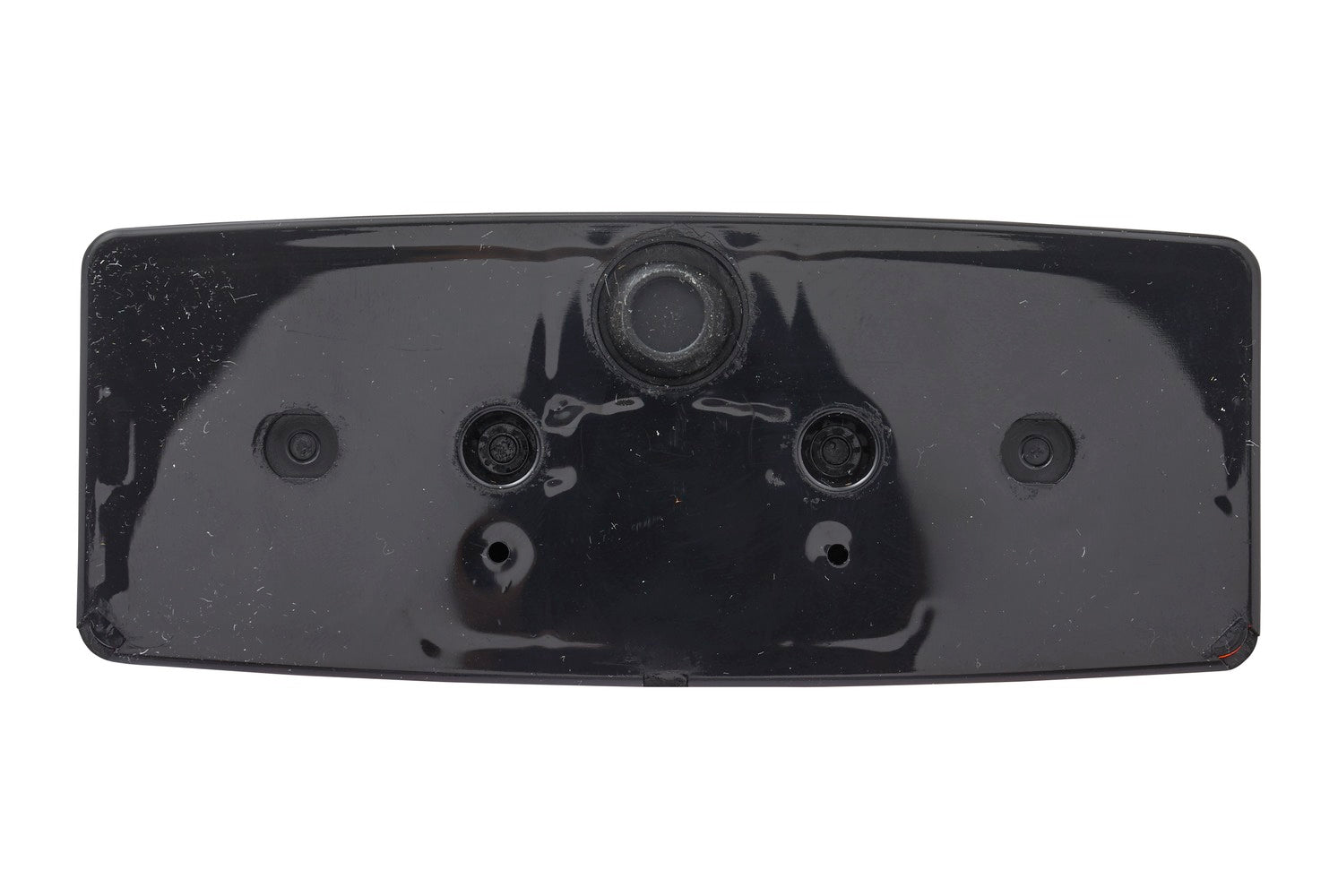

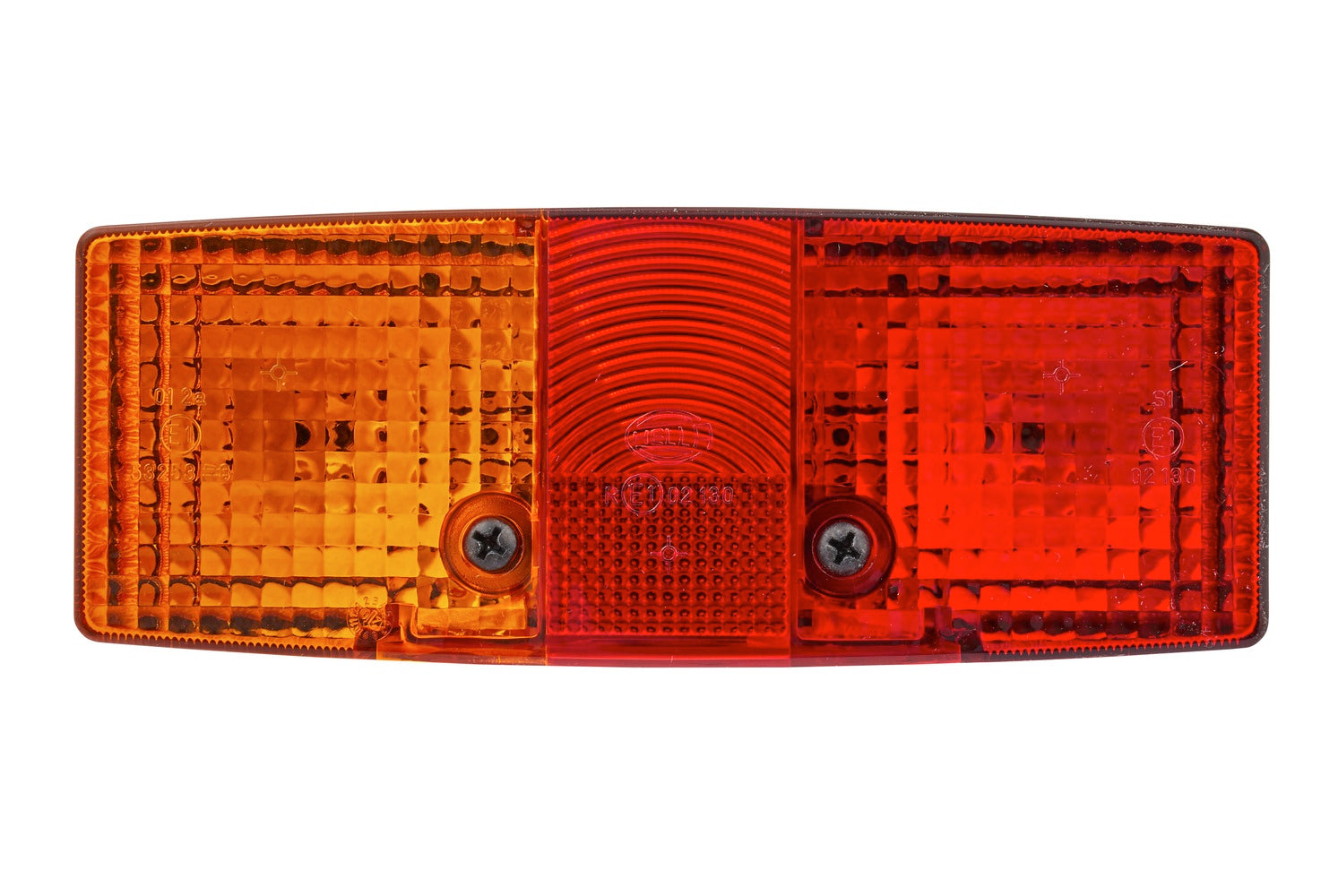

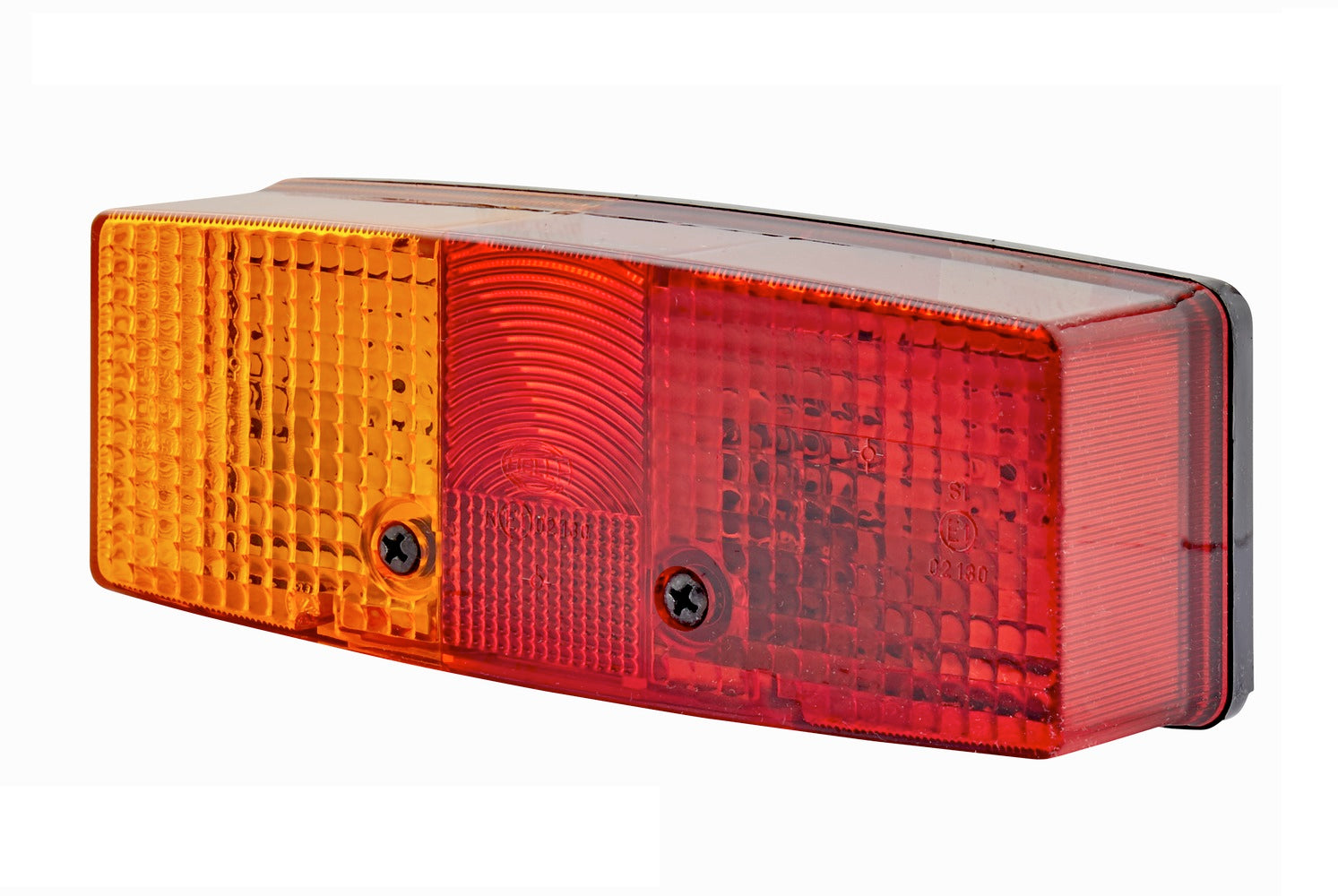

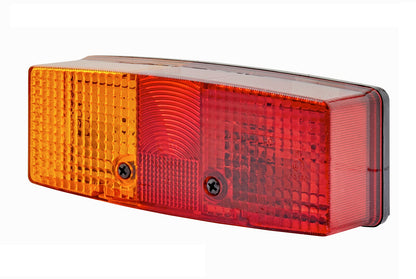

HELLA Rearlight - Bulb - 24/12V 2SD003184-031

Rearlight - Bulb - 24/12V - mounting/Bolted - ECE - Lens Colour: Red/Yellow - Plug: Blade Terminal - left - Quantity: 1

HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals - which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.

• Tail-stop-indicator lamp for horizontal surface-mounting (left) - with ECE approval, E-type approved
• The combination rearlight has 3 light functions: Brake light / Tail light / Indicator light
• Lamp type: P21W/R10W, without bulbs, without gasket, with grommet, tail light and brake light red, indicator light yellow, 2 fixing screws B3,9 x 16, black plastic housing
• Length: 158mm - Width: 64mm - Height: 51mm - Lamp Type: P21W/R10W - without bulbs
• Light functions: 3 - with stop light/with indicator/with taillight
• Registration Type: ECE
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Red/Yellow

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Light Design: Bulb
Lamp Type: P21W / R10W
Voltage: 24 V / 12 V
Fitting Position: left
Height: 51 mm
Width: 64 mm
Length: 158 mm
Light Function: with stop light / with indicator / with taillight
Light functions: 3
Plug: Blade Terminal
Registration Type: ECE
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: red/yellow
Tightening Torque: 1.5 Nm
Supplementary Article/Supplementary Info 2: without bulbs
Quantity: 1
Assembly by qualified personnel required!

OE references: AEBI 0230086-1; AGCO 72380712; AGCO X830 180 047 000; AGRIFAC 7700200; ATLAS COPCO 1678737; AUWÄRTER 11025270; AUWÄRTER 11025336; AUWÄRTER 1503.209.00; AUWÄRTER 1503.253.00; BOMAG 057 511 53; BUCHER 7.653-5307; CASE IH 1186781; CATERPILLAR 127-1560; DAF 867486; FAUN 5231-598; FELDBINDER 011291; FENDT 3 042 085 M2; FENDT 72380712; FENDT X 830 180 047; FENDT X 830 180 047 000; FENDT Y 252 702 4; FUCHS 440.11.43; GOLDHOFER 203267; HAKO 90-17808-8; HYDREMA 10831363; HYSTER 325531; ISEKI 1600-622-260-0; IVECO 5001840678; JOHN DEERE 50 51 69; JOHN DEERE AL 35 176; JOHN DEERE VPM3717; JUNGHEINRICH 05035379; JUNGHEINRICH 0830495; JUNGHEINRICH 28304950; JUNGHEINRICH 502040141; JUNGHEINRICH 50204141; KÄSSBOHRER 7.526.122.000; KÄSSBOHRER 7.526.122.000.0; KOMATSU B 969 071 282 008; KOMATSU Y252 702 4; KOMATSU Y2527 024; KUBOTA TA04930060; KUBOTA TA04930073; KUBOTA TA049-30074; KUBOTA W252SD003184031; LANGENDORF 1084102; LANGENDORF 27001-310802; MAFI 000,580,0519; MAN 150320900; MAN 36.25225-6008; MAN N1.01102-5270; NEOPLAN 1102 527 0; NEOPLAN 1503.209.00; NEOPLAN 1503.253.00; NEOPLAN 36.25225-6008; NEOPLAN N1.01102-5270; O&K 1186781; PAUS 501258; ROSENBAUER M04407155; SCANIA 1912001; SCHMITZ CARGOBULL 060973; SCHMITZ CARGOBULL 1093; SOMMER 2801341001; STILL 526363; TEREX 1678737; VAN HOOL 10949210; VDL 10949210; VOLVO 5170045; VOLVO PJ5170045; ZIEGLER 132203
