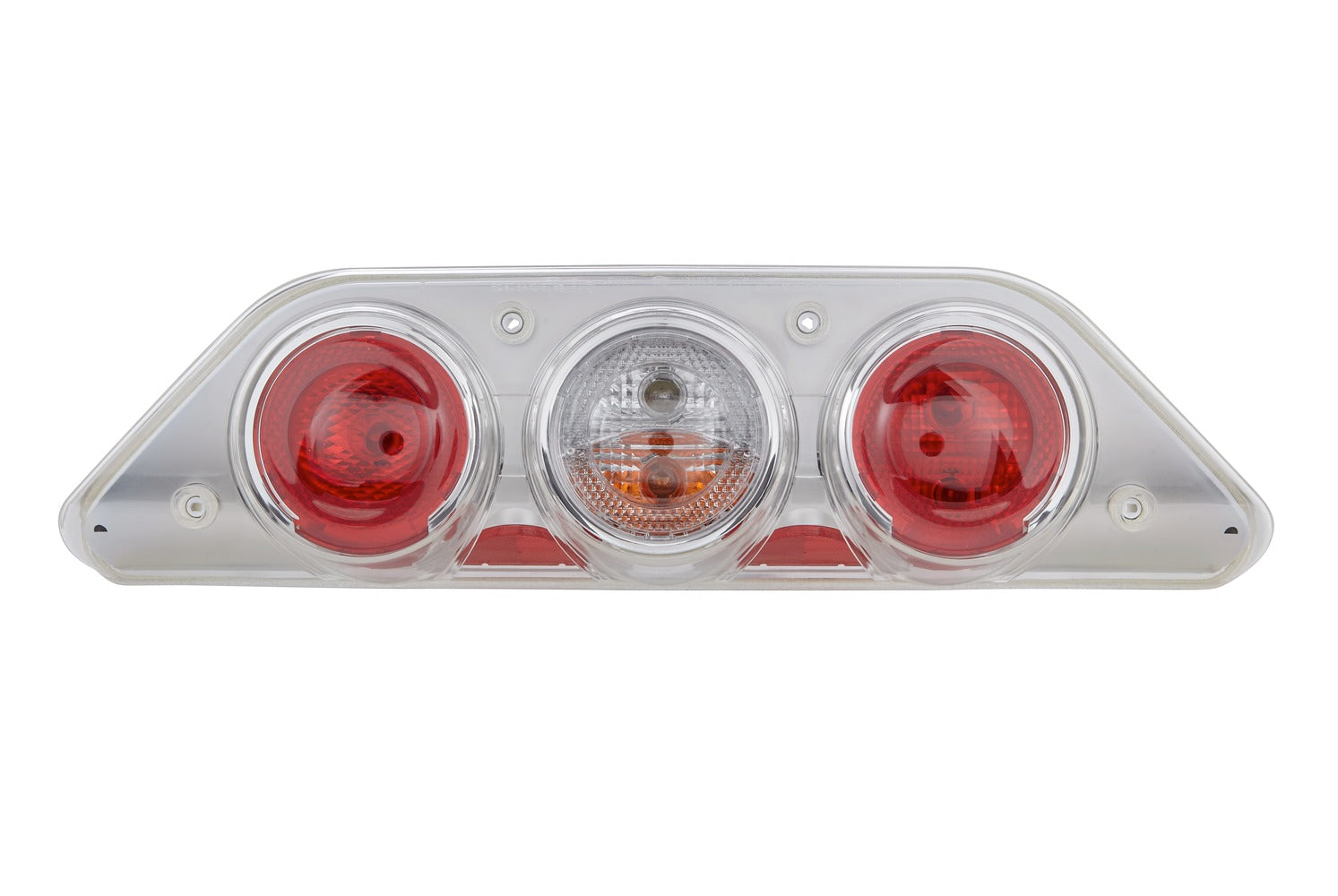

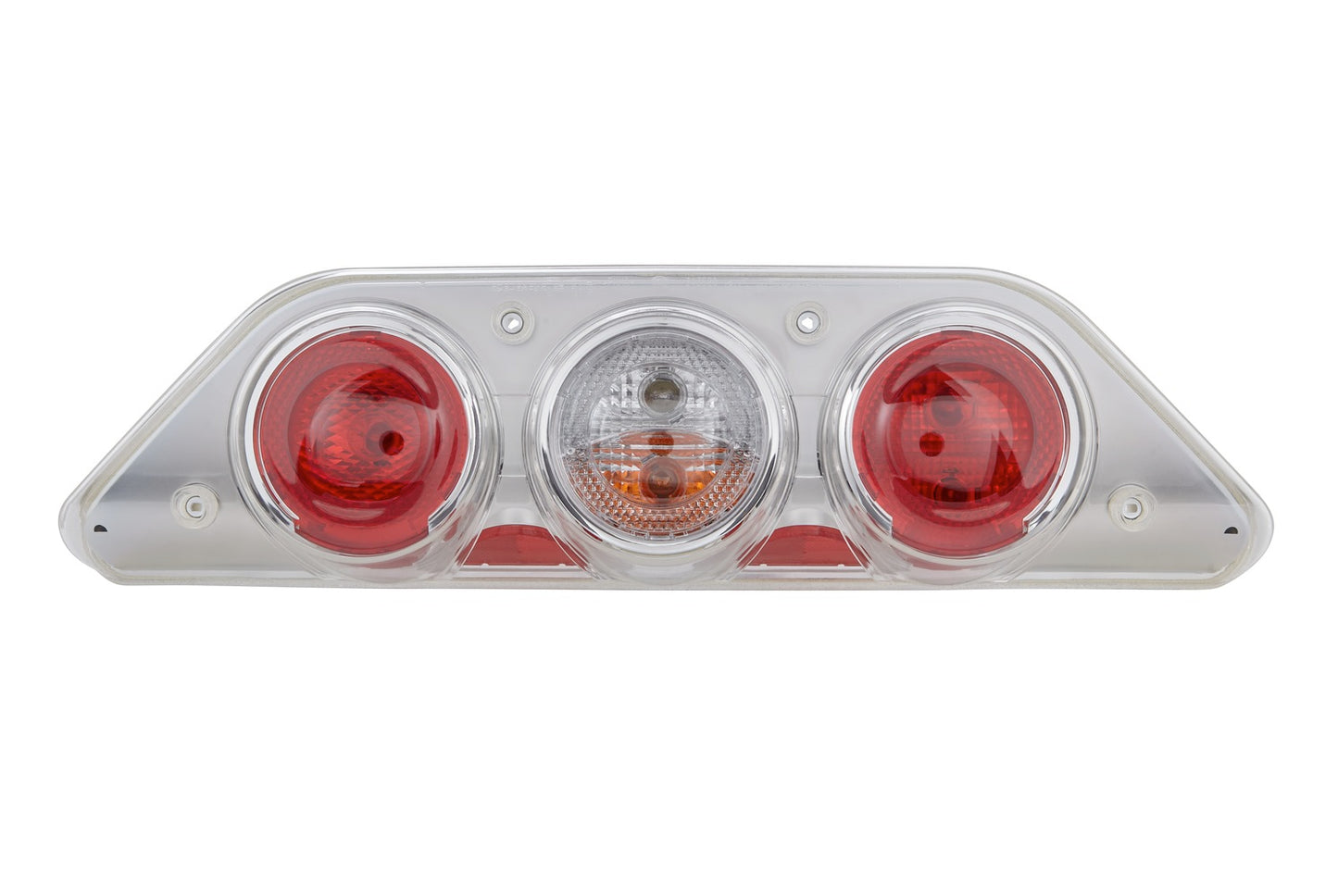

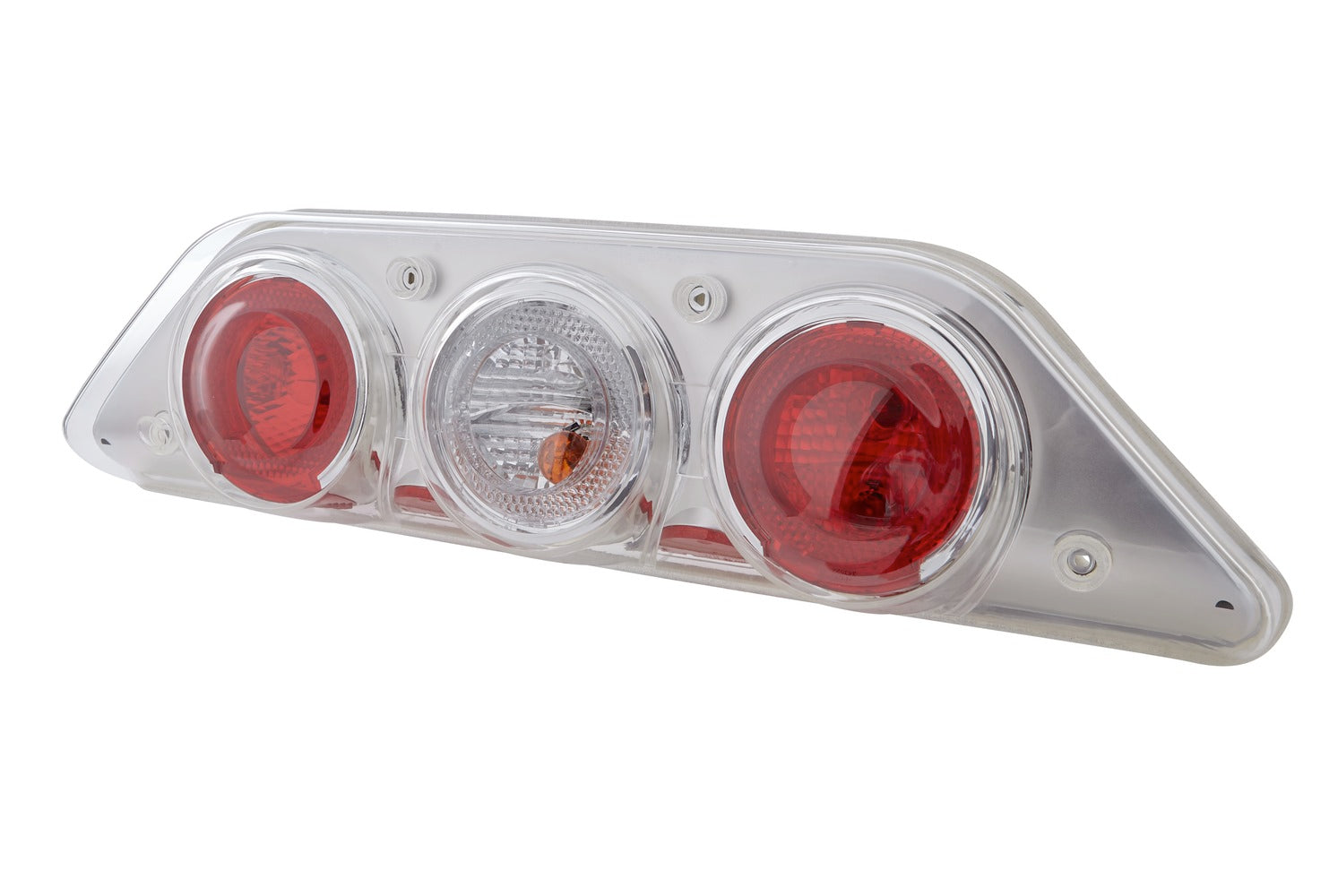

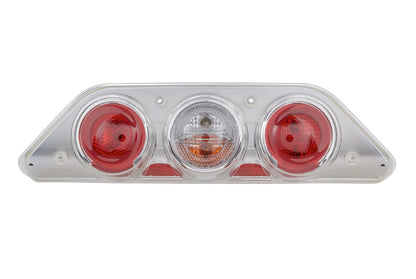

HELLA Rearlight - Caraluna Modular - Bulb - 12V 2VP343520-061

Rearlight - Caraluna Modular - Bulb - 12V - Bolted/mounting - ECE - Lens Colour: red/Crystal clear - Plug: Blade Terminal - right - Quantity: 1

Brilliant and high-grade styling: Requires clean processing within the light, since reflector and high-sheen housing surface are visible. Design and set-up: The Caraluna Modular stands out thanks to its large design height, which makes it particularly suitable for use with motor homes and buses. The position of the reflectors can be freely chosen, achieving a mirror-symmetric set-up. Installation: Simple screw attachment from the rear of the vehicle. This makes time-optimized production flow possible and makes it easier for customers to replace bulbs. Seal to the vehicle: The high-quality all-round seal made of EPDM ensures permanent sealing to the vehicle. Integrated side marker functions: The integrated side marker light with side marker reflector reduces the number of components used in the assembly process.

• Brilliant and high quality styling
• The high-quality, circumferential seal made of EPDM ensures a permanent seal to the vehicle
• Simple bolting from the rear of the vehicle.
• The Caraluna Modular impresses with its high installation height and is particularly suitable for use in motorhomes and buses
• Length: 163mm - Width: 612mm - Height: 91mm - Lamp Type: P21W/R10W/PY21W - with bulbs
• Light functions: 7 - with indicator/with stop light/with rear fog light/with reverse light/with reflector/with taillight/with side marker light
• Registration Type: ECE

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for vertical fastening
Fitting Position: right
Lamp Type: PY21W / P21W / R10W
Light Function: with reverse light / with indicator / with reflector / with taillight / with rear fog light / with side marker light / with stop light
Light Design: Bulb
Voltage: 12 V
Length: 163 mm
Width: 612 mm
Height: 91 mm

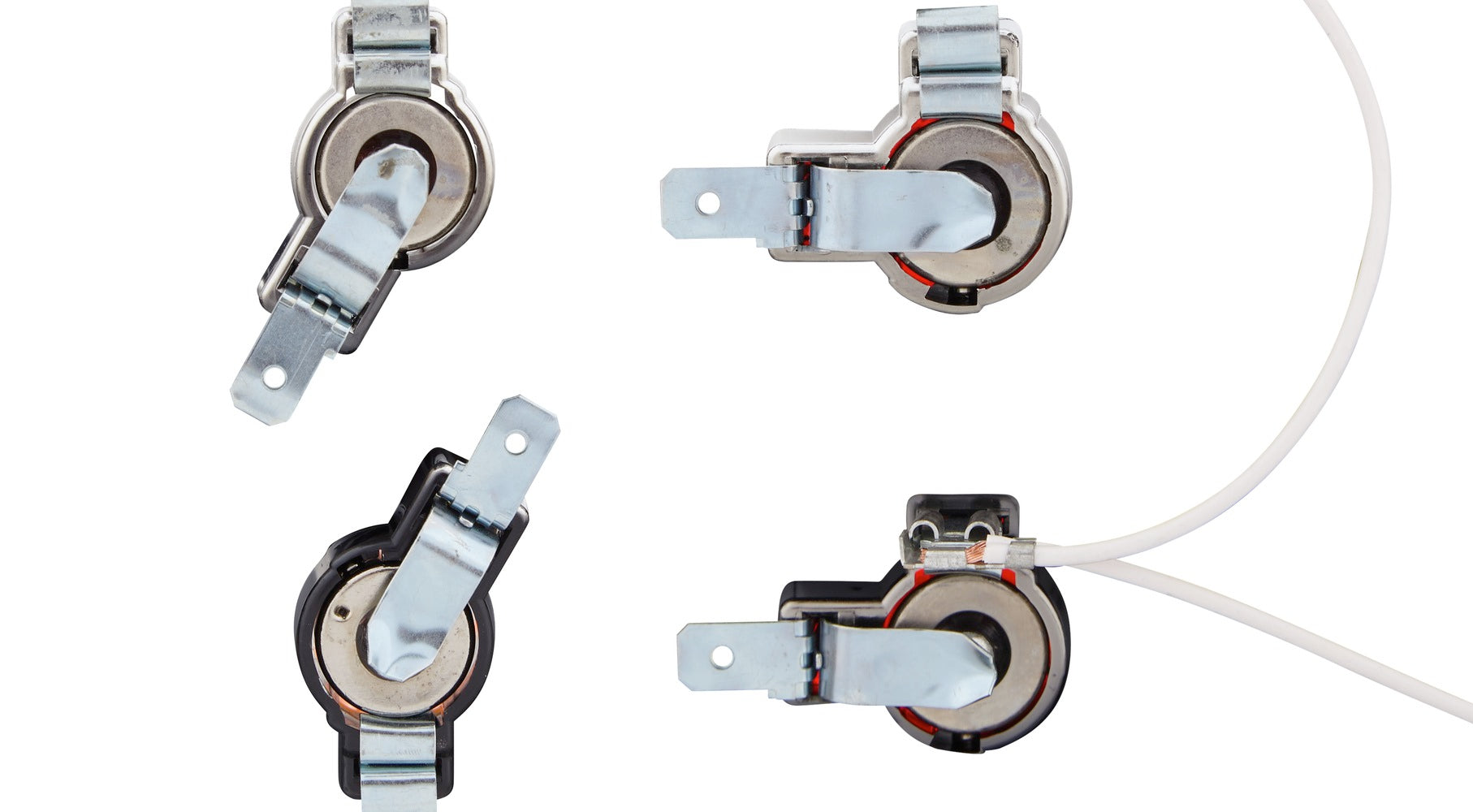

Plug: Blade Terminal
Housing Colour: black
Lens Colour: Crystal clear / red
Quantity: 1
Light functions: 7
SVHC: 7439-92-1; Lead
Registration Type: ECE
Supplementary Article/Supplementary Info 2: with bulbs
Assembly by qualified personnel required!

OE references: HYMER 0827356; HYMER 1778978; HYMER 9930703; HYMER 9980375; HYMER 9980375 VP=1
