HELLA Rearlight - Coluna - LED - 24V 2VP345900-221

Rearlight - Coluna - LED - 24V - mounting/Bolted - ECE/ADR/GGVS - Lens Colour: Crystal clear - Cable: 500mm - right/left - Quantity: 1

„COLUNA“ full LED combination rear lamp with 5 light functions for 12 V and 24 V towing vehicles and trailers. All light functions of the full LED combination rear lamp (tail light, stop light, direction indicator, rear fog lamp and backup lamp) exclusively feature LED technology. The tail light is produced by a ground-breaking patent-registered flat LED light guide in combination with the reflex reflector. And this light guide succeeds in producing illumination which is especially homogeneous. As a result, the tail light function, with its large surface area of around 145 cm², is exceptionally visible in the dark and thus enhances road safety. 12 V and 24 V variants of this extremely flat surface-mounted full LED light are available for towing vehicles and trailers. A range of different applications on the vehicle are possible using EasyConn or AMP connectors and the front or rear fixing options.

• Innovative wide-area LED light guide for the taillight function, combined with reflector
• Thanks to particularly homogeneous illumination, the taillight function is particularly well visible in the dark over a large area - for greater road safety
• The luminaire is characterised by a long service life, low life cycle costs and high robustness
• Tested to IP 6K9K, this luminaire is protected against the ingress of dust and water when permanently submerged. Consequently, it also withstands high-pressure cleaning
• Overvoltage protection ensures that the luminaire is not damaged even during voltage peaks according to ISO 7637
• Length: 300mm - Width: 130mm - Height: 40mm - Lamp Type: LED - Number of LEDs: 6/12 - with indicator failure control
• Light functions: 6 - with reflector/with reverse light/with taillight/with rear fog light/with stop light/with indicator

Item Attributes:
Mounting Type: mounting / Bolted
Light Design: LED
Lamp Type: LED
Voltage: 24 V
Fitting Position: right / left
Height: 40 mm
Width: 130 mm
Length: 300 mm
Light Function: with indicator / with reflector / with rear fog light / with reverse light / with taillight / with stop light
Light functions: 6
Registration Type: ADR/GGVS / ECE
Number of LEDs: 6 / 12

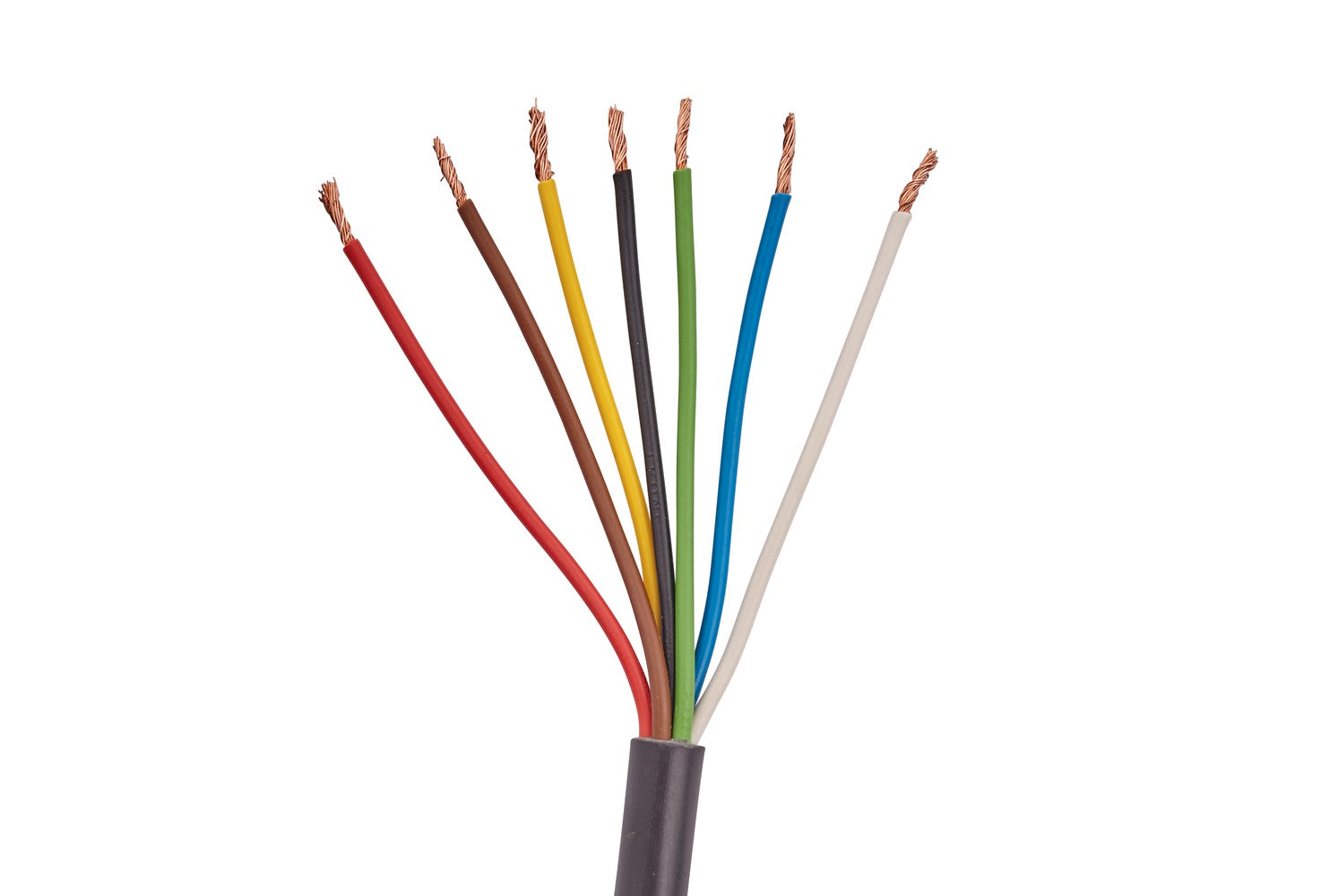

Cable: 500 mm
Housing Colour: black
Lens Colour: Crystal clear
LED colour: yellow (amber) / red / white
Supplementary Article/Supplementary Info 2: with indicator failure control
Quantity: 1
SVHC: 7439-92-1; Lead / 1303-96-4; Disodium tetraborate, anhydrous
Assembly by qualified personnel required!

OE references: FAUN 5643-406; LIEBHERR 12105863; SOMMER 2804932003; TEREX 61651312; TEREX 94761651312
