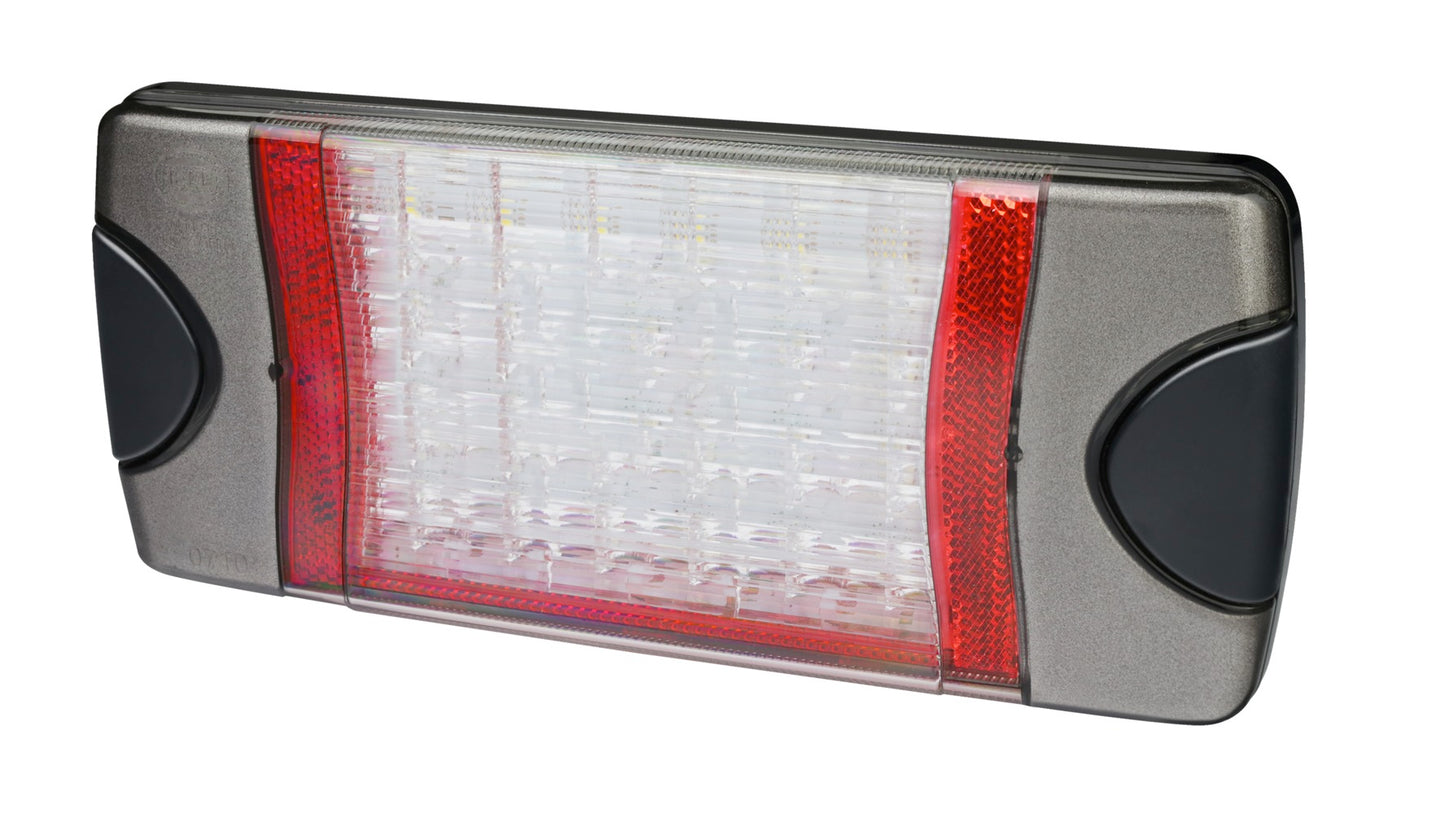

HELLA Rearlight - DuraLED Combi - LED - 12/24V 2VP015075-001

Rearlight - DuraLED Combi - LED - 12/24V - mounting - Plug: DEUTSCH plug - right/left

The multi-function light DuraLED Combi combines 4 light functions (tail light, brake light, indicator and reversing light) in LED technology in one light. The DuraLED Combi has a slim design with a mounting height of only 25 mm and is both maintenance-free, fully hermetically sealed, impact-resistant and long-term UV-resistant. The combination rearlight is available with or without reflector as well as with or without indicator failure check (compatibility according to ISO 13207-1). The reverse polarity protection also ensures that the luminaire is not damaged if the poles are incorrectly connected.

• Maintenance-free and fully hermetically sealed
• Impact resistant and long-term UV-resistant
• Slim design with an installation height of only 25 mm
• Width: 223mm - Height: 96mm - Lamp Type: LED - with indicator failure control
• Light functions: 5 - with indicator/with stop light/with reverse light/with reflector/with taillight
• fulfils ECE standard: R148/R150/R10 - Prot.type (IP Code): IP6K7/IP6K9K
• Mounting Type: mounting - Fastening Type: for horizontal fastening

Item Attributes:
Mounting Type: mounting
Fitting Position: left / right
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Width: 223 mm
Height: 96 mm
Thickness: 26 mm
Supplementary Article/Supplementary Info 2: with indicator failure control
Fastening Type: for horizontal fastening
Plug: DEUTSCH plug
Power consumption: 14.5 W
Light functions: 5
Light Function: with taillight / with reflector / with stop light / with indicator / with reverse light
fulfils ECE standard: R10 / R148 / R150
Prot.type (IP Code): IP6K7 / IP6K9K
Reverse polarity protection: Yes
Assembly by qualified personnel required!

OE references: AGCO 6317364M1; AGCO 6317364M2; AGCO 6317364M2-1; HAMM 2334344; PAUS 843362
