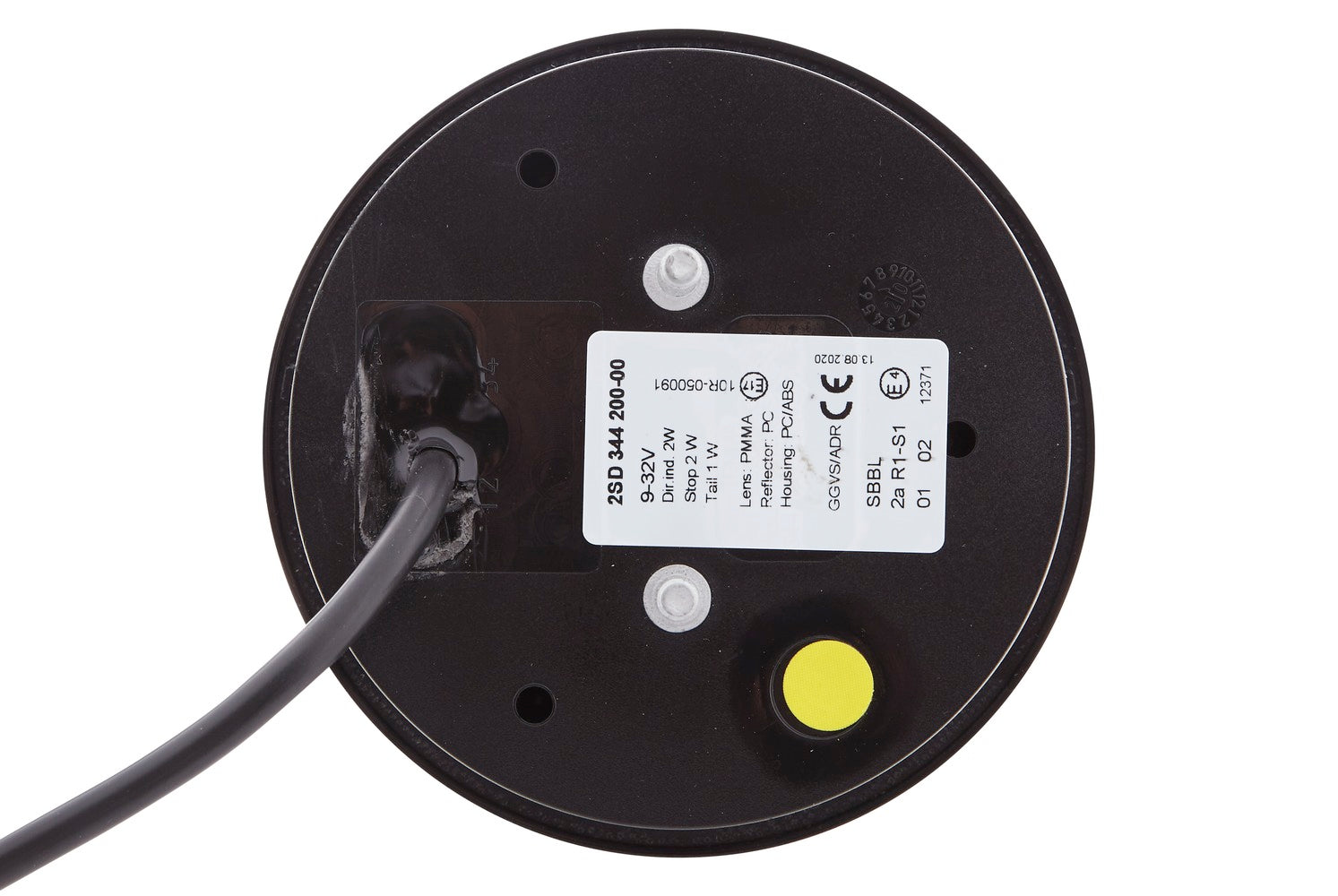

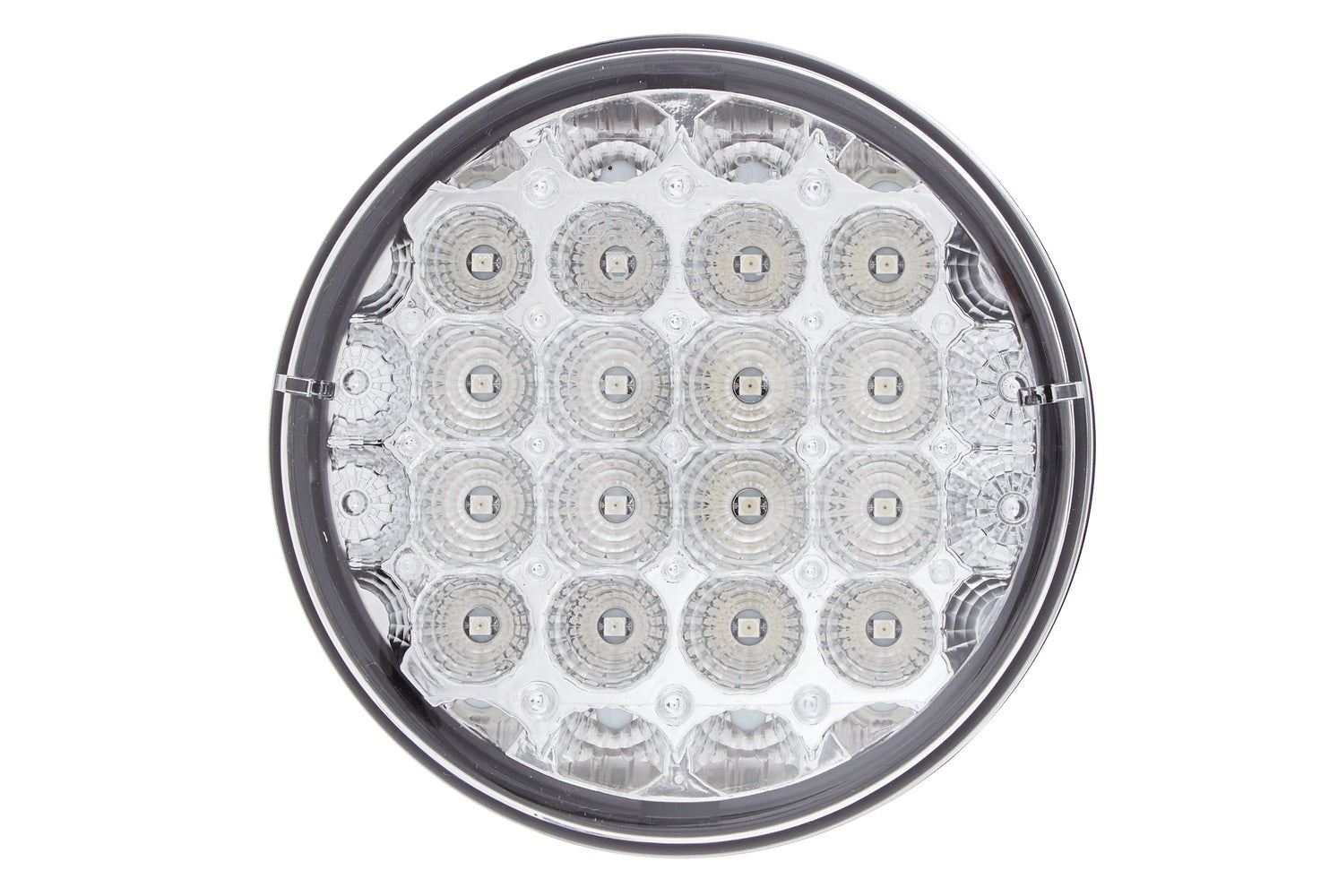

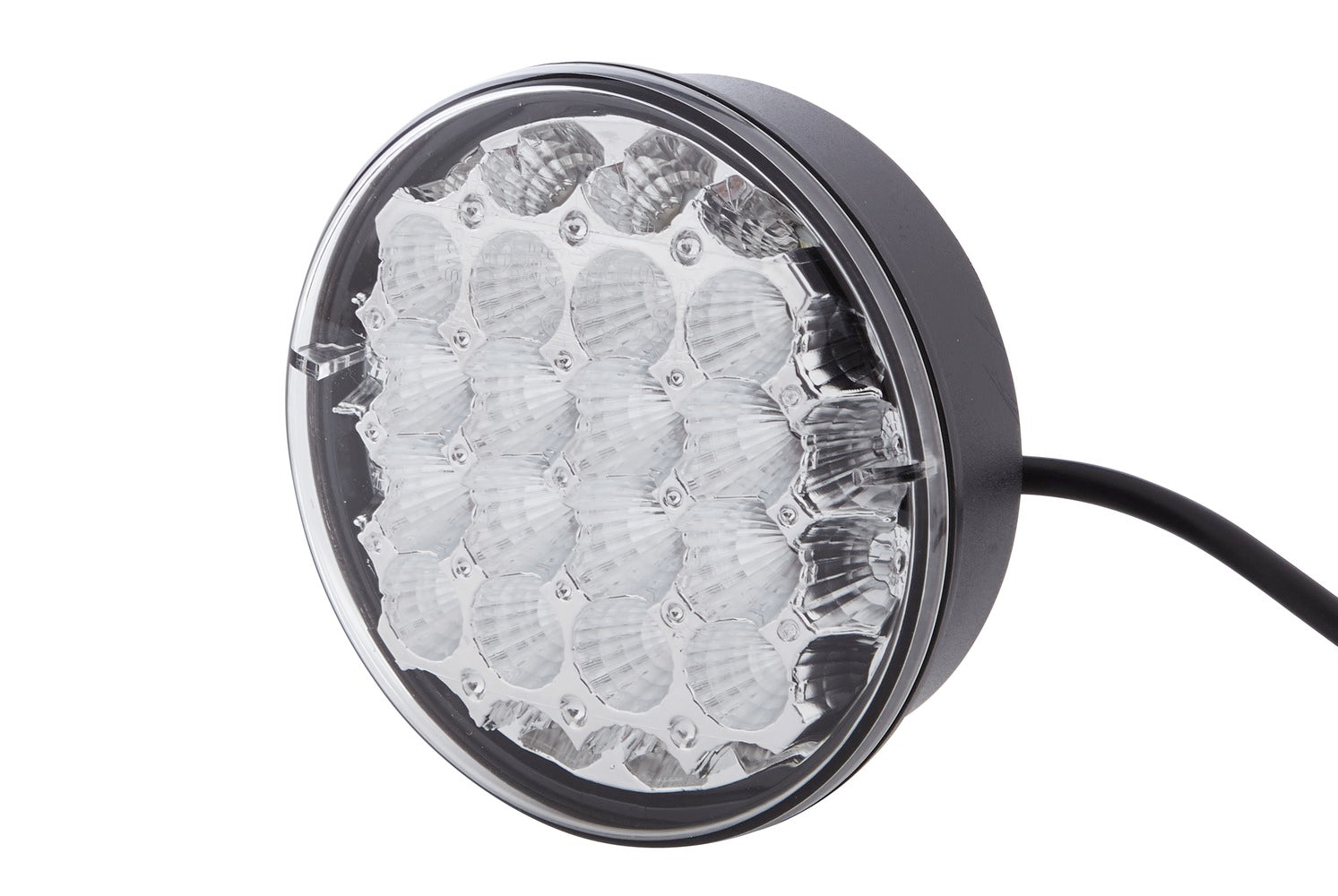

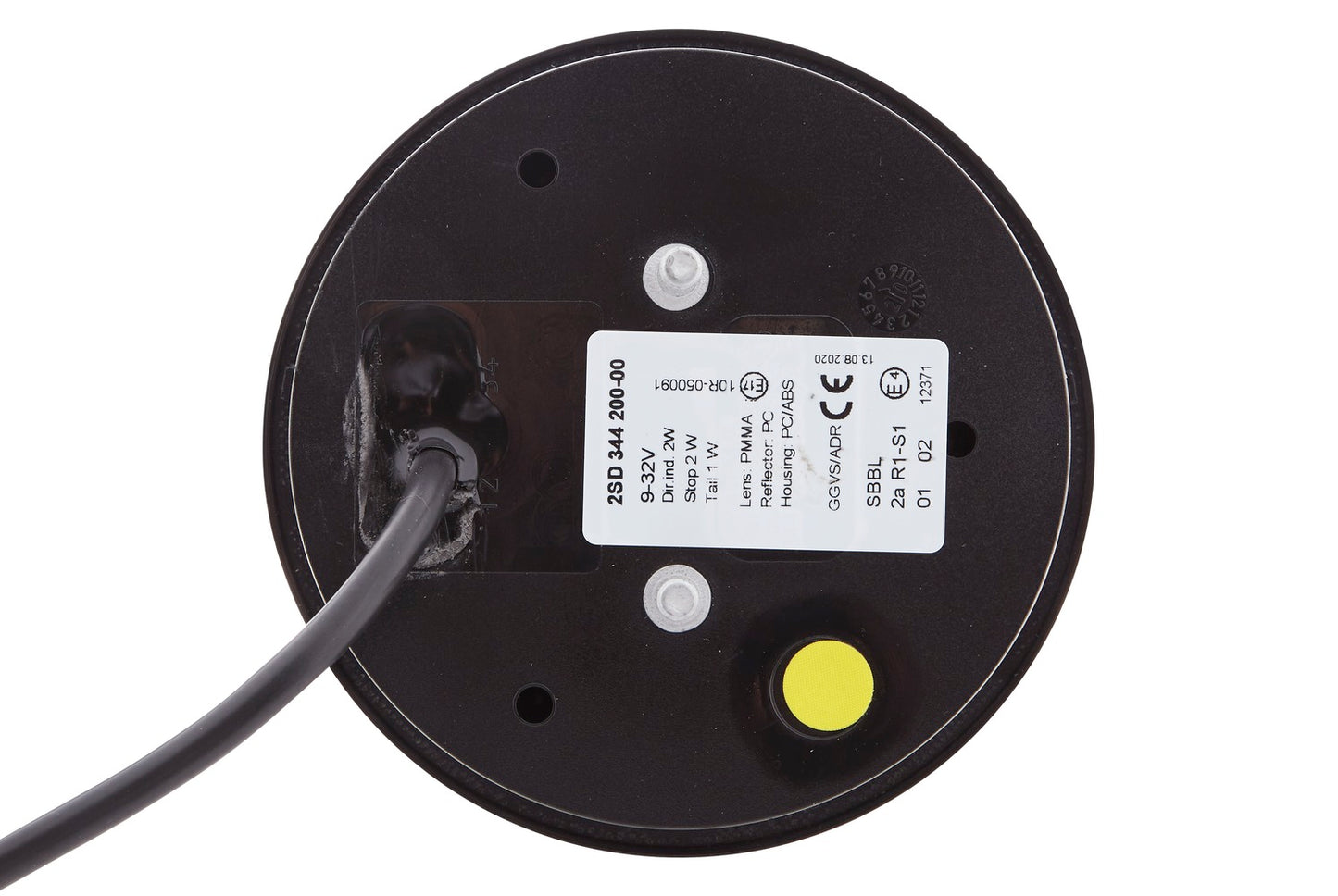

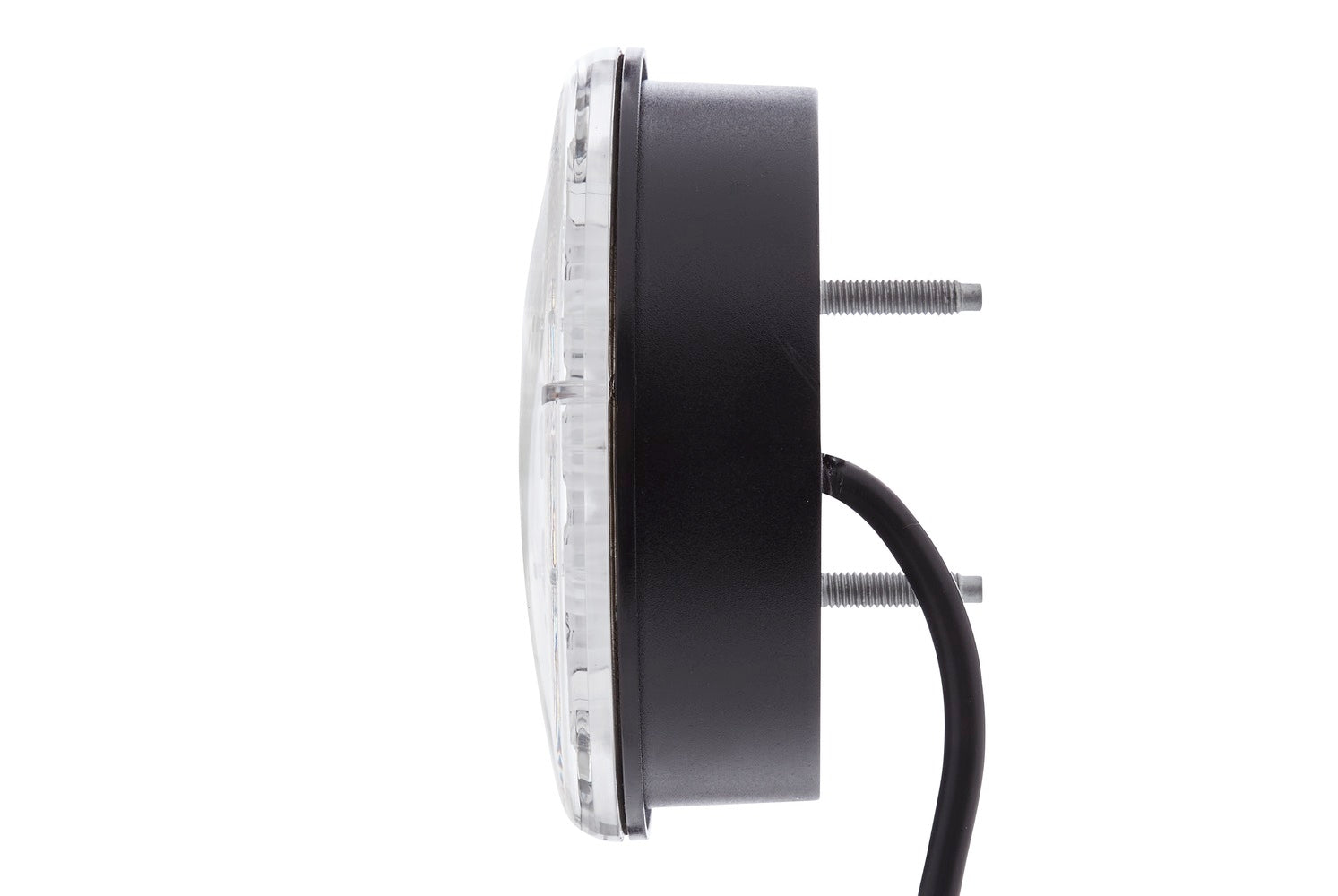

HELLA Rearlight - LED - 12/24V 2SD344200-001

Rearlight - LED - 12/24V - Bolted/mounting - ECE/ADR/GGVS - Lens Colour: Crystal clear - Cable: 500mm - Plug: open cable ends - left/right - Quantity: 1

• Optimum luminous efficiency thanks to a combination of high-performance LEDs and precision optics
• To extend the service life of the luminaire, the components are arranged in a temperature-optimised manner. This prevents the LEDs from overheating at high temperatures.
• Passive thermal management maximises service life - even under adverse operating conditions
• Thanks to efficient LEDs and precision optics, HELLA signal luminaires achieve the light distribution prescribed by law with up to 90% less power than incandescent lamps!
• Tested according to IP 69: Ensures absolute watertightness
• Ø: 122.5mm - Length: 123mm - Height: 53mm - Lamp Type: LED - Number of LEDs: 24 - with screw
• Light functions: 3 - with indicator (LED)/with stop light (LED)/with taillight (LED)

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening / for vertical fastening
Fitting Position: left / right
Lamp Type: LED
Light Function: with taillight (LED) / with indicator (LED) / with stop light (LED)
Light Design: LED
LED colour: red / yellow (amber)
Voltage: 24 V / 12 V
Rated Current: 0.24 A
Length: 123 mm
Height: 53 mm
Ø: 122.5 mm

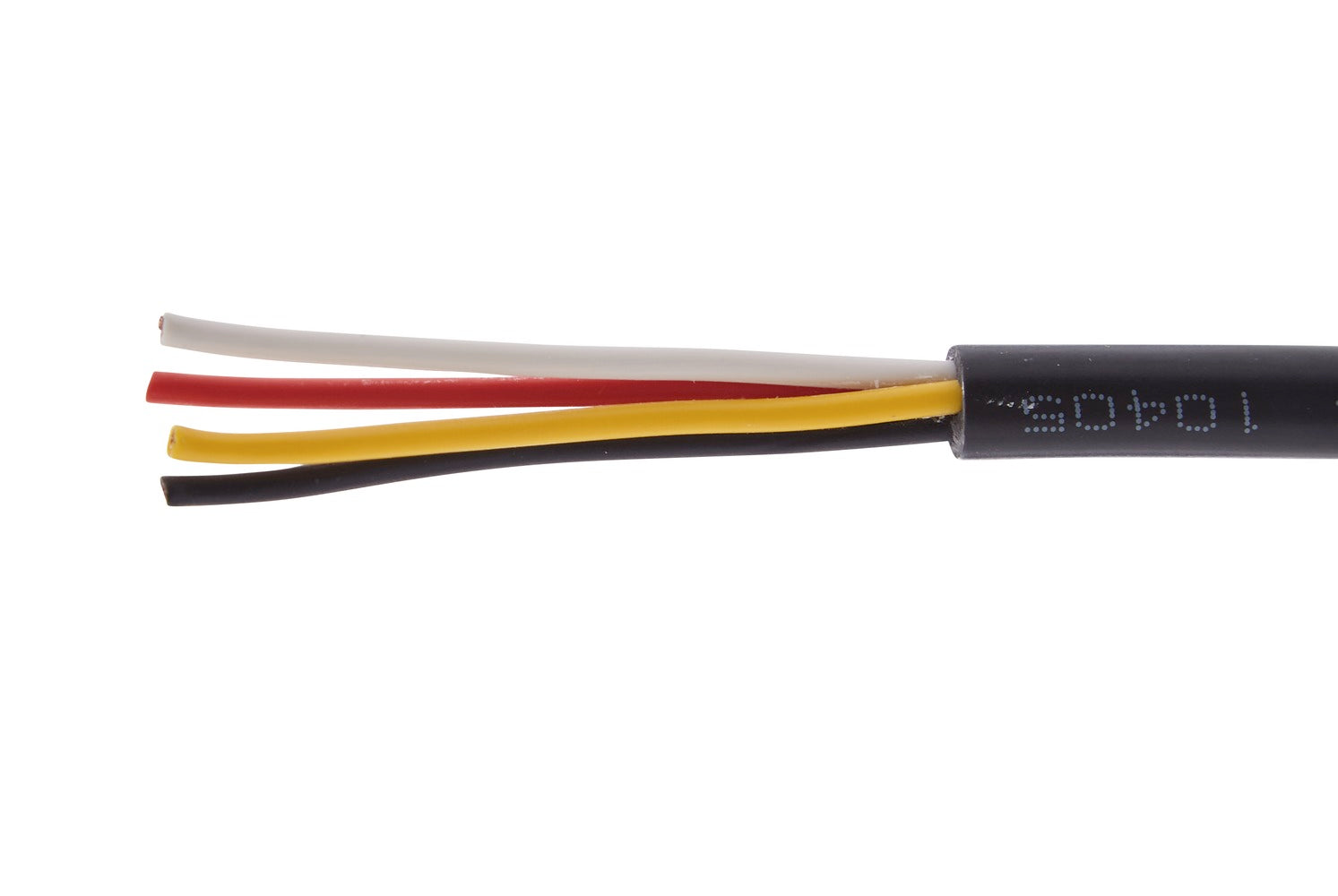

Cable: 500 mm
Plug: open cable ends
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: Crystal clear
Prot.type (IP Code): IP6K9K
Quantity: 1
Light functions: 3
Number of LEDs: 24
SVHC: 7439-92-1; Lead
Registration Type: ADR/GGVS / ECE
Tightening Torque: 4 Nm
Supplementary Article/Supplementary Info 2: with screw
Assembly by qualified personnel required!

OE references: DAF 1529554; MANITOU 306126; SCANIA 1936427; SCANIA 20223599; SCANIA 2197469; SCANIA N005342; SOMMER 2882000001
