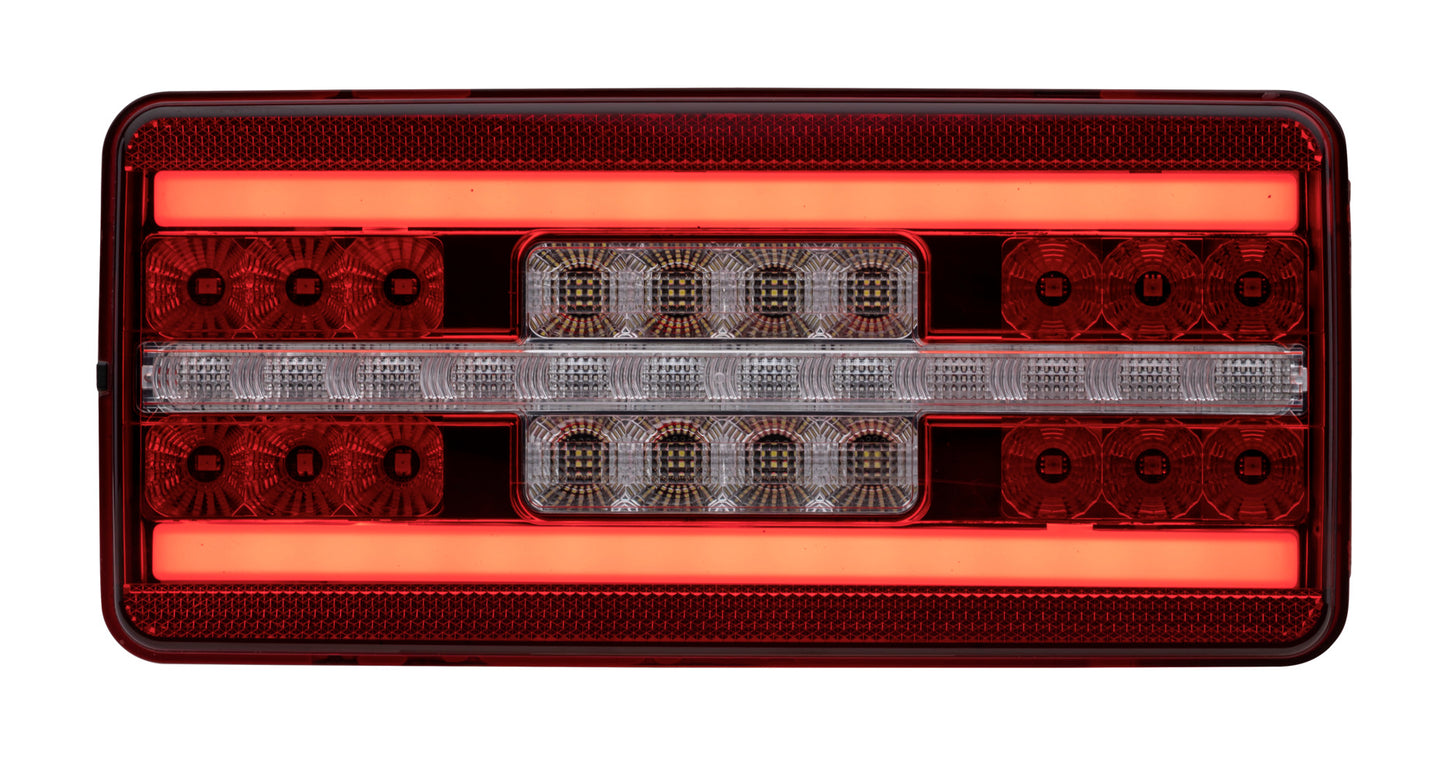

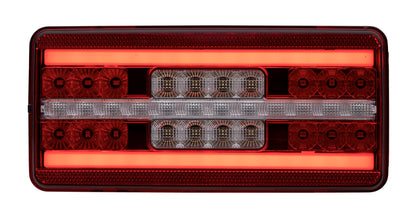

HELLA Rearlight - LED - 12/24V 2VP328630-041

Rearlight - LED - 12/24V - Bolted - ECE/ADR/GGVS/no SAE - Lens Colour: Red/Crystal clear - Cable: 280mm - Plug: DT04-6P C015 - Plug: DEUTSCH plug - both sides - Quantity: 1

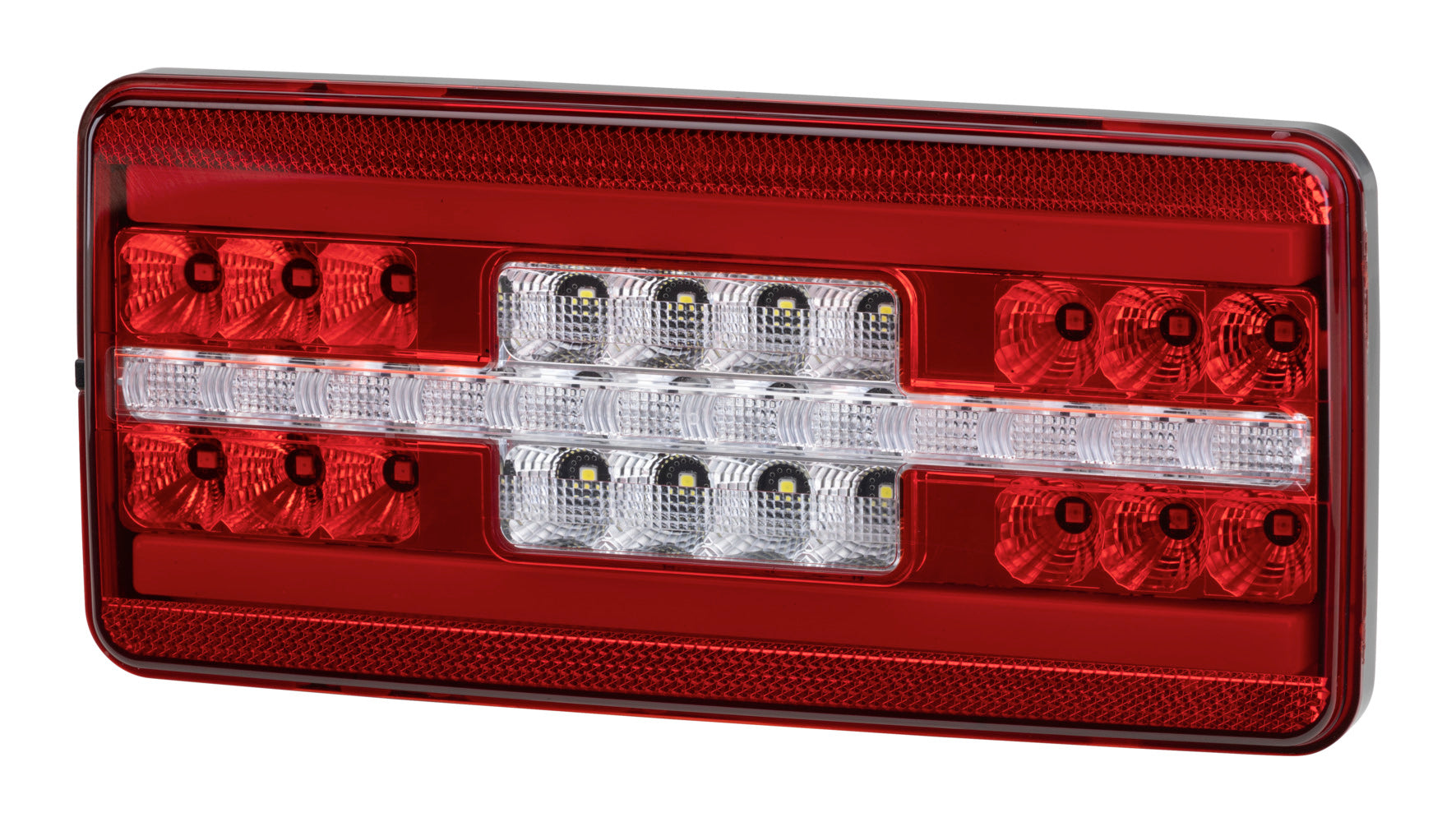

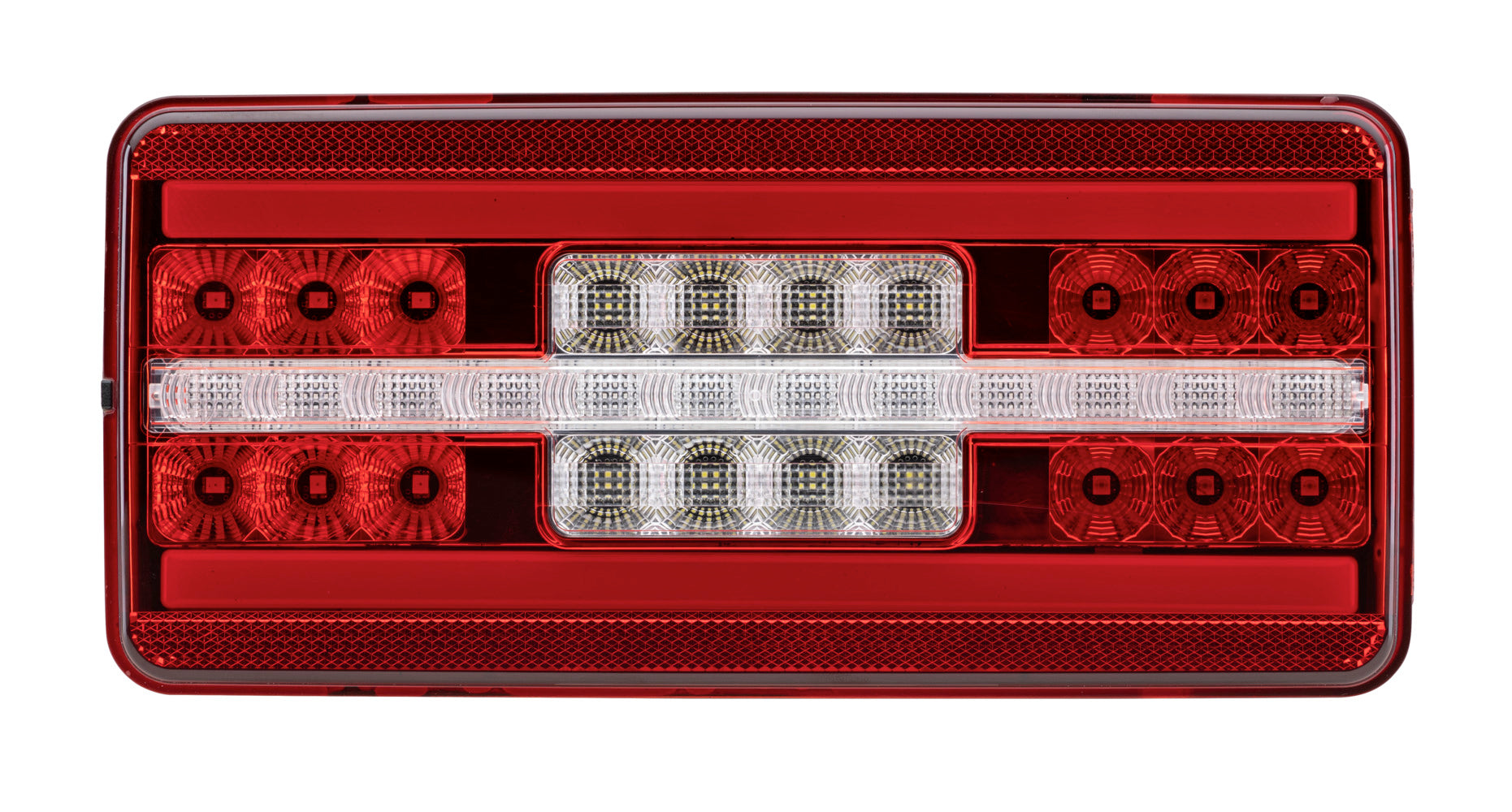

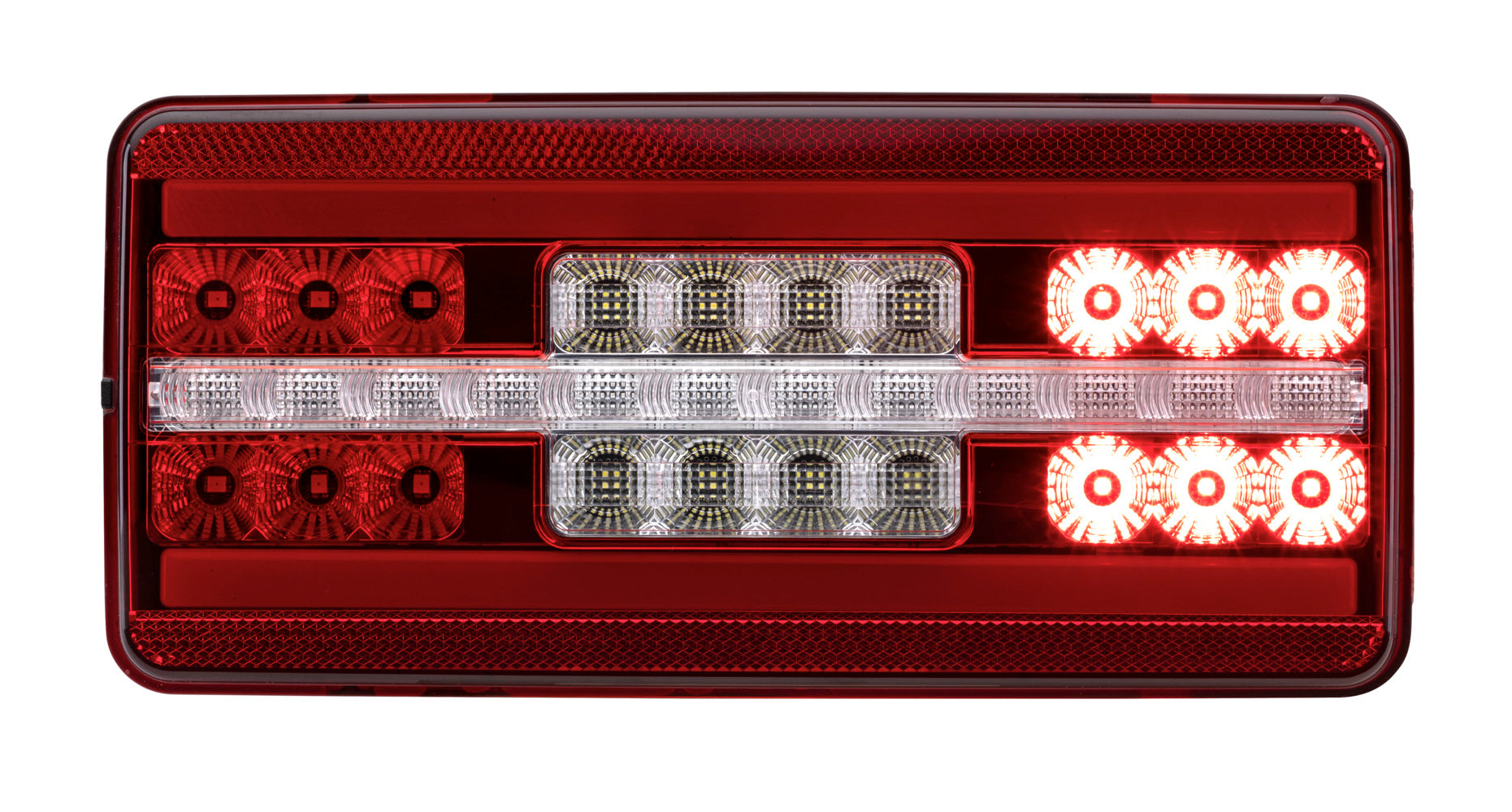

The innovative full-LED rear lamp 328 630 from HELLA covers all five light functions required at the rear of the vehicle using exclusively LEDs. The tail light’s "Glowing Body" technology is particularly eye-catching. The full-LED rear lamp 328 630 produces two, homogeneous light strips. Thanks to this technology, the tail light also looks very pleasant to the traffic behind. The full-LED rear lamp with installation dimensions of only 225 x 105 x 35 mm requires very little space. Horizontal and vertical version offer maximum flexibility and freedom for design. Both versions of the lamp generate an electronic ISO pulse for the direction indicator failure control. The horizontal version has a wiping direction indicator. Extrem robustness is another feature of HELLA's LED lamps. The LED modules of the full-LED rear lamp 328 630 are completely sealed. The two colour (red and clear) polycarbonate cover lens is impact resistant and withstands tough every day use with ease.

• 5 light functions – 100% LED-technology

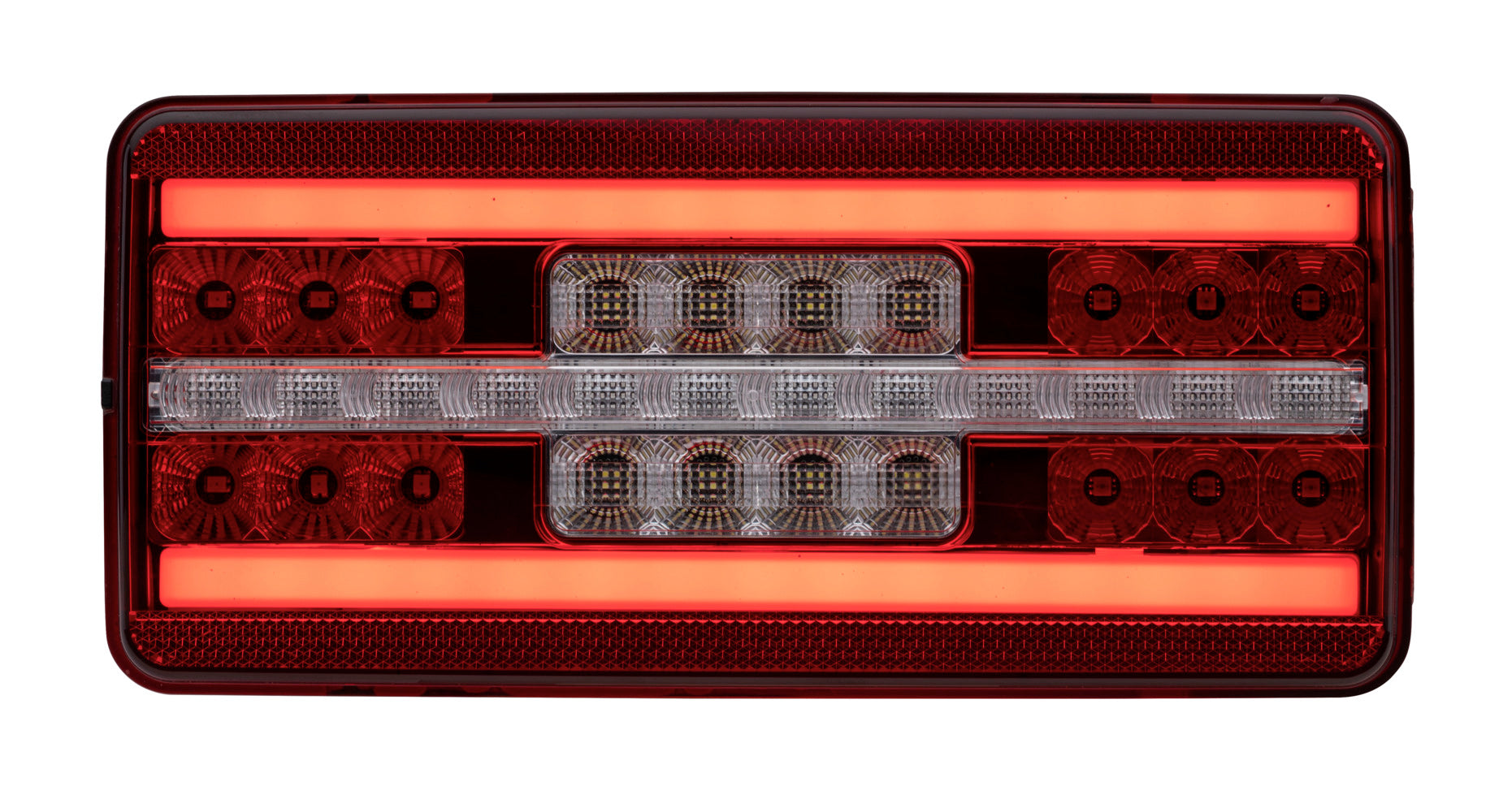

• Outstanding homogeneous tail light using "Glowing Body"
• Robust and compact design for tough demands
• Length: 225mm - Width: 105mm - Height: 34mm - Lamp Type: LED - Number of LEDs: 62

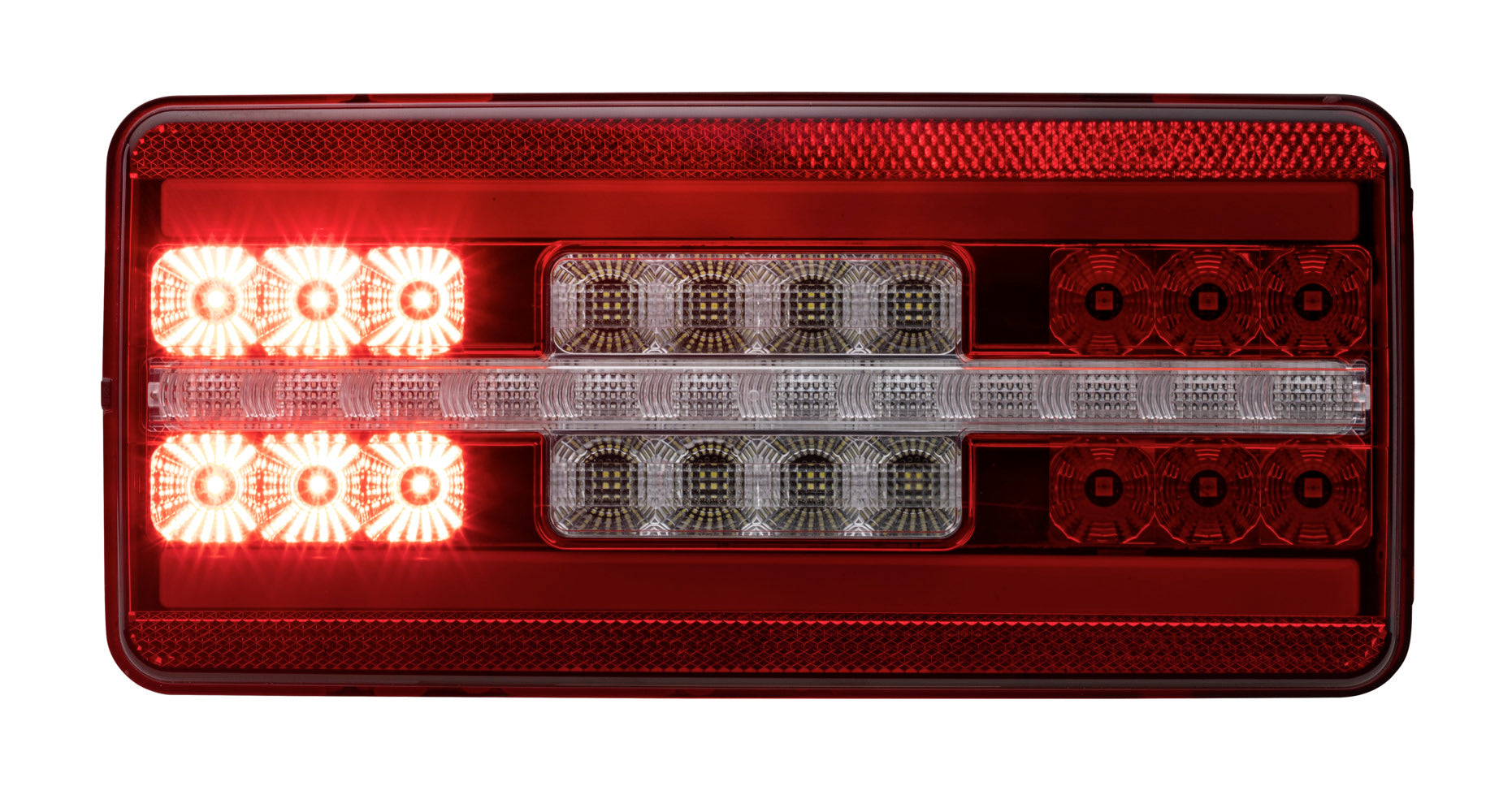

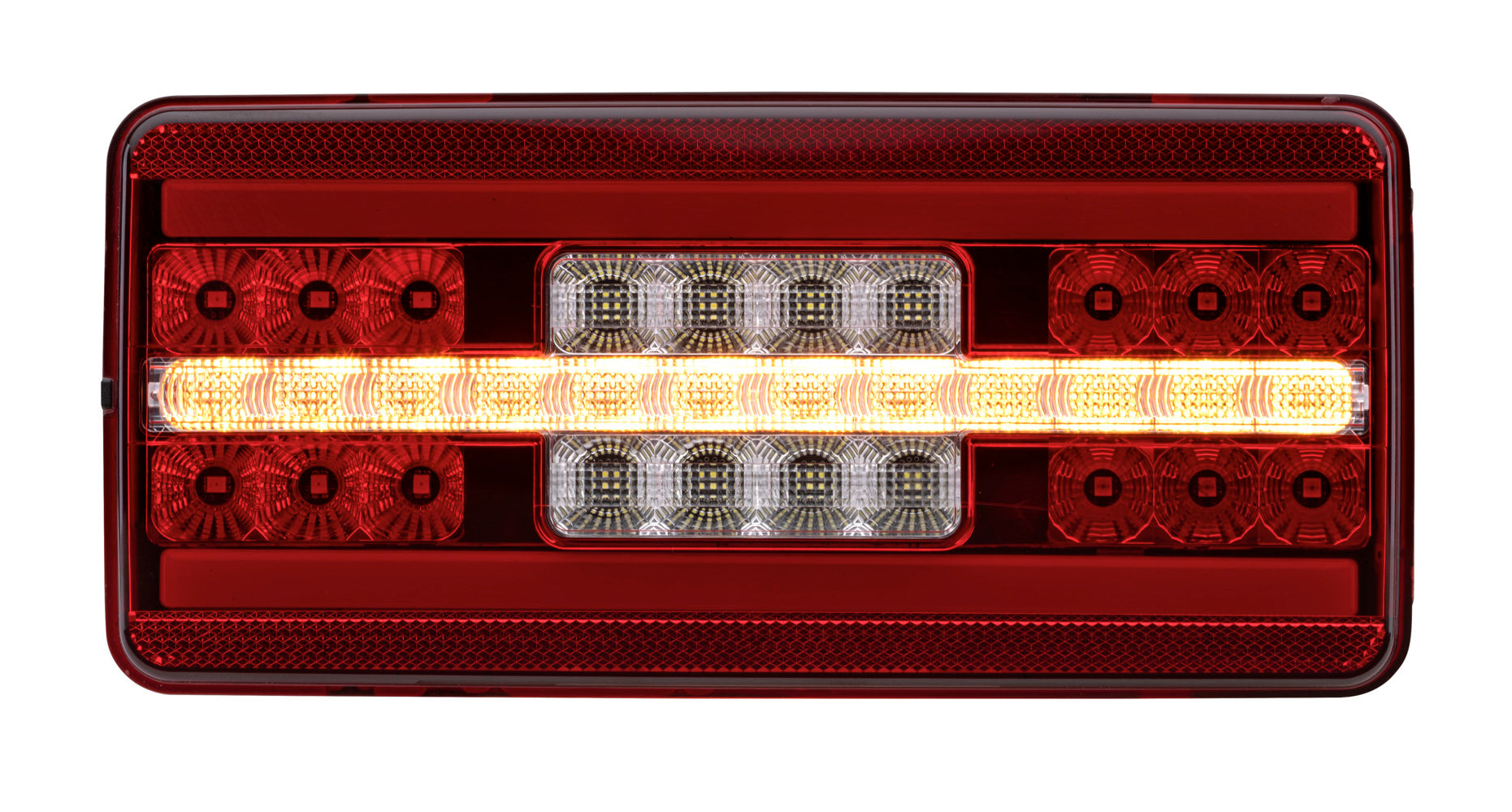

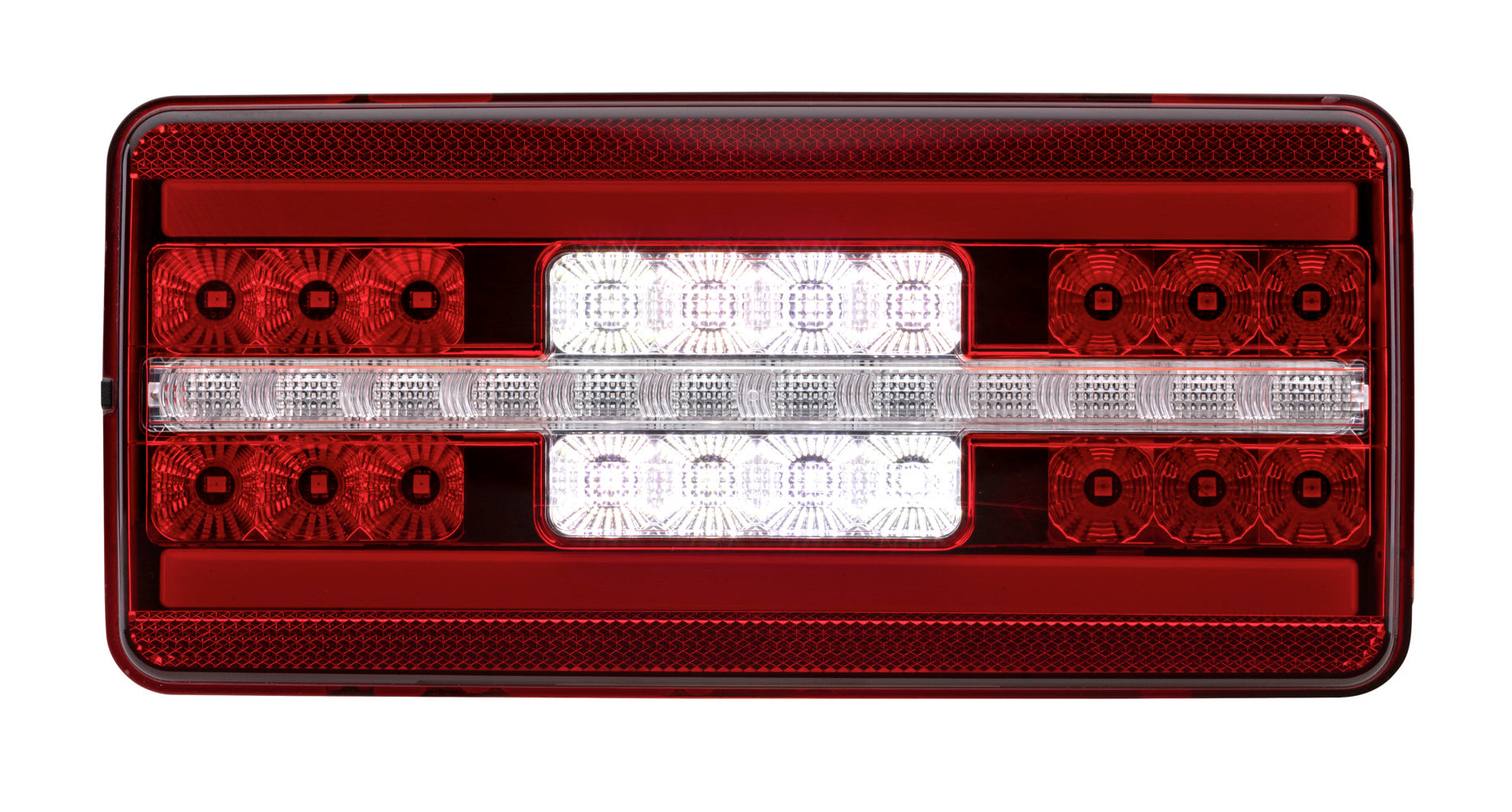

• Light functions: 5 - with stop light/with taillight/with indicator/with reverse light/with reflector
• Registration Type: ECE/ADR/GGVS/no SAE - Prot.type (IP Code): IP6K9K
• Synthetic Material Housing - Housing Colour: black - LED colour: red/white/yellow (amber) - Lens Colour: red/Crystal clear

Item Attributes:
Mounting Type: Bolted
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: both sides
Height: 34 mm
Width: 105 mm
Length: 225 mm
Light Function: with stop light / with reverse light / with taillight / with reflector / with indicator
Light functions: 5
Plug: DT04-6P C015
Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K
Registration Type: no SAE / ECE / ADR/GGVS
Number of LEDs: 62
Cable: 280 mm
Housing Type: Synthetic Material Housing
Housing Colour: black
Lens Colour: red / Crystal clear
LED colour: red / white / yellow (amber)
Tightening Torque: 3.5 Nm
Quantity: 1
Assembly by qualified personnel required!

OE references: AEBI 1376491-9; HAKO 00004151010; KRONE 271017000; VOLVO 55204636
