HELLA Rearlight - Shapeline Style - LED - 12/24V 2SB013399-021

Rearlight - Shapeline Style - LED - 12/24V - Bolted/mounting - ECE/SAE - Lens Colour: red - Plug: AMP - right - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation

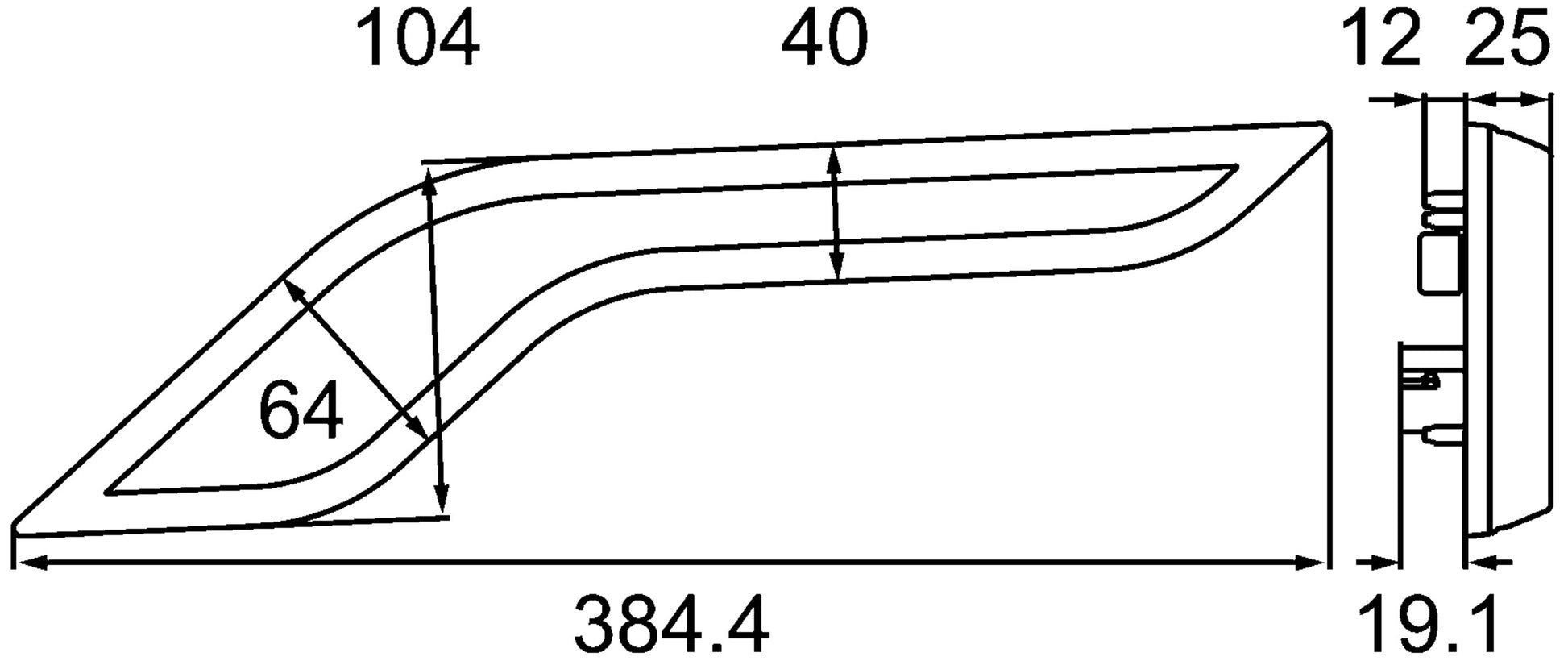

• Length: 384mm - Width: 104mm - Height: 44mm - Lamp Type: LED - Number of LEDs: 30
• Light functions: 2 - with stop light (LED)/with taillight (LED)

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Fitting Position: right
Lamp Type: LED
Light Function: with stop light (LED) / with taillight (LED)
Light Design: LED
Voltage: 12 V / 24 V
Length: 384 mm
Width: 104 mm
Height: 44 mm
Plug: AMP
Lens Colour: red
Quantity: 1
Light functions: 2
Number of LEDs: 30
SVHC: 7439-92-1; Lead
Registration Type: ECE / SAE
Assembly by qualified personnel required!

OE references: AGCO ACX3081740; AGCO ACX4864540; AGRIFAC 7700132; CASE IH 51529365; GRIMME B94.08238; HYMER 3266967; HYMER 9927167; HYMER X1603.15.249; JCB AQX35527; JOHN DEERE AQX35527; KÄSSBOHRER 7.526.347.000.0; LAMBERET 027863-001; MERLO CT272; SCANIA 2752324; VERSATILE 86094490; VINFAST BEX41820011AA; VINFAST BEX41820011AA - LAMP; VINFAST BEX41820011AA-REAR_TAIL_STOPLAMP LH
