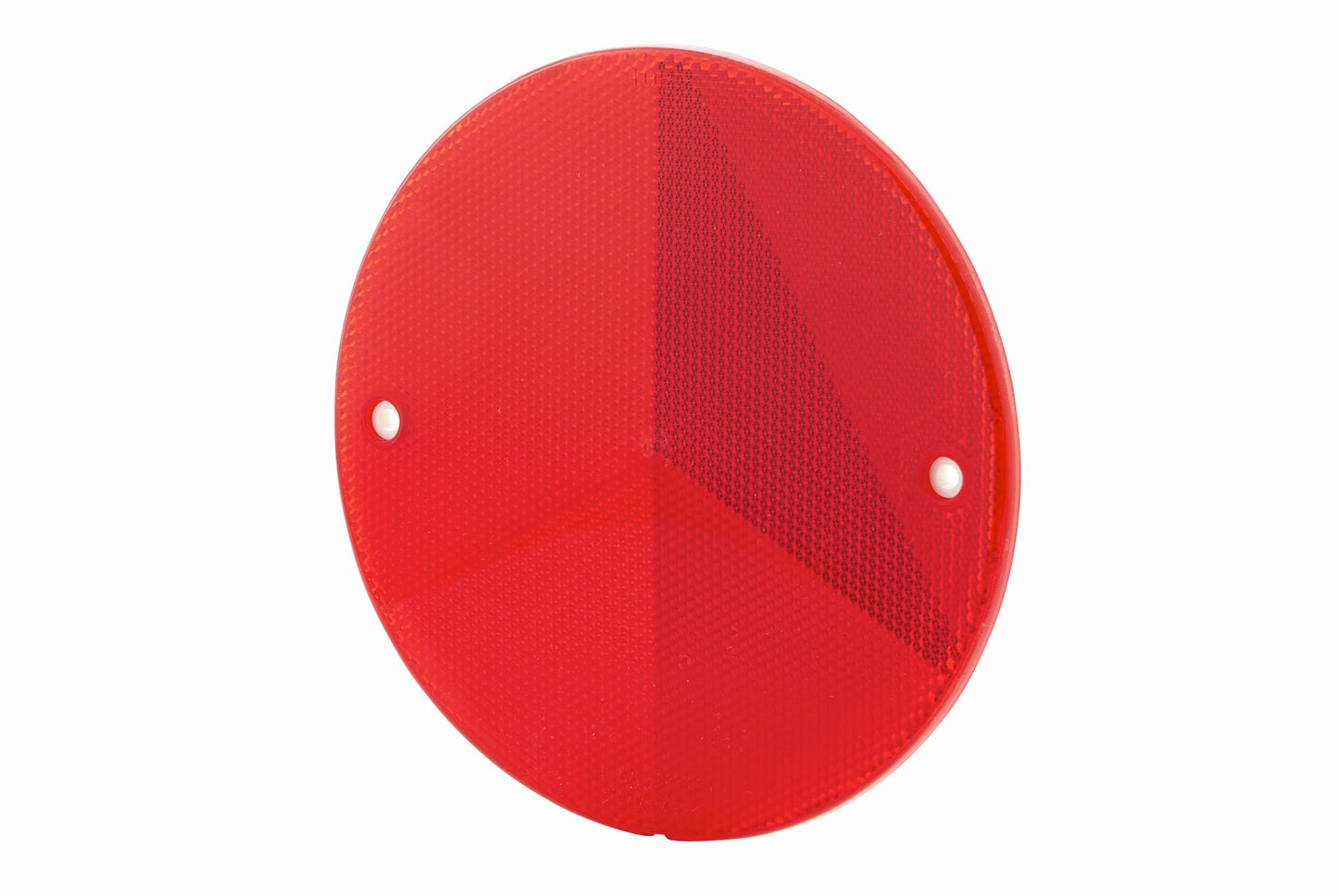

HELLA Reflector - Lens Colour: Red - round - Bolted/mounting 8RA343220-017

Reflector - Lens Colour: red - round - Bolted/mounting - for horizontal fastening - ECE - Rear - Quantity: 30

As additional passive light elements, HELLA's reflectors improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.

• Red reflector with ECE approval
• Effective reflective surface: 95 cm²
• With 2 holes for fixing screws
• Registration Type: ECE - fulfils ECE standard: R3
• with reflector
• Length: 156mm - Width: 155mm - Height: 8mm
• without fastening material

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Fitting Position: Rear
Width: 155 mm
Length: 156 mm
Height: 8 mm
Thickness: 8 mm
Light Function: with reflector
Light functions: 1
fulfils ECE standard: R3
Effective reflective surface: 160 cm²
Shape: round
Lens Colour: red
Housing Type: Synthetic Material Housing
Supplementary Article/Supplementary Info 2: without fastening material
Quantity: 30
Assembly by qualified personnel required!
Registration Type: ECE

OE references: DOLL 7110468; HYMER 1282575 SCHRAUBBEF.; HYMER 15844-07; HYMER 1584407-00; LAIKA 1584407-00; SCANIA 2199431
