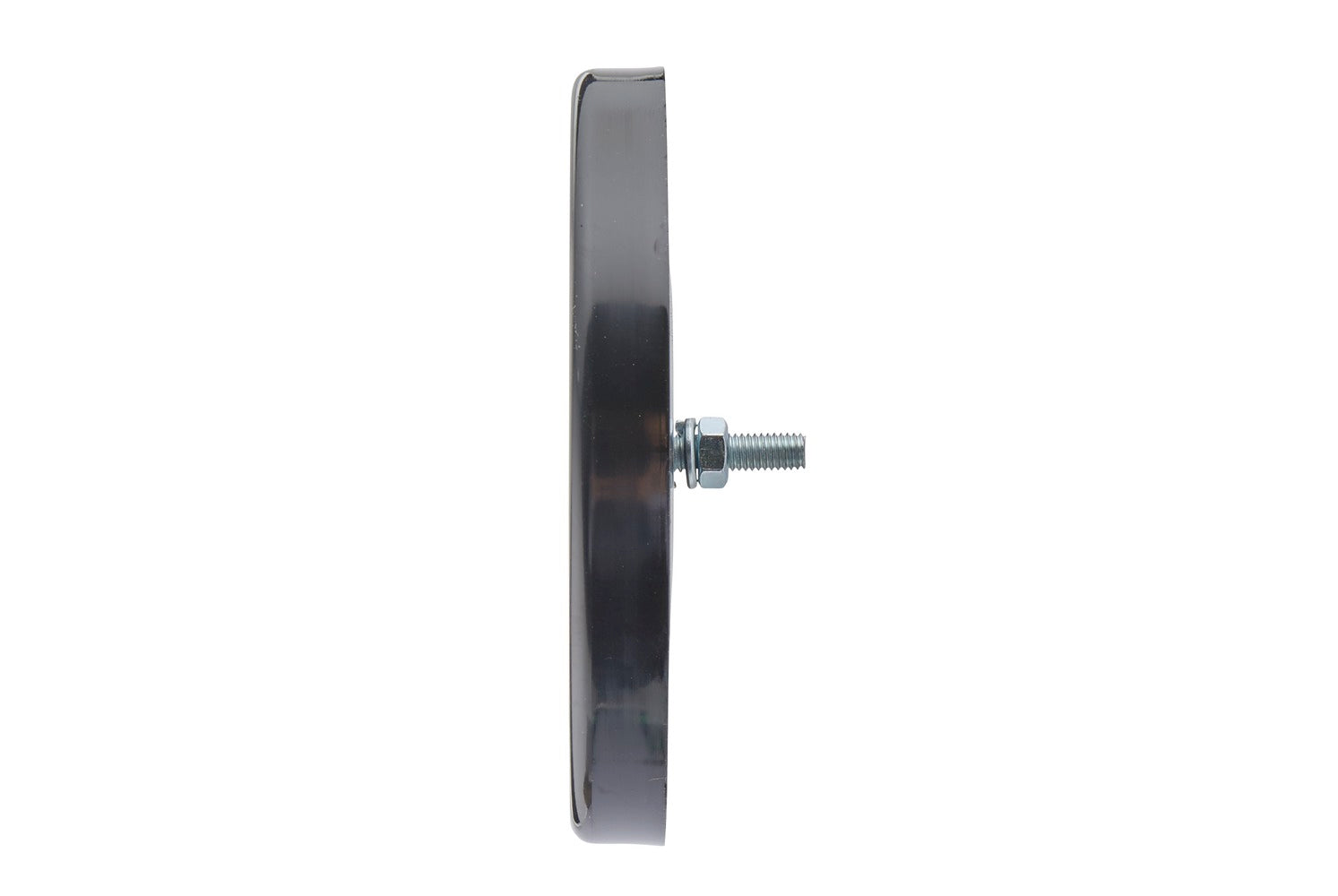

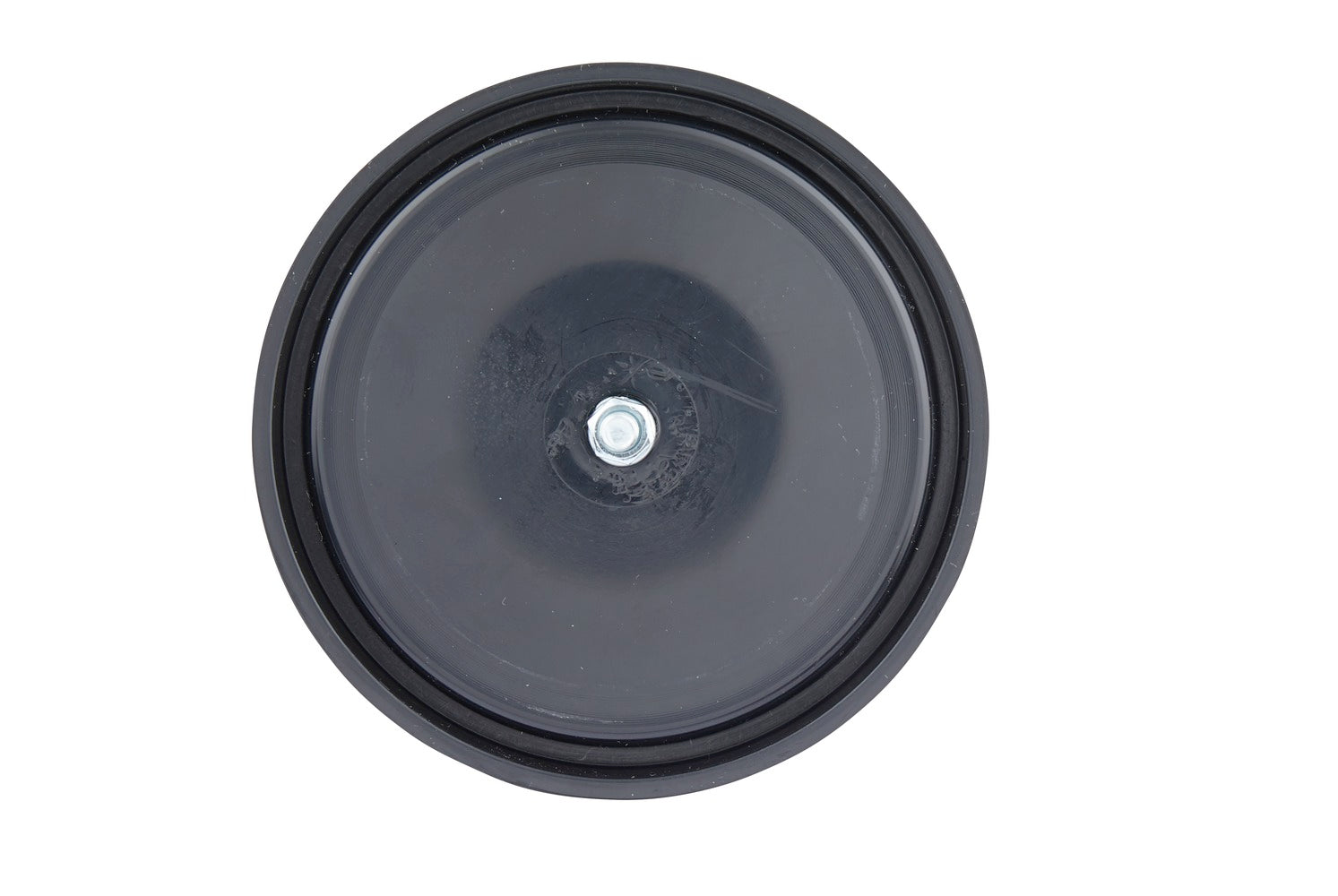

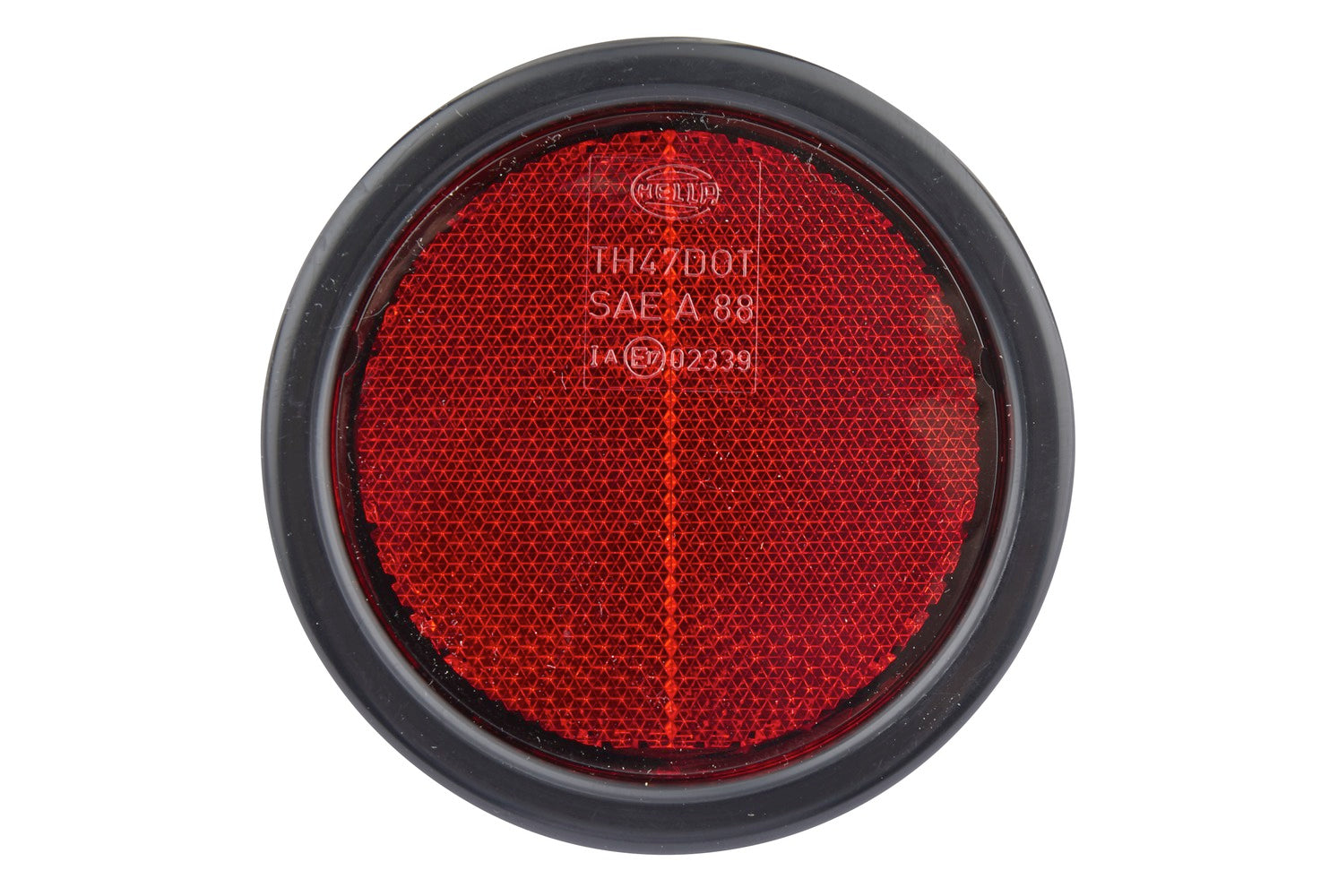

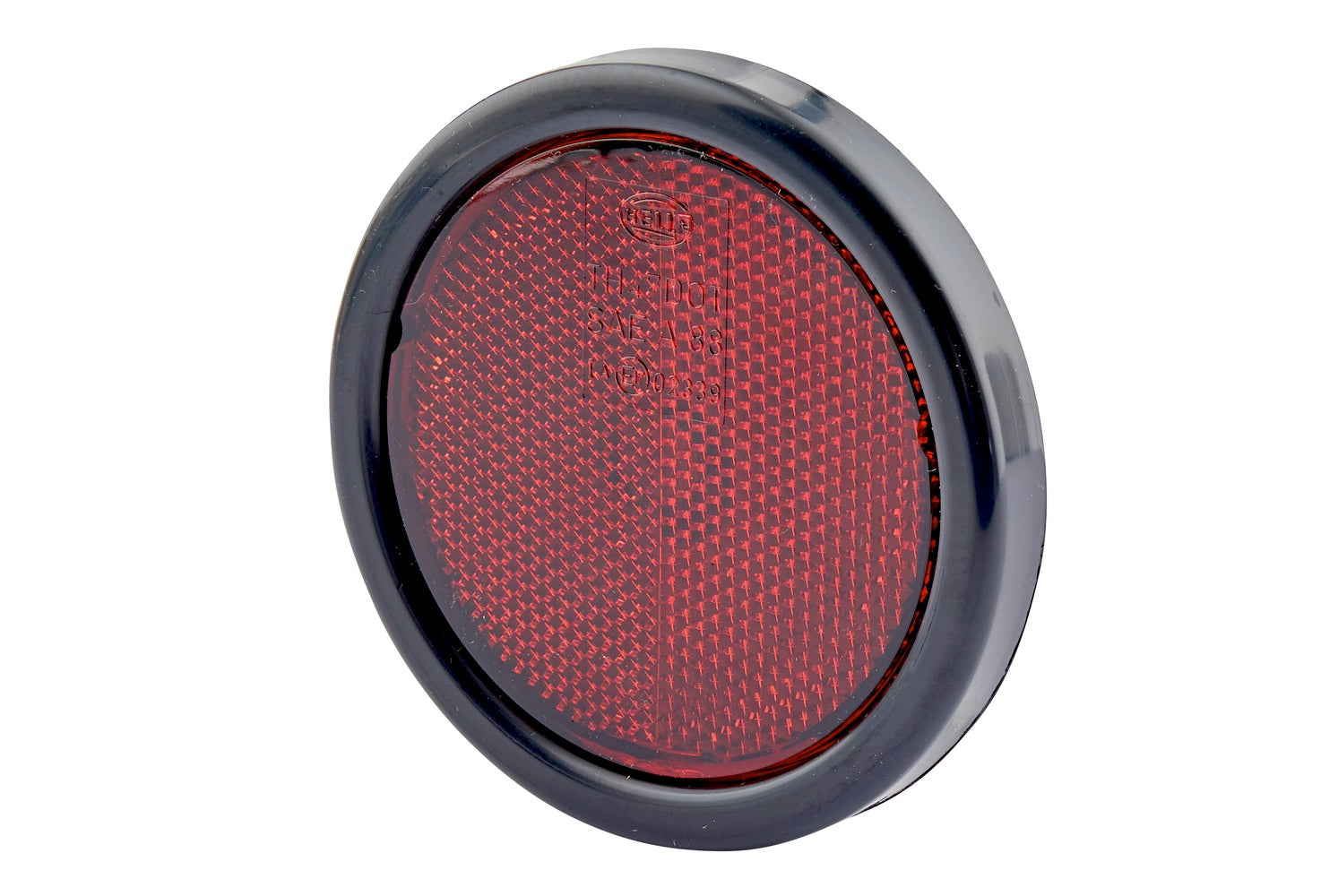

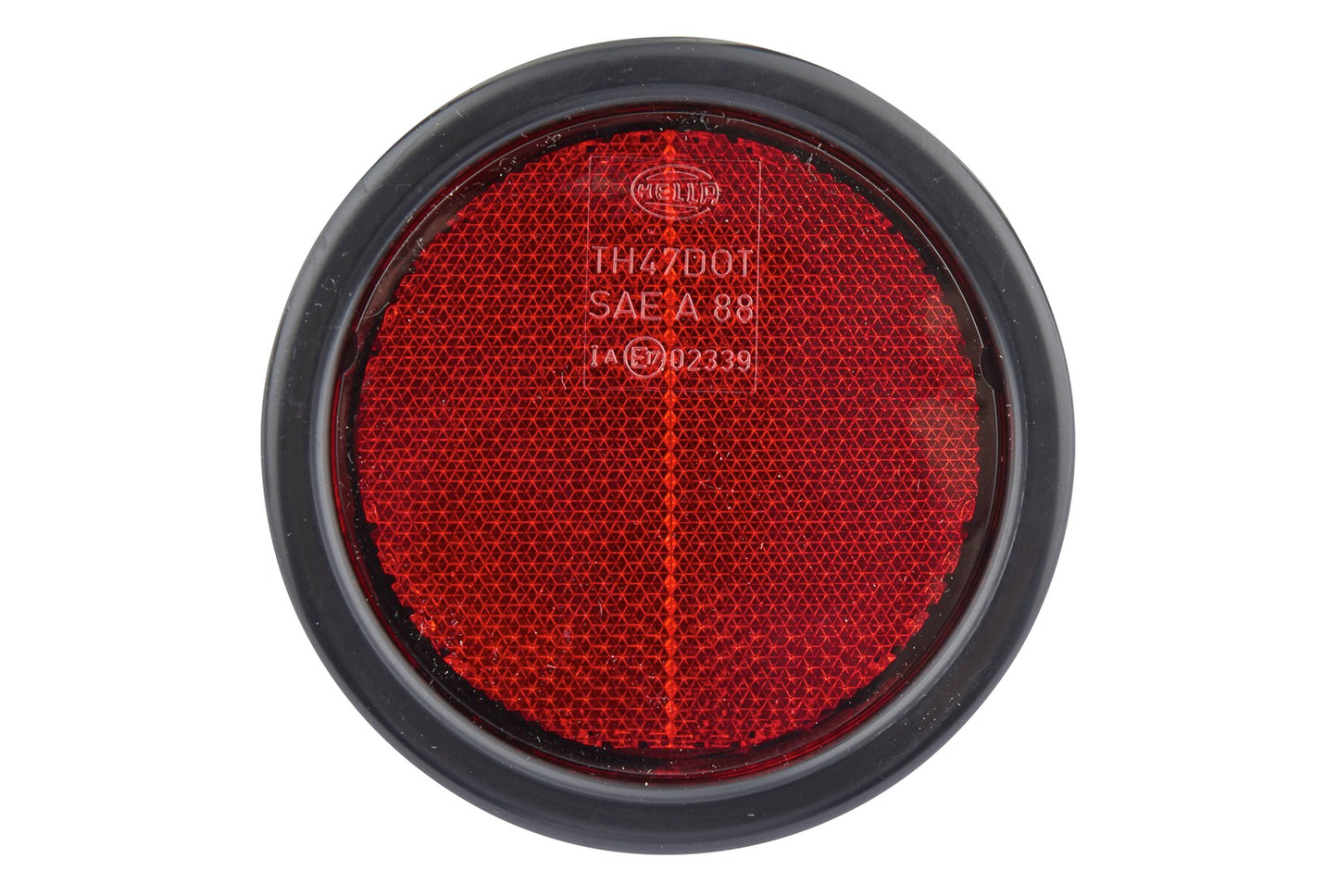

HELLA Reflector - Lens Colour: Red - round - mounting/Bolted 8RA002016-121

Reflector - Lens Colour: red - round - mounting/Bolted - for horizontal fastening - SAE/ECE - Rear - Quantity: 20

As additional passive light elements, HELLA's reflectors improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.

• Red reflector with ECE approval
• Effective reflective surface: 38 cm²
• With PVC protection ring, base plate and central fixing screw M5 x 15
• Registration Type: SAE/ECE - fulfils ECE standard: R3
• with reflector
• Length: 85mm - Width: 95mm - Height: 12mm
• with synthetic disc/with fastening material

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Fitting Position: Rear
Width: 95 mm
Length: 85 mm
Height: 12 mm
Thickness: 13 mm
Light Function: with reflector
Light functions: 1
fulfils ECE standard: R3
Registration Type: ECE / SAE
Effective reflective surface: 41 cm²
Shape: round
Lens Colour: red
Housing Type: Synthetic Material Housing
Supplementary Article/Supplementary Info 2: with fastening material / with synthetic disc
Quantity: 20
Assembly by qualified personnel required!

OE references: AEBI 0237080-7; AGRIFAC 7961843; AHLMANN 4153096A; AHLMANN 5029039; ALEXANDER DENNIS 24-5040-000; AMAZONE ND031; ATLAS COPCO 0416944; ATLAS COPCO 2655152; AUWÄRTER 11025324; AUWÄRTER 11025836; AUWÄRTER 1503.247.00; BOMAG 057 511 58; BUCHER 7-237-0314; CASE IH 2168625; CASE IH 81813545; CATERPILLAR 5W1109; DAF 867549; DEMAG 32332340; FAUN 1711-033; FAUN 3171-1060; FIAT 81813545; FORD 1 813 545; FORD 81 813 545; HOLMER 1020012682; HÜFFERMANN 2-EL0004-006; HYDREMA 7400036; IVECO 3351866KZ897647; IVECO E1750490124; KAMAG 80077807; KÄSSBOHRER 8.689.018.000; KÖGEL 80077807; KOMATSU 3081 528 M1; KOMATSU B 969 071 237 101; KOMATSU X 880 000 922 258; KRONE 0944110/0; LANGENDORF 1084143; LIEBHERR 6 071 133 08; MAN 11025324; MAN 81.42950.0008; MAN 81.42950.0050; MAN ZF81429500049; MANITOU 4153096A; NEOPLAN 1102.532.4; NEOPLAN 11028725; O&K 2168625; OPEL PRA003110; OPEL V29615040; PAUS AR1-4407; PUTZMEISTER 225593004; RENAULT TRUCKS 7422605513; ROSENBAUER FE2532; SPERRY NEW HOLLAND 81813545; TATRA 532384175400; TEREX 0416944; TEREX 2655152; TEREX 32332340; TEREX 5653297200; TEREX 94732332340; VÖGELE 3515160011; VOLVO 5174001; VW 600 945 103C; WEIRO 11336; YANMAR 5653297200
