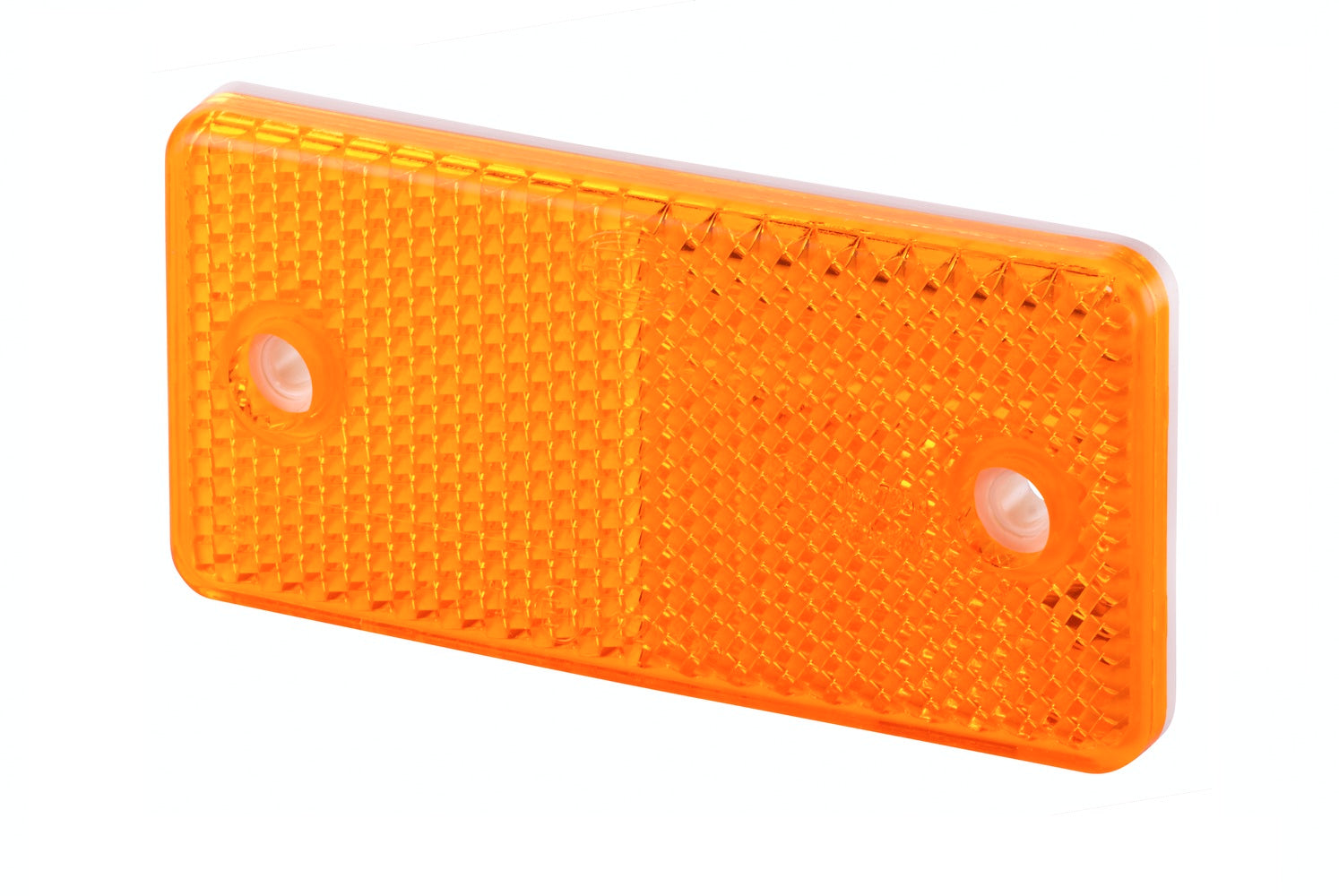

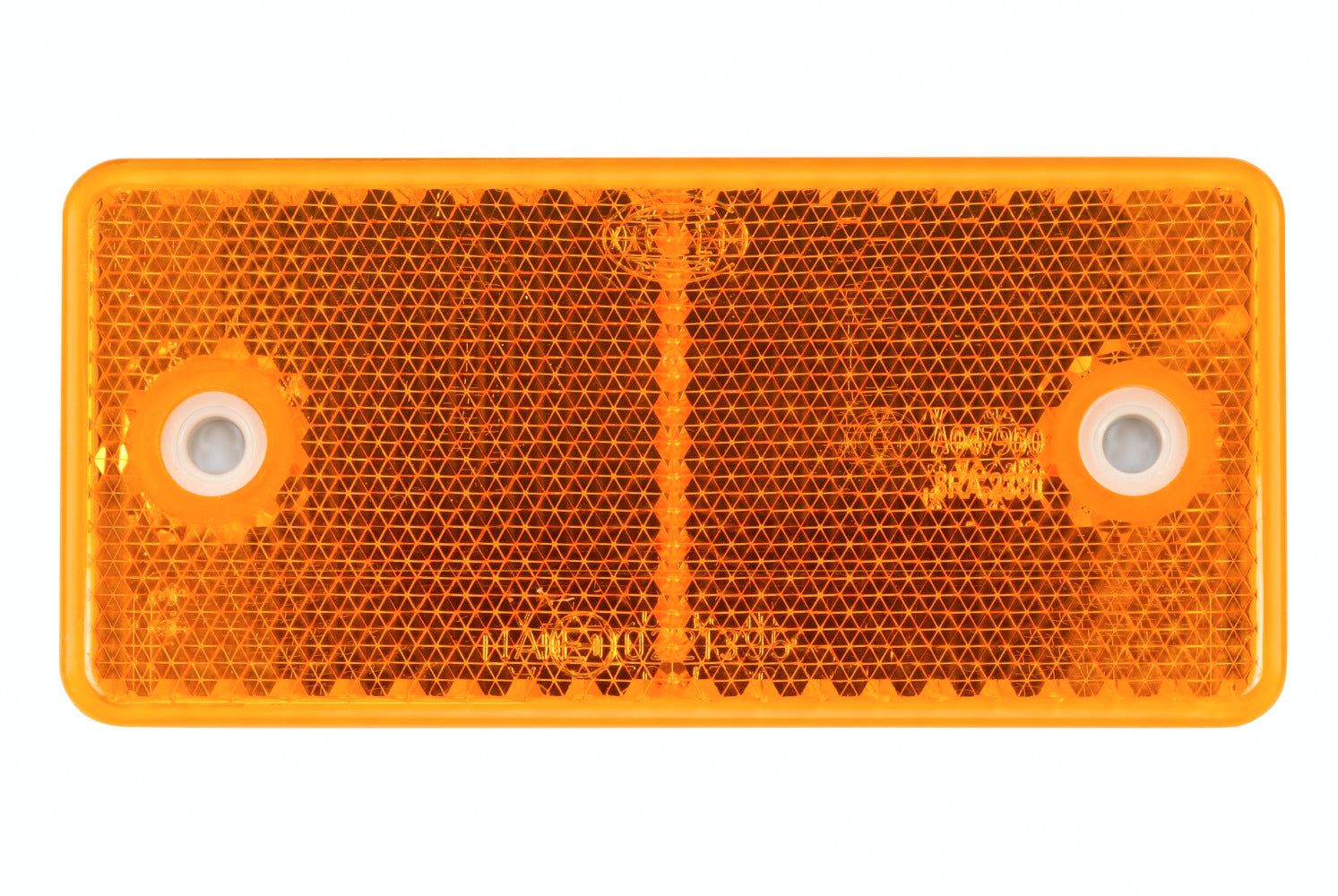

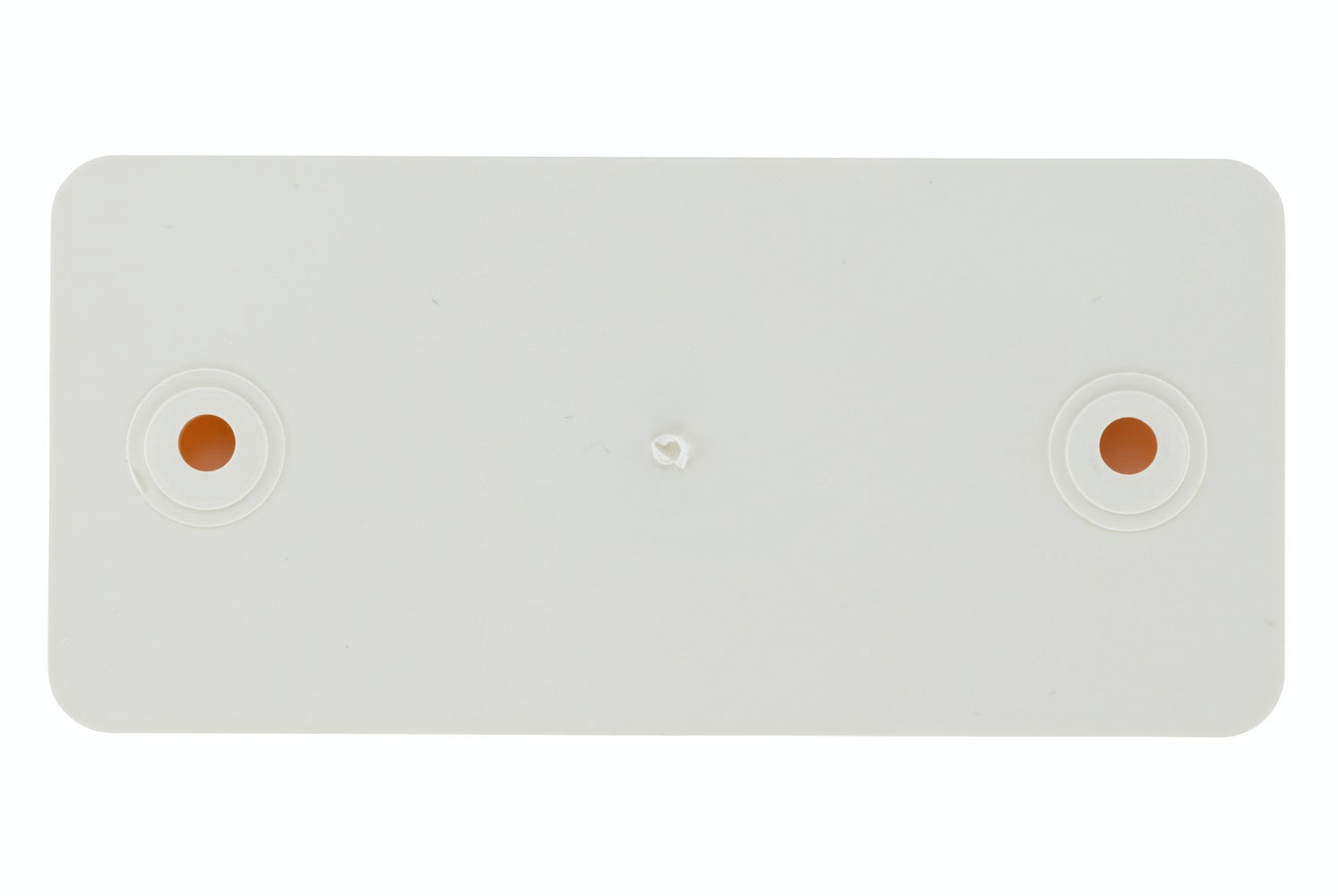

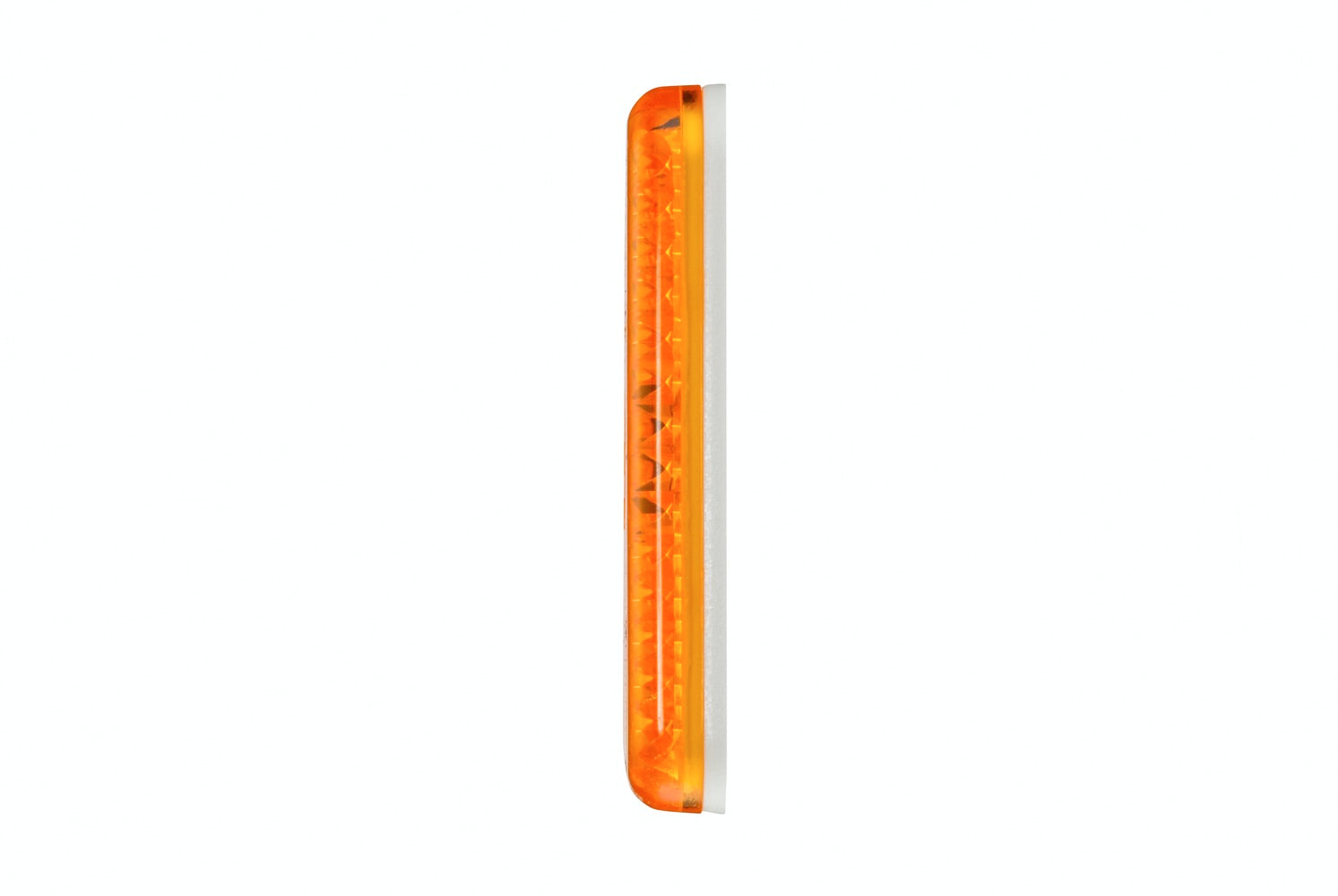

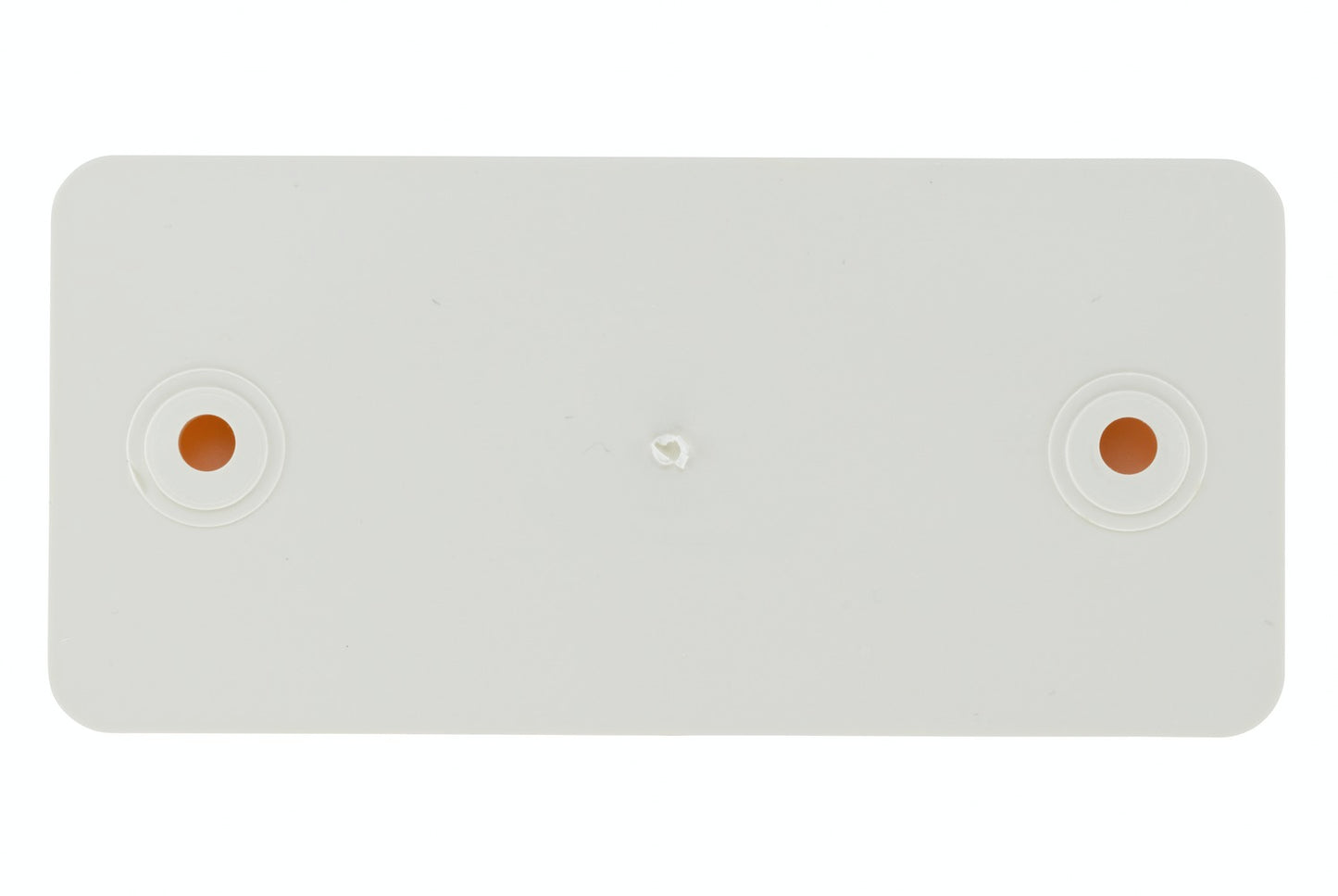

HELLA Reflector - Lens Colour: yellow (amber) - rectangular - Bolted/mounting 8RA003326-011

Reflector - Lens Colour: yellow (amber) - rectangular - Bolted/mounting - for horizontal fastening - ADR/GGVS/CCC - left/right

As additional passive light elements, the reflectors from HELLA improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.

• Horizontal or vertical mounting
• Reflecting area 29 cm²
• Registration Type: ADR/GGVS/CCC - fulfils ECE standard: R3
• with reflector
• Length: 94mm - Width: 44mm - Height: 7mm
• without fastening material
• Effective reflective surface: 29cm²

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Fitting Position: left / right
Light Function: with reflector
Length: 94 mm
Width: 44 mm
Height: 7 mm
Thickness: 7 mm
Housing Type: Synthetic Material Housing
Lens Colour: yellow (amber)
fulfils ECE standard: R3
Light functions: 1
Effective reflective surface: 29 cm²
Registration Type: ADR/GGVS / CCC
Shape: rectangular
Supplementary Article/Supplementary Info 2: without fastening material
Assembly by qualified personnel required!

OE references: AGCO 519212; AHLMANN 0094057; ALEXANDER DENNIS D93RF000005; AUWÄRTER 1503.082.00; AUWÄRTER 1503.700.00; AUWÄRTER 826-RS003; BUCHER 7237-0510; CATERPILLAR 116-9621; DAF 1444658; FIAT 42046397; FORD V95CT13380AA; HOBBYCAR 260015; HOBBYCAR 260387; HOBBYCAR 6501660093; HÜFFERMANN 2-EL0004-010; HYMER 938148; IVECO 42024860EZ502780; IVECO 42046397; JCB 332/U8247; JOHN DEERE 00 17 80; JOHN DEERE 10 61 97; KÄSSBOHRER 8-689-032-001; KNAUS 615073; KNAUS K615073; KÖGEL 79727; KOMATSU 421-06-14430; KOMATSU 4603 153 M1; KRONE 0942729/0; KRONE 505816704; KRONE 5816704/0; LEYLAND DAF 1444658; LIEBHERR 6 071 088 08; LIEBHERR 6 071 266 01; LIEBHERR 6 905 206; MAN 150370000; MAN N1.01102-5441; MERCEDES-BENZ 000 482 40 02; MERCEDES-BENZ 000 826 17 41; MERCEDES-BENZ 001 544 06 92; MERCEDES-BENZ 623 565 7; MERCEDES-BENZ A 000 482 40 02; MERCEDES-BENZ A 000 623 56 57; MERCEDES-BENZ A 000 826 17 41; MERCEDES-BENZ A 001 544 06 92; MERCEDES-BENZ A 623 565 7; NEOPLAN 1503.082.00; NEOPLAN 1503.700.00; NEOPLAN N1.01102-5441; O&K 1711052; O&K 8011905; SCHMITZ CARGOBULL 1028; SCHMITZ CARGOBULL 182991; SCHWARZMÜLLER 12510; STILL 001780; VAN HOOL 660744056; VDL 20500426; VDL 30061185; VDL 660744056; VOLVO 4864457; VOLVO 70366376; ZIEGLER 114425; ZIEGLER 408214
