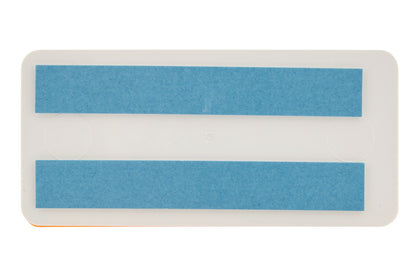

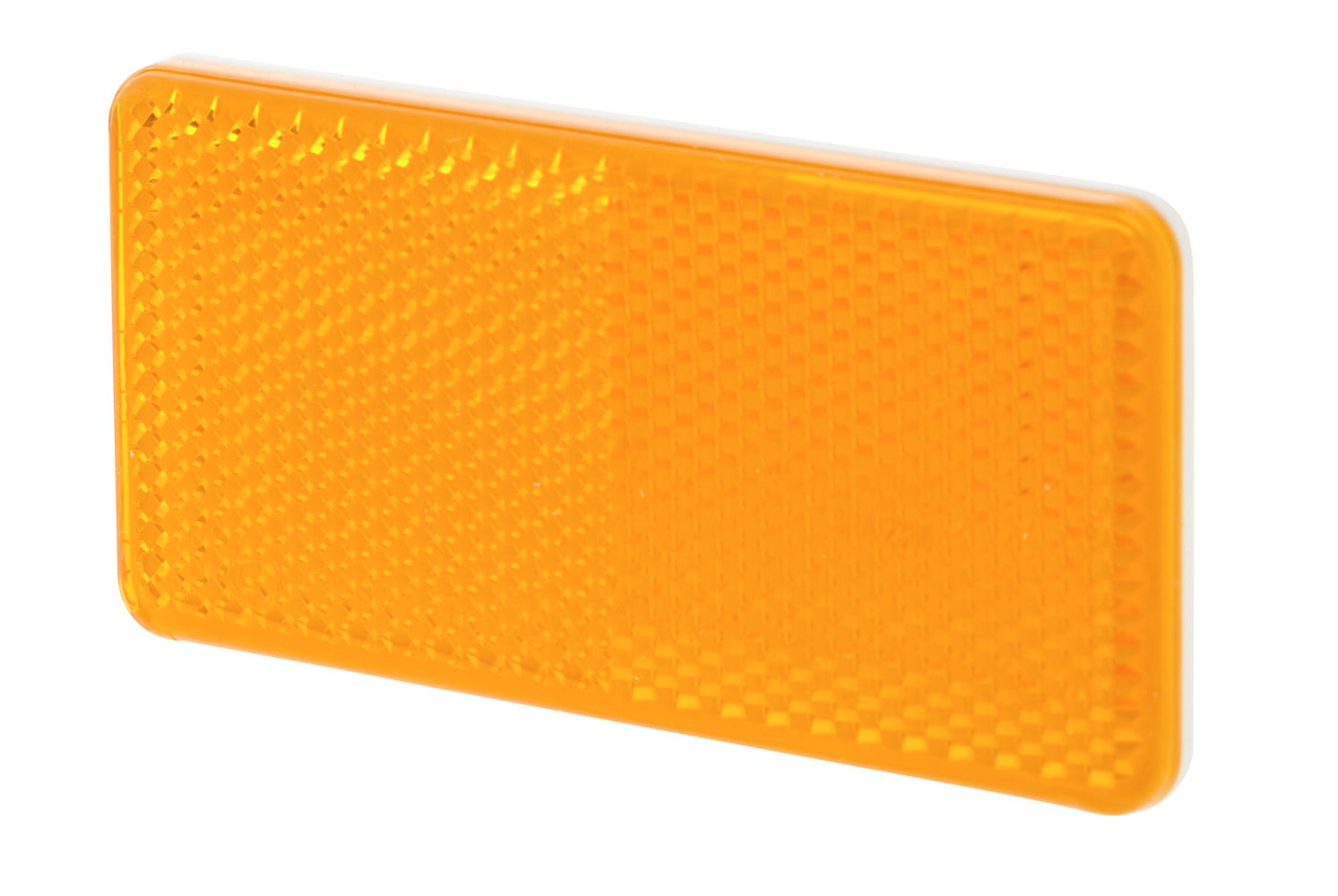

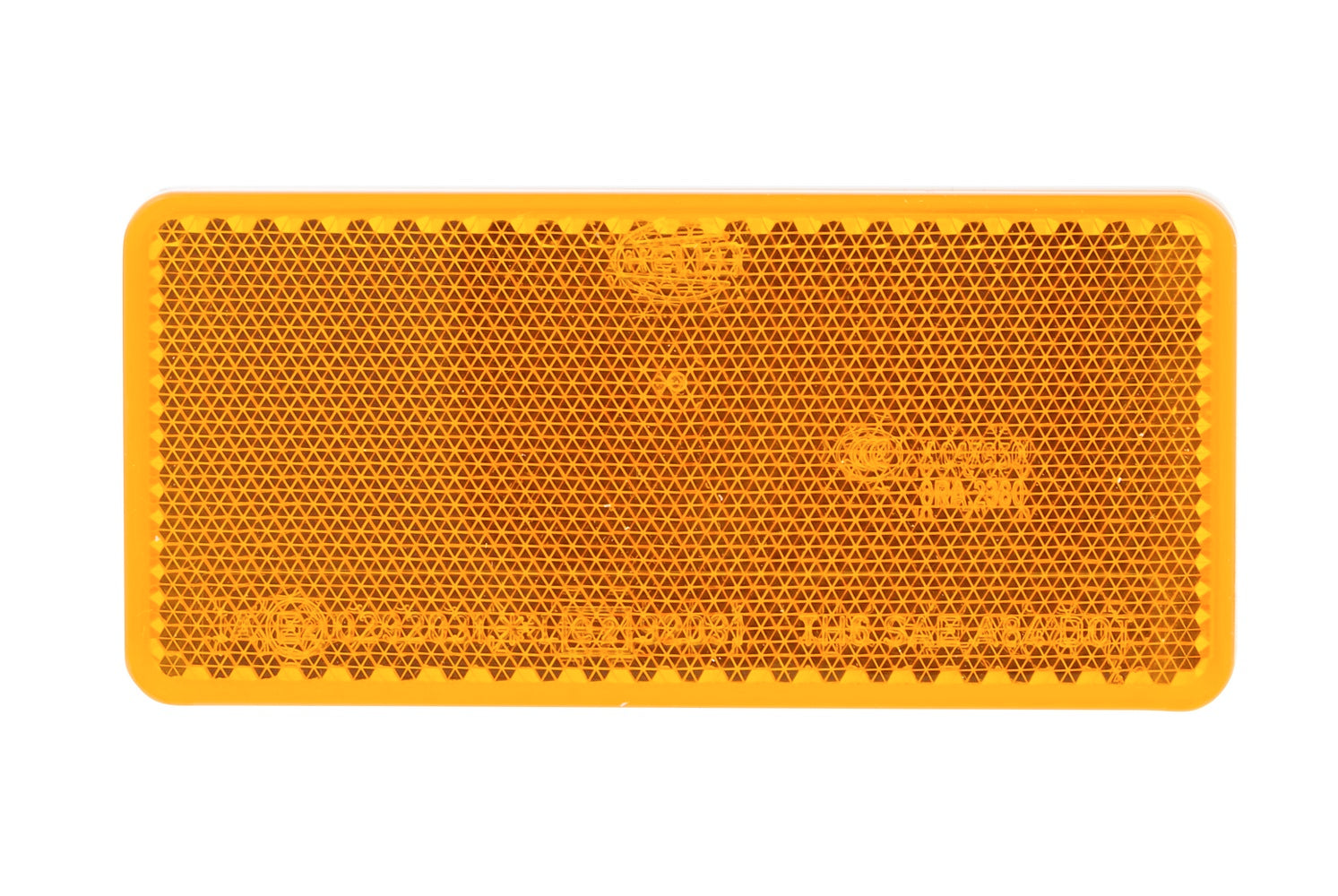

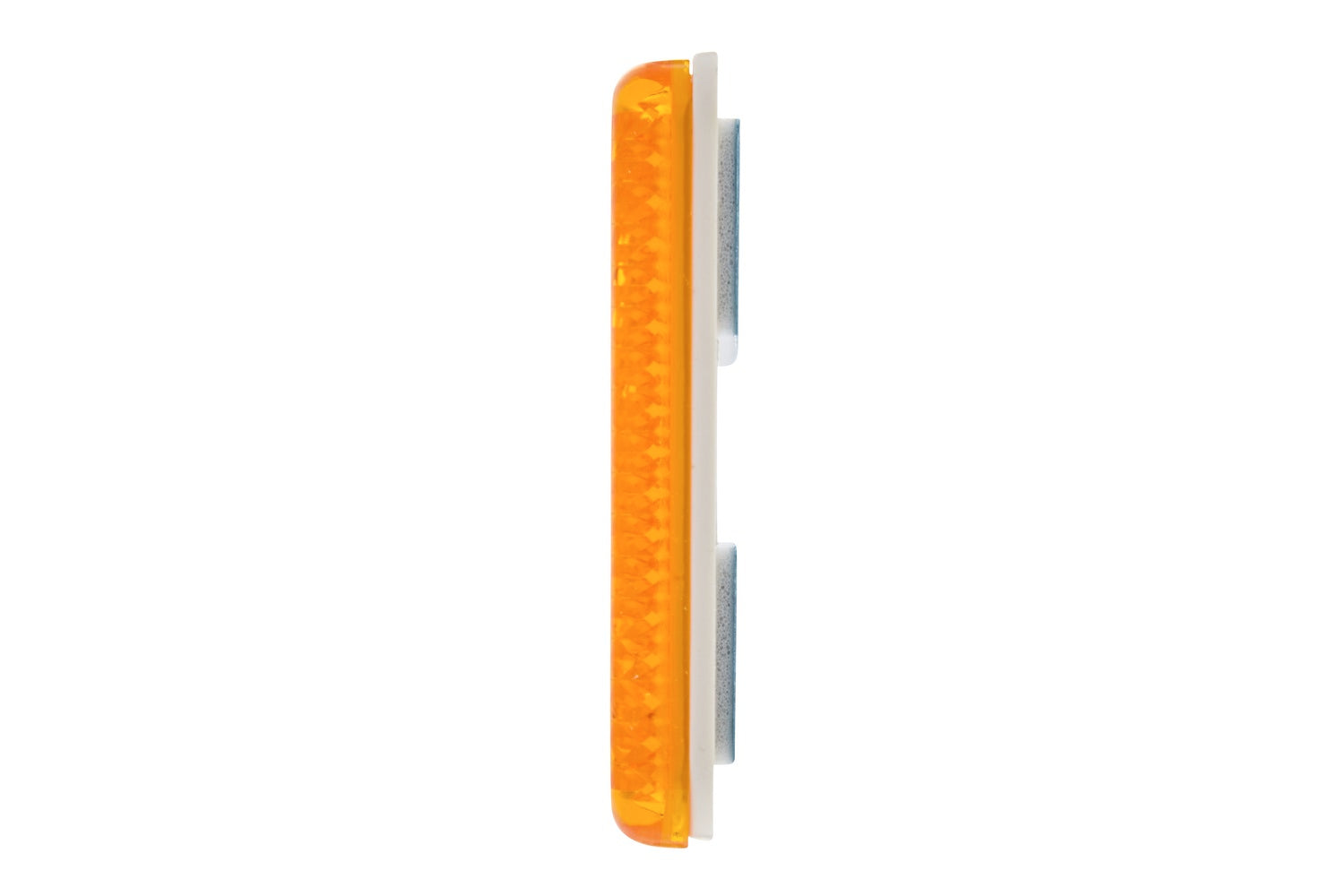

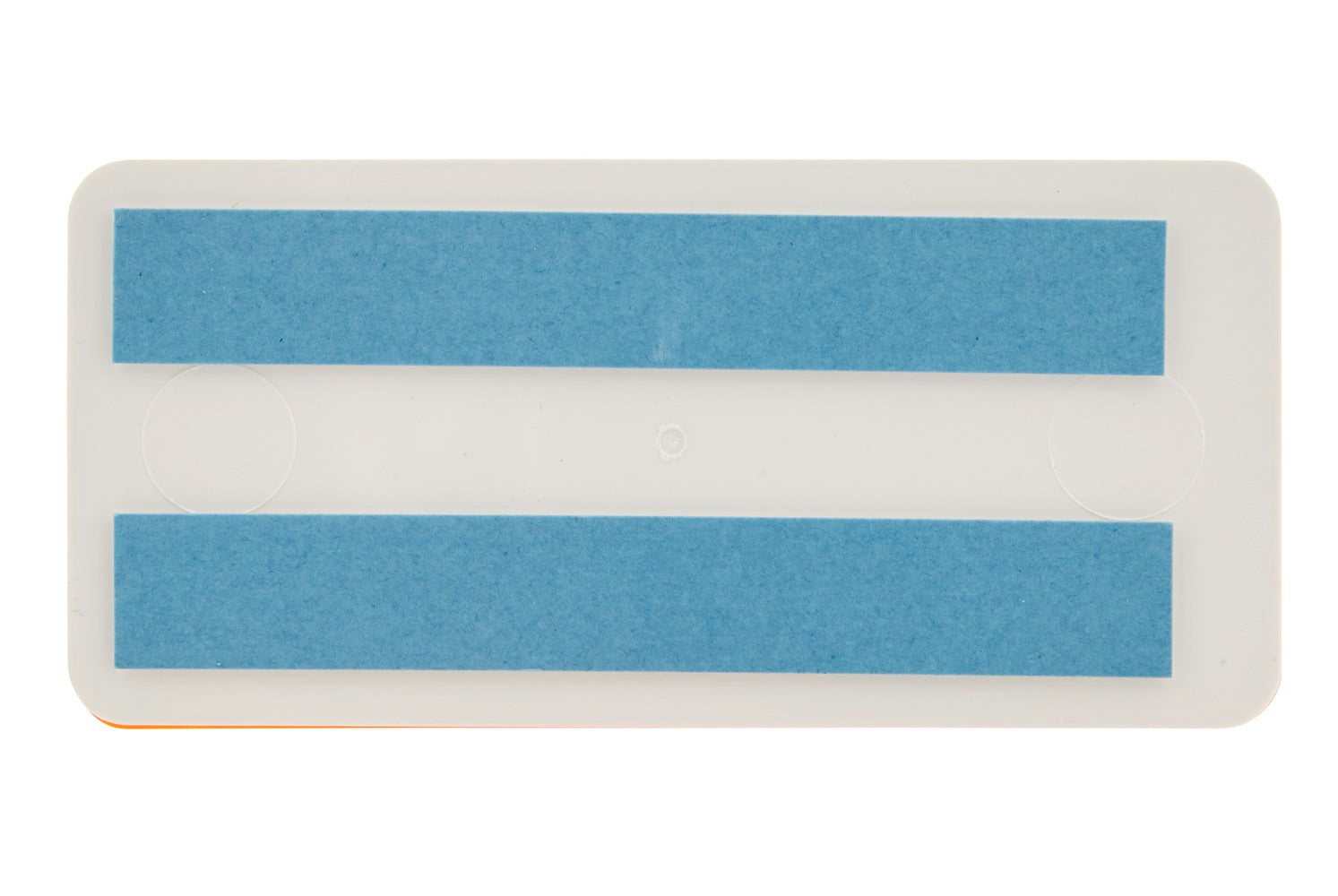

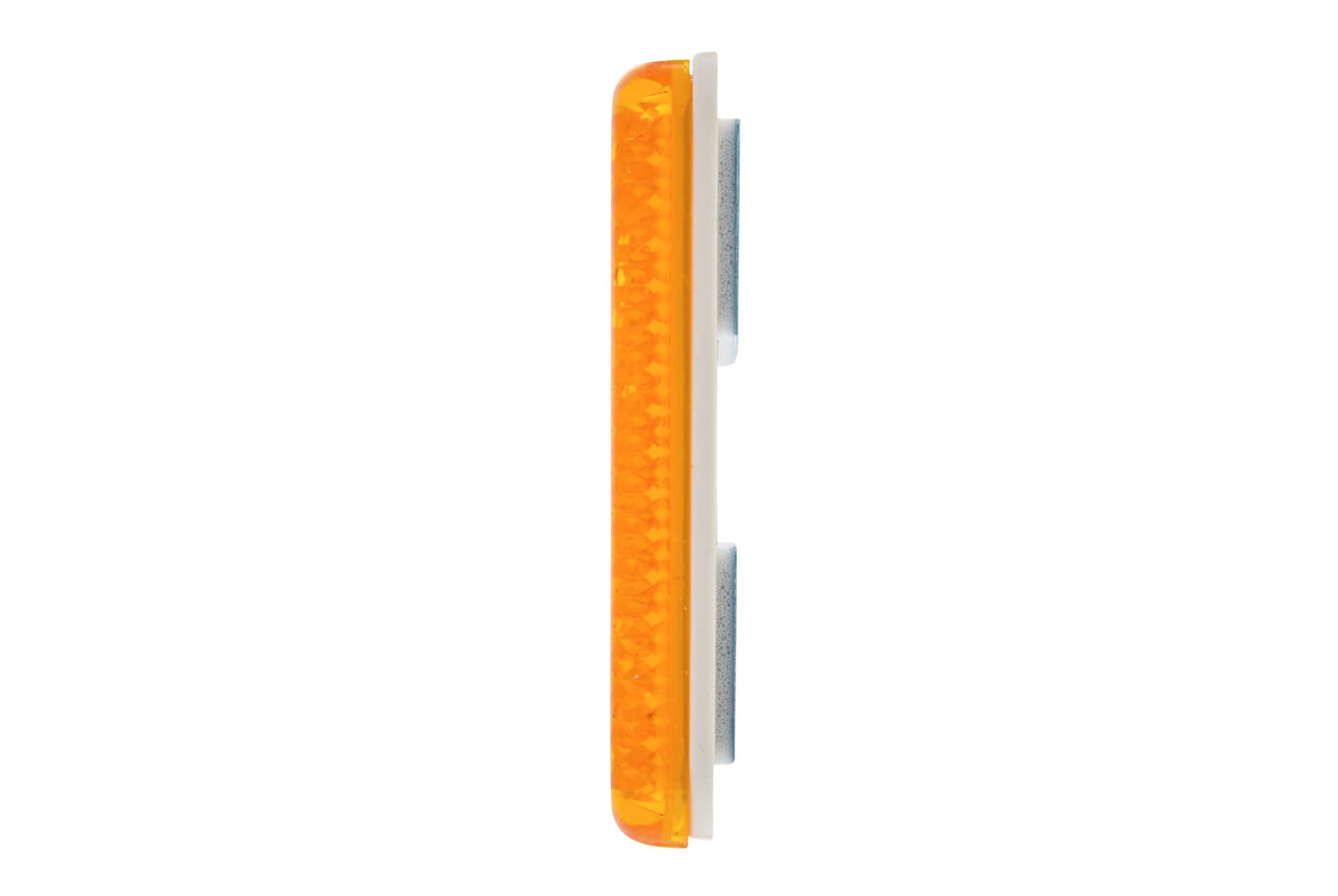

HELLA Reflector - Lens Colour: yellow (amber) - rectangular - Glued/mounting 8RA003326-041

Reflector - Lens Colour: yellow (amber) - rectangular - Glued/mounting - for horizontal fastening - ECE/SAE/ADR/GGVS/CCC - left/right - Quantity: 20

As additional passive light elements, the reflectors from HELLA improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.

• Horizontal or vertical mounting
• Reflecting area 29 cm²
• Registration Type: ECE/SAE/ADR/GGVS/CCC - fulfils ECE standard: R3
• with reflector
• Length: 94mm - Width: 44mm - Height: 7mm
• with fastening material
• Effective reflective surface: 34cm²

Item Attributes:
Mounting Type: Glued / mounting
Fastening Type: for horizontal fastening
Fitting Position: right / left
Light Function: with reflector
Length: 94 mm
Width: 44 mm
Height: 7 mm
Thickness: 7 mm
Housing Type: Synthetic Material Housing
Lens Colour: yellow (amber)
fulfils ECE standard: R3
Quantity: 20
Light functions: 1
Effective reflective surface: 34 cm²
Registration Type: ADR/GGVS / CCC / SAE / ECE
Shape: rectangular
Supplementary Article/Supplementary Info 2: with fastening material
Assembly by qualified personnel required!

OE references: AEBI 0237082-3; AGCO D45084600; AGRIFAC 7961840; AMMANN 1844394; ATLAS COPCO 5350658344; AUWÄRTER 11025442; AUWÄRTER 1503.700.10; AUWÄRTER 1503.706.00; AUWÄRTER 826-RS004; BUCHER EU000071; CASE IH 1537245; CASE IH 8011905; CATERPILLAR 9R-2404; DAF 971123; DOLL 7082495; DOOSAN 101571-00031; FAUN 5246-950; FAUN EA0991; FUCHS 440.60.65; GOLDHOFER 001201705; GRIMME B94.01006; HAKO 00-21172-9; HYDREMA 13253; HYMER 0864783; HYMER 2704069; HYMER 9957440; IRIZAR 518197; JOHN DEERE 10 17 45; JOHN DEERE 10 61 98; JOHN DEERE 80 80 255; KÖGEL 76232; KRAUSS-MAFFEI 10655303; KRONE 0944105/0; KRONE 500944105; LANGENDORF 1084148; LEYLAND DAF 745118900; LIEBHERR 7 622 573; MAN 11025442; MAN 150370010; MAN 81.42950.0038; MAN 81.42950.0063; MAN ZF81429500063; MERCEDES-BENZ 000 482 40 03; MERCEDES-BENZ 000 826 16 40; MERCEDES-BENZ 000 826 19 40; MERCEDES-BENZ 000 826 28 40; MERCEDES-BENZ 002 826 20 78; MERCEDES-BENZ A 000 482 40 03; MERCEDES-BENZ A 000 826 16 40; MERCEDES-BENZ A 000 826 19 40; MERCEDES-BENZ A 000 826 28 40; MERCEDES-BENZ A 002 826 20 78; NAVISTAR 3868345C1; NEOPLAN 1102.544.2; NEOPLAN 1503.700.10; O&K 1537245; O&K 8011905; PUTZMEISTER 742290; RENAULT 261402827R; RENAULT 5010168934; RENAULT TRUCKS 5010168934; ROSENBAUER 018609; SCANIA 17326041; SCANIA 1912074; SCANIA 20223927; SCHMITZ CARGOBULL 060712; SCHMITZ CARGOBULL 061807; SCHMITZ CARGOBULL 1-FZELEK0087; SCHWARZMÜLLER 9847; SOMMER 2800443001; SPERRY NEW HOLLAND 1537245; SPERRY NEW HOLLAND 2040701; SPIERINGS 450431; TEREX 530658344; TEREX 5350658344; VAN HOOL 660744054; VDL 194000800; VDL 20500427; VDL 22945020; VDL 30001448; VDL 660744054; VOLVO 16000607; VOLVO 43961218; VOLVO 6774450; VOLVO 745118900; VOLVO 80010102800; VOLVO RM43961218; YANMAR 530658344
