HELLA Reflector - Shapeline Style - Lens Colour: red - rectangular - Bolted/mounting 8RA013402-021

Reflector - Shapeline Style - Lens Colour: red - rectangular - Bolted/mounting - for horizontal fastening - ECE/SAE - right - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation
• Registration Type: ECE/SAE - fulfils ECE standard: R3
• with reflector

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: for horizontal fastening
Fitting Position: right
Light Function: with reflector

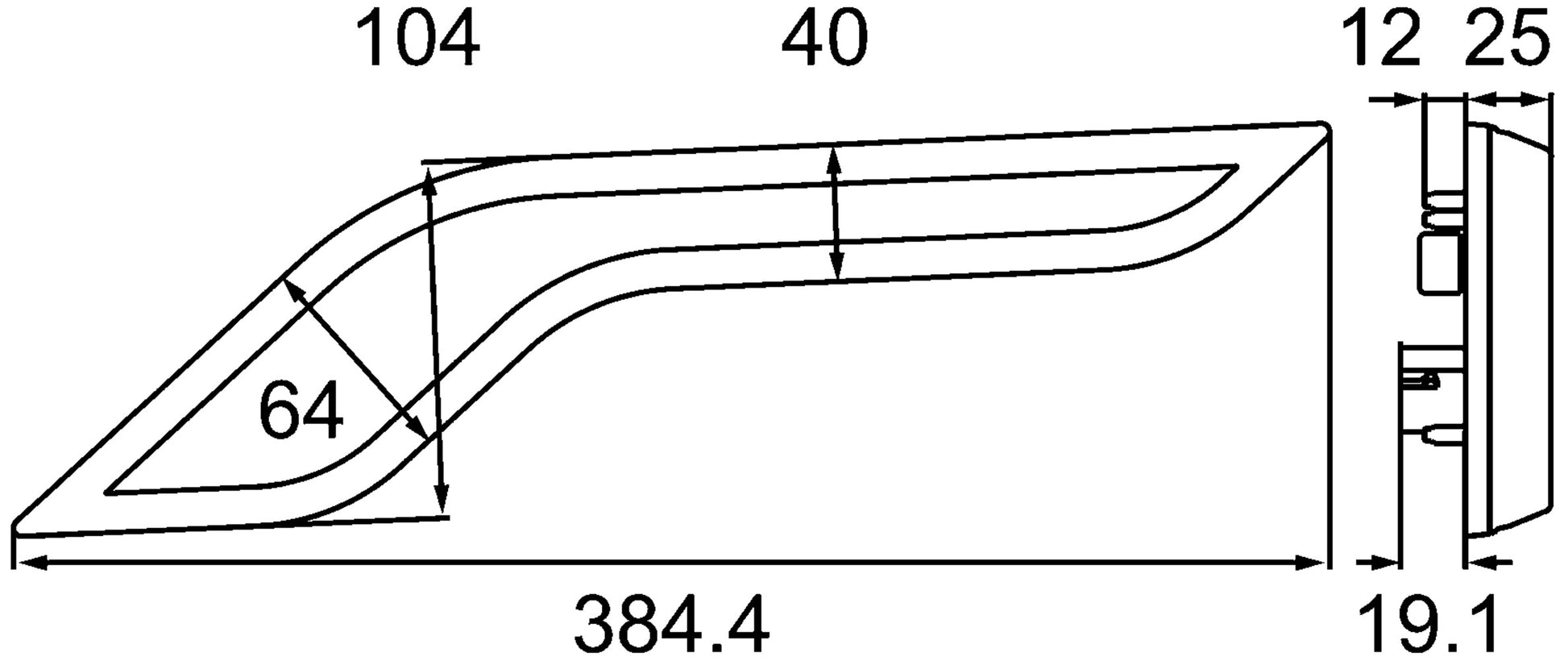

Length: 389 mm
Width: 104 mm
Height: 25 mm
Thickness: 39 mm
Housing Type: Synthetic Material Housing
Lens Colour: red
fulfils ECE standard: R3
Quantity: 1
Light functions: 1
Registration Type: ECE / SAE
Shape: rectangular
Supplementary Article/Supplementary Info 2: without fastening material
Assembly by qualified personnel required!

OE references: VINFAST BEX41820007AA; VINFAST BEX41820007AA - REFLEX REFLECTOR; VINFAST BEX41820007AA - REFLEX REFLECTOR RH
