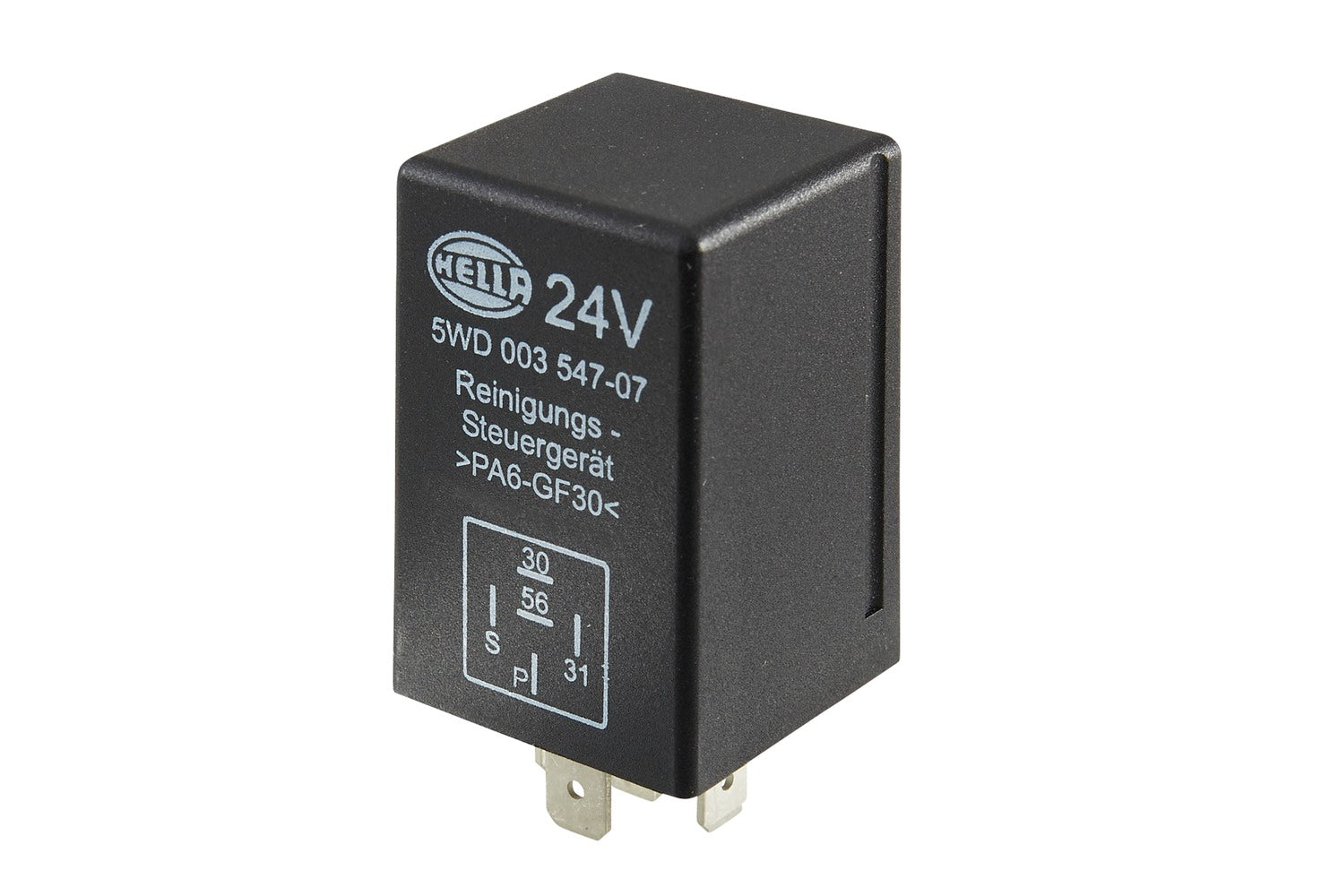

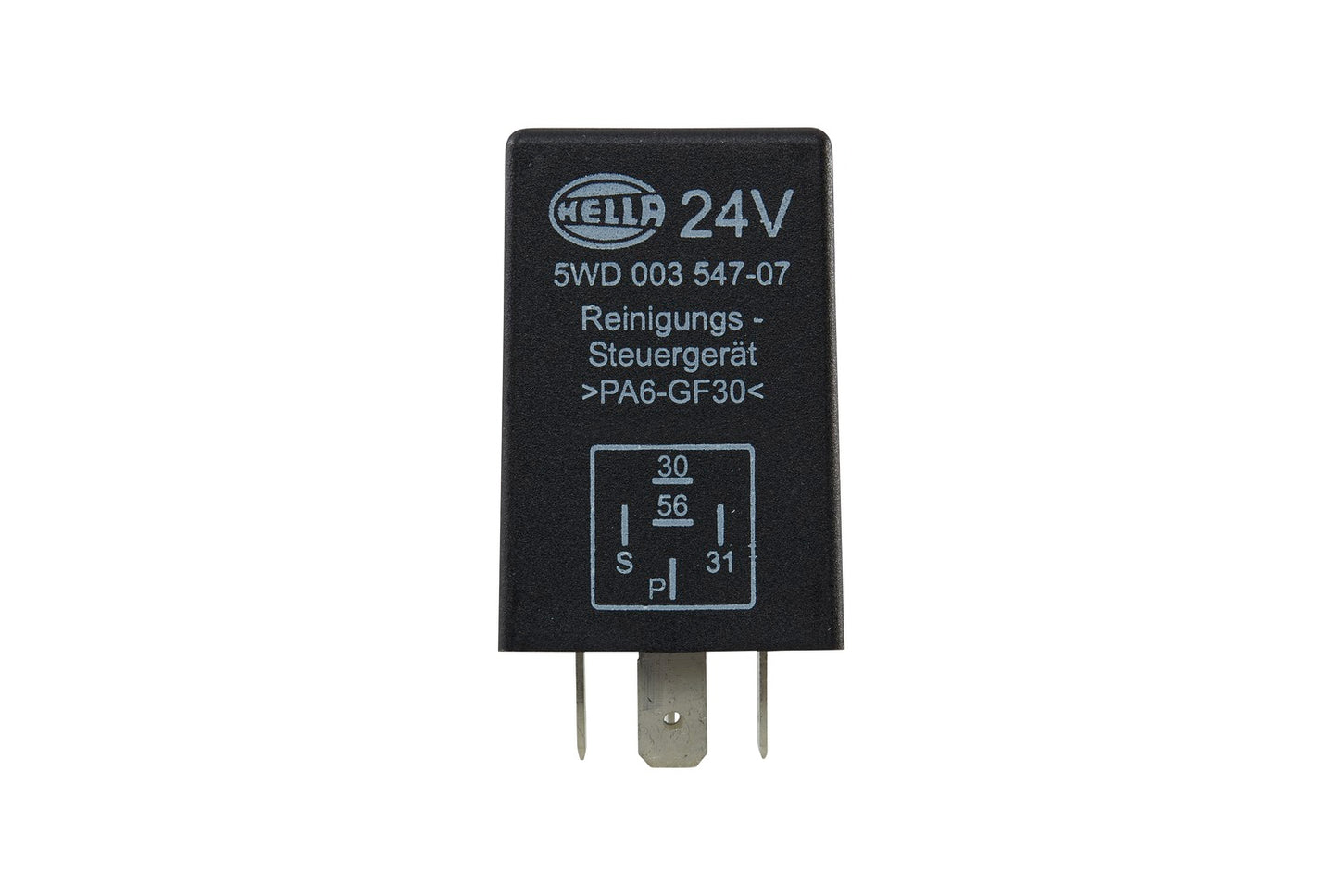

HELLA Relay, headlight cleaning - 24V - Number of connectors: 5 5WD003547-071

Relay, headlight cleaning - 24V - Number of connectors: 5

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. In addition to the washer pump, a functioning windscreen washer system requires the wiper/washer control unit, which controls the individual functions of the front and rear washers as well as the headlight cleaning. With more than 100 million relays manufactured annually and one of the lowest failure rates in the entire industry, the advantages of the HELLA wipe-wash control unit are obvious.

• Headlight cleaning system 24 V, 5-pin
• Output duty cycle: 0.43 ± 0.02 s
• Voltage range: 18 to 30 V
• Temperature range from -40 to +90 °C
• Increase in driving comfort
• Temperature range from: -40°C - Temperature range to: +90°C - Switching Time: 430ms

Item Attributes:
Voltage: 24 V
Temperature range from: -40 °C
Temperature range to: +90 °C
Number of connectors: 5
Switching Time: 430 ms
Assembly by qualified personnel required!

OE references: HEULIEZ 5010104615; IVECO 5010104615; IVECO 503137985; IVECO E5010104615; MAN 36.25935-6015; VDL 20195179
