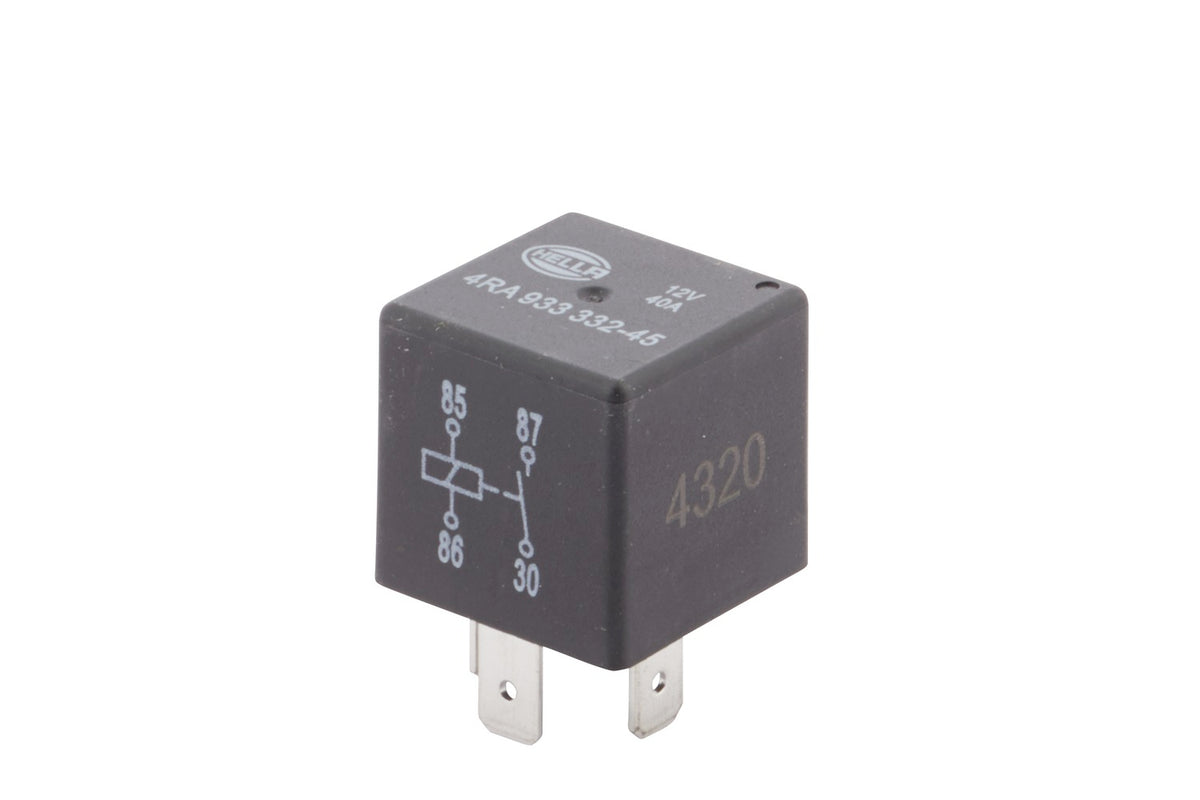

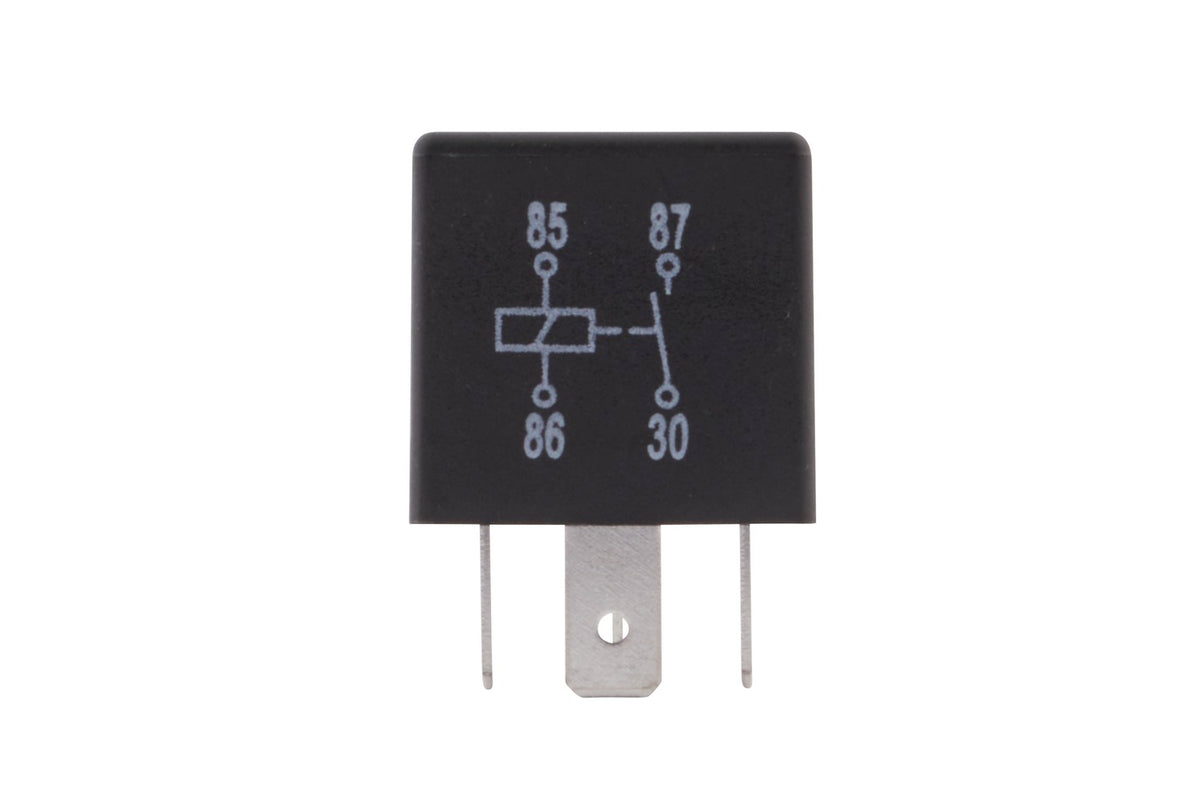

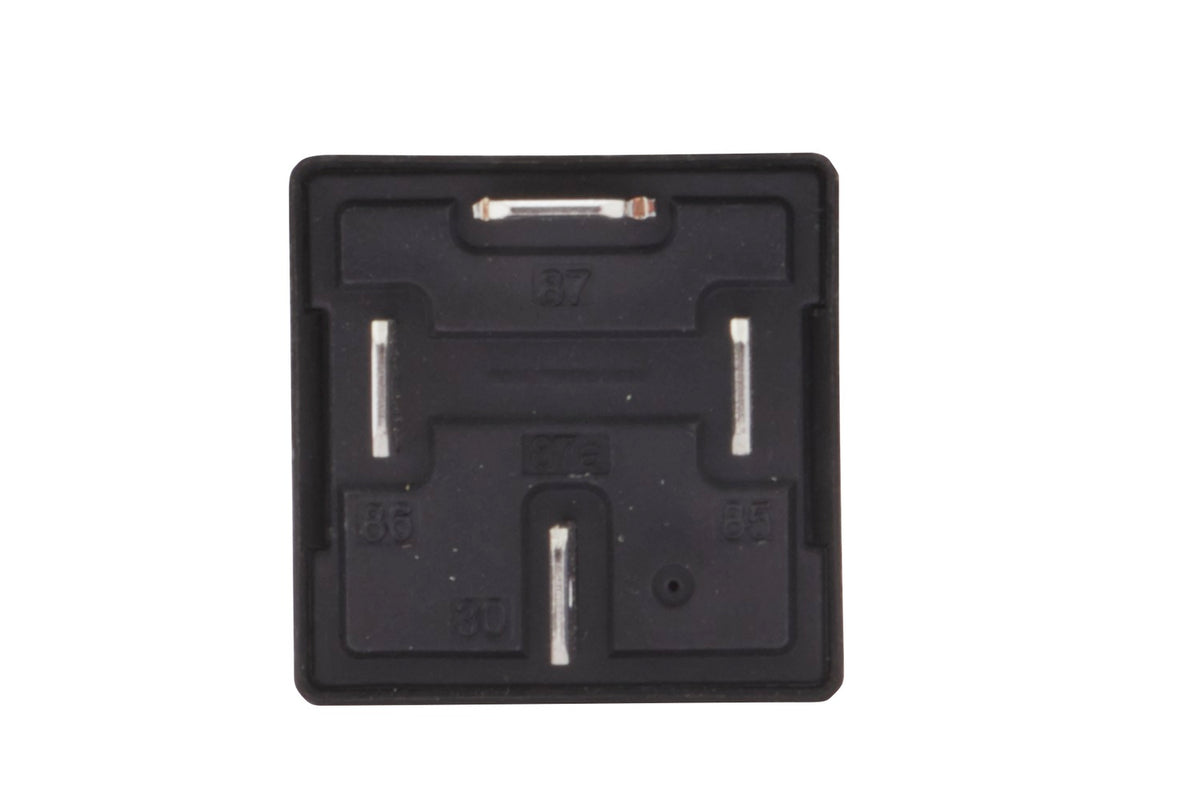

HELLA Relay, main current - 12V - 4-pin connector 4RA933332-451

Relay, main current - 12V - 4-pin connector - Normally Open Contact - Quantity: 1

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - normally open relay 12 V, without holder
• Rated switching current max. 40 A
• Number of switching operations max. 100,000
• Coil resistance: 85 Ohm
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 40A

Item Attributes:
Voltage: 12 V
Capacity at 12V: 40A
Switch Function: Normally Open Contact
Number of pins: 4 -pin connector
Temperature range from: -40 °C
Temperature range to: +125 °C
Weight: 24 g
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A
Quantity: 1
Relay function: Fan, heater/air conditioning / Clamp 87 / Central Locking / Window Regulator / Windscreen Wiper / Interior Lighting / Sunroof / Windscreen Wiper Rest Heating / Starter / ABS recovery pump / Fan, engine cooling / Oxygen Sensor / Seat Heating / High Beam / ESP / Park Distance Control / Clamp 15R / Front Fog Light / Electric booster heater / Interior Blower / Daytime Running Light / Clamp 15 / Convertible Roof Hydraulics / Light switch / Heated rear window / Fuel Pump / Klaxon / Air Conditioning / Exterior Mirror Adjustment / Comfort Equipment Variant (trim package) / Heatable exterior mirror / Low Beam / ABS / Secondary Air System
Assembly by qualified personnel required!

OE references: AUDI 141 951 253 B; FENDT D 450 600 21; FIAT 500341925; FORD 1 3A0 25D; GENERAL MOTORS 3440489; JOHN DEERE AL 20 7376; MERCEDES-BENZ 002 542 06 19; MERCEDES-BENZ A 002 542 06 19; OPEL 13171831; OPEL 6238640; VW 321919505; VW 4H0 951 253 A; VW 8d0 951 253 A
