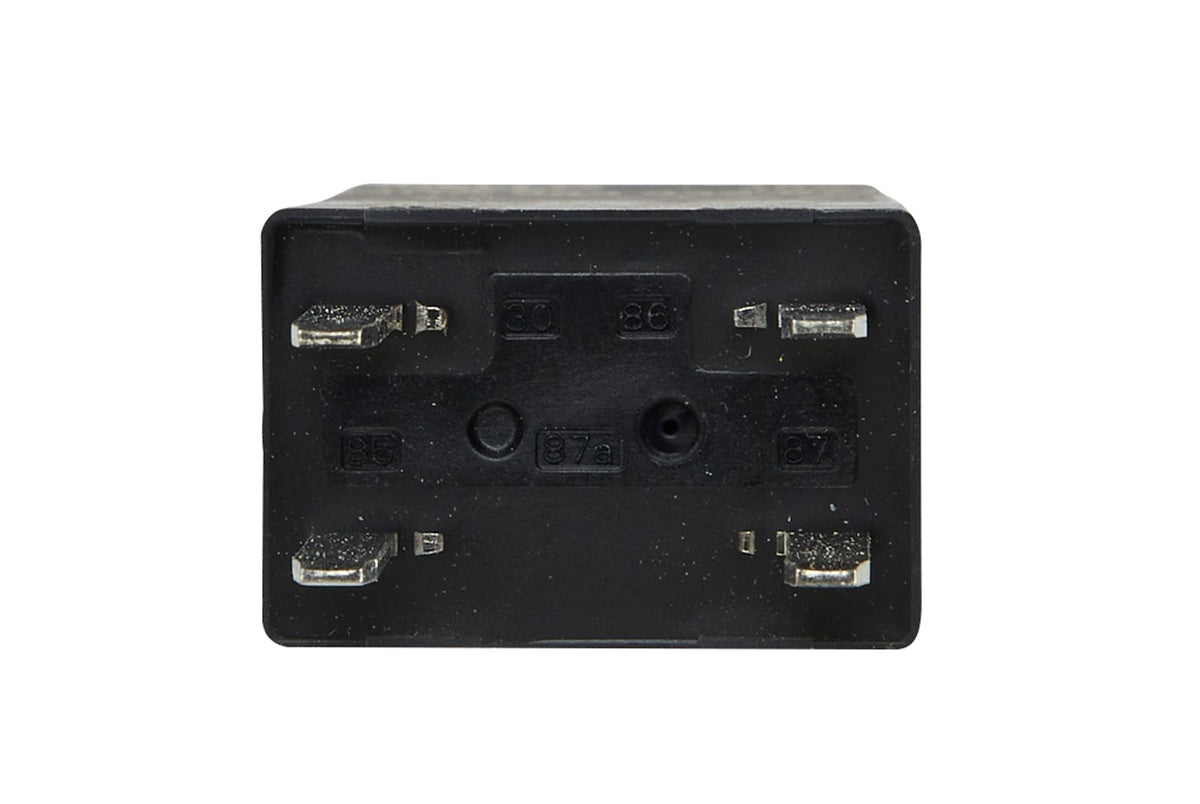

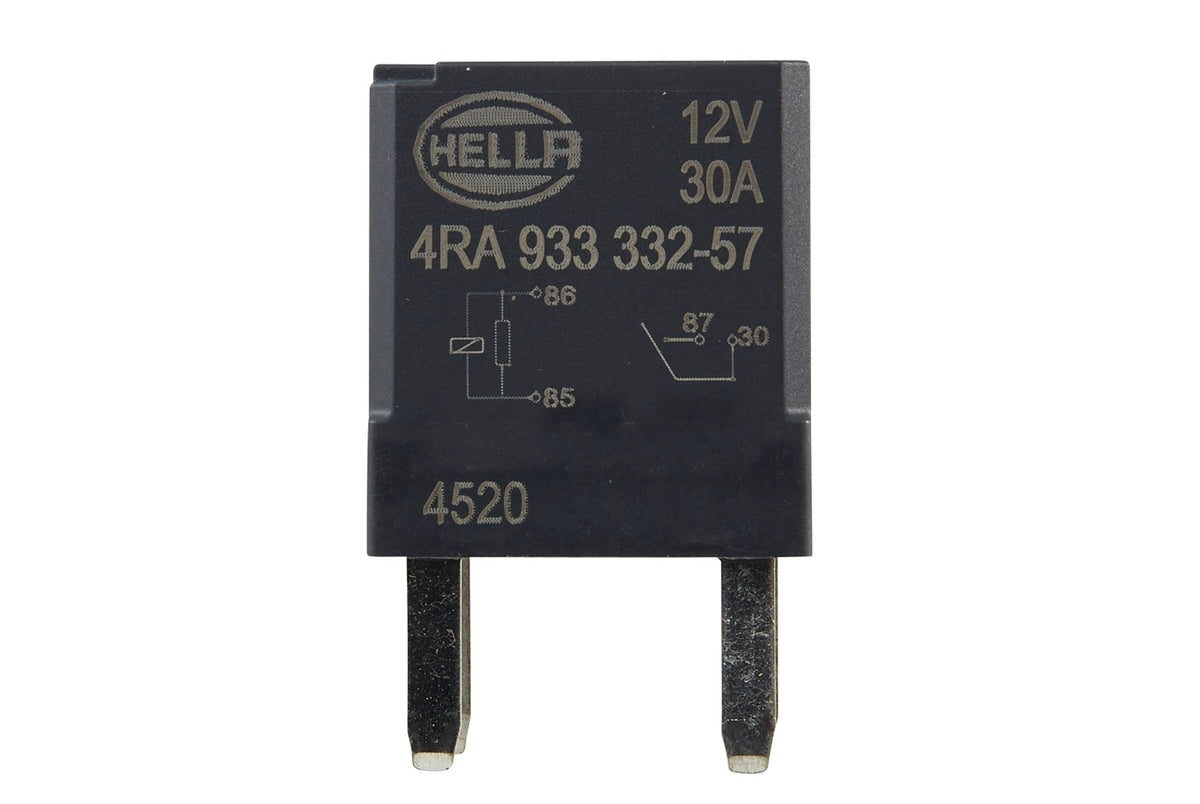

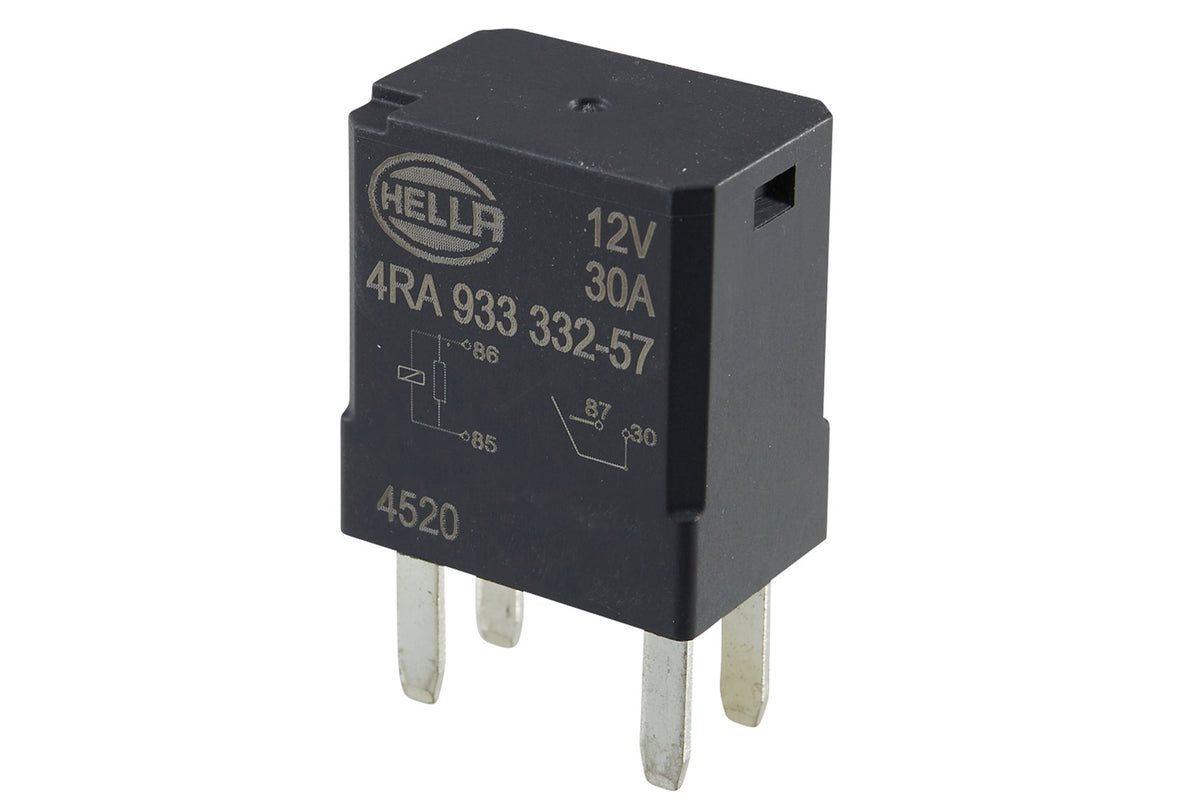

HELLA Relay, main current - 12V - 4-pin connector 4RA933332-571

Relay, main current - 12V - 4-pin connector - Normally Open Contact - Quantity: 1

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Multifunction relay - normally open relay 12 V
• Load capacity at 12V: 30 A
• Inductive load: 15 A
• Capacitive load: 5 A
• Ohmic load: 40 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 30A

Item Attributes:
Voltage: 12 V
Capacity at 12V: 30A
Switch Function: Normally Open Contact
Corresponds to the original part in colour: grey
Number of pins: 4 -pin connector
Quantity: 1
Temperature range from: -40 °C
Temperature range to: +125 °C
Weight: 24 g
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A
Relay function: Comfort Equipment Variant (trim package) / Engine control unit / Low Beam
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: CHRYSLER 68083380AA; FORD USA 3F2Z-14N089-AA; GENERAL MOTORS 12088567; GENERAL MOTORS 12135034; GENERAL MOTORS 12135170; GENERAL MOTORS 12193606; GENERAL MOTORS 1238277; GENERAL MOTORS 13306939; GENERAL MOTORS 13361776; GENERAL MOTORS 13500112; GENERAL MOTORS 13500114; GENERAL MOTORS 13502679; GENERAL MOTORS 15328866; GENERAL MOTORS 15393412; GENERAL MOTORS 19115080; GENERAL MOTORS 19115083; GENERAL MOTORS 19116057; GENERAL MOTORS 19116963; GENERAL MOTORS 62 38 557; GENERAL MOTORS 62 38 661; GENERAL MOTORS 62 38 725; GENERAL MOTORS 89046660; GENERAL MOTORS 96190187; OPEL 13500112
