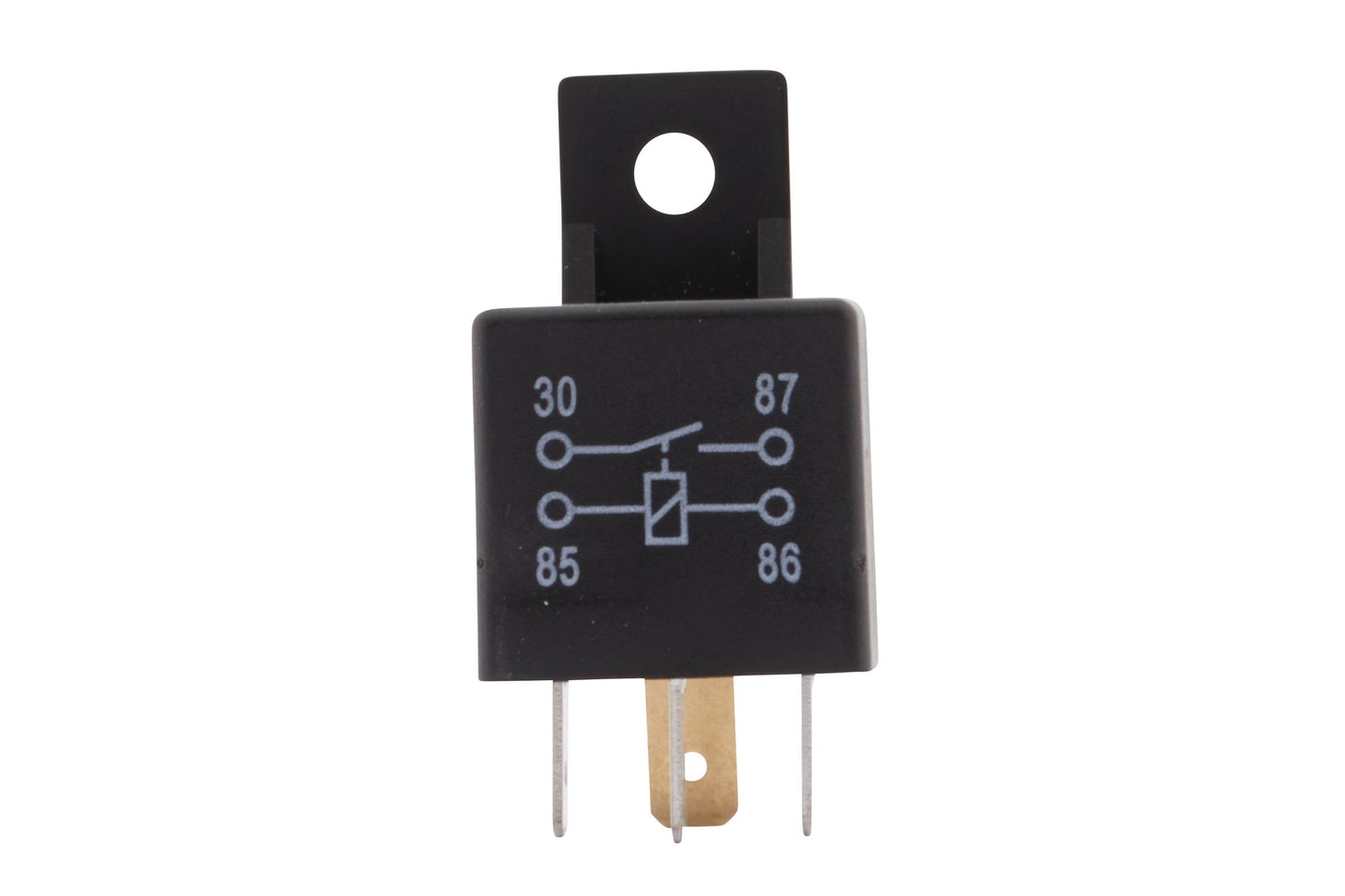

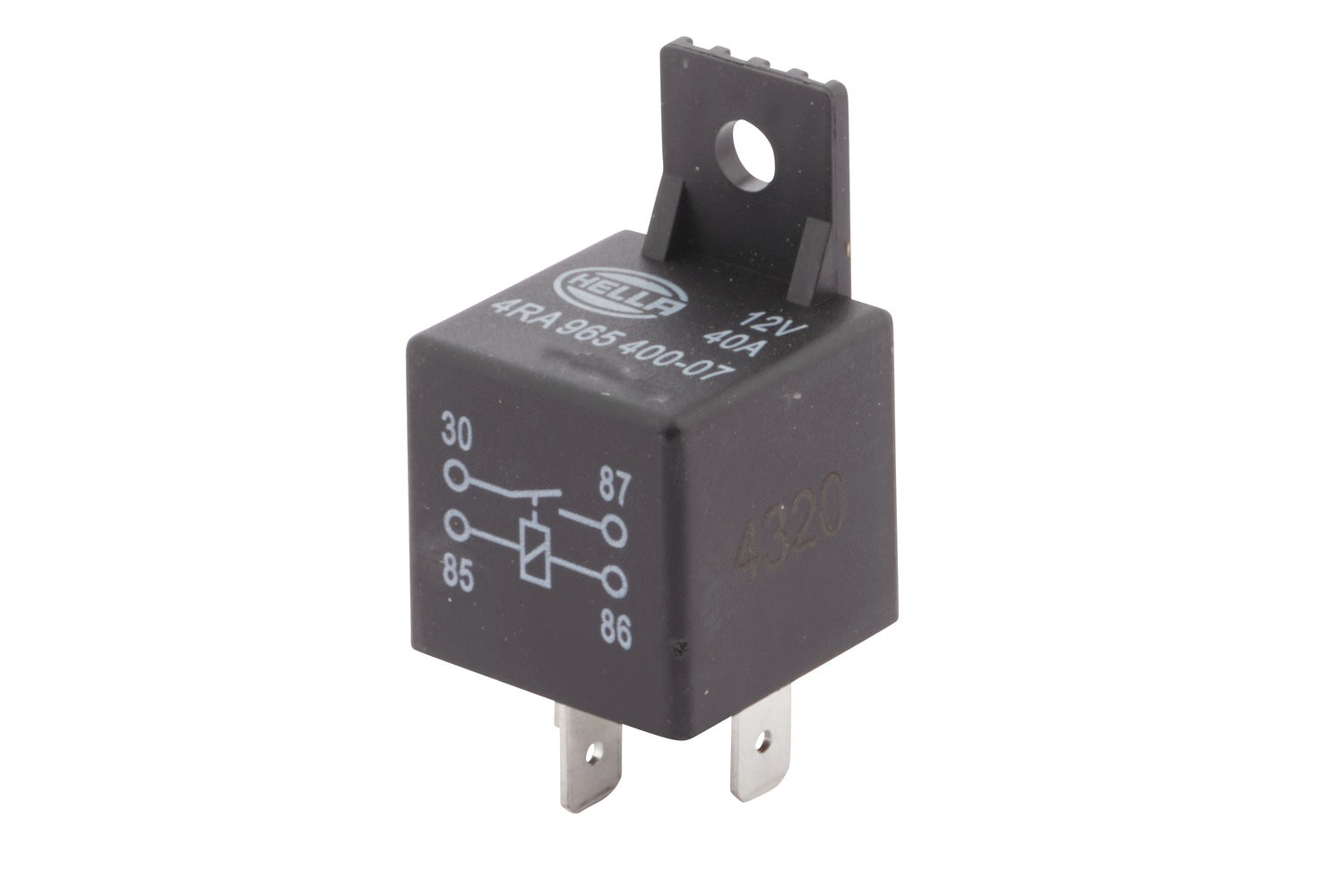

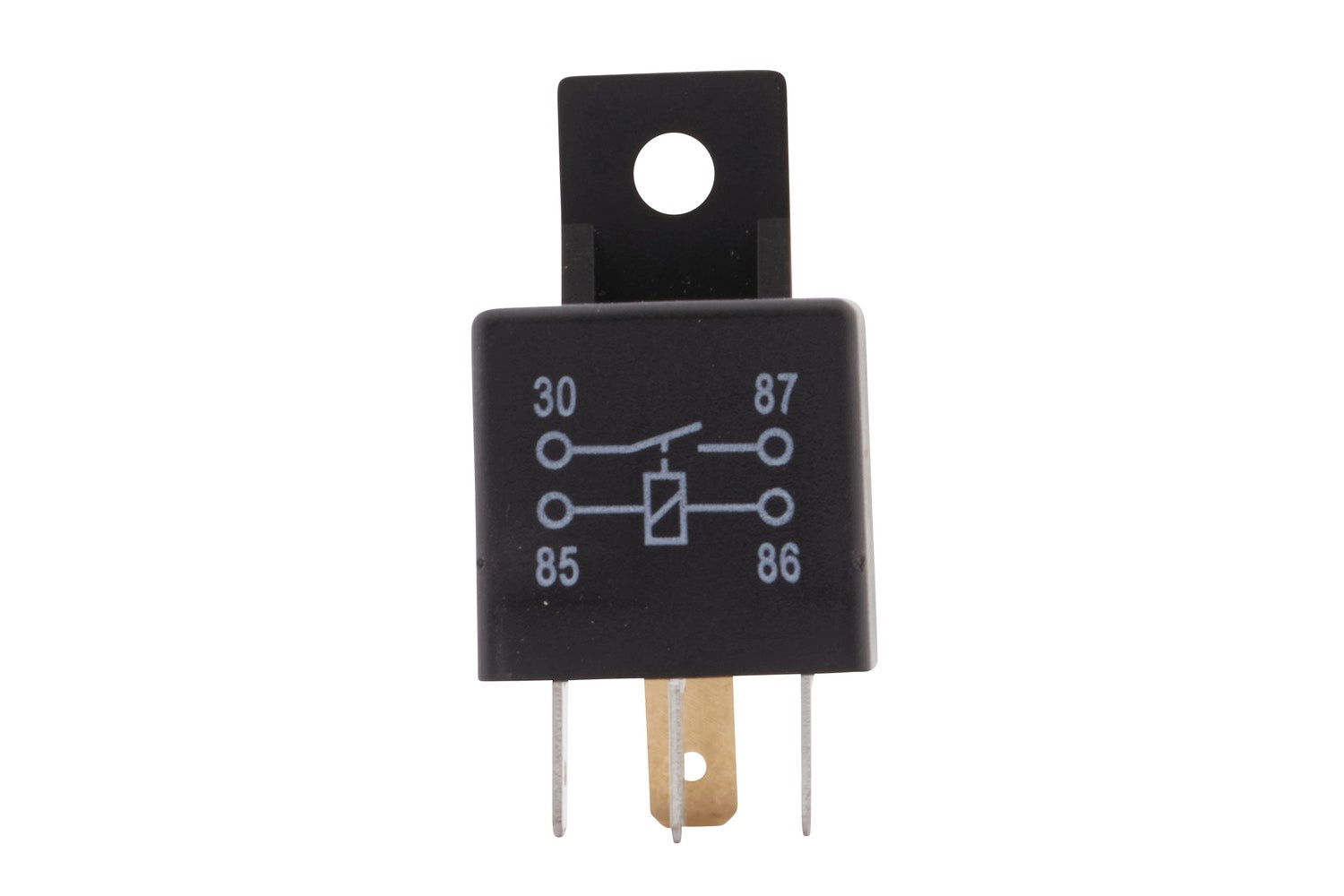

HELLA Relay, main current - 12V - 4-pin connector - S1 - A 4RA965400-071

Relay, main current - 12V - 4-pin connector - Wiring Diagramme: S1 - Plug: A - Normally Open Contact - Colour: Black - with holder - Quantity: 1

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - make contact relay 12 V, with holder
• Rated switching current max. 30 A
• Number of switching operations max. 100,000
• Coil resistance: 89 Ohm
• Inductive load: 15 A, ohmic load: 30 A, Capacitive load: 5 A
• Temp. Range: 80°C - Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 30A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 40A

Item Attributes:
Switch Function: Normally Open Contact

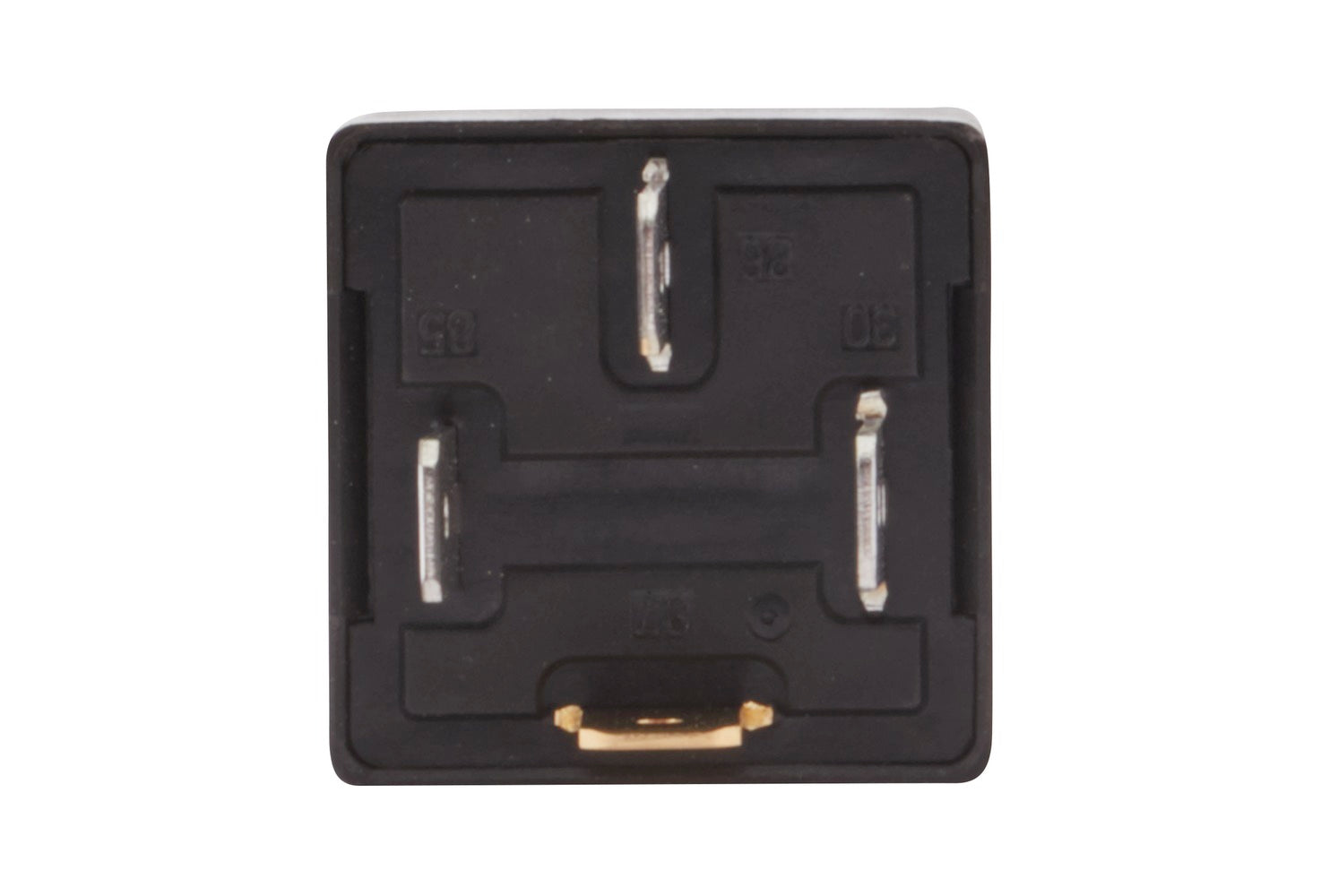

Number of pins: 4 -pin connector
Capacity at 12V: 40A
Supplementary Article/Supplementary Info: with holder
Prot.type (IP Code): IP54
Voltage: 12 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Colour: black
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 30 A
Wiring Diagramme: S1
Plug: A
Temp. Range: 80 °C
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO ACP0381780; AUDI KDWHLO9402; BMW 1 351 317; BMW 1 353 789; BMW 1 358 193; BMW 61 31 1 351 317; BMW 61 31 1 353 789; BUCHER 623043B; DAF 867513; DAF 906180; FENDT A CP0 381 780; FENDT D 450 752 00; FORD 6 050 578; FORD 6 059 235; HAKO 90-12655-8; KNAUS 050891; KRONE 0302217/0; KRONE 515001750; O&K 1452807; OPEL 43206400; SCHMITZ CARGOBULL 980042; STILL 7916291272; VOLVO 672599; VW KDWHLO9402
