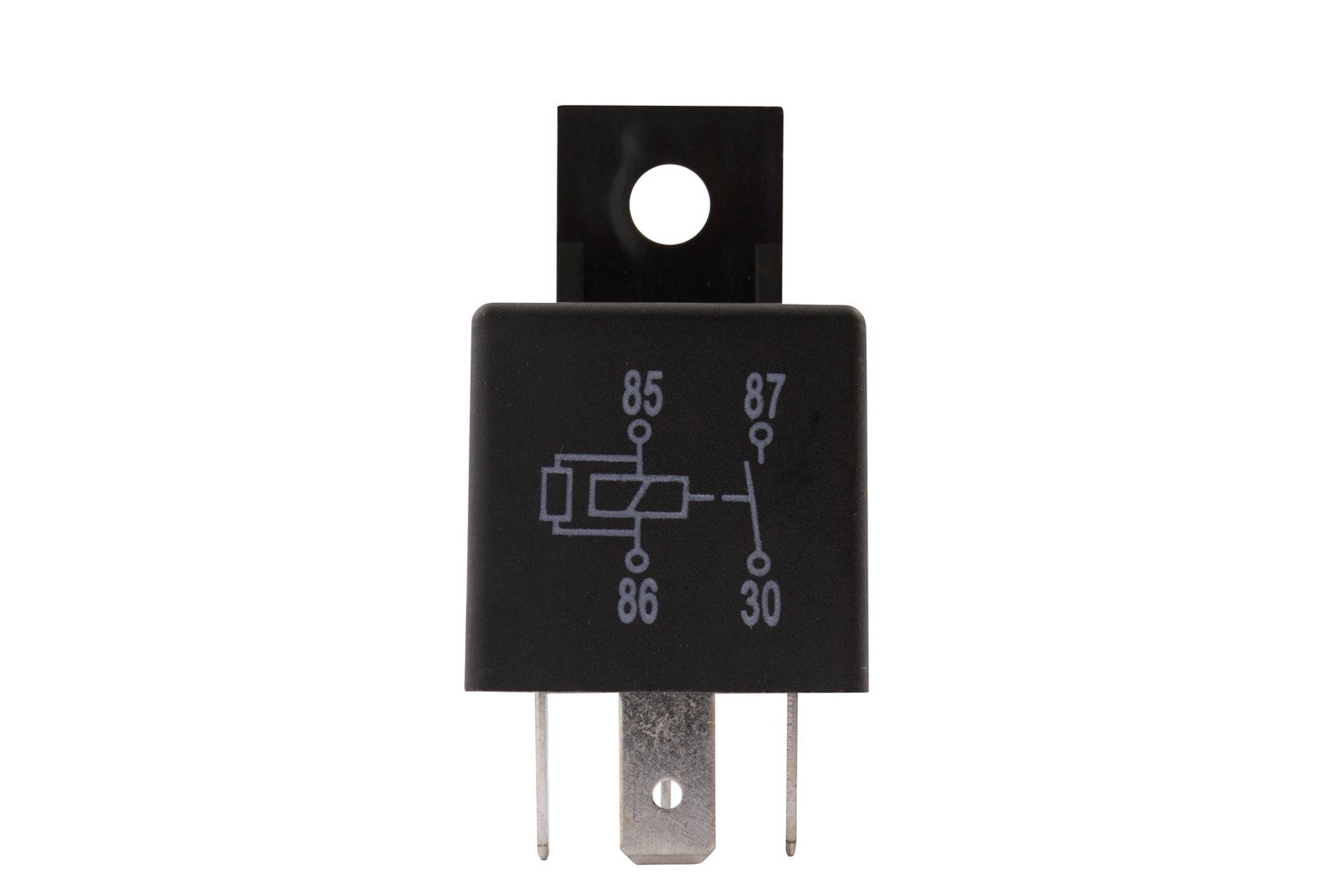

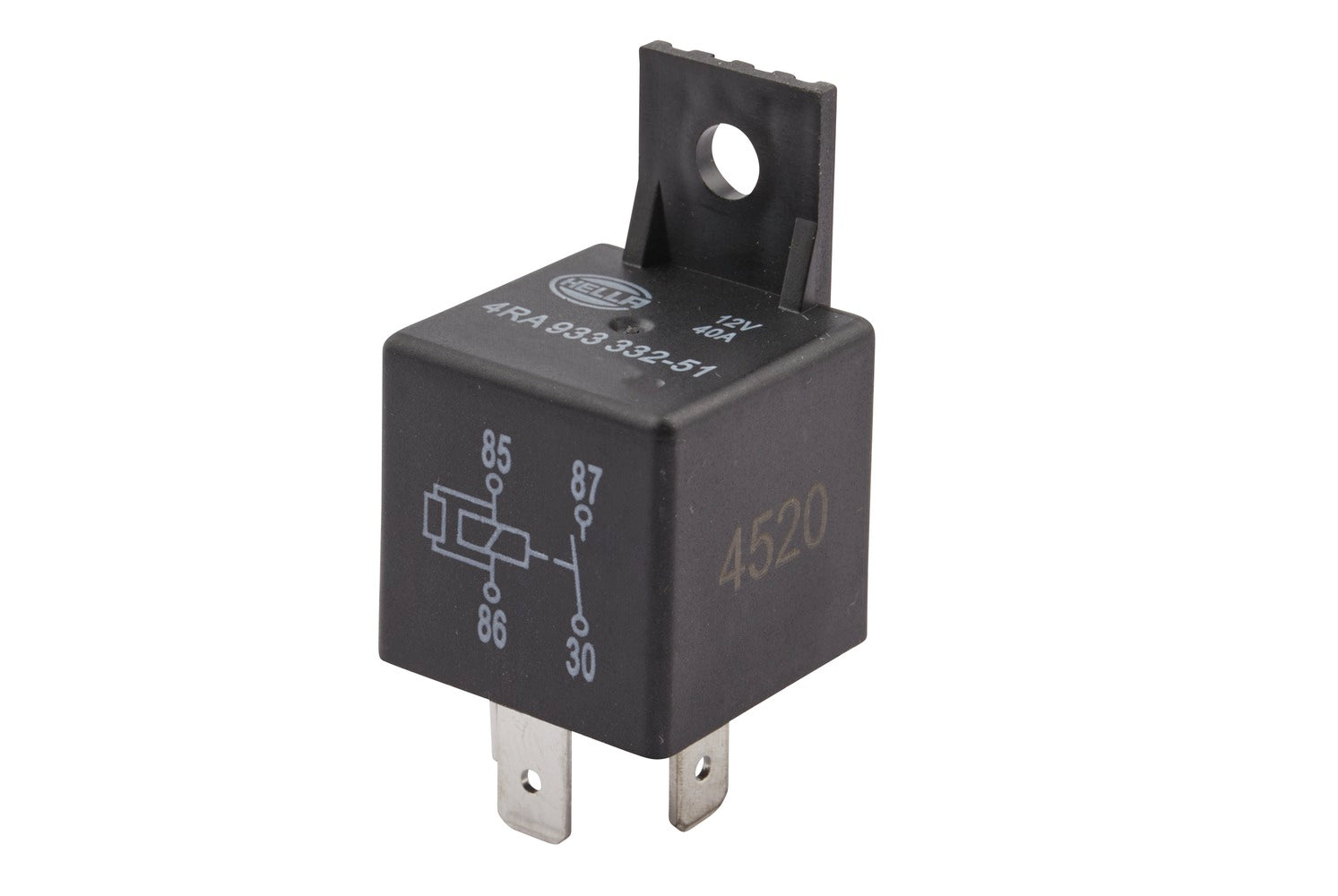

HELLA Relay, main current - 12V - 4-pin connector - S2 - B 4RA933332-511

Relay, main current - 12V - 4-pin connector - Wiring Diagramme: S2 - Plug: B - Normally Open Contact - Colour: Black - with holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - make contact relay 12 V, with holder
• Rated switching current max. 40 A
• Inductive load: 35 A
• Capacitive load: 30 A
• Ohmic load: 40 A
• Temp. Range: 80°C
• Ohmic Load: 40A - Inductive Load: 35A - Capacitive Load: 30A - Capacity at 12V: 40A

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Supplementary Article/Supplementary Info: with holder
Prot.type (IP Code): IP54
Voltage: 12 V
Capacity at 12V: 40A
Colour: black
Inductive Load: 35 A
Capacitive Load: 30 A
Ohmic Load: 40 A

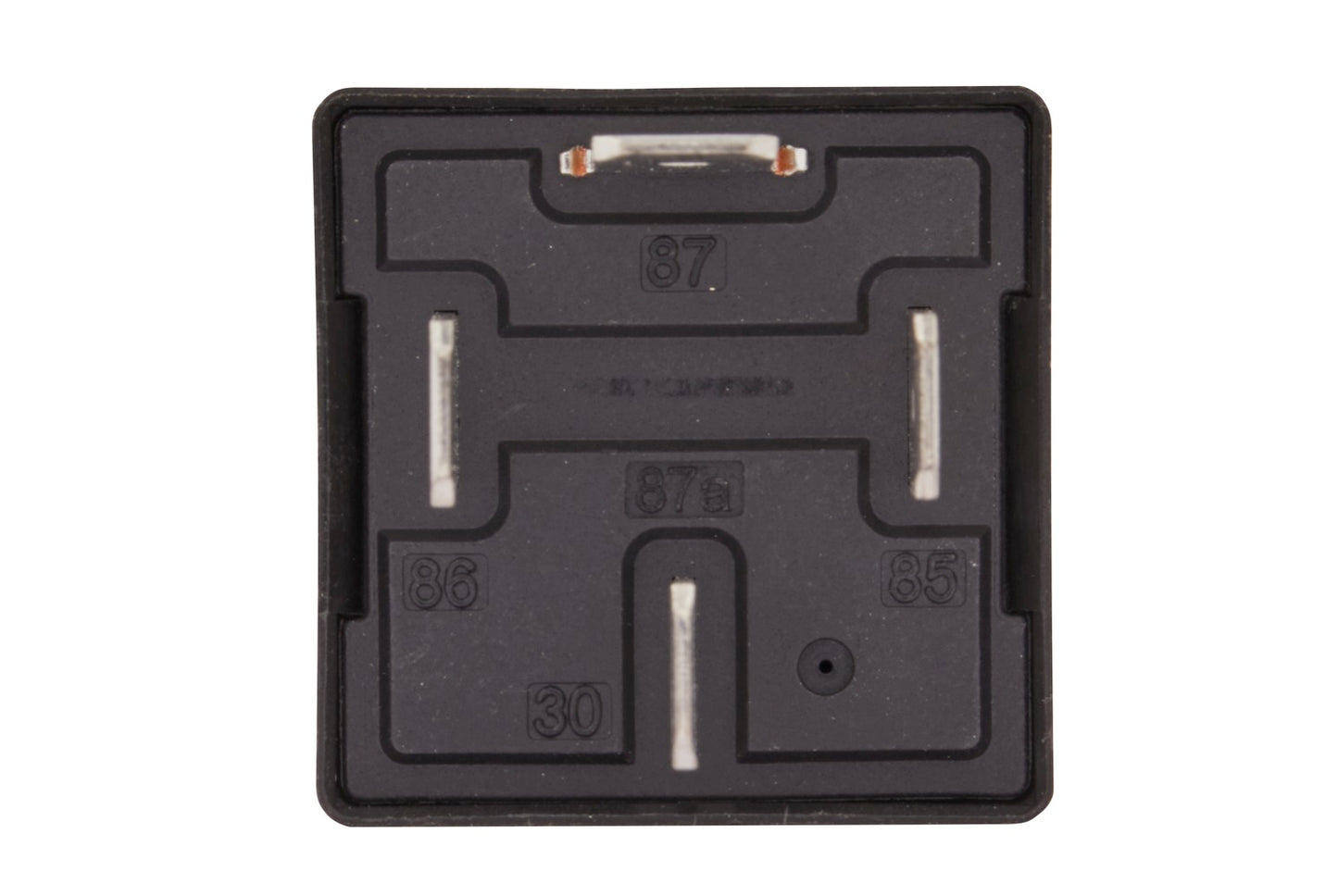

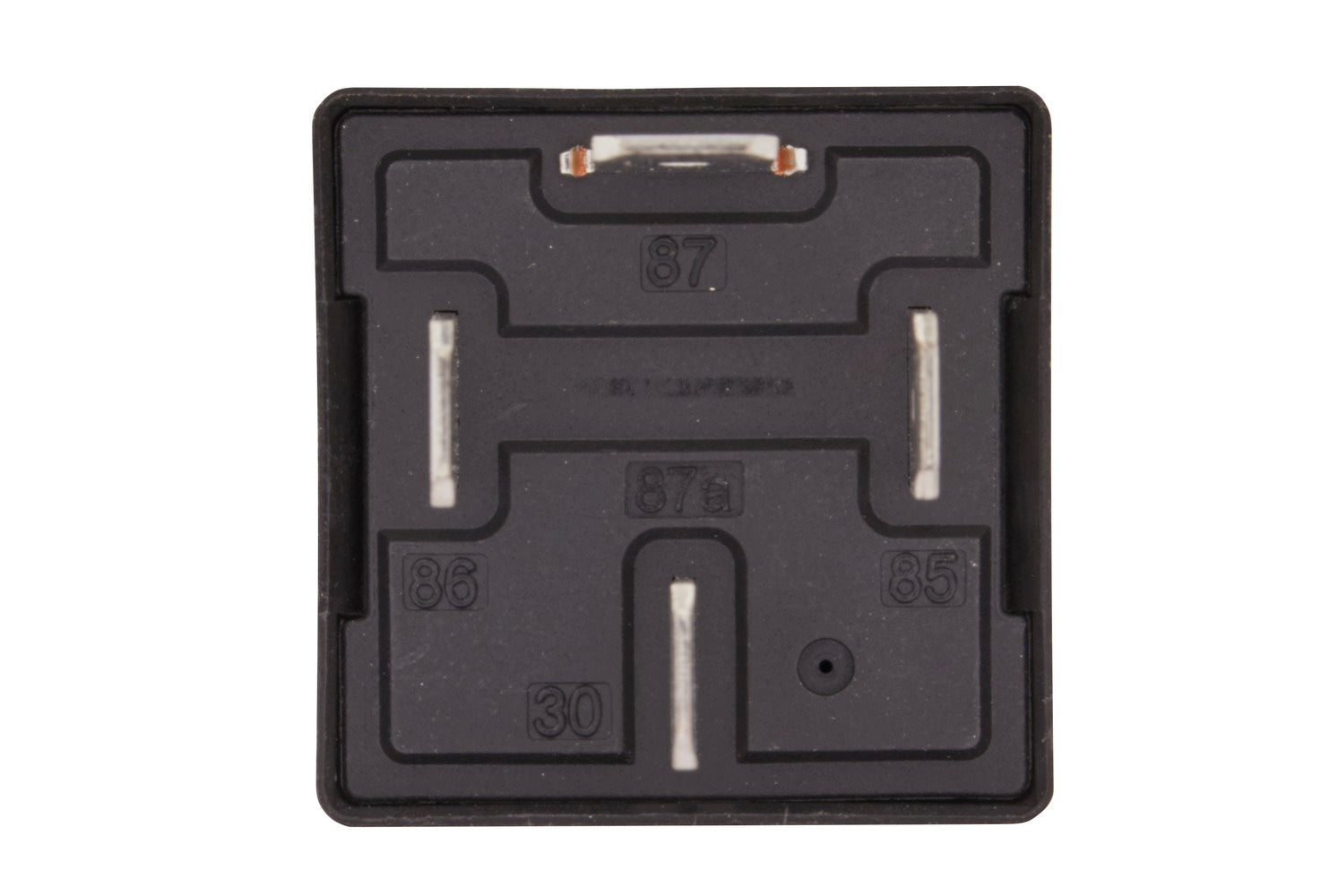

Number of pins: 4 -pin connector
Wiring Diagramme: S2
Switch Function: Normally Open Contact
Plug: B
Temp. Range: 80 °C
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: CASE IH 864 002 44; FENDT 4 287 339 M1; FENDT X825200417; IVECO 60193651; JOHN DEERE AL 20 8595; LADA 21050 3747210 20; MASSEY FERGUSON 3 387 326 M2; MERCEDES-BENZ 002 542 07 19; MERCEDES-BENZ A 002 542 07 19; OPEL 62 38 522; OPEL 62 38 525; RENAULT 7700810395; RENAULT 90511178
