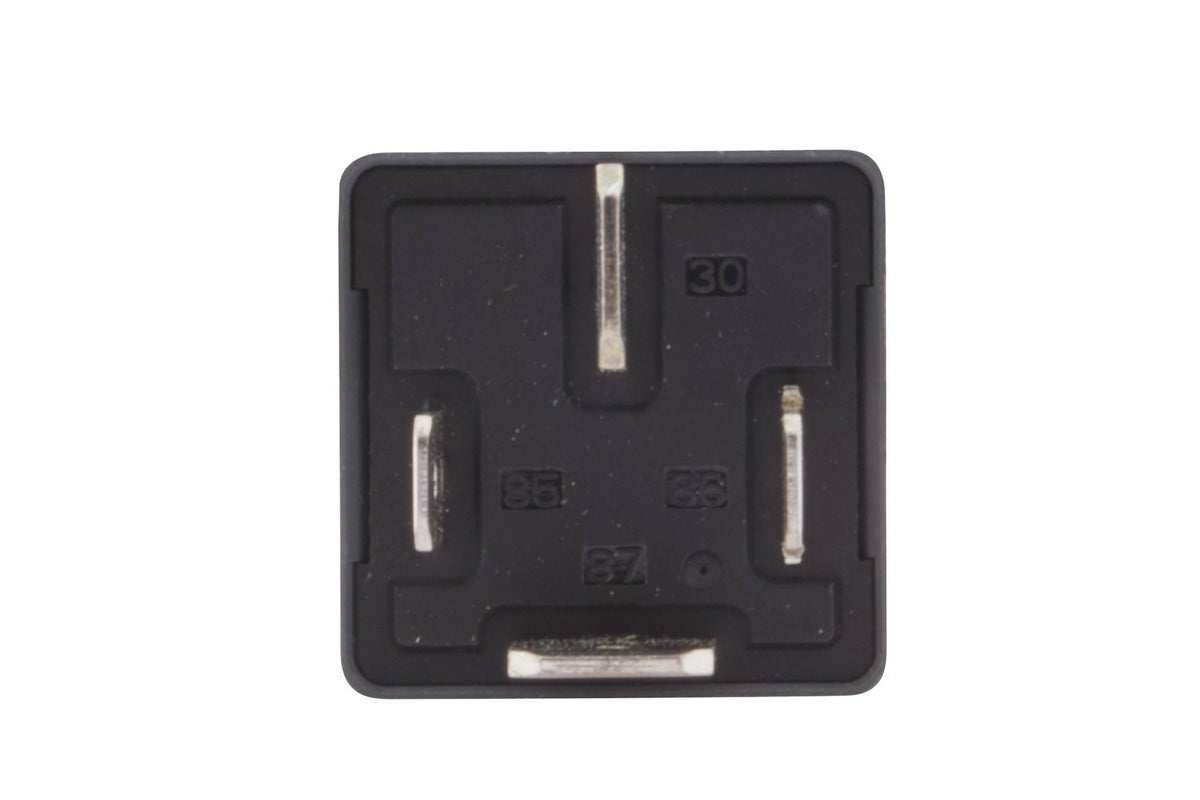

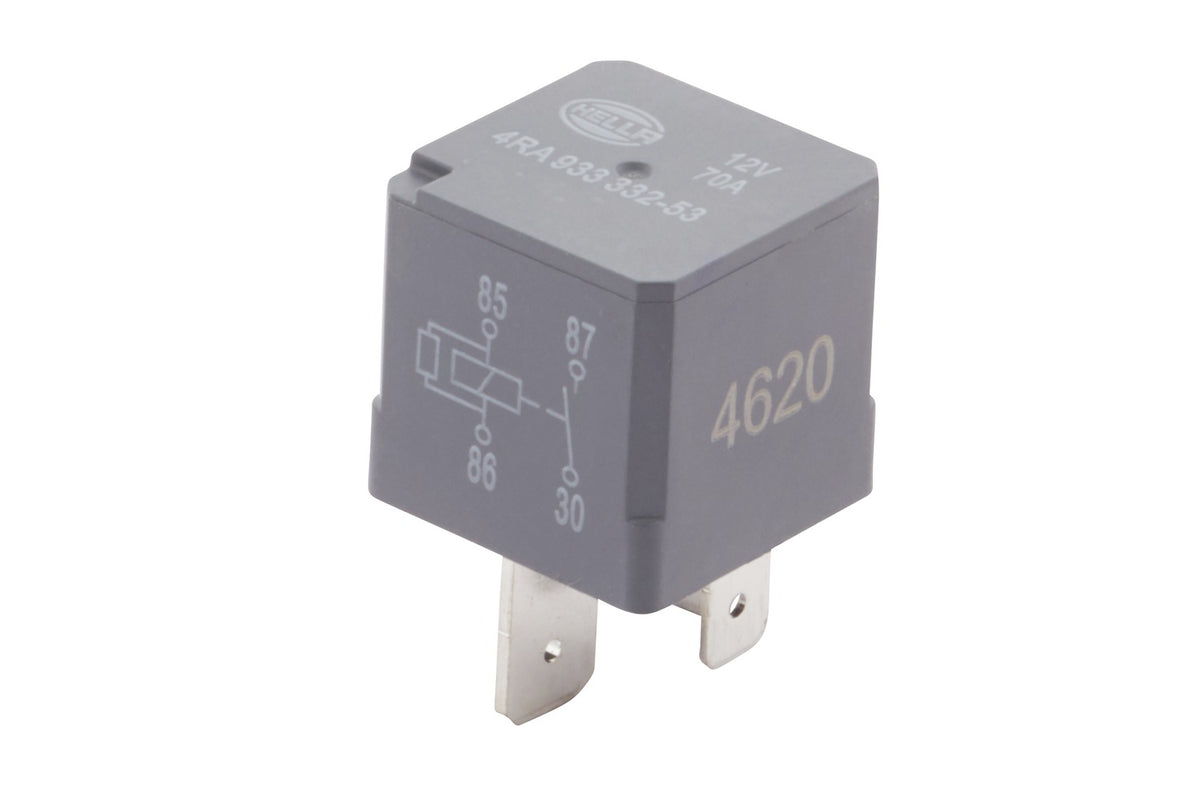

HELLA Relay, main current - 12V - 4-pin connector - S2 - B 4RA933332-531

Relay, main current - 12V - 4-pin connector - Wiring Diagramme: S2 - Plug: B - Normally Open Contact - Colour: Black - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - normally open relay 12 V, without holder
• Rated switching current max. 70 A
• Inductive load: 35 A
• Capacitive load: 30 A
• Ohmic load: 40 A
• Ohmic Load: 40A - Inductive Load: 35A - Capacitive Load: 30A - Capacity at 12V: 70A
• Prot.type (IP Code): IP54

Item Attributes:
Voltage: 12 V
Capacity at 12V: 70A
Switch Function: Normally Open Contact
Colour: black
Number of pins: 4 -pin connector

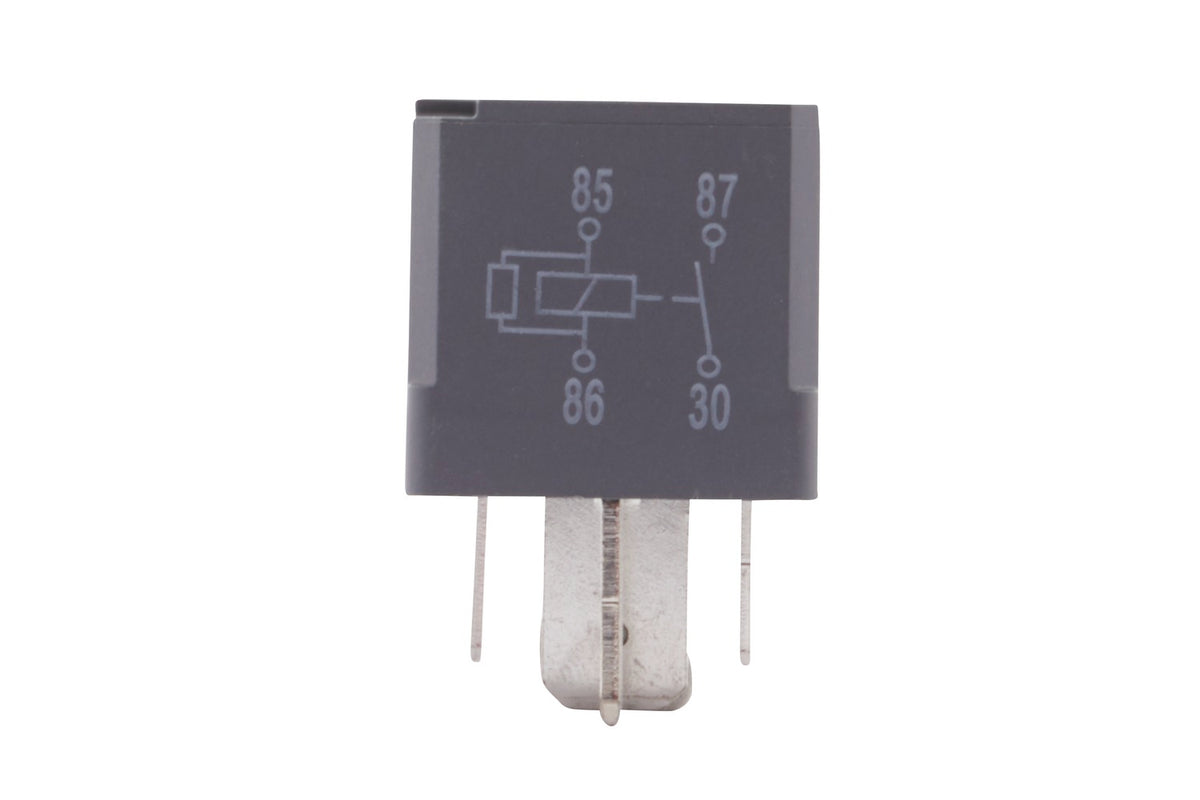

Wiring Diagramme: S2
Supplementary Article/Supplementary Info 2: with resistor
Prot.type (IP Code): IP54
Inductive Load: 35 A
Capacitive Load: 30 A
Ohmic Load: 40 A
Plug: B
Supplementary Article/Supplementary Info: without holder
for OE No.: 13171831
Relay function: Air Suspension / Hydraulic Unit / Fan, heater/air conditioning / Fan, engine cooling / Engine control unit / Clamp 15 / Starter / Heated rear window / Secondary Air System / ABS recovery pump / Heated windscreen / Clamp 15R / Comfort Equipment Variant (trim package) / Pre-glow device / Clamp 87 / ESP / ABS
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AUDI 191 937 503; AUDI 443 951 253 J; AUDI 7M0 951 253 A; AUDI 8D0 951 253; CHRYSLER 68311126AA; FENDT 3387326M2; FENDT 4270844M1; FIAT 51395260; FORD 1 425 754; FORD 5M5T 14B192 EA; FORD F5RZ-14N089-BB; FORD F5RZ-14N089-CB; FORD USA F80Z-14N089-AA; GENERAL MOTORS 12088571; GENERAL MOTORS 13468936; HYUNDAI 36860-4X000; HYUNDAI 39160-37110; HYUNDAI 95210 2E000; JOHN DEERE AL 20 7376; JOHN DEERE AL 81 719; KIA 36860-4X000; KIA 39160-37110; LAND ROVER AMR3773; LAND ROVER YWB500220; MAZDA G-115-67-730; MERCEDES-BENZ 002 542 26 19; MERCEDES-BENZ 002 542 26 19 64; MERCEDES-BENZ A 002 542 26 19; MERCEDES-BENZ A 002 542 26 19 64; MERCEDES-BENZ A 254 226 19 64 ; OPEL 1238612; OPEL 90 226 846; SAAB 5246350; SEAT 191 937 503; SEAT 7M0 951 253 A; SKODA 191 937 503; SKODA 7M0 951 253 A; VW 171 937 503 A; VW 191 937 503; VW 443 951 253 J; VW 7M0 951 253 A; VW 8D0 951 253; VW 8E0 951 253
