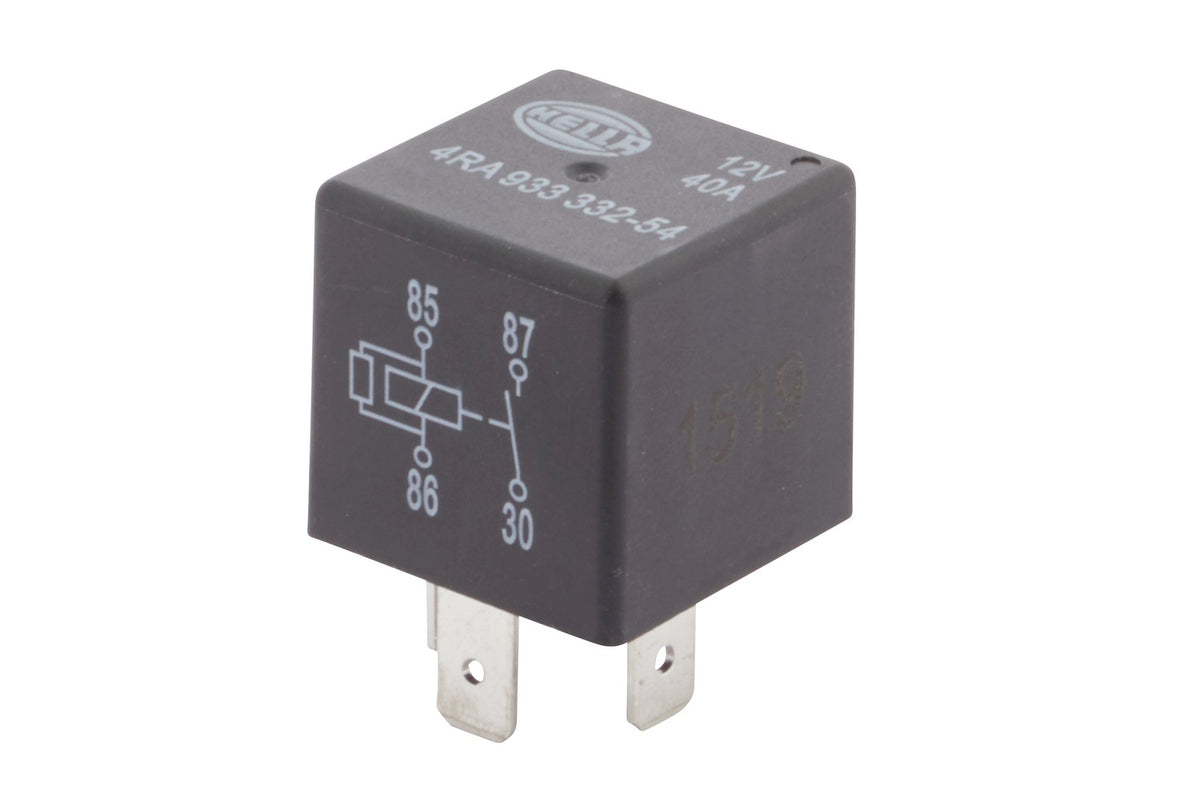

HELLA Relay, main current - 12V - 4-pin connector - S2 - B 4RA933332-541

Relay, main current - 12V - 4-pin connector - Wiring Diagramme: S2 - Plug: B - Normally Open Contact

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - normally open relay 12 V
• Rated switching current max. 40 A
• Inductive load: 35 A
• Capacitive load: 30 A
• Ohmic load: 40 A
• Temp. Range: 80°C
• Ohmic Load: 40A - Inductive Load: 35A - Capacitive Load: 30A - Capacity at 12V: 40A

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Prot.type (IP Code): IP54
Voltage: 12 V
Capacity at 12V: 40A
Switch Function: Normally Open Contact
Inductive Load: 35 A
Capacitive Load: 30 A
Ohmic Load: 40 A

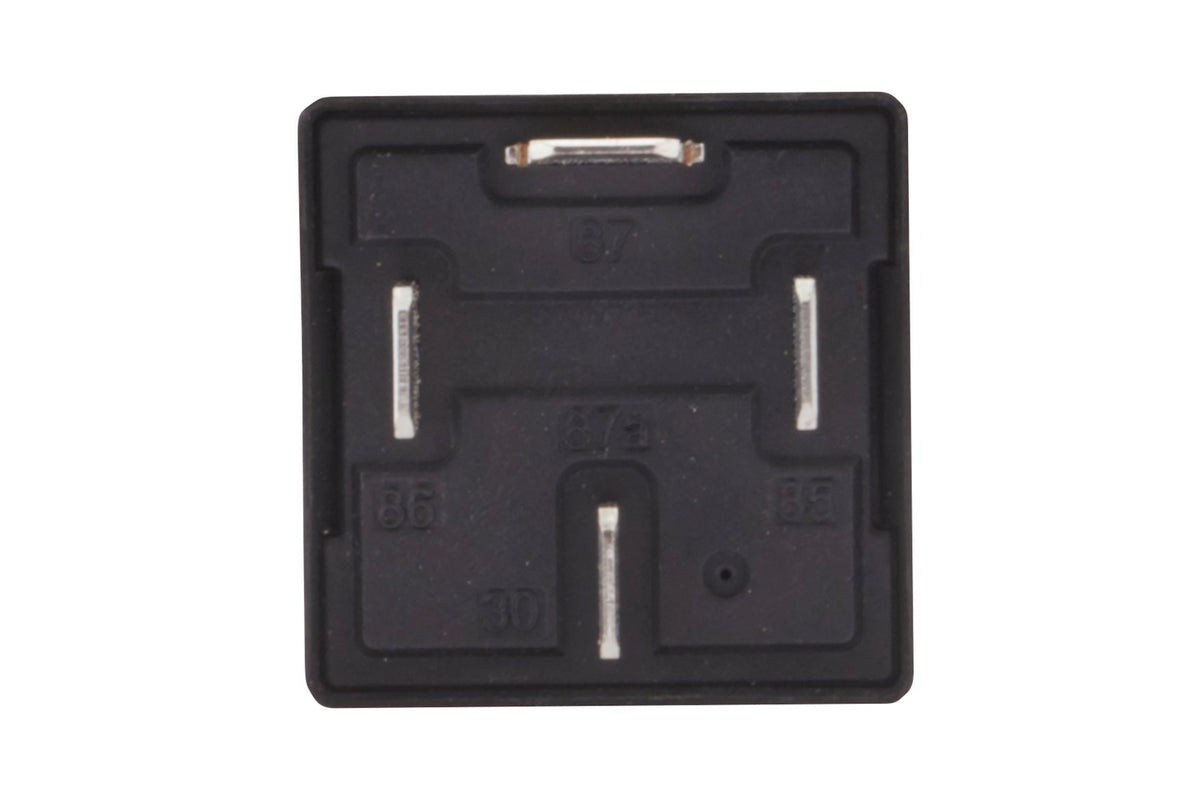

Number of pins: 4 -pin connector

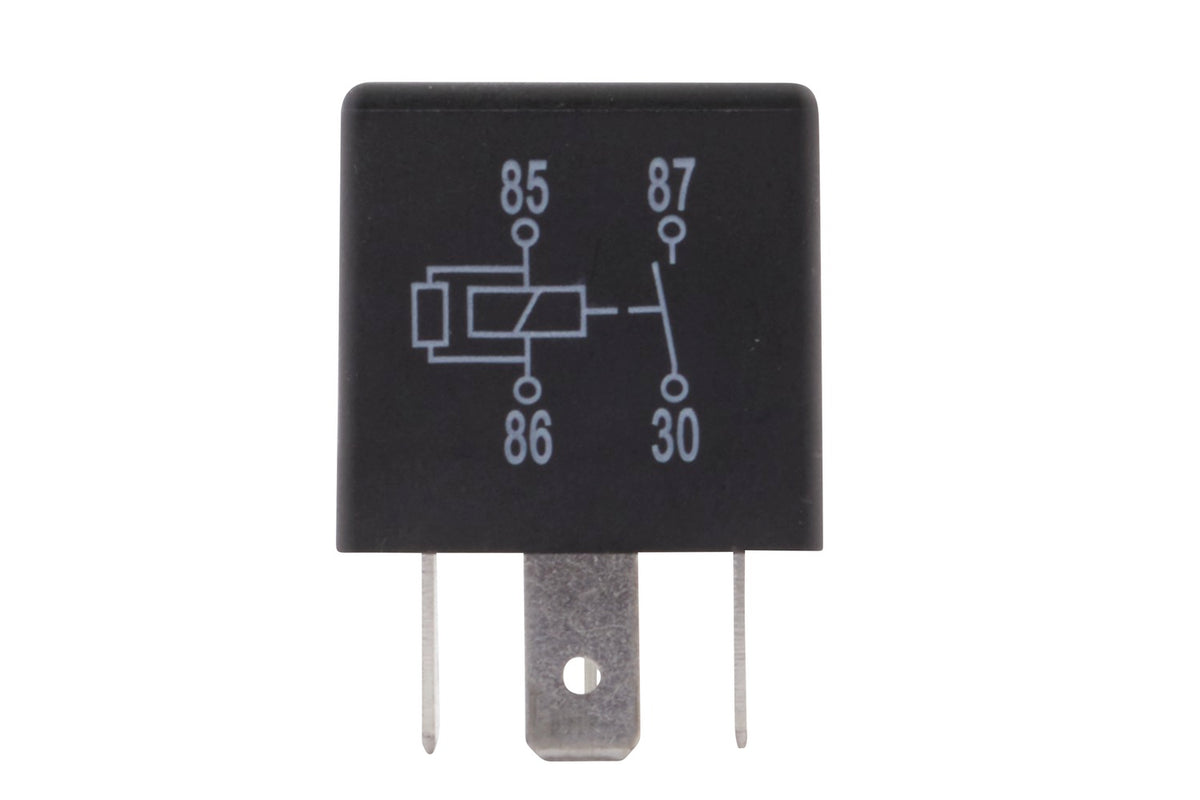

Wiring Diagramme: S2
Plug: B
Temp. Range: 80 °C
Relay function: Starter / Exterior Mirror Adjustment / Light switch / Windscreen Wiper / High Beam / Fuel Pump / Klaxon / Seat Heating / Air Conditioning / Front Fog Light / Convertible Roof Hydraulics / Sunroof / Clamp 87 / Normally open contact / Window Regulator / Windscreen Wiper Rest Heating / Park Distance Control / Clamp 15 / Fan, engine cooling / ESP / ABS recovery pump / Electric booster heater / Fan, heater/air conditioning / Heatable exterior mirror / Clamp 15R / ABS / Low Beam / Secondary Air System / Oxygen Sensor / Heated rear window / Comfort Equipment Variant (trim package) / Interior Blower / Interior Lighting / Central Locking / Daytime Running Light
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AUDI 141 951 253 B; AUDI 431 951 253 H; AUDI 443 951 253 K; AUDI 4H0 951 253 A; AUDI 7N0 951 253; AUDI 8D0 951 253 A; AUDI 8K0 951 253; CITROËN 6555.HJ; CITROËN 79 055 222 30; CITROËN 96 730 621 80; DEUTZ-FAHR 04411492; FENDT 4270844M1; FENDT D 450 600 21; FERRARI 157991; FIAT 500341925; FIAT 51769616; FORD 5M5Z-14N089-CA; FORD 7 352 574; FORD F5RZ-14N089-BB; FORD USA BU5Z-14N089-A; GENERAL MOTORS 13500118; HYUNDAI 95230-3A400; IVECO 500341925; IVECO 5003419250; IVECO 5010480216; JOHN DEERE AL 20 7376; KIA 95230 3A400; LAND ROVER YWB500060; MAZDA N3M1-18-821; MERCEDES-BENZ 000 982 80 23; MERCEDES-BENZ 002 542 06 19; MERCEDES-BENZ 002 542 13 19; MERCEDES-BENZ 002 542 72 19; MERCEDES-BENZ 002 542 80 19; MERCEDES-BENZ 002 545 13 19; MERCEDES-BENZ A 000 982 80 23; MERCEDES-BENZ A 002 542 06 19; MERCEDES-BENZ A 002 542 13 19; MERCEDES-BENZ A 002 542 72 19; MERCEDES-BENZ A 002 542 80 19; MERCEDES-BENZ A 002 545 13 19; OPEL 13171831; OPEL 13500118; OPEL 24 438 887; OPEL 62 38 535; OPEL 91149190; PEUGEOT 6555.33; PEUGEOT 6555.HJ; PEUGEOT 6555.VP; PEUGEOT 96 730 621 80; PORSCHE 993.615.135.00; PORSCHE 999.657.008.90; PORSCHE 999.657.017.90; SEAT 141 951 253 B; SEAT 7N0 951 253; SEAT 8D0 951 253 A; SKODA 141 951 253 B; SKODA 431 951 253 H; SKODA 443 951 253 K; SKODA 4H0 951 253 A; SKODA 7N0 951 253; SKODA 8D0 951 253 A; SKODA 8K0 951 253; VW 141 951 253 B; VW 431 951 254; VW 443 951 253 J; VW 4H0 951 253 A; VW 7N0 951 253; VW 8D0 951 253 A; VW 8K0 951 253; VW 8KO 951 253
