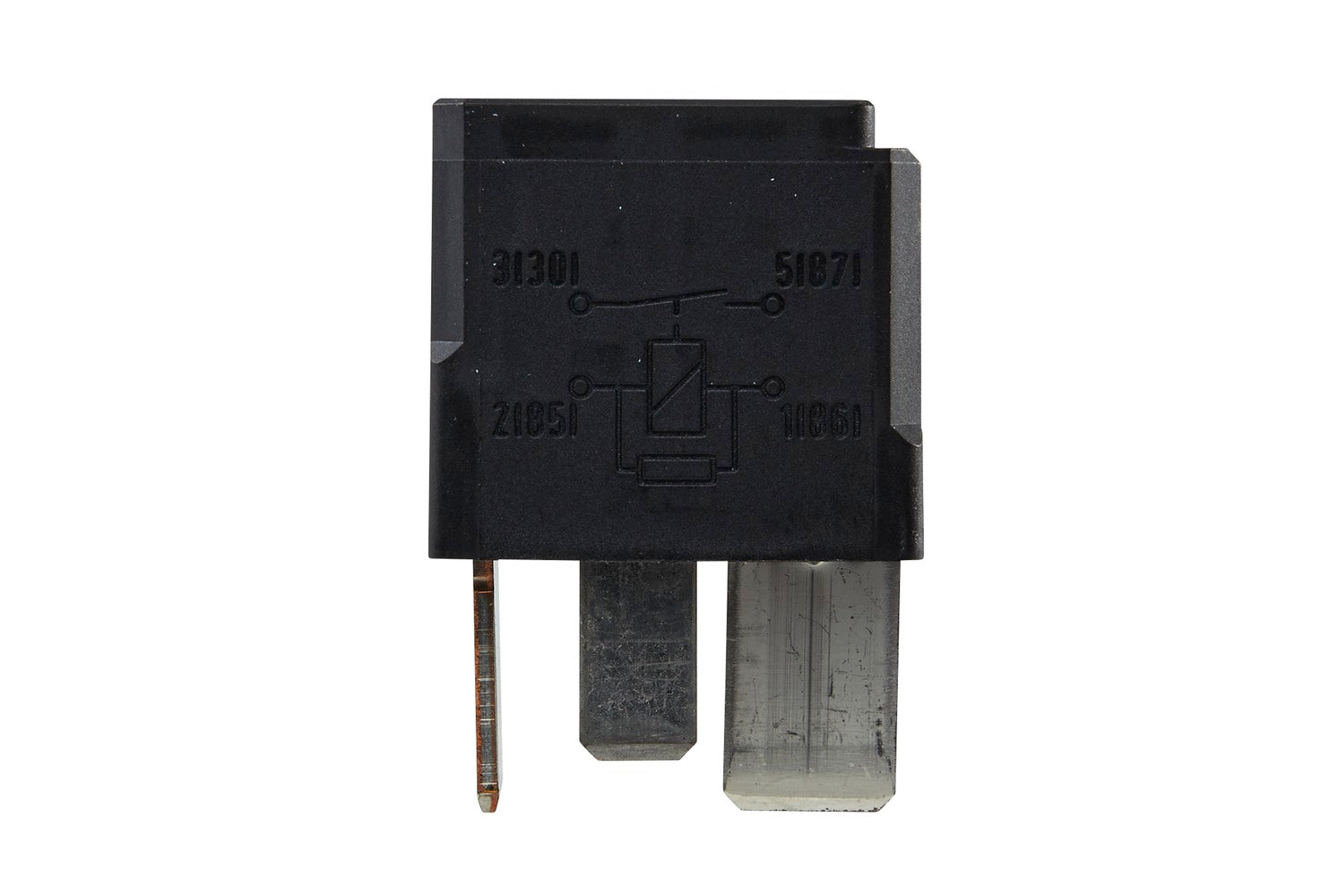

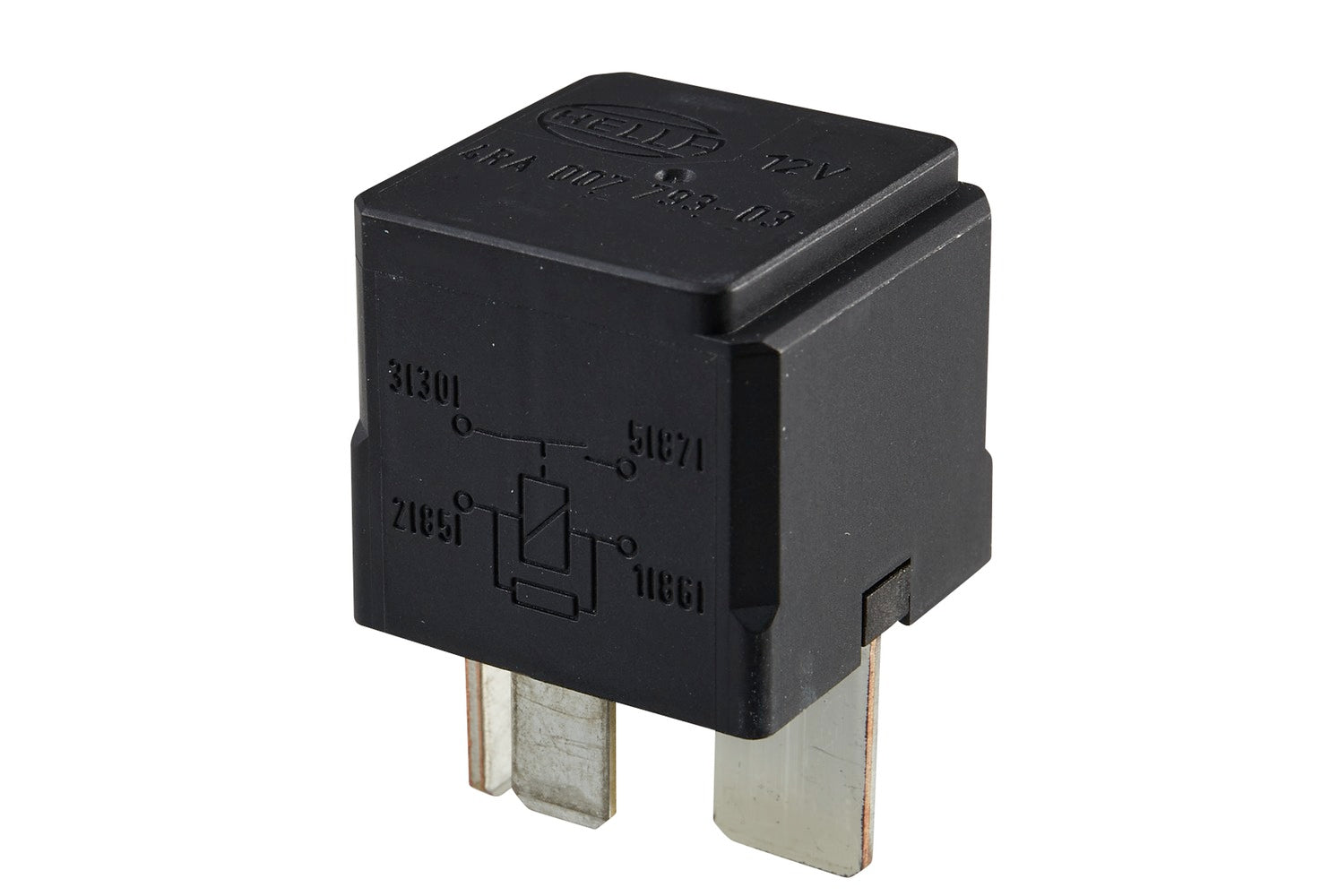

HELLA Relay, main current - 12V - 4-pin connector - S2 - B3 4RA007793-031

Relay, main current - 12V - 4-pin connector - Wiring Diagramme: S2 - Plug: B3 - High Performance Contact - Colour: Black - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - normally open relay 12 V, 4-pole, with 9.5 mm load connections and parallel resistance to the coil, without holder
• Rated switching current: min. 44 A, max. 50 A (at 80 °C ambient temperature)
• Number of gear changes: min. 75,000
• Temp. Range: 80°C
• Ohmic Load: 50A - Inductive Load: 46A - Capacitive Load: 44A - Capacity at 12V: 50A
• Prot.type (IP Code): IP54
• with resistor

Item Attributes:
Relay function: Normally open contact
Supplementary Article/Supplementary Info 2: with resistor
Supplementary Article/Supplementary Info: without holder
Prot.type (IP Code): IP54
Voltage: 12 V
Capacity at 12V: 50A
Corresponds to the original part in colour: yellow
Colour: black
for OE No.: 90226846
Inductive Load: 46 A
Capacitive Load: 44 A
Ohmic Load: 50 A

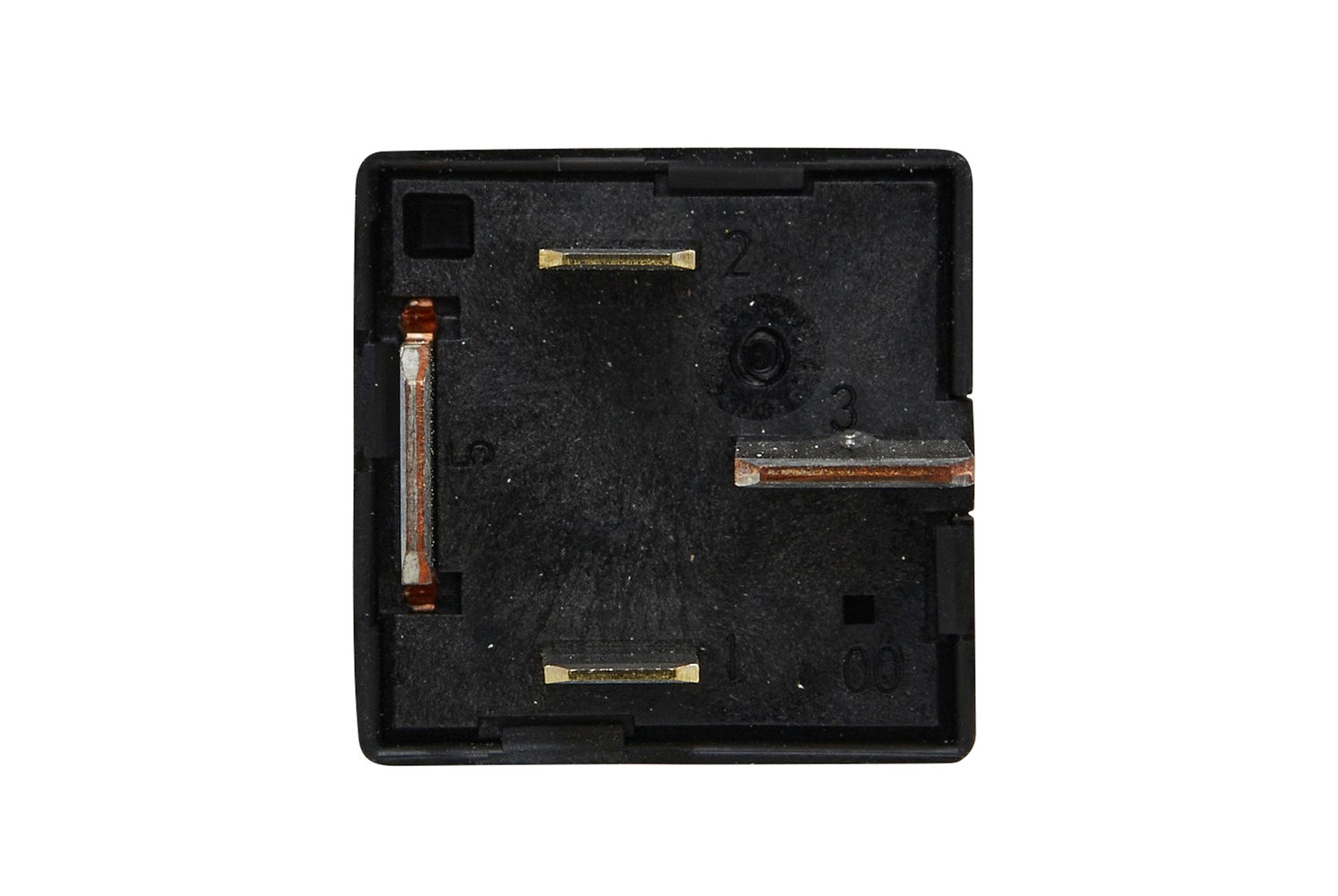

Number of pins: 4 -pin connector
Wiring Diagramme: S2
Switch Function: High Performance Contact
Plug: B3
SVHC: 7439-92-1; Lead / 1303-86-2; Diboron trioxide
Temp. Range: 80 °C
Assembly by qualified personnel required!

OE references: AEBI 44905138; AGCO 4270844M1; AGROMEHANIKA 557074; CASE IH 368459A1; CATERPILLAR 459-6044; FENDT 4270844M1; JCB 716/R5752; JCB 8121/01060; JOHN DEERE AL 20 7376; JUNGHEINRICH 52027388; KENWORTH 007793031; KUBOTA W21TS02126; LINDE 7916291274; MANITOU 746004; MASSEY FERGUSON 4 270 844 M1; MAYBACH 002 542 02 19; MAYBACH 002 542 15 19; MAYBACH 002 542 26 19; MAYBACH 002 542 26 19 28; MAYBACH 002 542 26 19 64; MAYBACH 002 542 87 19; MAYBACH 002 542 88 19; MAYBACH A 002 542 02 19; MAYBACH A 002 542 15 19; MAYBACH A 002 542 26 19; MAYBACH A 002 542 26 19 28; MAYBACH A 002 542 26 19 64; MAYBACH A 002 542 87 19; MAYBACH A 002 542 88 19; MERCEDES-BENZ 002 542 02 19; MERCEDES-BENZ 002 542 15 19; MERCEDES-BENZ 002 542 26 19; MERCEDES-BENZ 002 542 26 19 28; MERCEDES-BENZ 002 542 26 19 64; MERCEDES-BENZ 002 542 87 19; MERCEDES-BENZ 002 542 88 19; MERCEDES-BENZ A 002 542 02 19; MERCEDES-BENZ A 002 542 15 19; MERCEDES-BENZ A 002 542 26 19; MERCEDES-BENZ A 002 542 26 19 28; MERCEDES-BENZ A 002 542 26 19 64; MERCEDES-BENZ A 002 542 87 19; MERCEDES-BENZ A 002 542 88 19; MERCEDES-BENZ A 254 226 19 28 ; MERCEDES-BENZ A 254 226 19 64 ; OPEL 1238612; OPEL 5246350; OPEL 90 226 846; OPEL 9522061; REFORM 900540543; SANY 60222130; STEINBOCK 520 27388; STILL 7916291274
