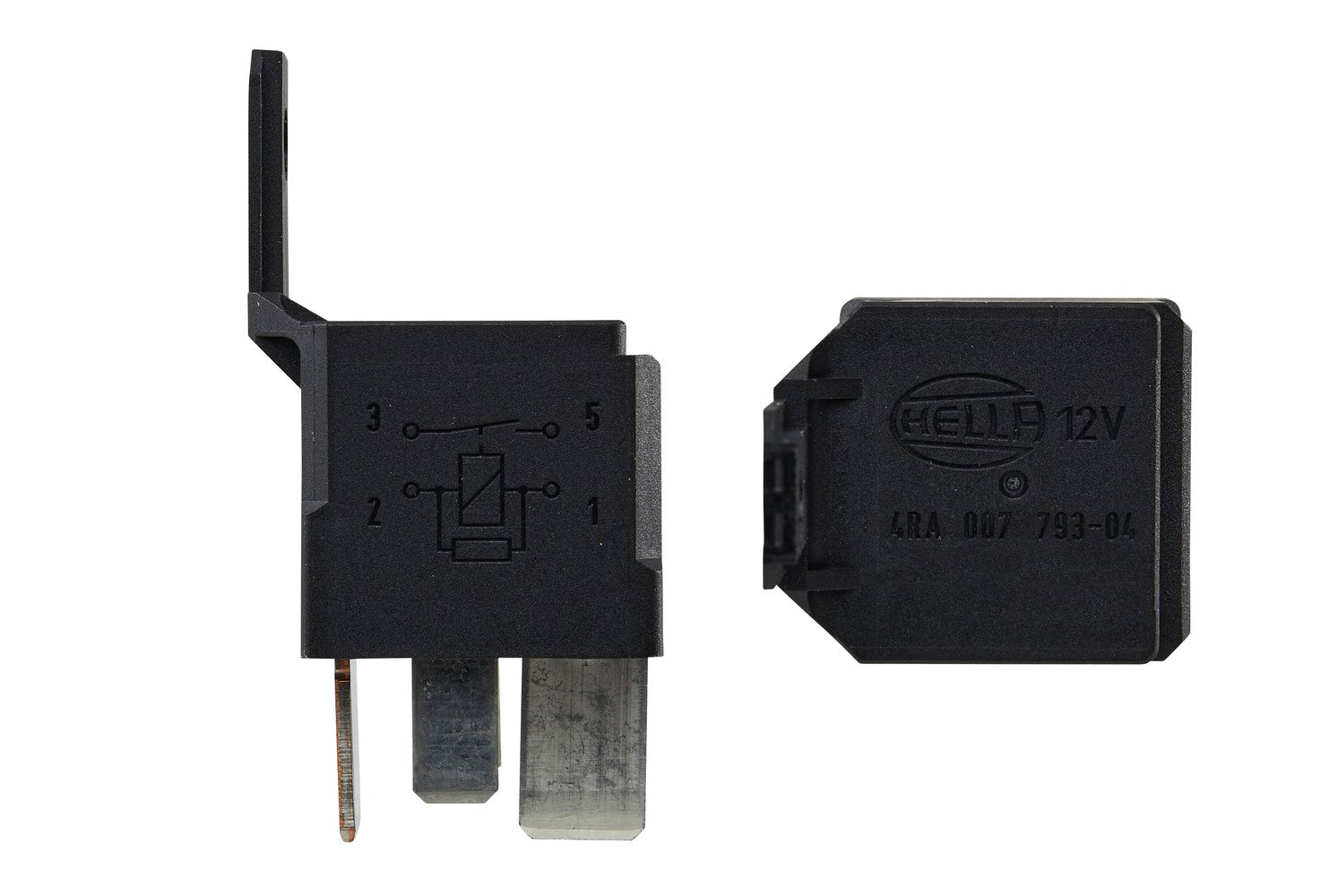

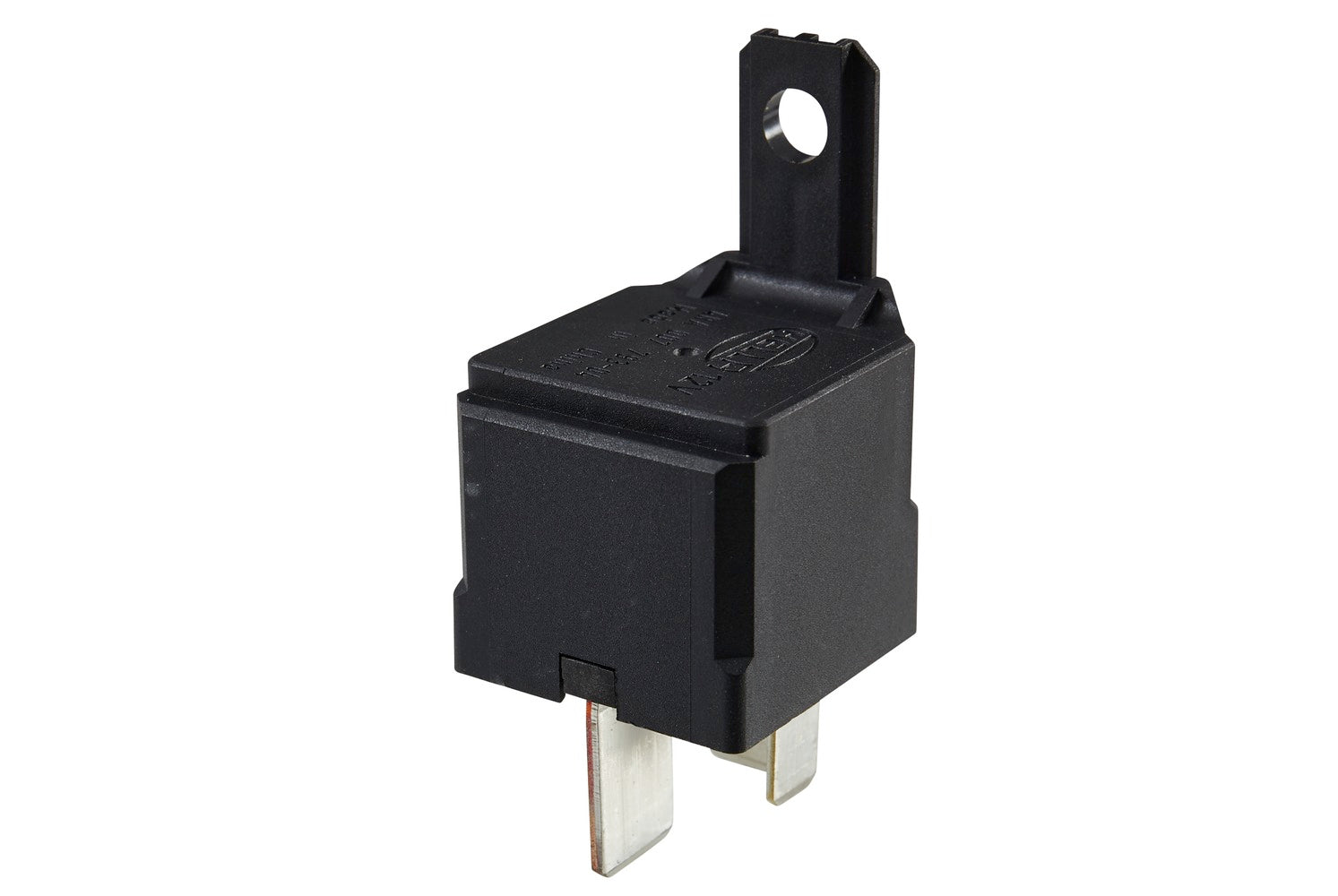

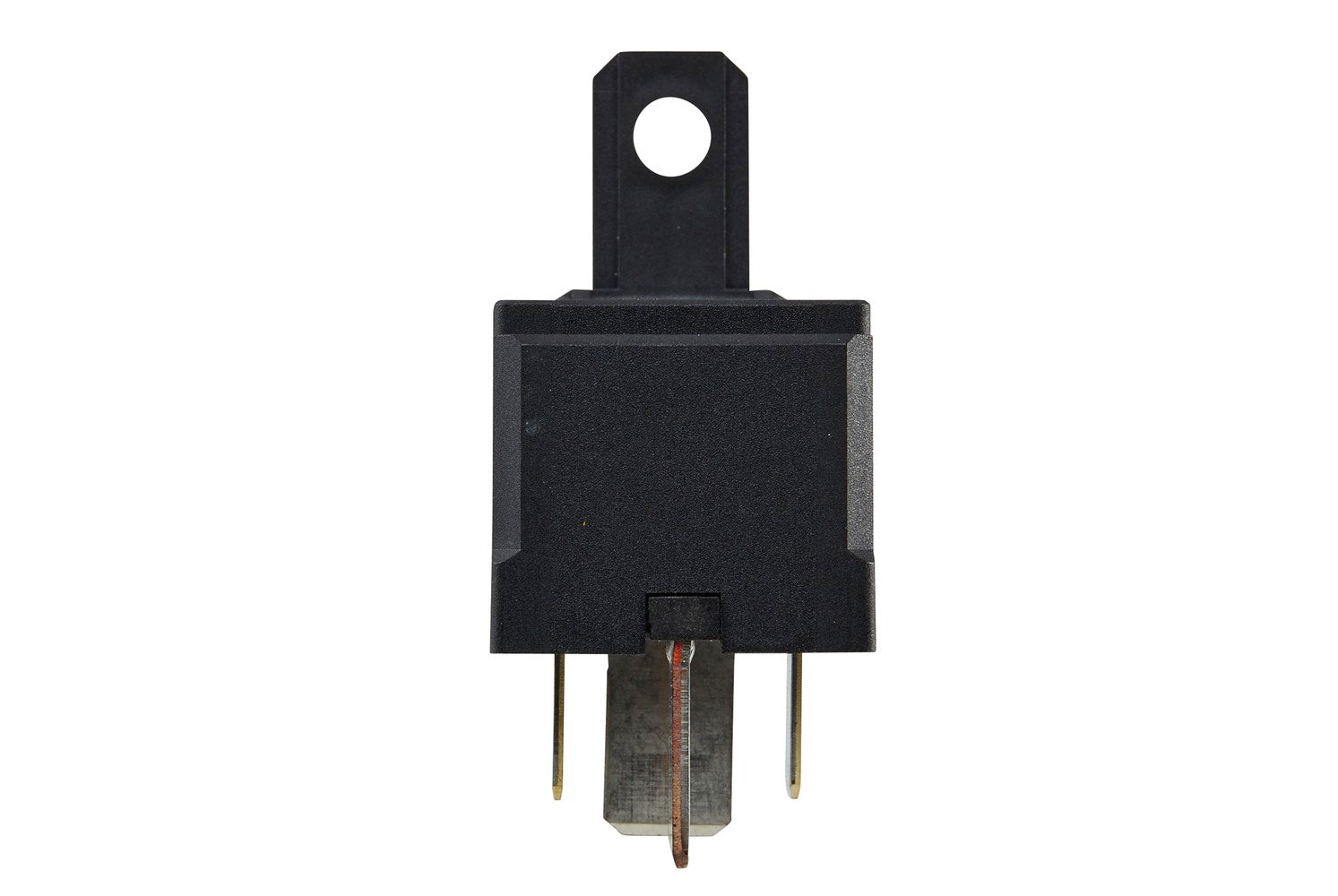

HELLA Relay, main current - 12V - 4-pin connector - S2 - B3 4RA007793-041

Relay, main current - 12V - 4-pin connector - Wiring Diagramme: S2 - Plug: B3 - High Performance Contact - Colour: Black - with holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - normally open relay 12 V, 4-pole, 9.5 mm load connections and parallel resistance to coil, with holder
• Rated switching current: min. 44 A, max. 50 A (at 80 °C ambient temperature)
• Number of gear changes: min. 75,000
• Temp. Range: 80°C
• Ohmic Load: 50A - Inductive Load: 46A - Capacitive Load: 44A - Capacity at 12V: 50A
• Prot.type (IP Code): IP54
• with resistor

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Supplementary Article/Supplementary Info: with holder
Prot.type (IP Code): IP54
Voltage: 12 V
Capacity at 12V: 50A
Colour: black
Inductive Load: 46 A
Capacitive Load: 44 A
Ohmic Load: 50 A
Number of pins: 4 -pin connector
Wiring Diagramme: S2
Switch Function: High Performance Contact
Plug: B3
Temp. Range: 80 °C
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO WR41718; CASE IH 87522476; JOHN DEERE AL 20 8595; JOHN DEERE AL81719; LANDINI 6515832M1; LINDE 0009731314; MANITOU 183429; MASSEY FERGUSON 3 387 326 M2; MASSEY FERGUSON 57344; MASSEY FERGUSON U.57344; SPERRY NEW HOLLAND 87522476; TOYOTA 57410-FP270-71
