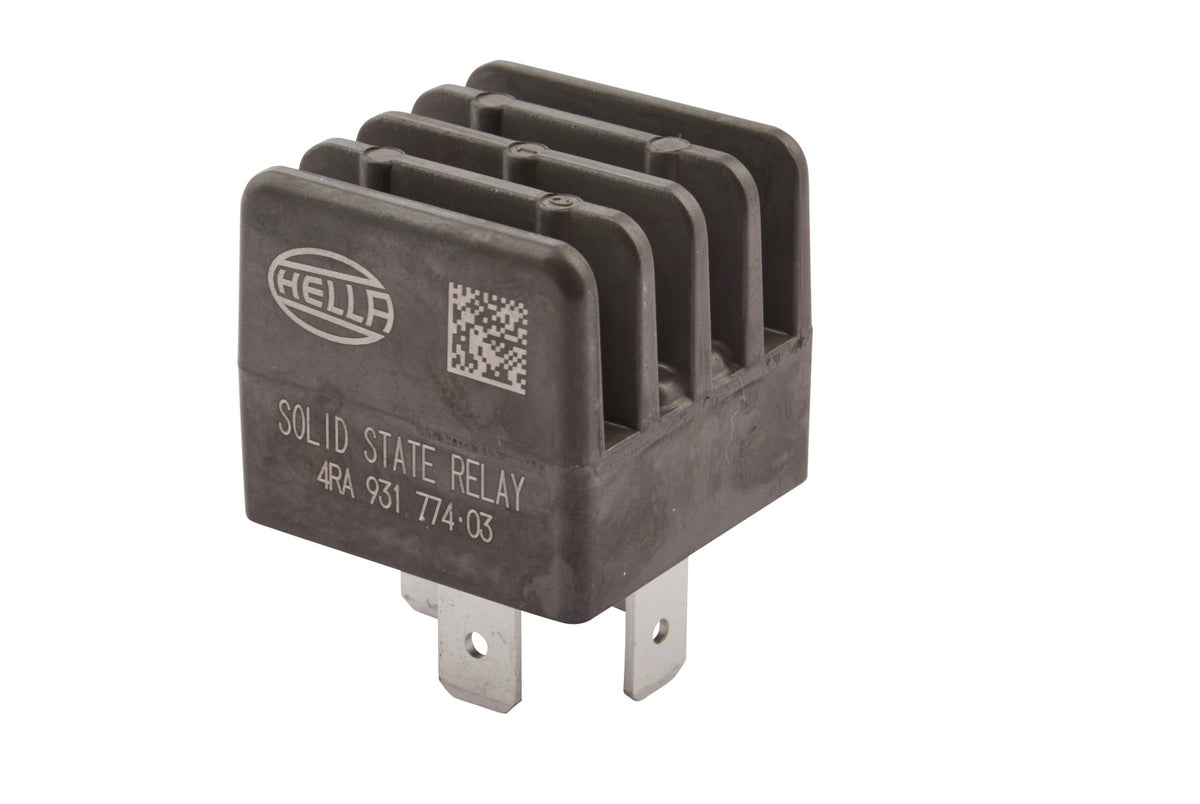

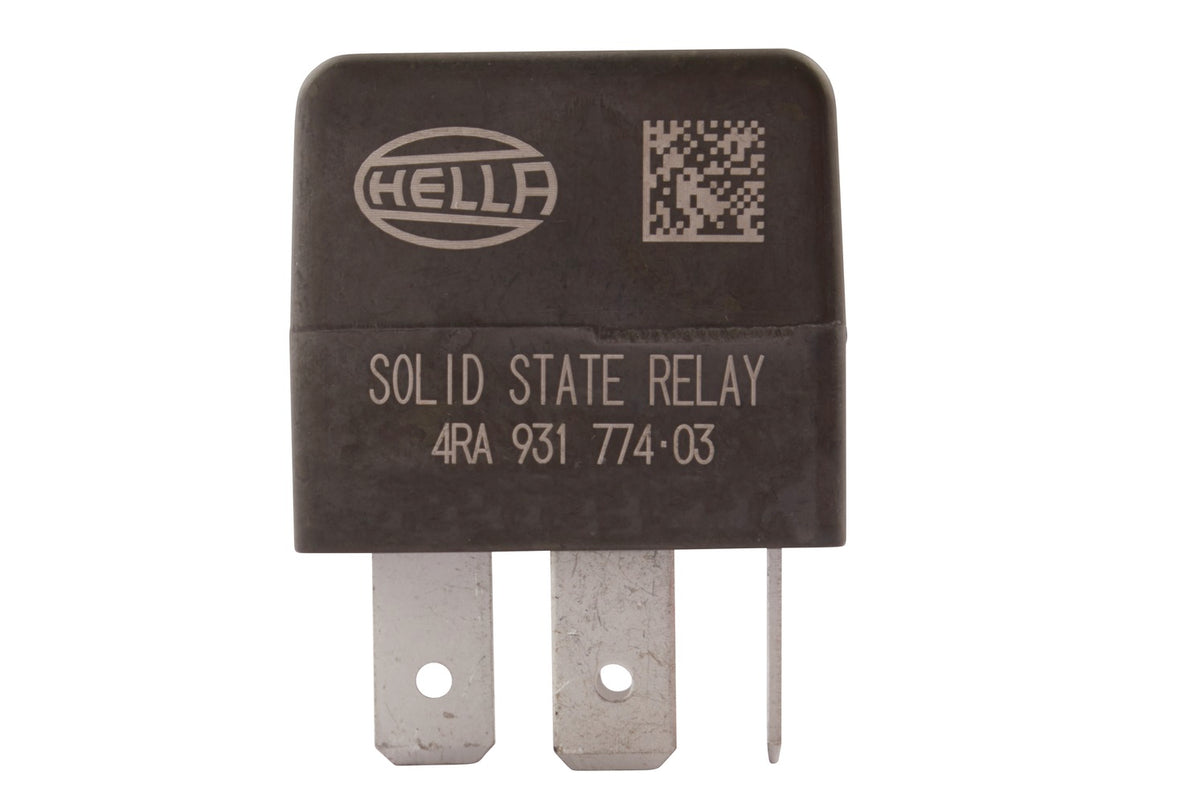

HELLA Relay, main current - 12V - 4-pin connector - SSR - B 4RA931774-031

Relay, main current - 12V - 4-pin connector - Wiring Diagramme: SSR - Plug: B - Normally Open Contact - Pulsation-controlled - Colour: Black - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - normally open relay 12 V, 4-pole, without holder
• Rated switching current: max. 22 A (at 80 °C ambient temperature)
• Number of gear changes: min. 900,000
• Temp. Range: 80°C
• Ohmic Load: 22A - Inductive Load: 22A - Capacitive Load: 22A - Capacity at 12V: 105°C: 12A/25°C : 18A
• Prot.type (IP Code): IP67

Item Attributes:
Supplementary Article/Supplementary Info: without holder
Prot.type (IP Code): IP67
Voltage: 12 V
Capacity at 12V: 105°C: 12A / 25°C : 18A
Operating Mode: Pulsation-controlled
Colour: black
Inductive Load: 22 A
Capacitive Load: 22 A
Ohmic Load: 22 A

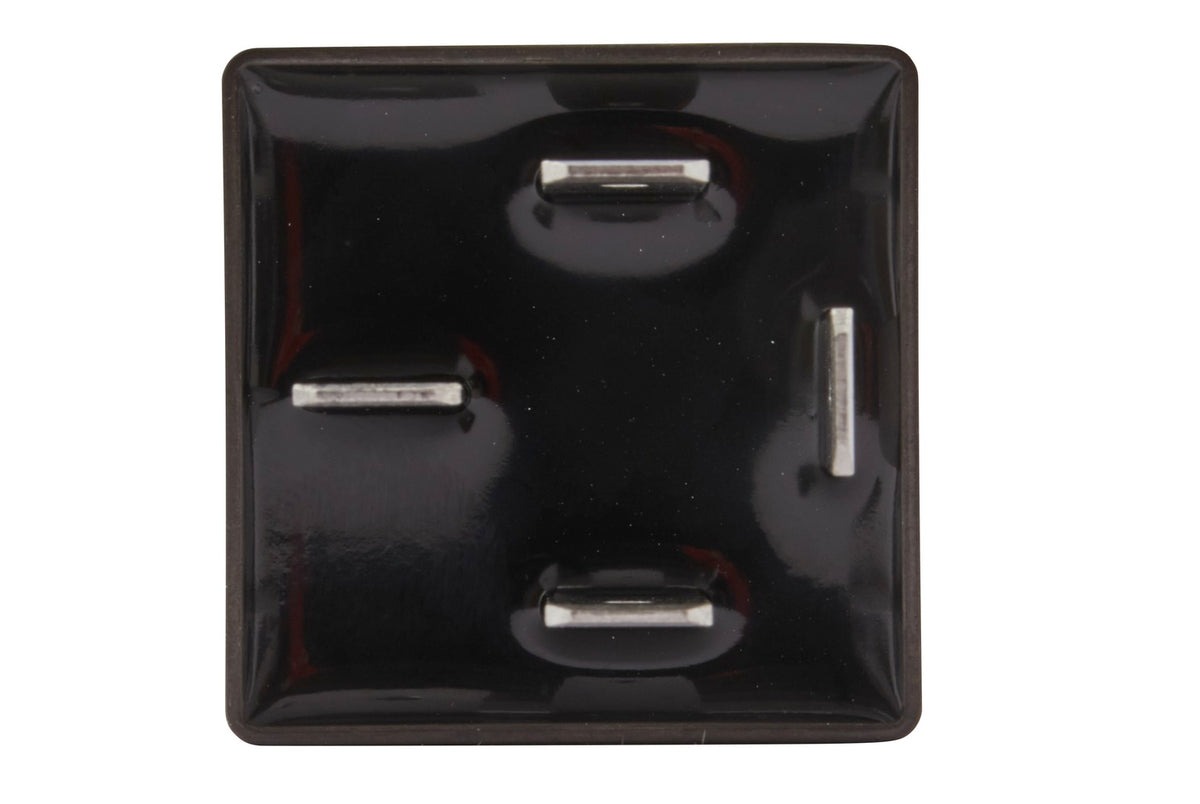

Number of pins: 4 -pin connector
Wiring Diagramme: SSR
Switch Function: Normally Open Contact
Plug: B
Temp. Range: 80 °C
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO 700727079; FENDT FH26PB1005080; FORD 9M6T-14N135-AA; JAGUAR 02C2C 6786; MERCEDES-BENZ 002 542 48 19; MERCEDES-BENZ A 002 542 48 19; PAGANI 010238; VW 990 002 047
