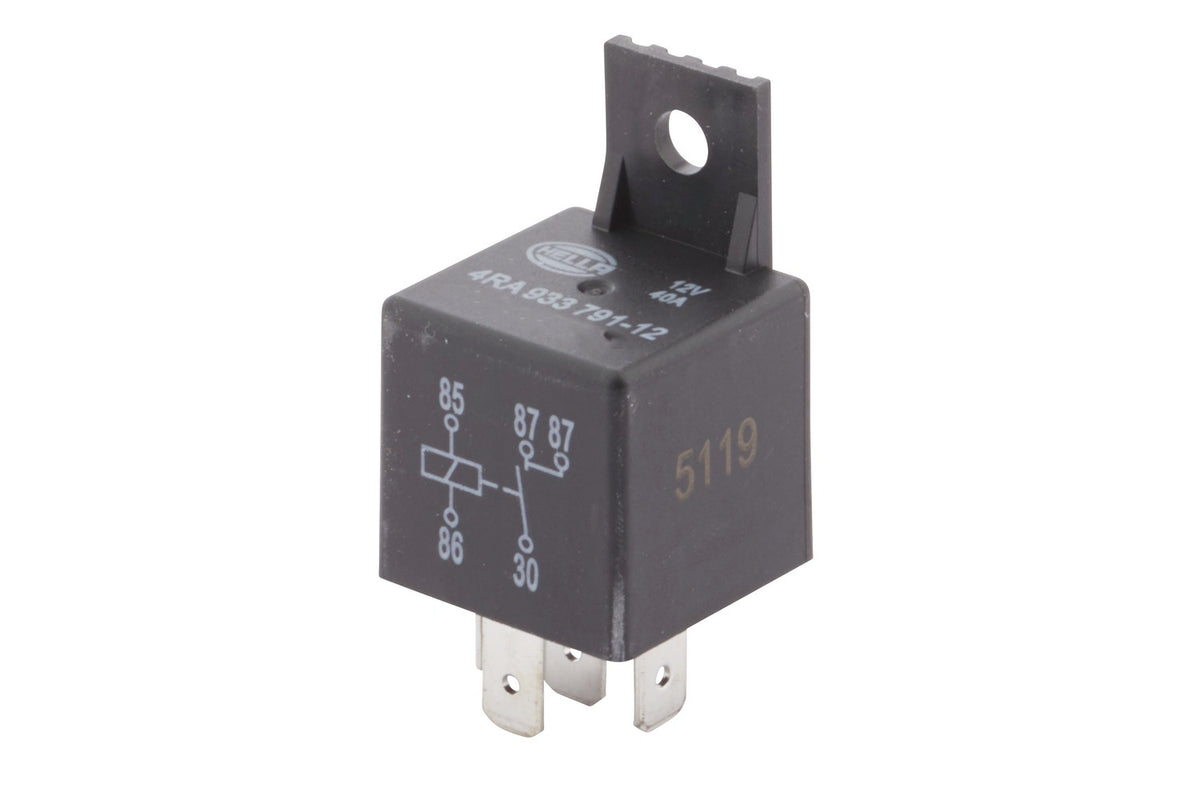

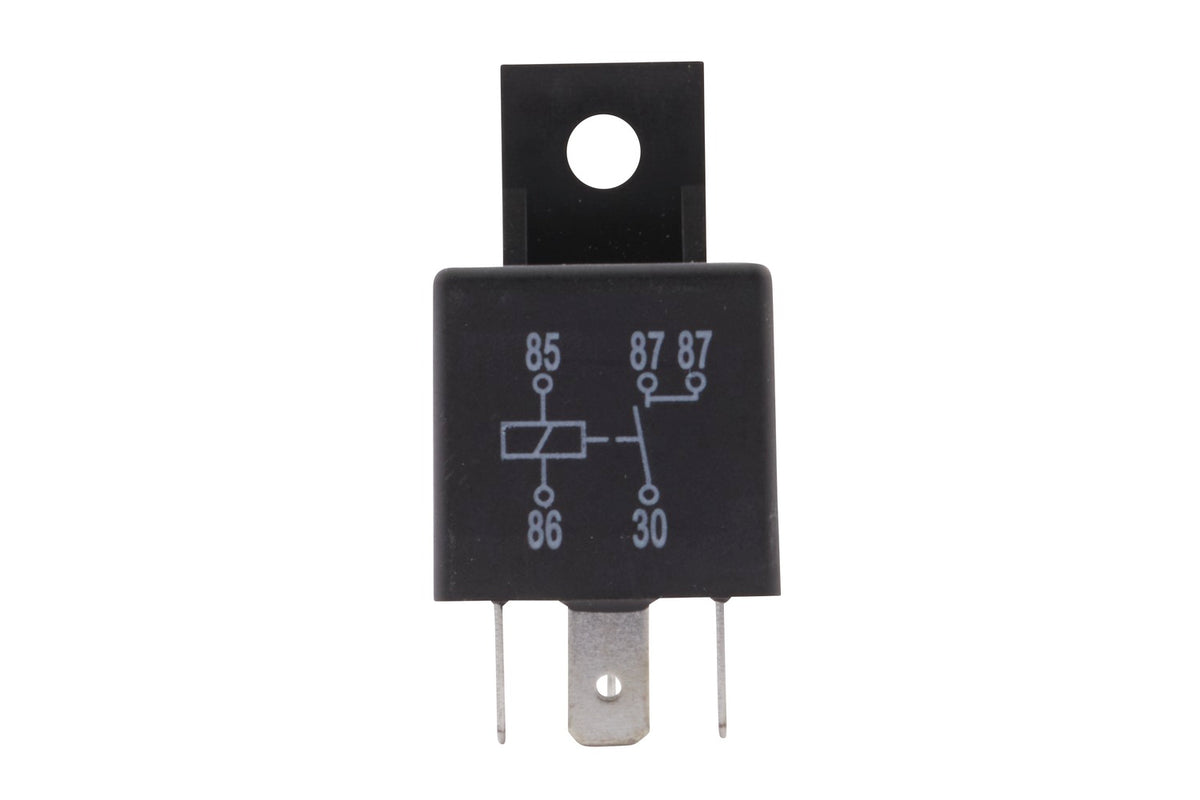

HELLA Relay, main current - 12V - 5-pin connector 4RA933791-121

Relay, main current - 12V - 5-pin connector - Normally Open Contact - with holder - Quantity: 1

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - make contact relay 12 V, with holder
• Rated switching current max. 40 A
• Number of switching operations max. 100,000
• Coil resistance: 85 Ohm
• Inductive load: 15 A, ohmic load: 40 A, Capacitive load: 5 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 40A

Item Attributes:
Supplementary Article/Supplementary Info: with holder
Voltage: 12 V
Capacity at 12V: 40A

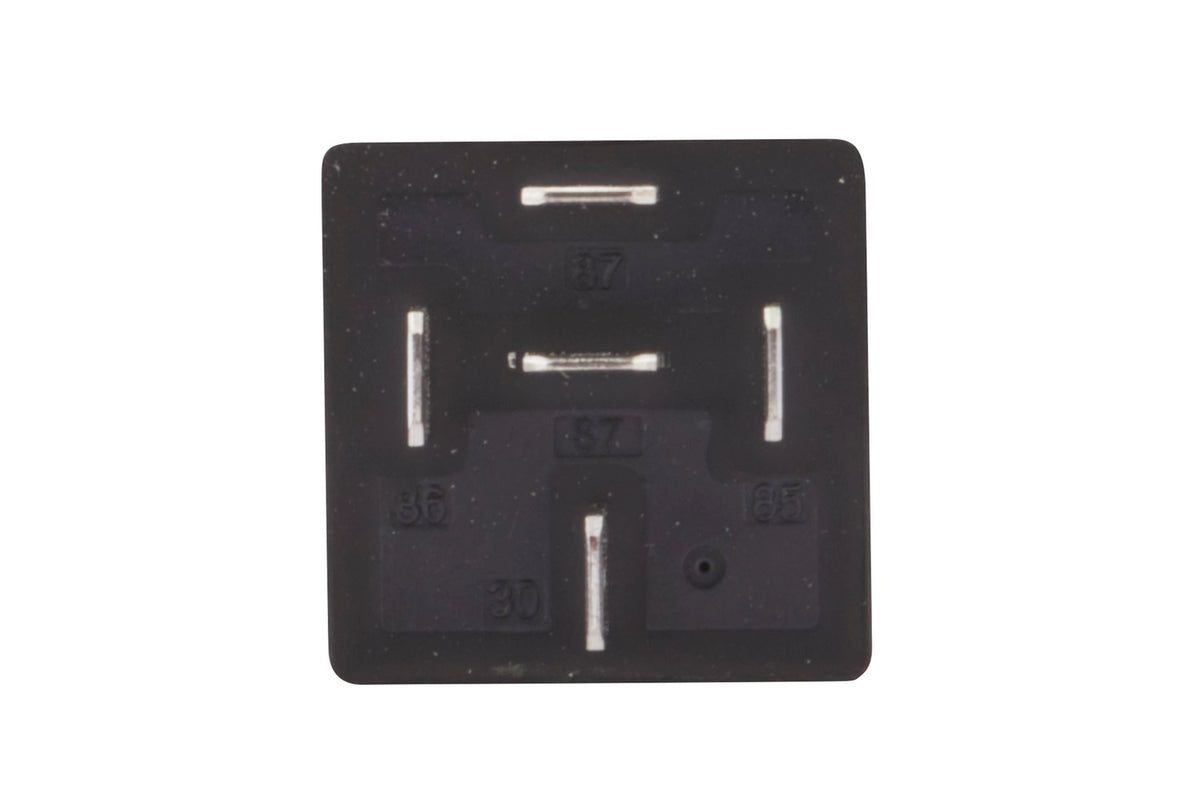

Number of pins: 5 -pin connector
Switch Function: Normally Open Contact
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 15 A
Ohmic Load: 40 A
Capacitive Load: 5 A
Rated Current: 40 A
Quantity: 1
Assembly by qualified personnel required!

OE references: AGCO 72380976; ALFA ROMEO 116 00 65 135 00; BMW 61 31 9 059 177; BMW 9 059 177; CASE IH 820 044 63; DEUTZ-FAHR 01164015; FENDT 3539335M92; FENDT 359 819 8M1; FENDT 656 108 302; FENDT 72380976; FENDT X 830 250 010 000; FORD 0605 3460; FORD 1 3A0 25H; KIA 0K900 18811; LOTUS B089M6057F; MAN 81259020446; MERCEDES-BENZ 001 542 31 19; MERCEDES-BENZ A 001 542 31 19; MERCEDES-BENZ A0005458005; PEUGEOT 6555.HJ; PEUGEOT 6555.VP; PEUGEOT 96 730 621 80; SPERRY NEW HOLLAND 82 004 463; VOLVO 1235893
