HELLA Relay, main current - 12V - 5-pin connector 4RA933791-151

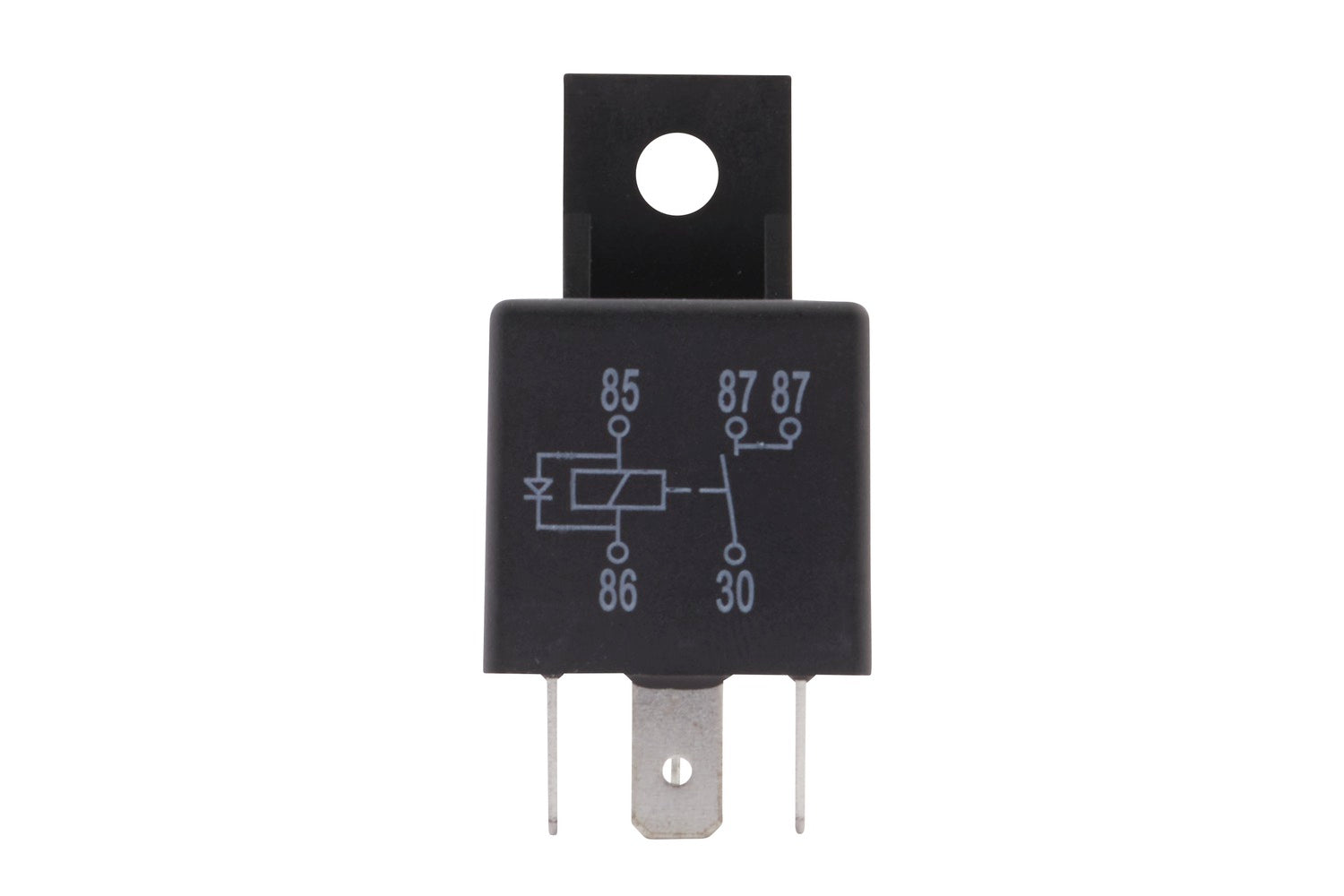

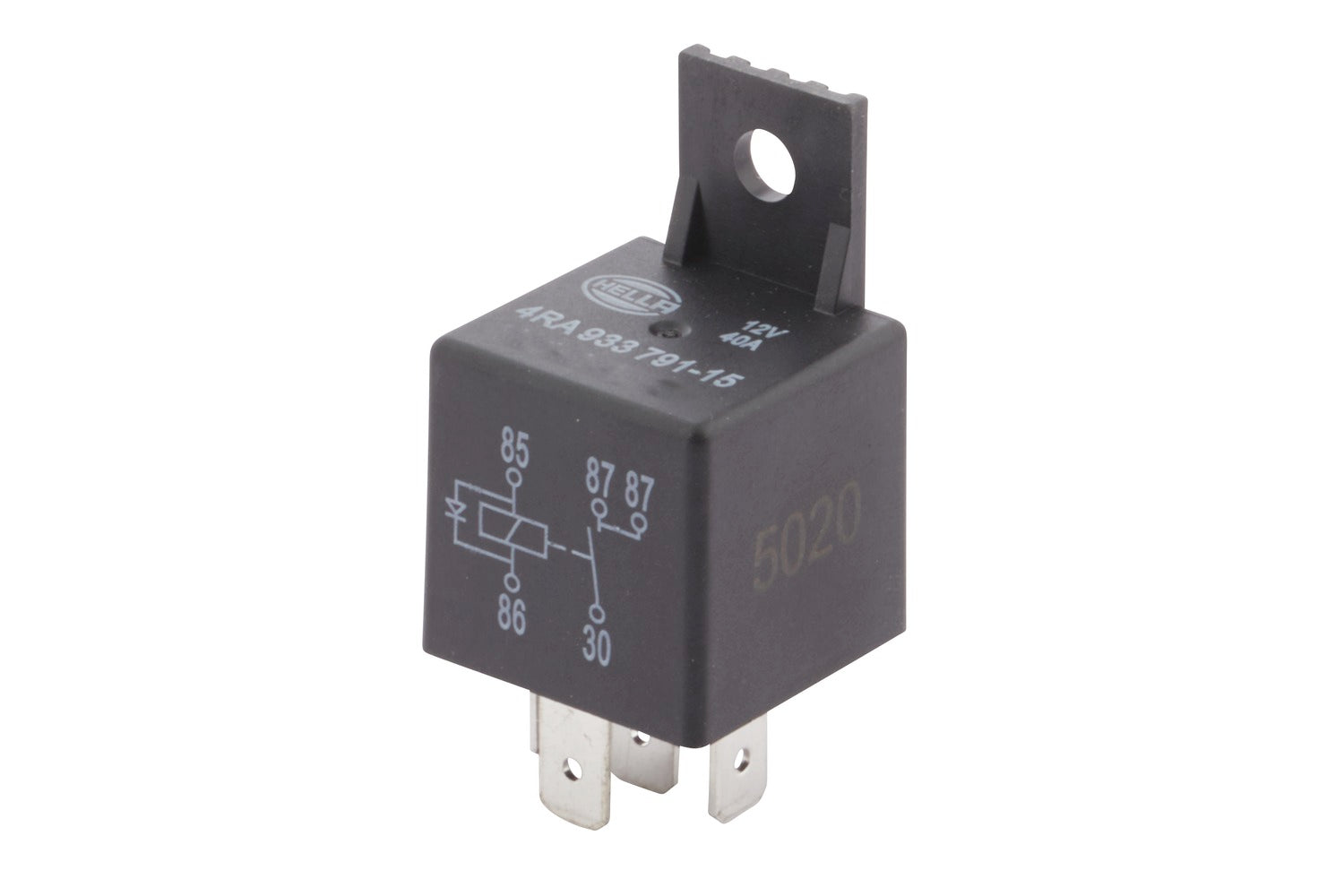

Relay, main current - 12V - 5-pin connector - Normally Open Contact - with holder/with suppression diode

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - make contact relay 12 V, with holder
• Rated switching current max. 40 A
• Number of switching operations max. 100,000
• Coil resistance: 85 Ohm
• Inductive load: 15 A, ohmic load: 40 A, Capacitive load: 5 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 40A

Item Attributes:
Supplementary Article/Supplementary Info: with suppression diode / with holder
Voltage: 12 V
Capacity at 12V: 40A

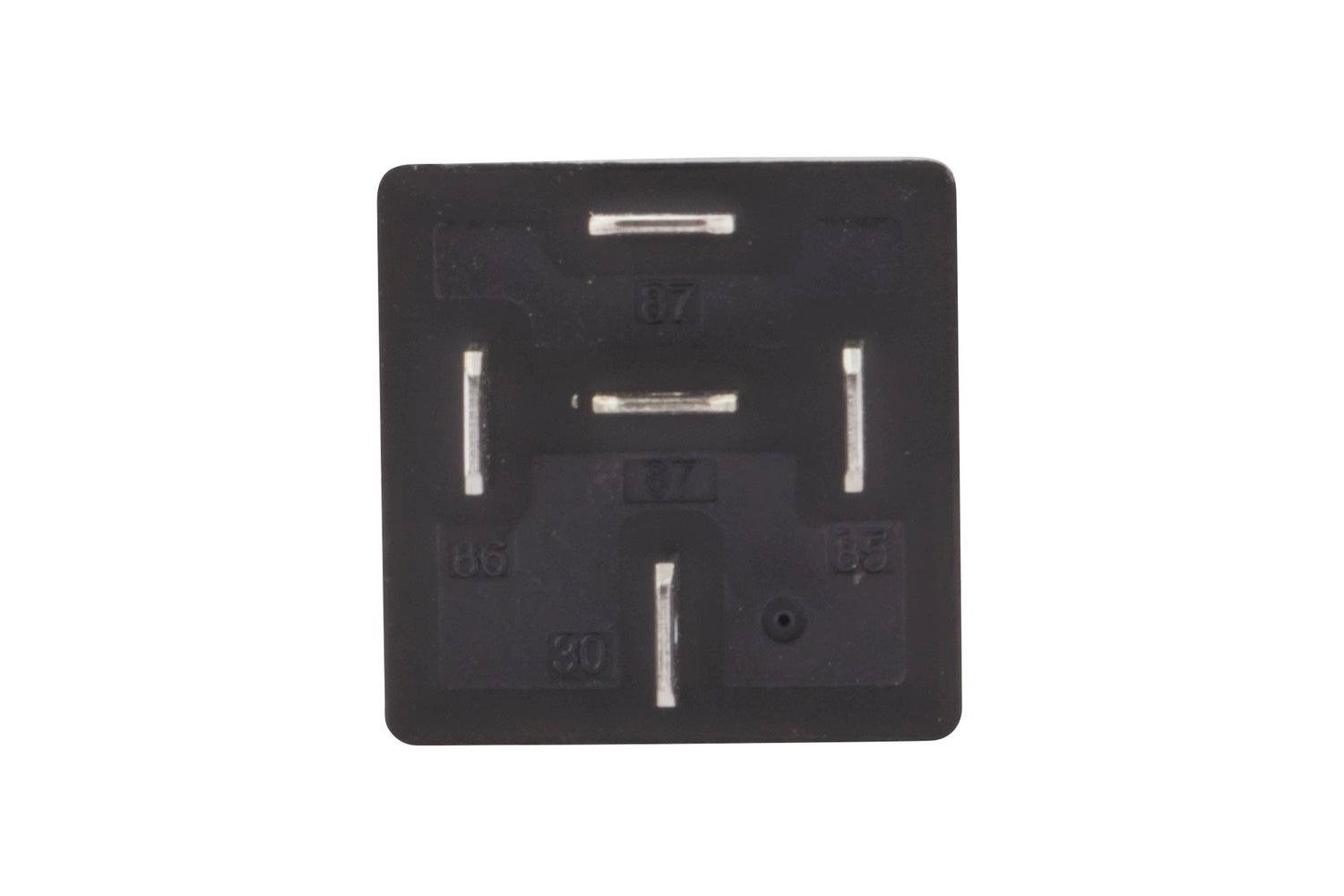

Number of pins: 5 -pin connector
Switch Function: Normally Open Contact
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A
Assembly by qualified personnel required!

OE references: CASE IH E9 NN14N135 AA; DEUTZ-FAHR 011 73314
