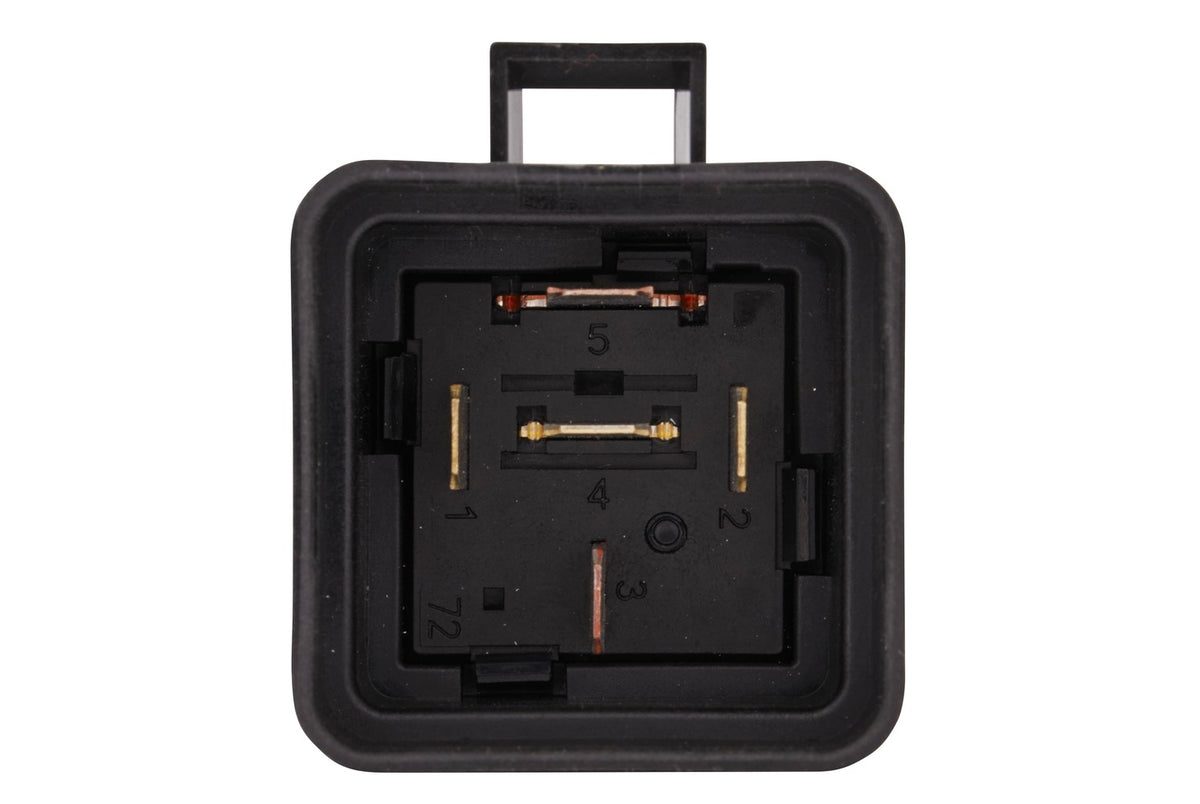

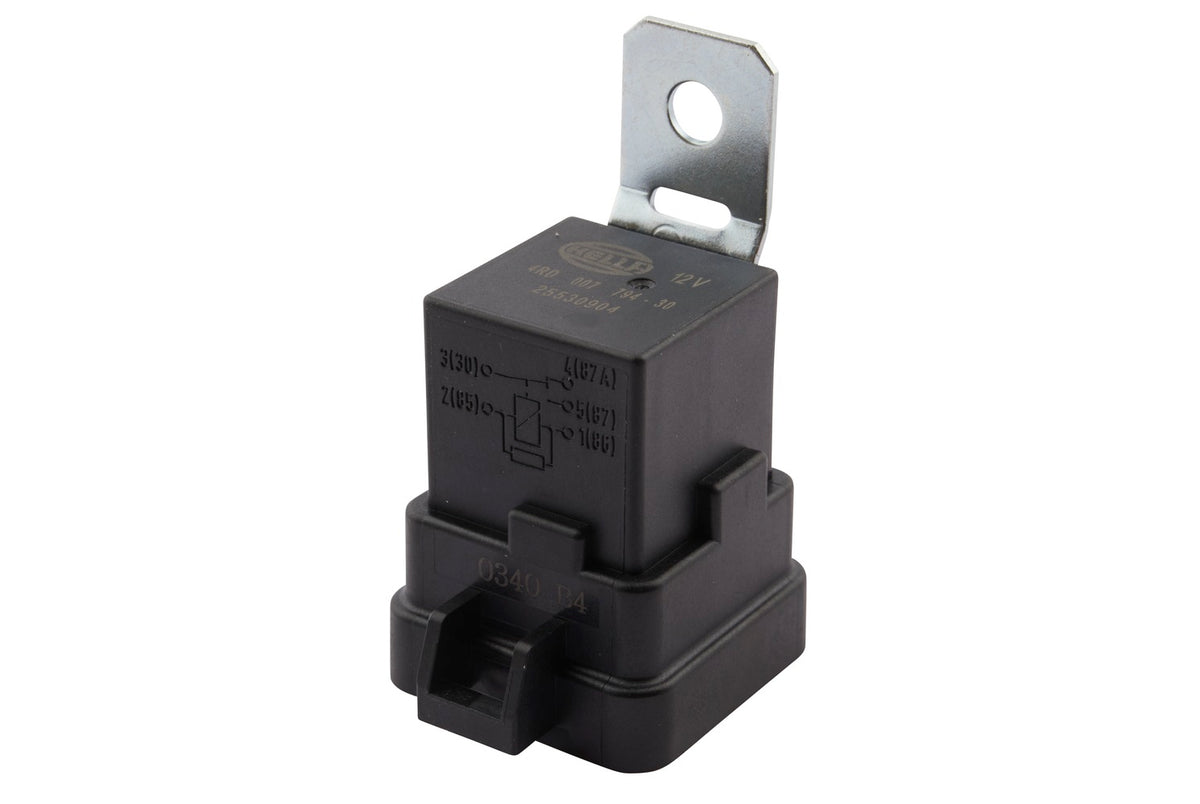

HELLA Relay, main current - 12V - 5-pin connector 4RD007794-301

Relay, main current - 12V - 5-pin connector - Changeover Contact - Colour: Black - with holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - change-over relay 12 V, 5-pole, with holder
• Ohmic load: 20/30A - Inductive load: 5A - Capacitive load: 20/30A - load capacity at 12V: 20/30A

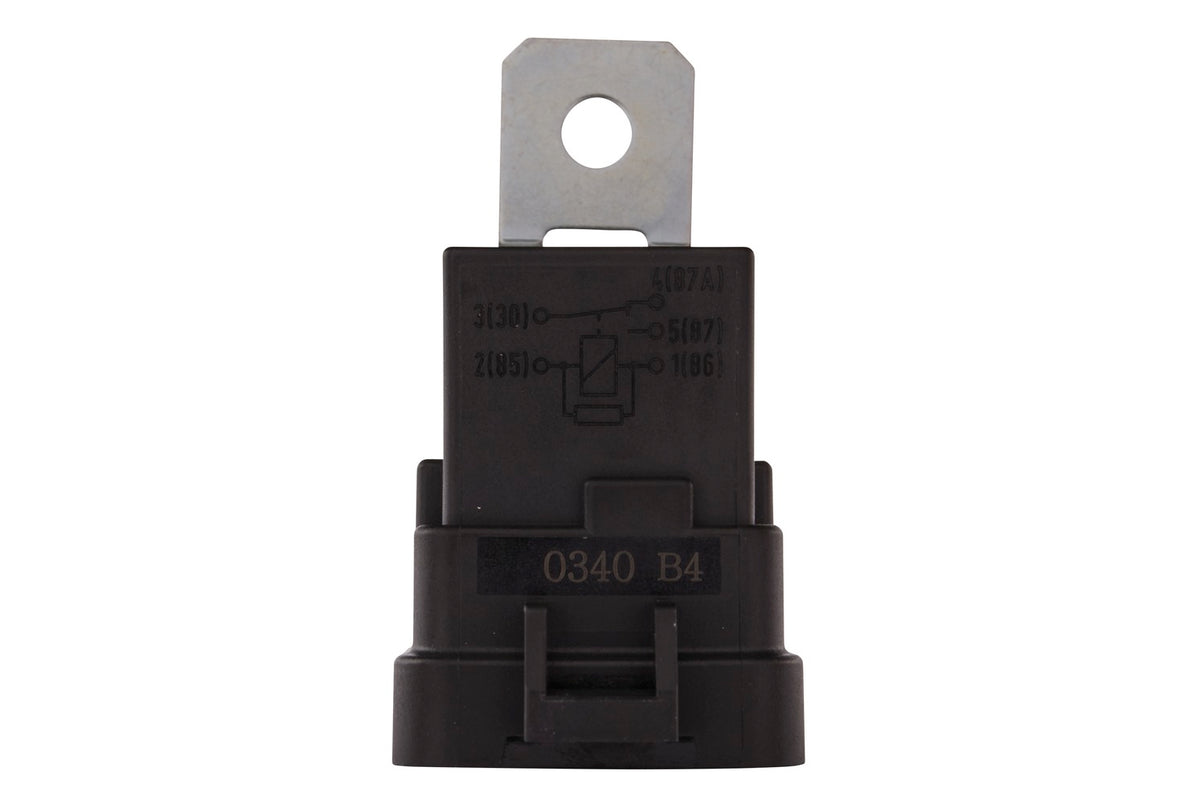

• Circuit diagram W2
• Temperature range from: -40°C - Temperature range to: +125°C
• Capacity at 12V: 40/20 A

Item Attributes:
Supplementary Article/Supplementary Info: with holder
Voltage: 12 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Output Voltage, from: 1.0 V
Output Voltage, up to: 8 V
Capacity at 12V: 40/20 A
Input voltage, from: 5.5 V
Input Voltage, up to: 8 V
Colour: black
Number of pins: 5 -pin connector
Switch Function: Changeover Contact
Assembly by qualified personnel required!

OE references: AGCO 515756; AGCO AG515756; CASE IH 139026A2; FREIGHTLINER HAL 007794301; GENERAL MOTORS 25553347; JOHN DEERE QTCA51227; KRONE 200812800; LANCIA K56007078AB; LIEBHERR 1 044 001 65; MERCURY MARINE 8M3002976; SOLARIS 1082-008194-001; SPERRY NEW HOLLAND 86508603; VERSATILE 86508603
