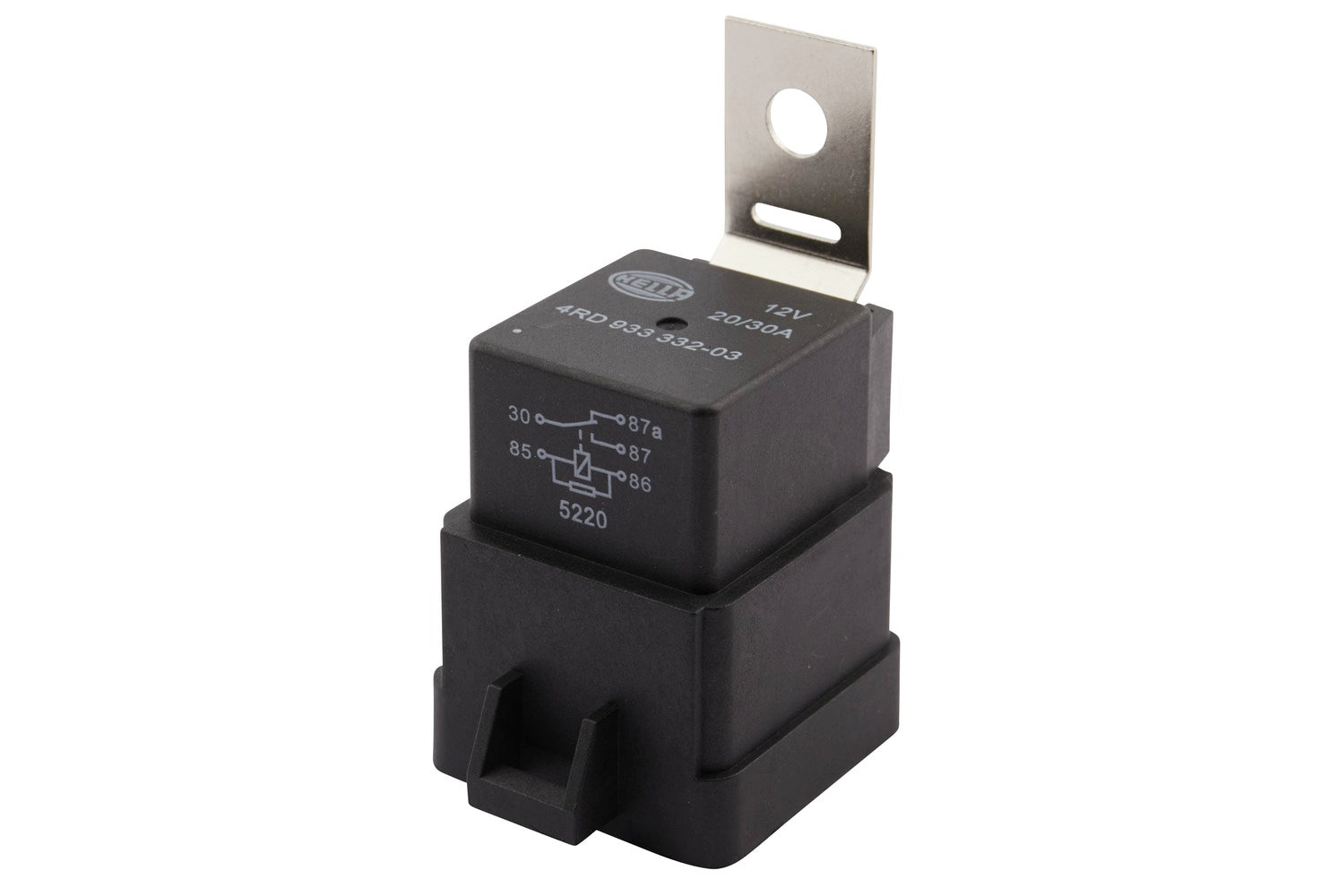

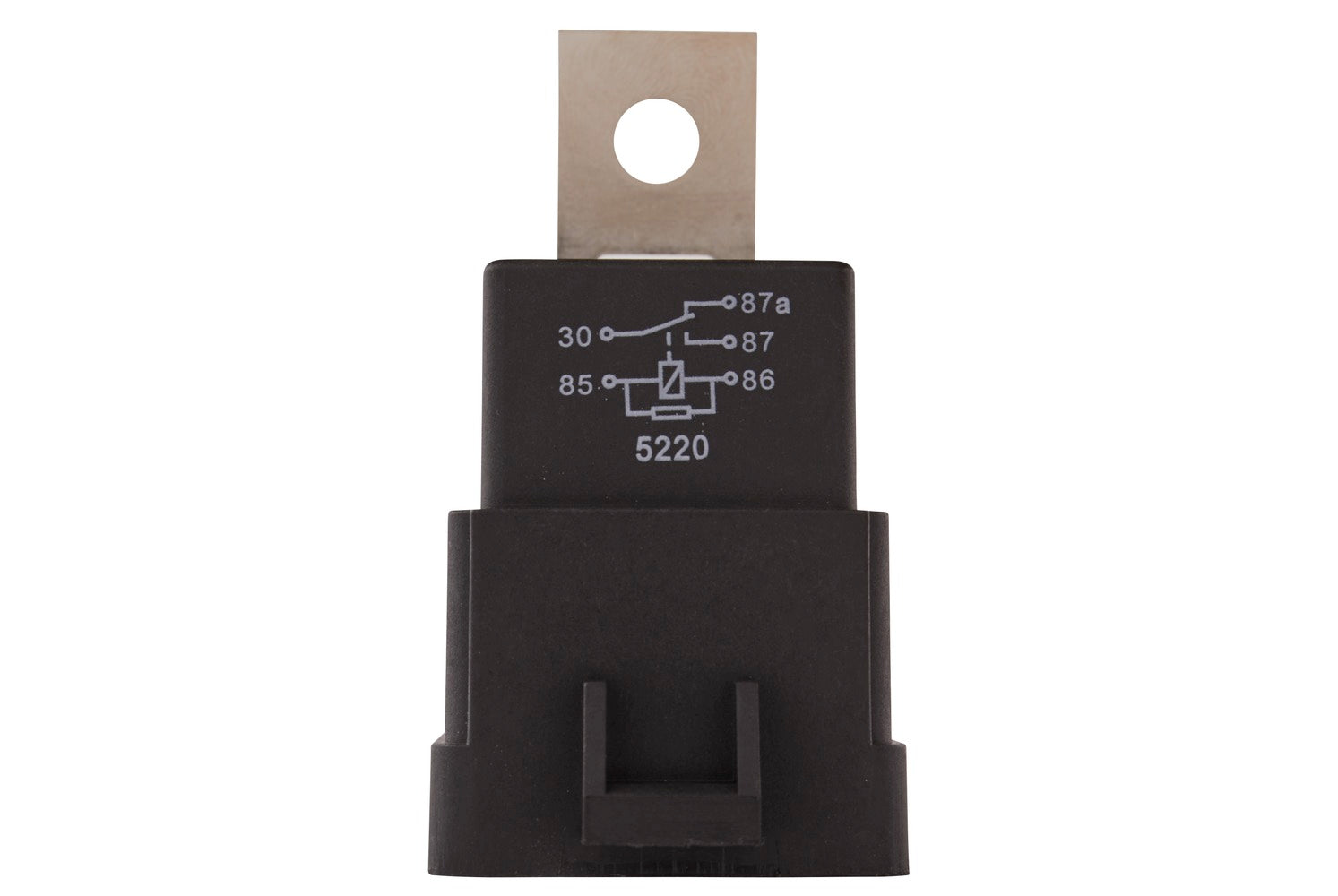

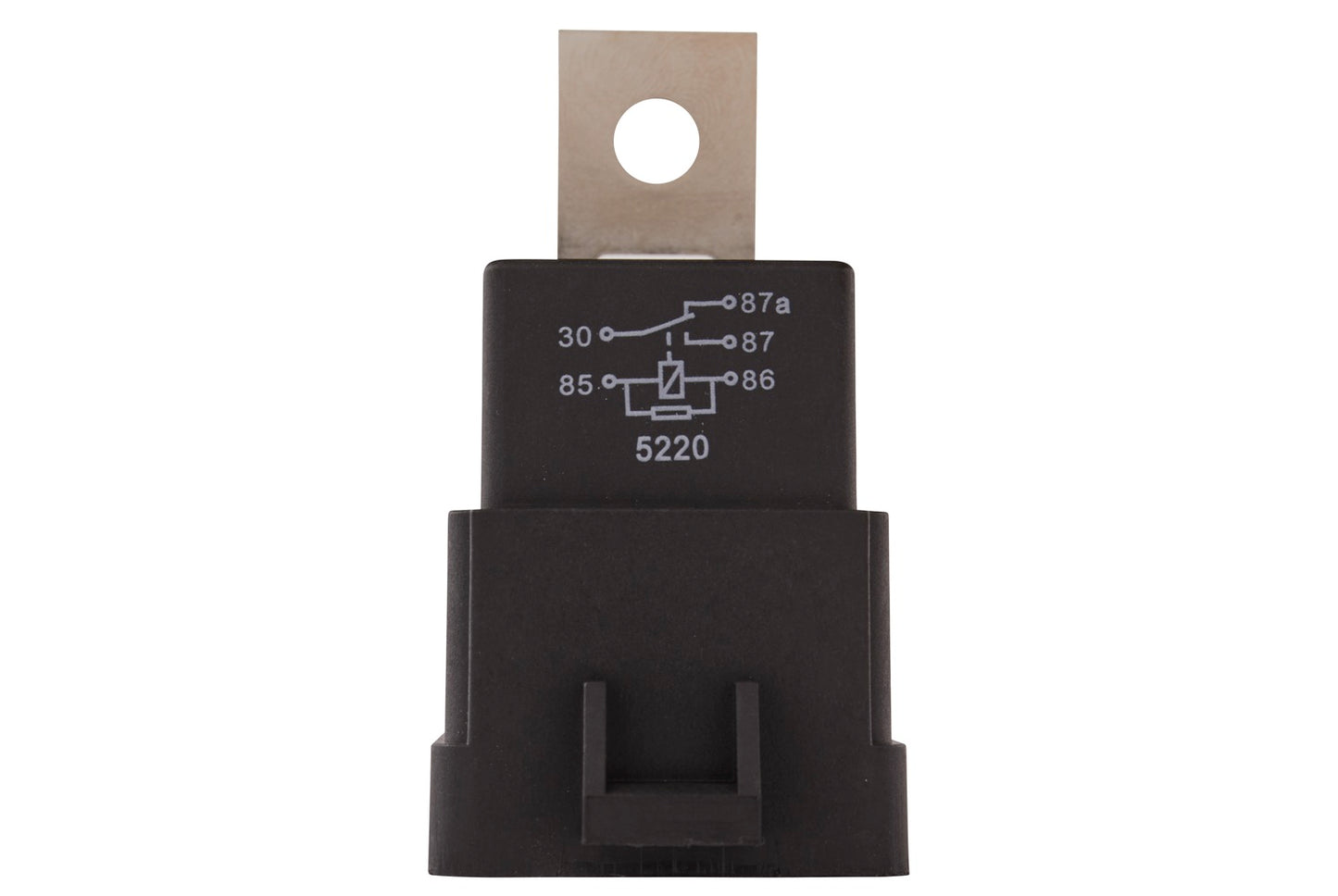

HELLA Relay, main current - 12V - 5-pin connector 4RD933332-031

Relay, main current - 12V - 5-pin connector - with holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - change-over relay 12 V, 5-pole, with holder and parallel resistor to coil
• Rated switching current: min. 6 A, max. 30 A (at 80 °C ambient temperature)
• Number of gear changes: min. 60,000
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A
• with resistor

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Supplementary Article/Supplementary Info: with holder
Voltage: 12 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Weight: 25 g
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A

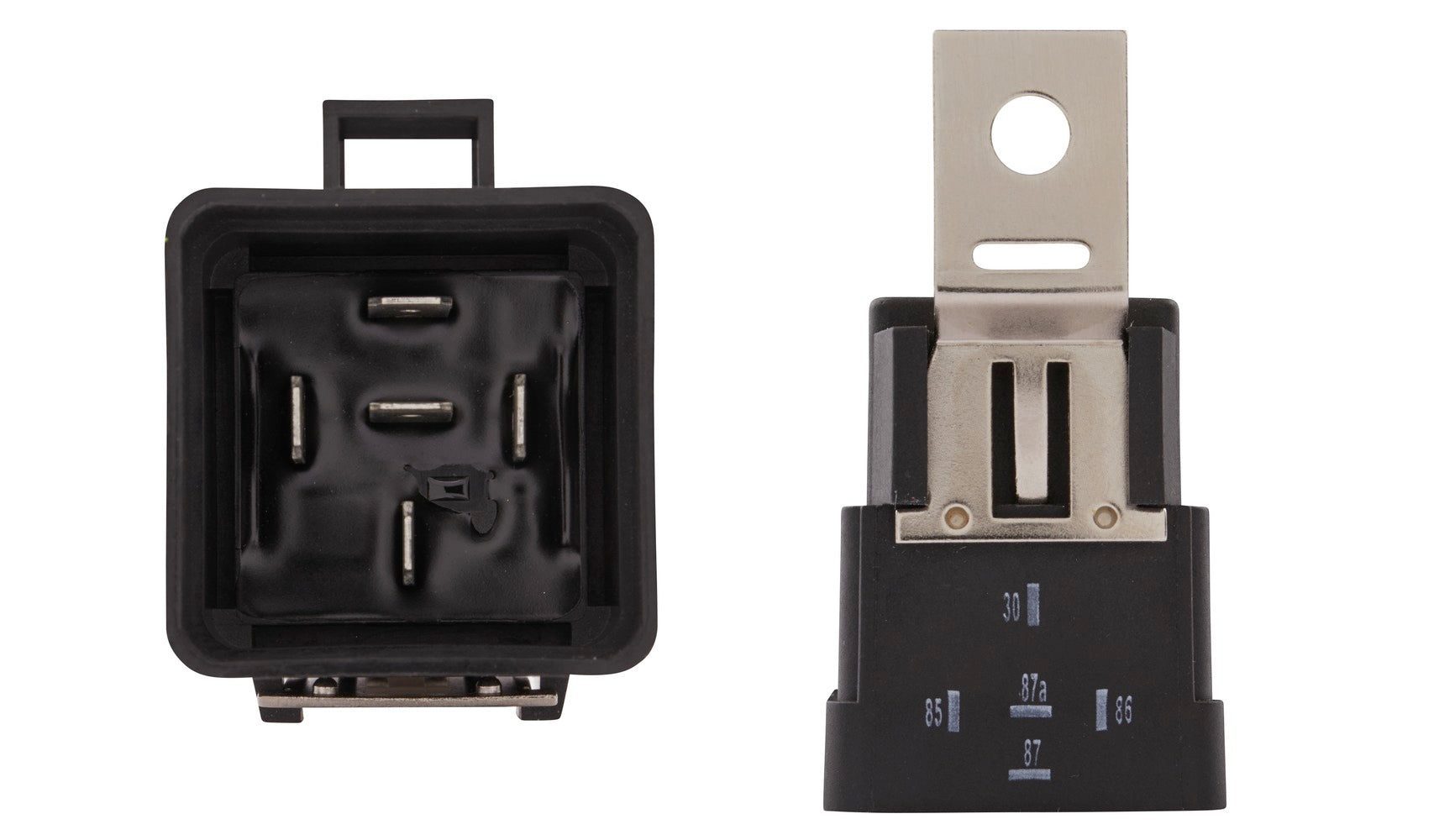

Number of pins: 5 -pin connector
SVHC: 7439-92-1; Lead / 1303-86-2; Diboron trioxide
Assembly by qualified personnel required!

OE references: BOBCAT L000005101; CASE IH 86508603; CASE IH 865086030; CASE IH 86606352; CATERPILLAR 246-0900; CLAAS 11274480; DUCATI 28740403A; KRONE 200812800; KUBOTA 165958007; KUBOTA 3J08016200; LIEBHERR 1 044 001 65; MANITOU 314169; MANITOU 894858; ROSENBAUER 36071A; SOLARIS 1082-007829-00; SPERRY NEW HOLLAND 86508603; TOYOTA 0055420
