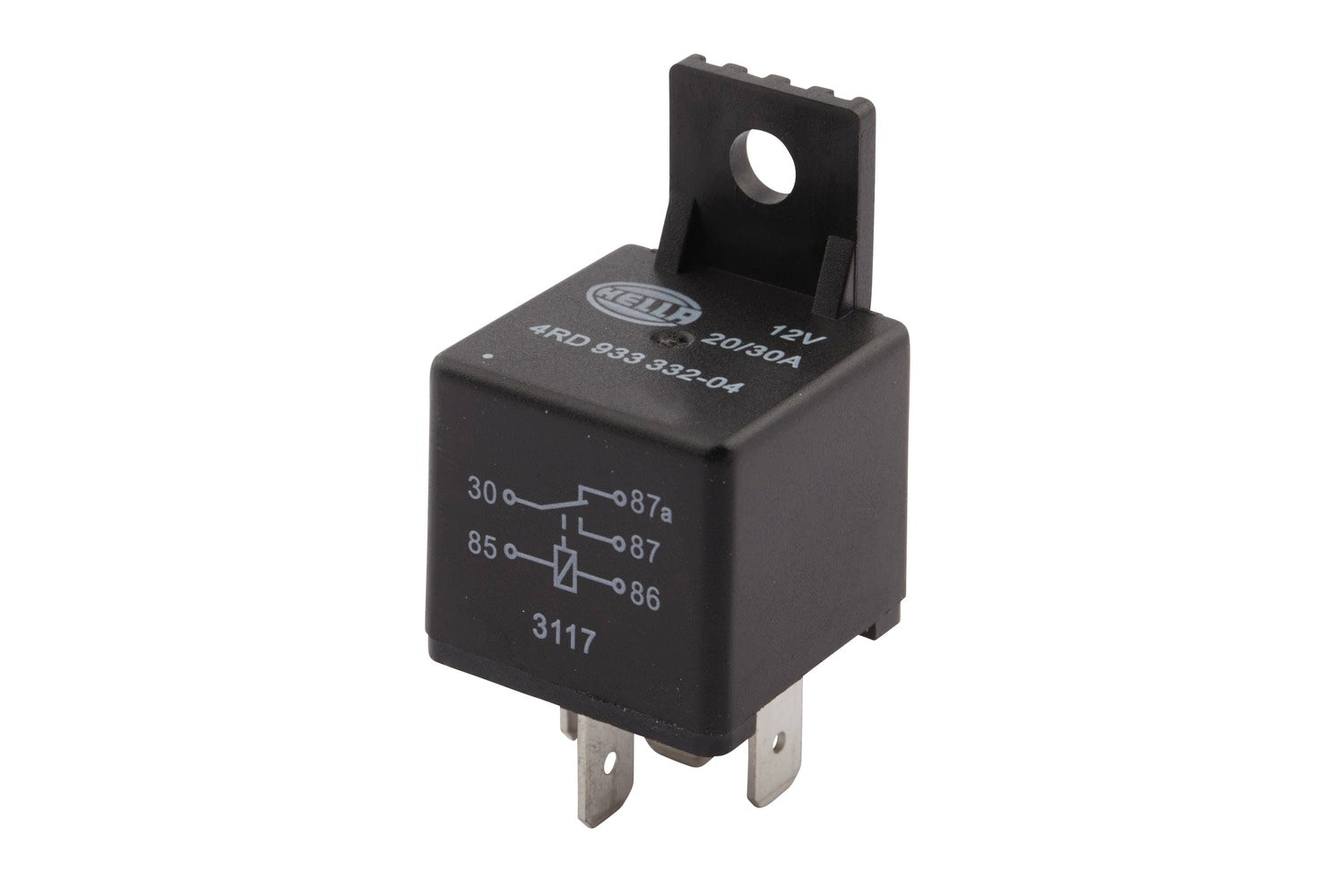

HELLA Relay, main current - 12V - 5-pin connector 4RD933332-041

Relay, main current - 12V - 5-pin connector - Changeover Contact - with holder

• HELLA produces more than 100 million units per year in its own production facilities
• OE quality: versatile and reliable
• Mini relay according to ISO 7588-1, flat plug according to ISO 8092-1
• Contact configurations: Normally open contact, changeover contact, max 40 A switching capacity (normally open contact)
• Fields of application include headlights, starters, fuel pump, fan motors, horns and fanfares
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A

Item Attributes:
Supplementary Article/Supplementary Info: with holder
Voltage: 12 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A

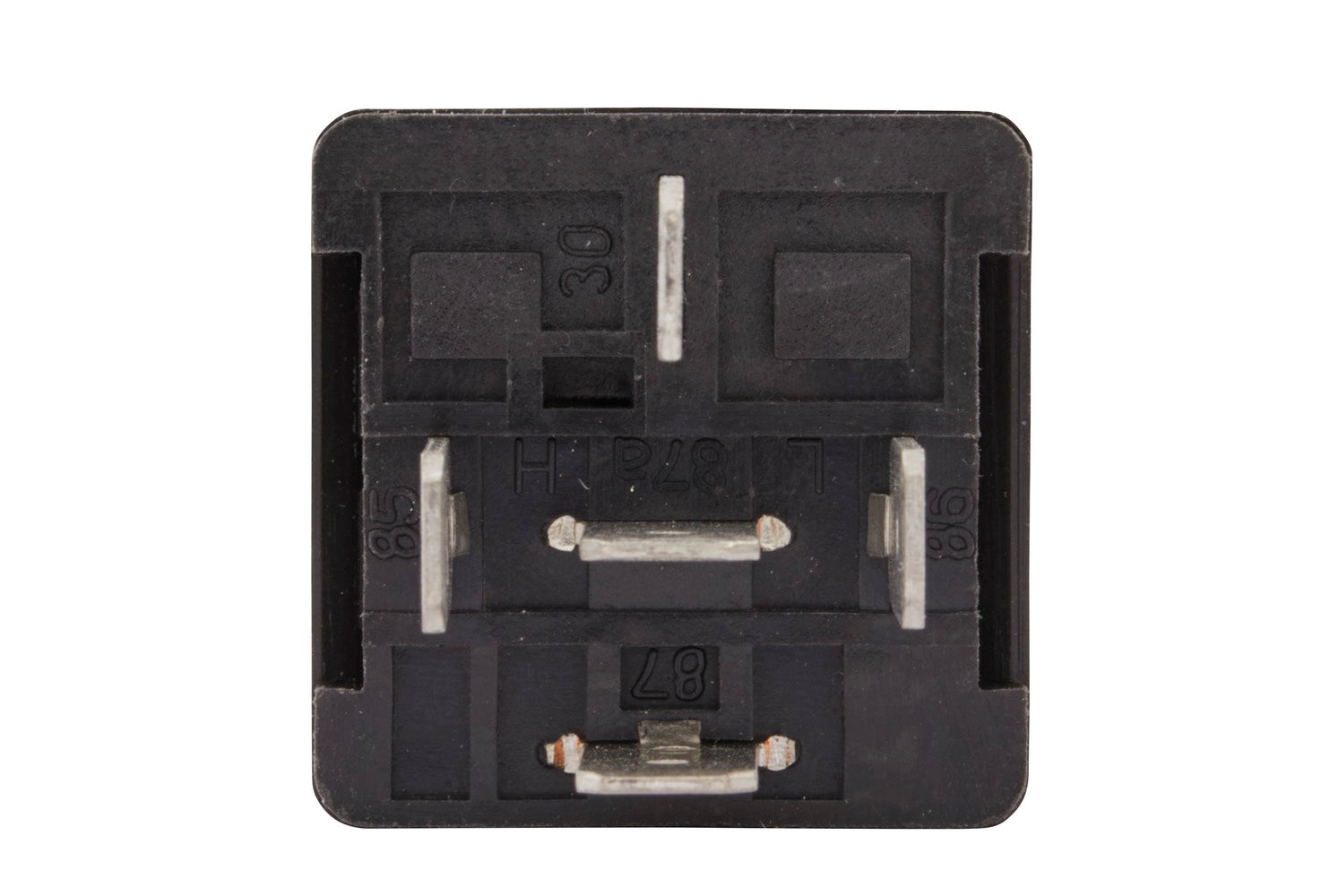

Number of pins: 5 -pin connector

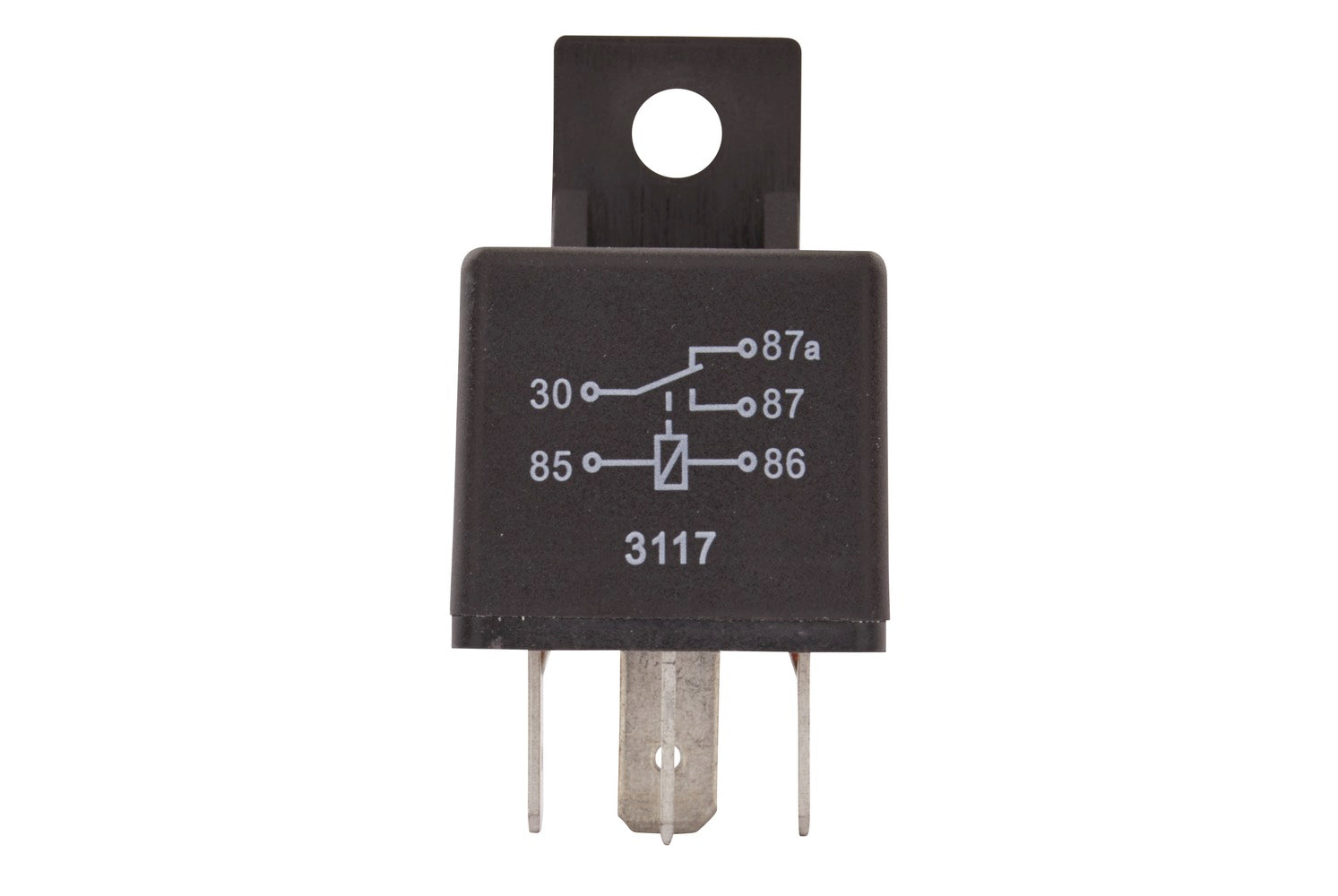

Switch Function: Changeover Contact
Assembly by qualified personnel required!

OE references: AEBI 20-1021968-5; AGRIFAC 7764760; BOMAG 60.038.020; BROSHUIS 35429030; CLAAS 03200700; DAF 0906185; DEUTZ-FAHR 166075; FELDBINDER 1002220; HAKO 0826163; HYMER 1023509; HYMER 3642802; HYSTER S00255130007; KAMAG 80079520; KÖGEL 80079520; KRONE 0301554/0; LAMBERET 2413400; LINDE 0009731327; MANITOU 681116; REISCH 5011935; ROSENBAUER 4014801; SOLARIS 1082-008142-01; STILL 0009731327; STILL 8014370; TEREX 5050247300; VÖGELE 3515160054; VOLVO PJ5110012; WEIRO 12309
