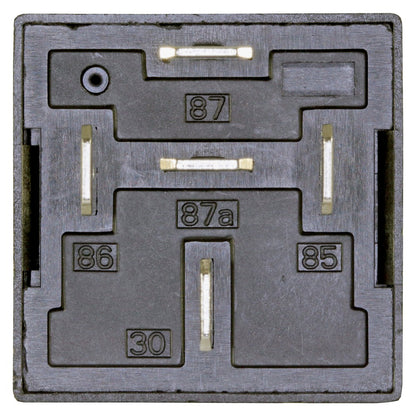

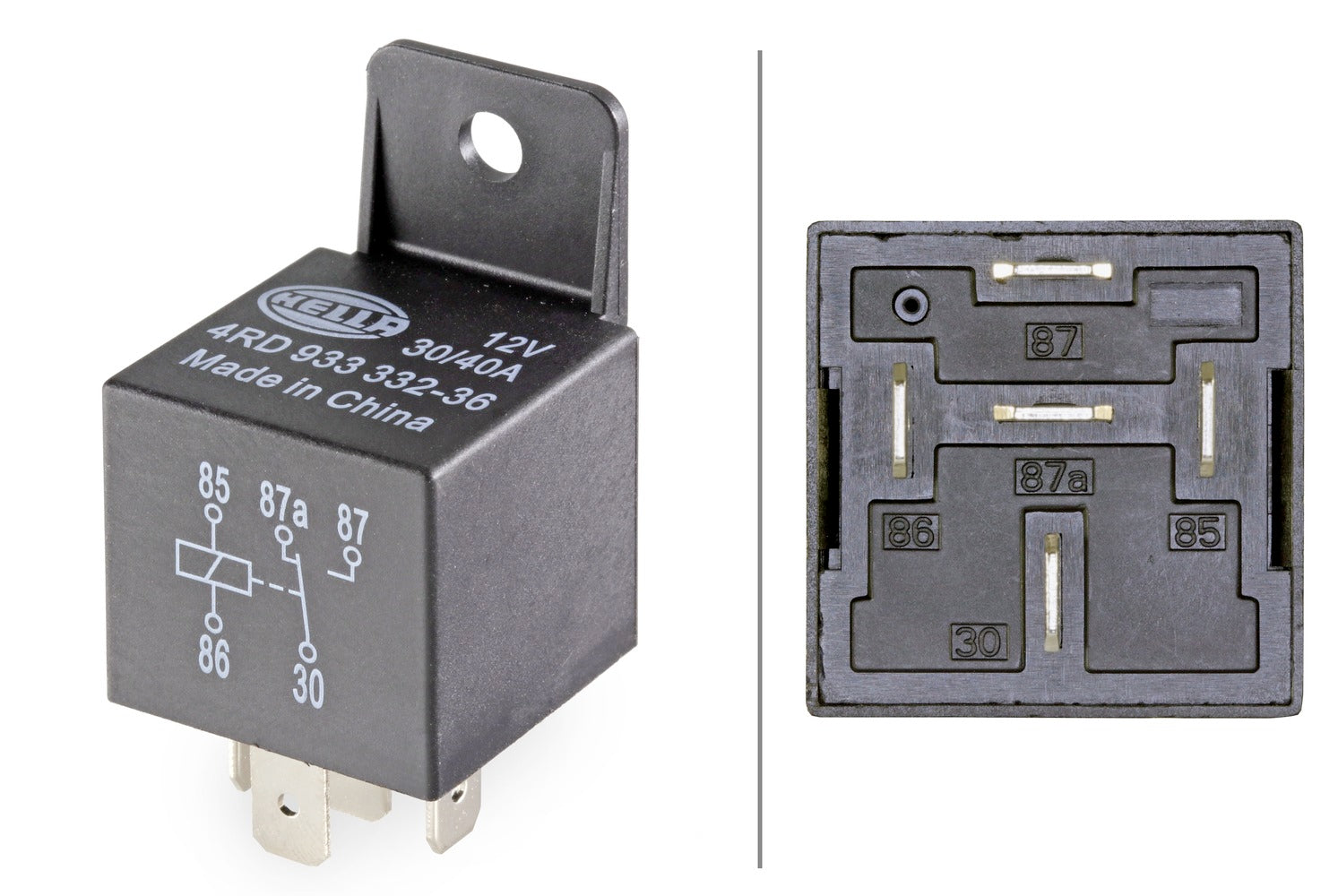

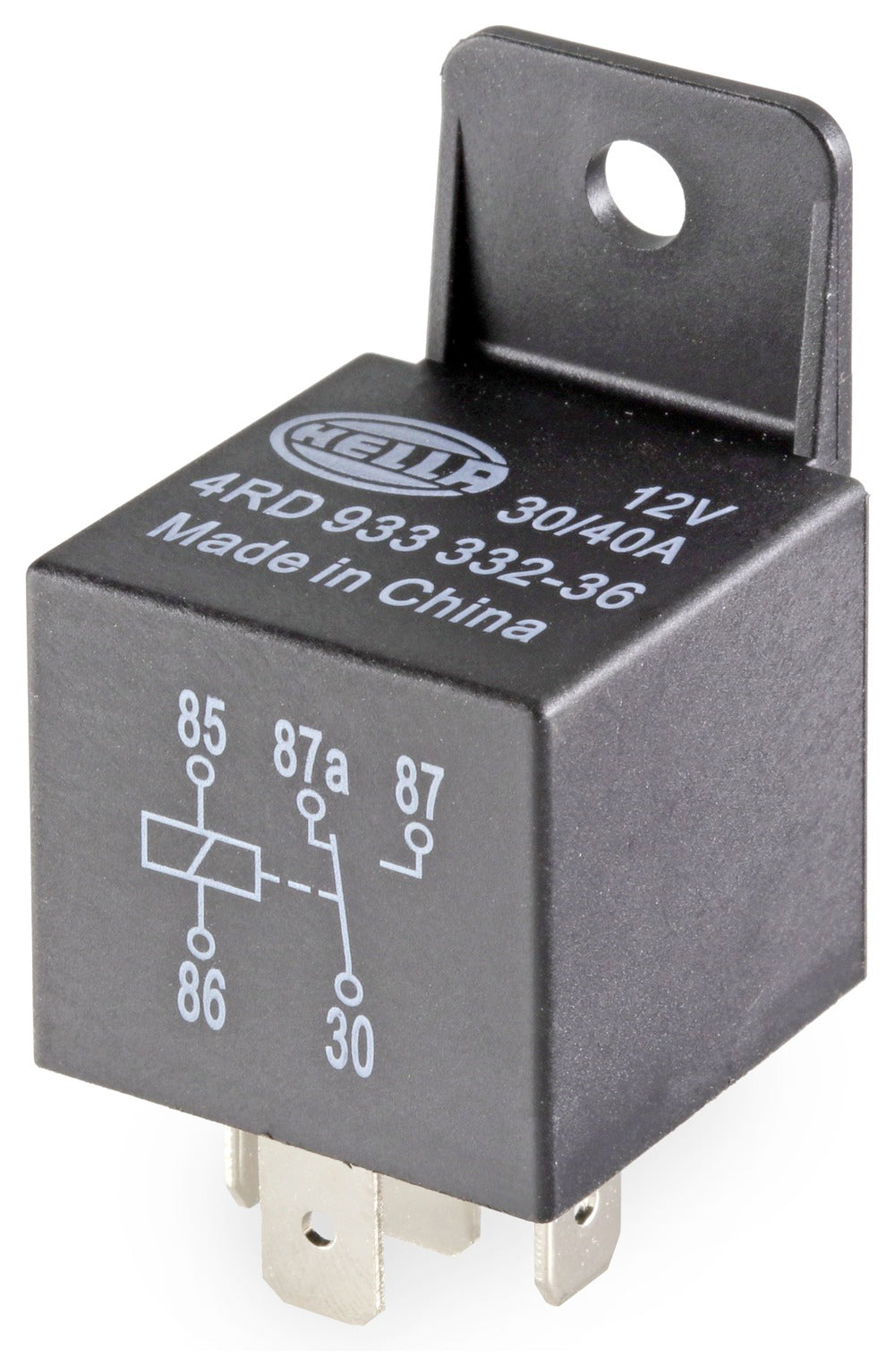

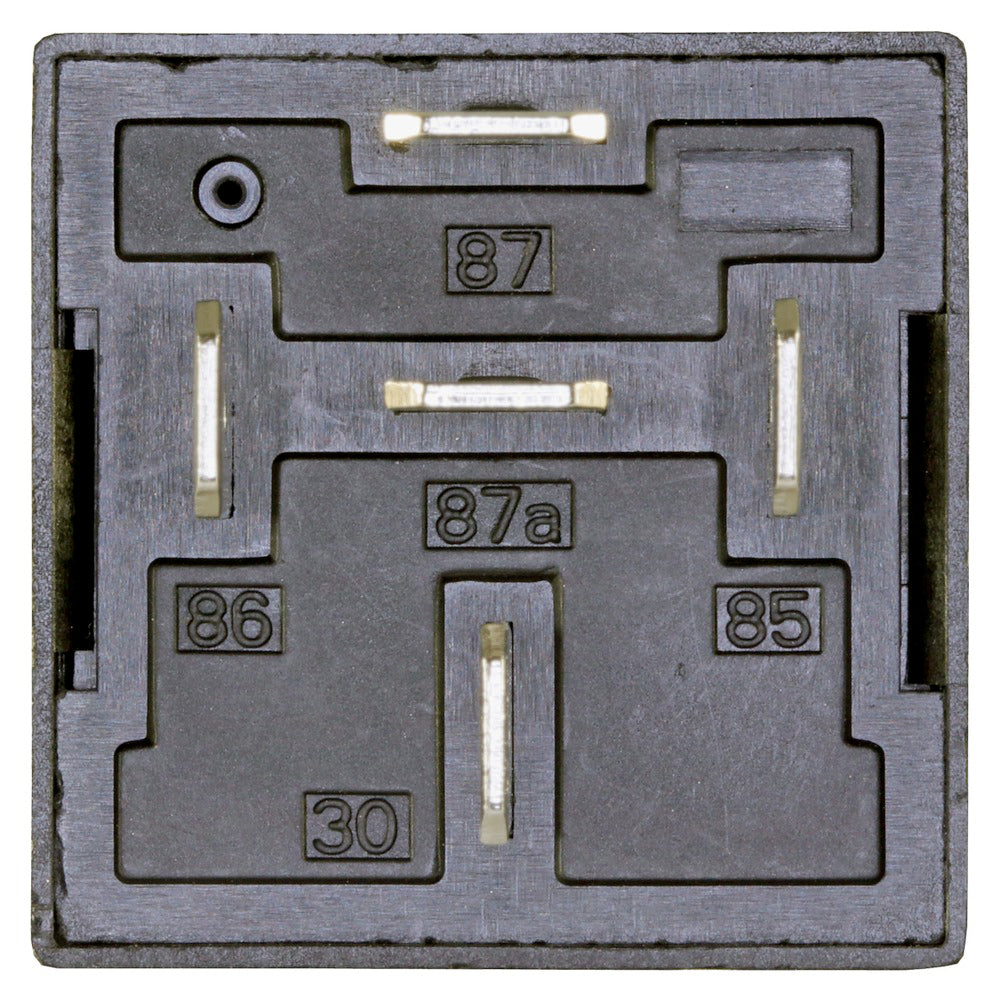

HELLA Relay, main current - 12V - 5-pin connector 4RD933332-361

Relay, main current - 12V - 5-pin connector - Changeover Contact - with holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - change-over relay 12 V, with holder
• Rated switching current min. 6 A, max. 40 A
• Number of switching operations max. 100,000
• Coil resistance: 85 Ohm
• Inductive load: 15 A, ohmic load: 40 A, Capacitive load: 5 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 30A/40A

Item Attributes:
Supplementary Article/Supplementary Info: with holder
Voltage: 12 V
Capacity at 12V: 30A/40A
Number of pins: 5 -pin connector
Switch Function: Changeover Contact
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A
Assembly by qualified personnel required!

OE references: CASE IH 1983 420 C1; CASE IH 399158; CATERPILLAR 8C8019; CHRYSLER 04 864 002 2A; DAF 1279539; DAF 1778563; DAF 906185; DAIMLER A 001 835 41 06; FENDT X 830 250 007; FENDT X 830 250 007 000; FIAT 60501035; FORD 0605 3460; FORD 1574 754; INTERNATIONAL 1983 420 C 1; IVECO 1164017; IVECO 8109522; KRONE 0301554/0; LADA 2121 3747210 00; MAN 81.25902-0111; MAN 81.25902-0238; MERCEDES-BENZ 000 545 55 05; MERCEDES-BENZ 001 835 41 06; MERCEDES-BENZ A 000 545 55 05; MERCEDES-BENZ A 001 835 41 06; PORSCHE 911.799.613.56
