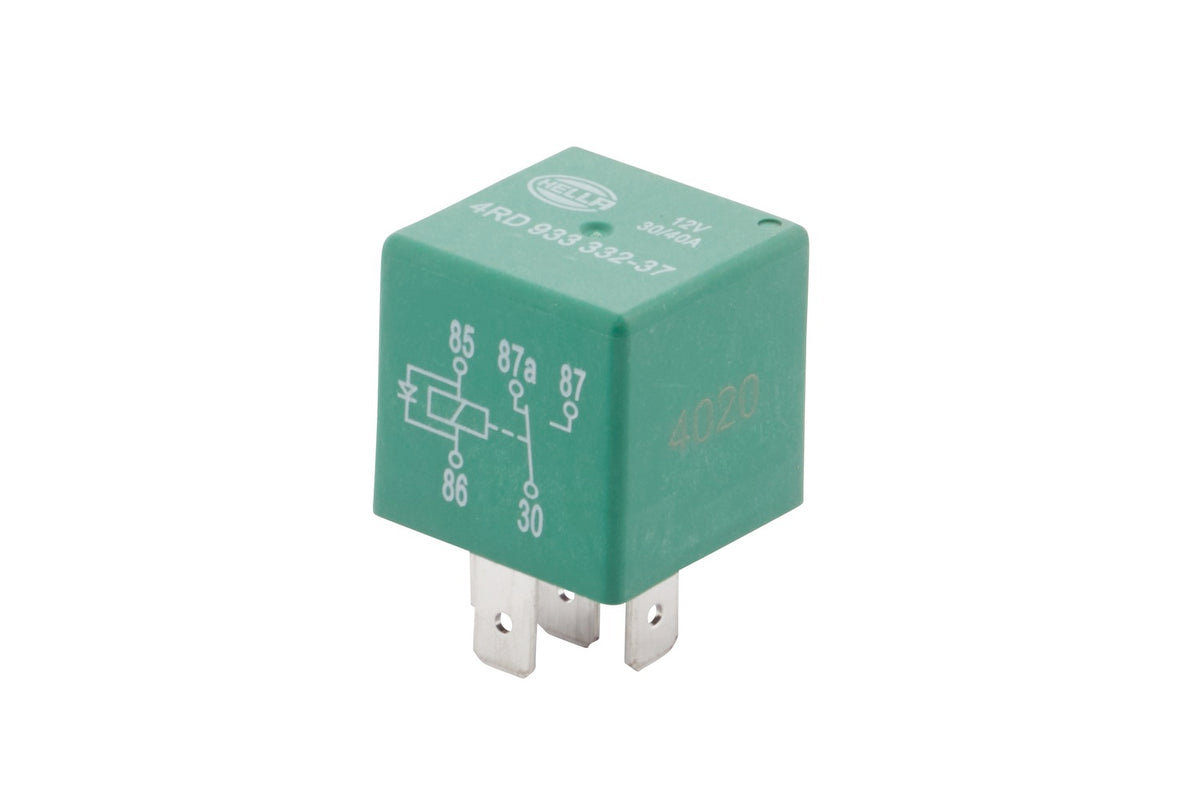

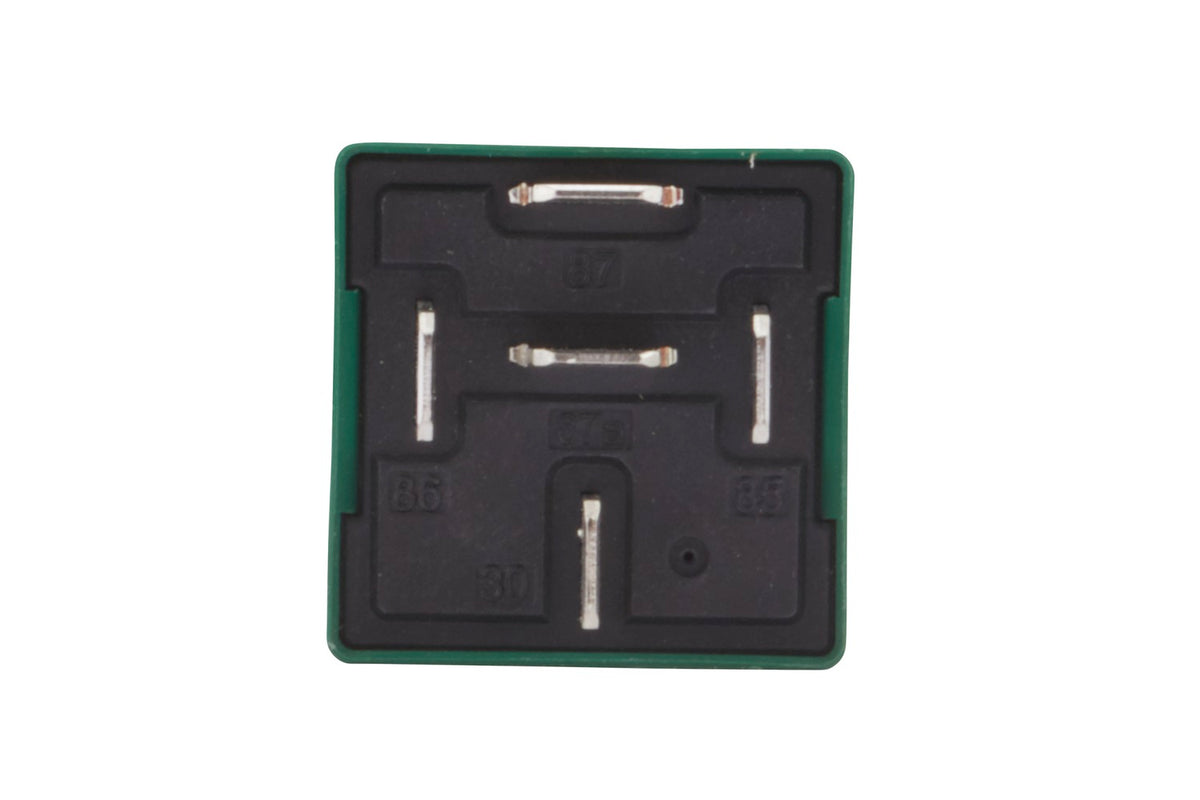

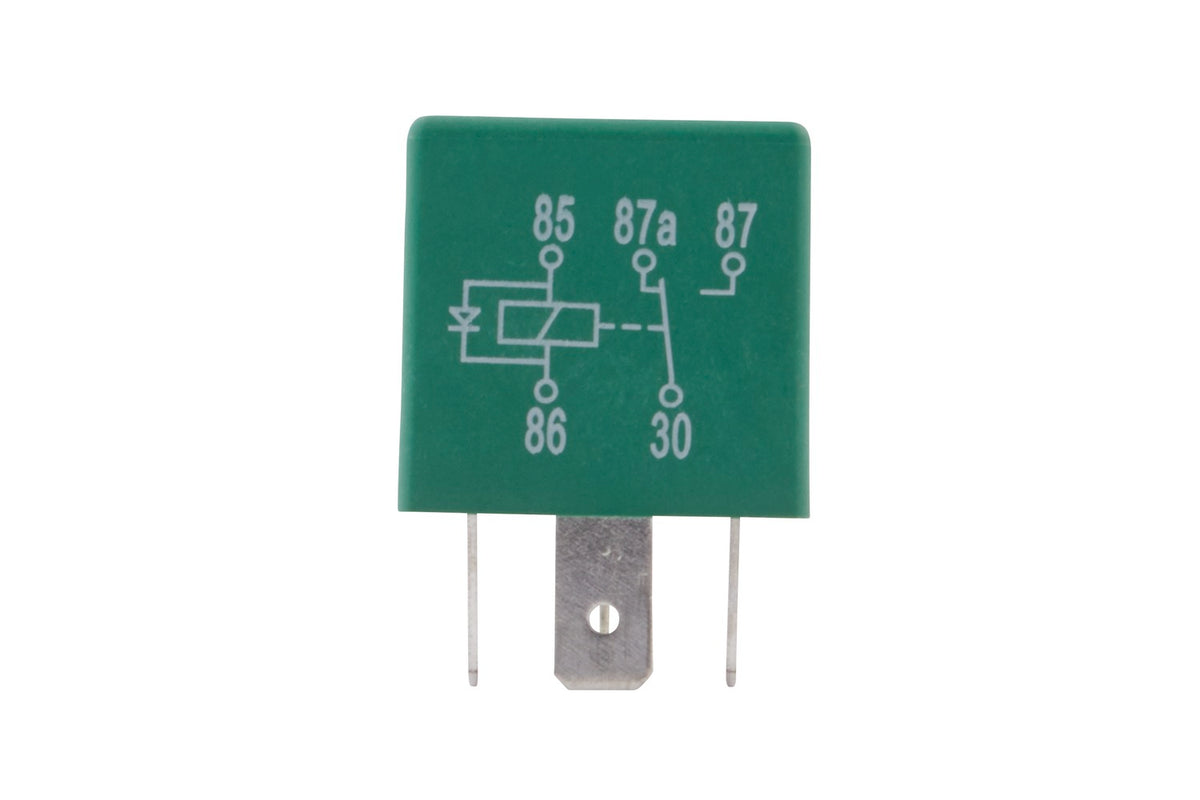

HELLA Relay, main current - 12V - 5-pin connector 4RD933332-371

Relay, main current - 12V - 5-pin connector - Changeover Contact - with suppression diode - Quantity: 1

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - change-over relay 12 V, without holder
• Rated switching current min. 20 A, max. 30 A
• Number of switching operations max. 100,000
• Coil resistance: 85 Ohm
• Inductive load: 15 A, ohmic load: 40 A, Capacitive load: 5 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 30A/40A

Item Attributes:
Switch Function: Changeover Contact
Capacity at 12V: 30A/40A
Voltage: 12 V
Number of pins: 5 -pin connector
Supplementary Article/Supplementary Info: with suppression diode
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A
Quantity: 1
Assembly by qualified personnel required!

OE references: CASE IH 1987 409 C2; FENDT 32 906 800; FENDT 32 909 800; FENDT 836 662 497; FENDT D45 070 089; FENDT V 856 237 00; FERRARI 156 669; KOMATSU 42R-06-11291; MERCEDES-BENZ 000 835 01 59; MERCEDES-BENZ 004 545 38 05; MERCEDES-BENZ A 000 835 01 59; MERCEDES-BENZ A 004 545 38 05; ROLLS-ROYCE UD 75826; SAME 45070089; SANY 21003564; TEREX 5050247335.; VALMET 32906800
