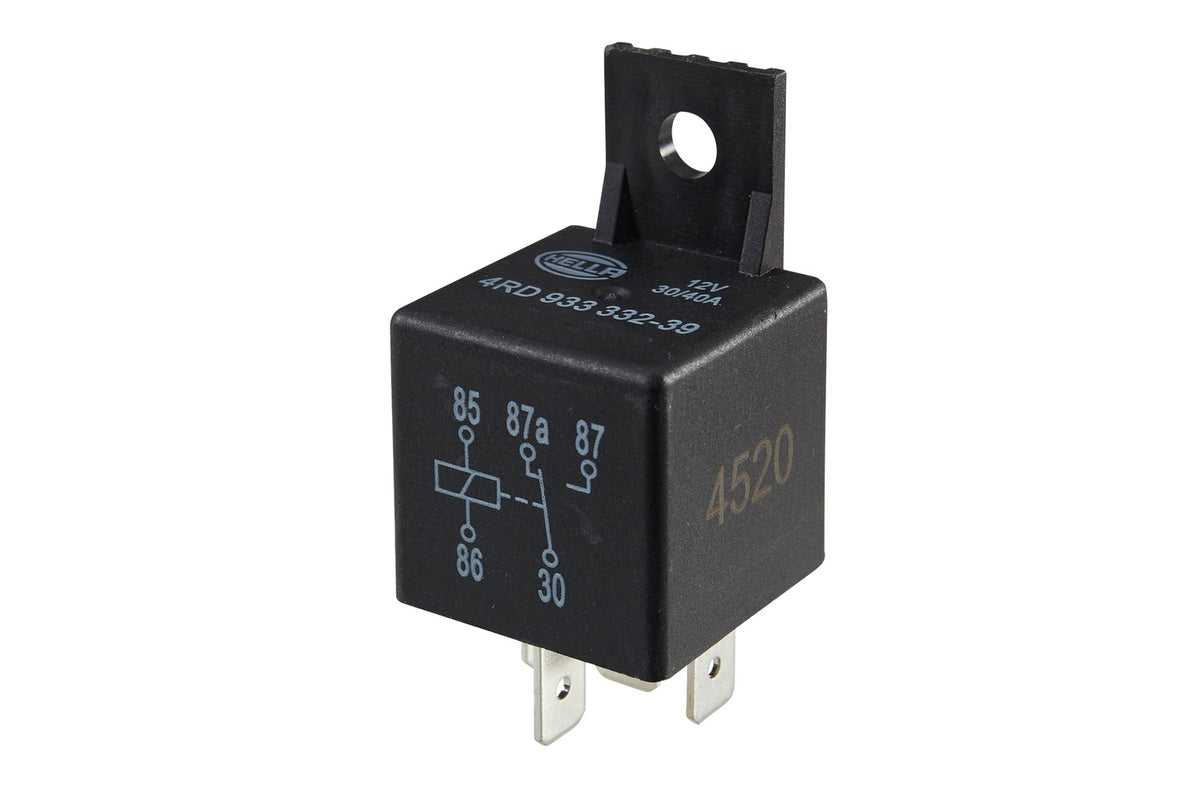

HELLA Relay, main current - 12V - 5-pin connector 4RD933332-391

Relay, main current - 12V - 5-pin connector - Changeover Contact - with holder - Quantity: 1

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - change-over relay 12 V, with holder
• Rated switching current min. 6 A, max. 20 A
• Number of switching operations max. 100,000
• Coil resistance: 85 Ohm
• Inductive load: 15 A, ohmic load: 40 A, Capacitive load: 5 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 40A - Ohmic Load: 40A - Inductive Load: 15A - Capacitive Load: 5A - Capacity at 12V: 30A/40A

Item Attributes:
Supplementary Article/Supplementary Info: with holder
Voltage: 12 V
Capacity at 12V: 30A/40A
Switch Function: Changeover Contact
Number of pins: 5 -pin connector
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 15 A
Capacitive Load: 5 A
Rated Current: 40 A
Ohmic Load: 40 A
Quantity: 1
Assembly by qualified personnel required!

OE references: DAF 1542541; DAF 906185; DEUTZ-FAHR 166075; JCB 716/02400.; KÖGEL 80079520; KRONE 0301554/0; MANITOU 681116; SCANIA SP1068038; SOLARIS 1082-008142-00; VOLVO PJ5110012; WEIRO 12309
