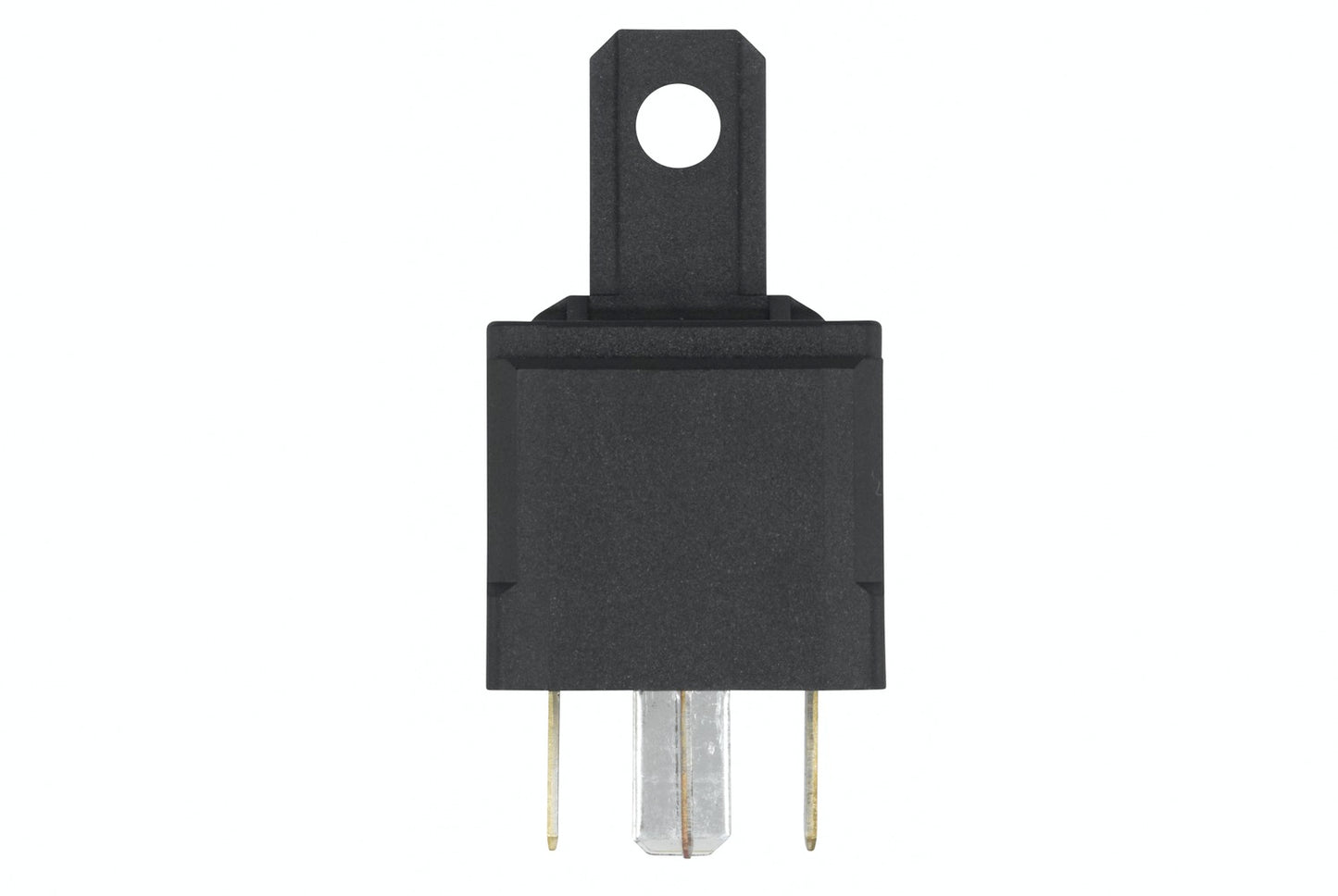

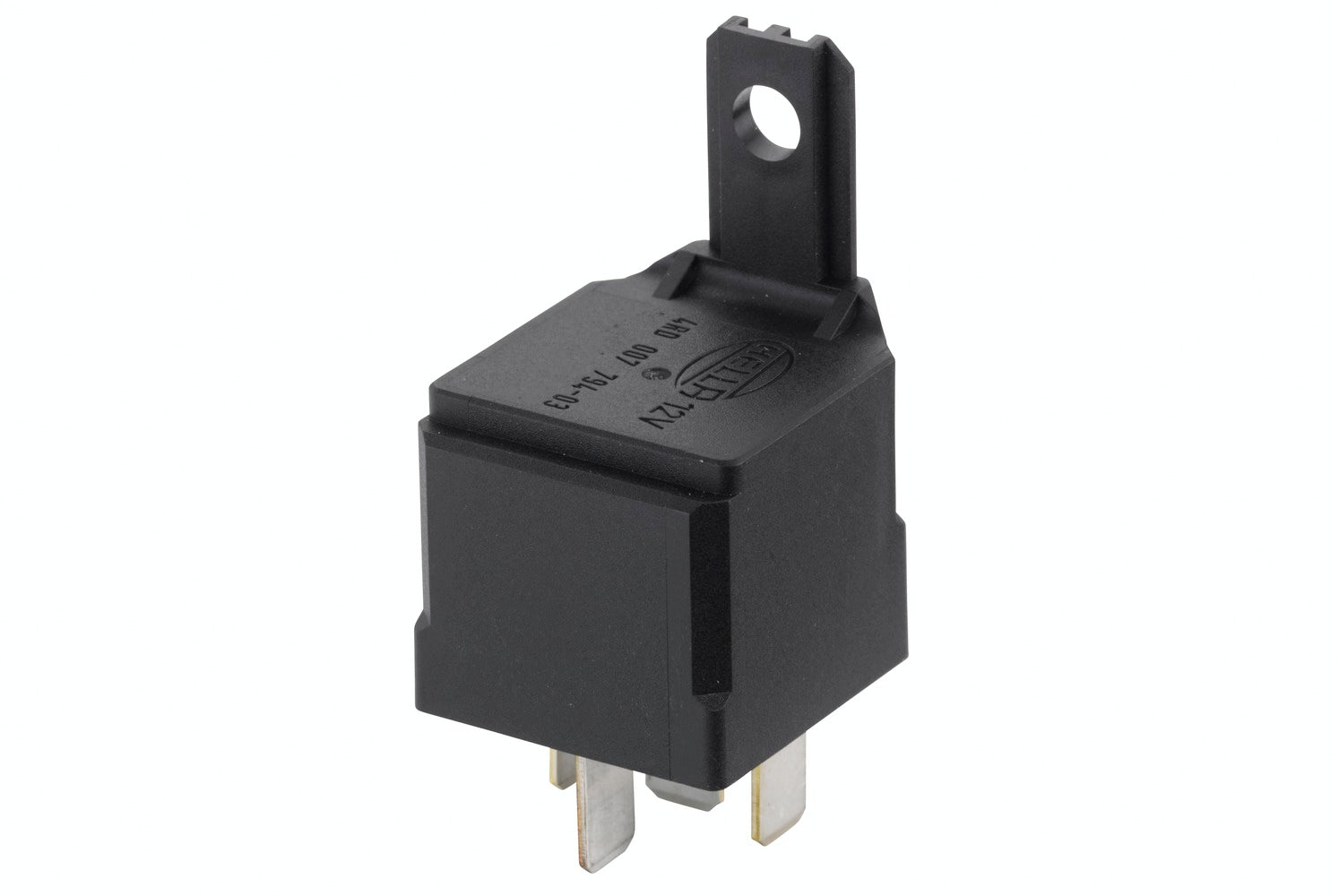

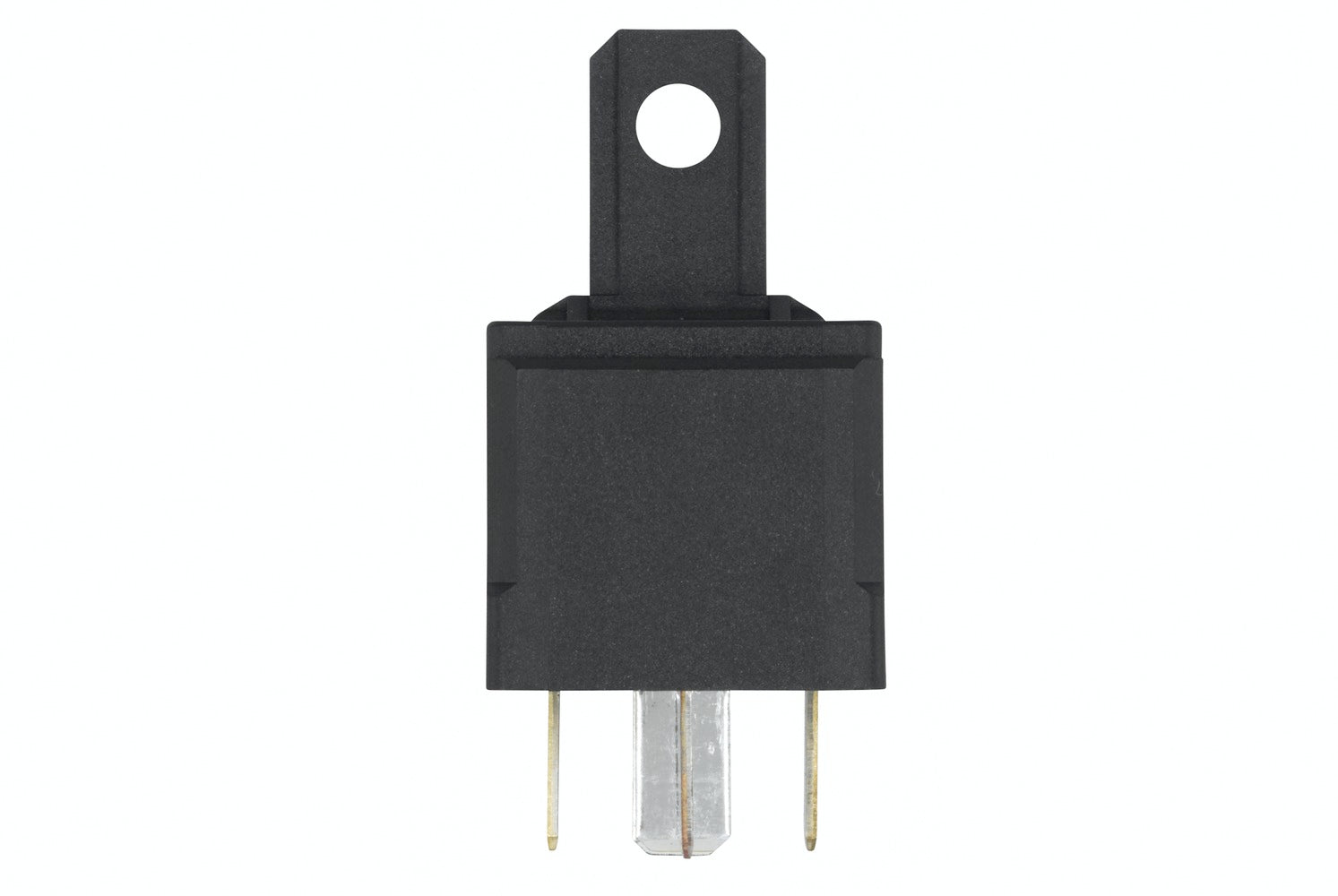

HELLA Relay, main current - 12V - 5-pin connector - W2 - B1 4RD007794-031

Relay, main current - 12V - 5-pin connector - Wiring Diagramme: W2 - Plug: B1 - Normally Closed Contact/Normally Open Contact/Changeover Contact - Colour: Black - with holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - change-over relay 12 V, 5-pole, with holder and parallel resistor to coil
• Rated switching current: min. 5 A, max. 30 A (at 80 °C ambient temperature)
• Number of switching operations: min. 100,000
• Temp. Range: 80°C
• Ohmic Load: 20/30A - Inductive Load: 5A - Capacitive Load: 20/30A - Capacity at 12V: 20/30A
• Prot.type (IP Code): IP54
• with resistor

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Supplementary Article/Supplementary Info: with holder
Prot.type (IP Code): IP54
Voltage: 12 V
Capacity at 12V: 20/30A
Colour: black
Inductive Load: 5 A
Capacitive Load: 30 A / 20 A
Ohmic Load: 20 A / 30 A

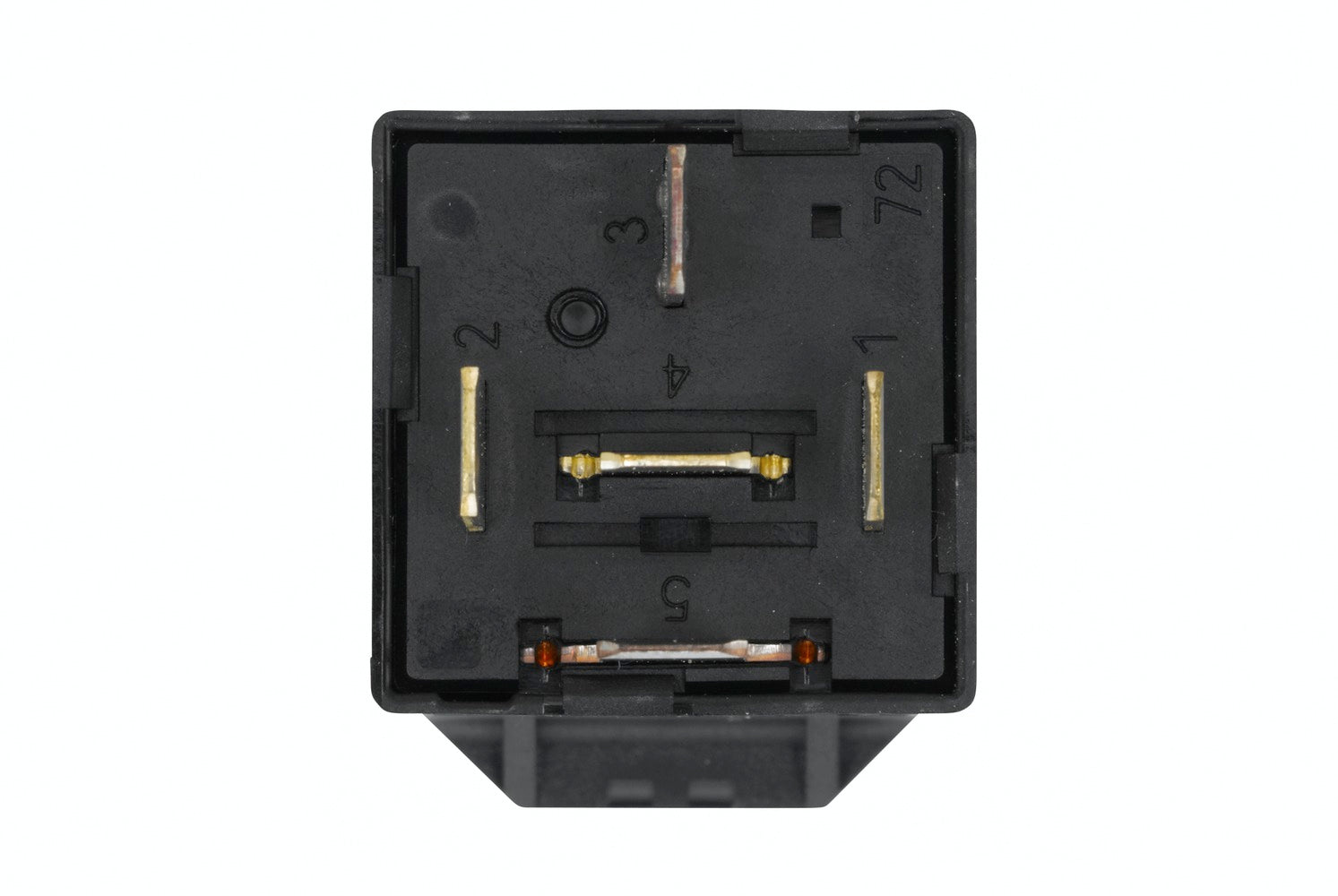

Number of pins: 5 -pin connector
Wiring Diagramme: W2
Switch Function: Changeover Contact / Normally Open Contact / Normally Closed Contact
Plug: B1
Temp. Range: 80 °C
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AMMANN 5358170103; CLAAS 11703280; FENDT 3 615 652 M1; HYDREMA 585210; JOHN DEERE AL 15 0015; JOHN DEERE WZ2605102; MASSEY FERGUSON 3 615 652 M1
