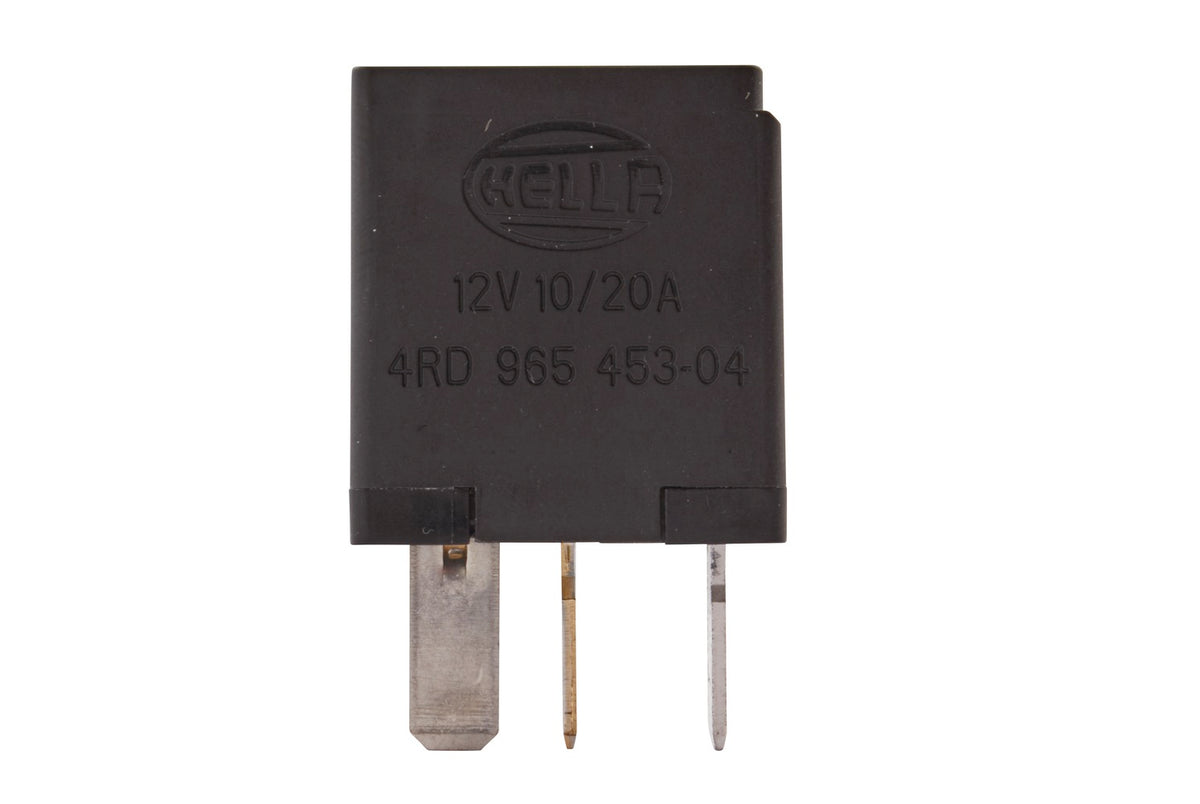

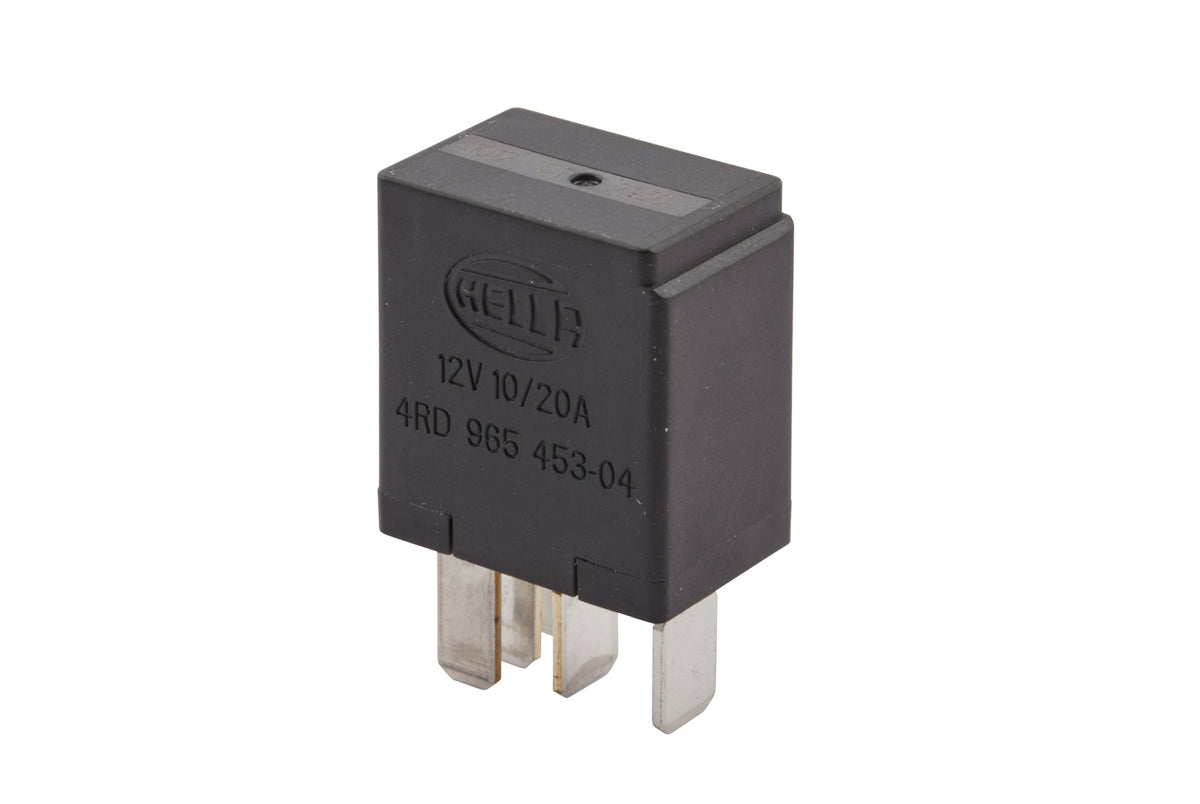

HELLA Relay, main current - 12V - 5-pin connector - W2 - C1 4RD965453-041

Relay, main current - 12V - 5-pin connector - Wiring Diagramme: W2 - Plug: C1 - Changeover Contact - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Micro relay - change-over relay 12 V, 5-pole, with parallel resistance to coil, without holder
• Rated switching current: min. 10 A, max. 20 A (at 80 °C ambient temperature)
• Number of switching operations: min. 100,000
• Temp. Range: 80°C
• Ohmic Load: 10/20A - Inductive Load: 10/20A - Capacitive Load: 10/20A - Capacity at 12V: 10/20A
• Prot.type (IP Code): IP54
• with resistor

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Supplementary Article/Supplementary Info: without holder
Prot.type (IP Code): IP54
Voltage: 12 V
Capacity at 12V: 10/20A
Inductive Load: 10 A / 20 A
Capacitive Load: 20 A / 10 A
Ohmic Load: 20 A / 10 A
Number of pins: 5 -pin connector

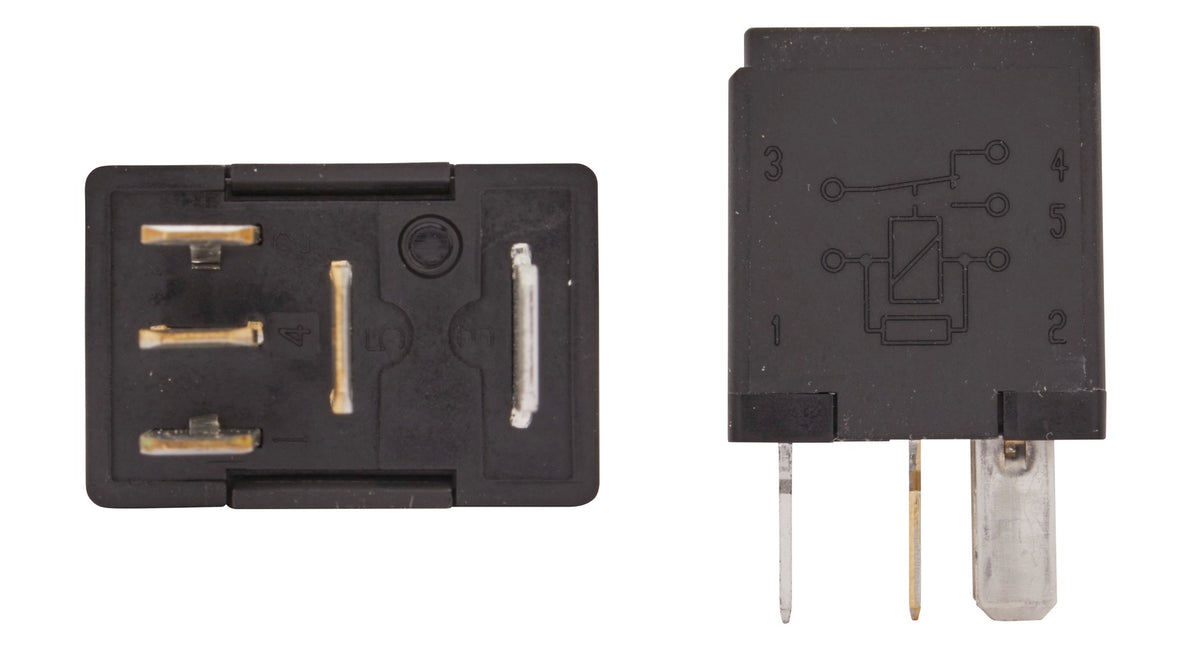

Wiring Diagramme: W2
Switch Function: Changeover Contact
Plug: C1
Temp. Range: 80 °C
Relay function: Comfort Equipment Variant (trim package)
Assembly by qualified personnel required!

OE references: AGCO 4272431M1; AMAZONE NM055; BMW 6 919 113; BMW 61 31 6 919 113; CASE IH 0 707703 3; FENDT 4272431M1; HOLDEN 1235277; HOLDEN 13100504; HOLDEN 13266315; HOLDEN 6238527; HOLDEN 6238623; HOLDEN 90414477; HOLDEN 90511443; HOLDEN 93172269; JOHN DEERE AL 76 702; JUNGHEINRICH 51084979; KENWORTH 87416; LIEBHERR 1 044 001 64; LINDNER 3204851; MACK 4381-87416; MASSEY FERGUSON 4272431M1; MERCEDES-BENZ 002 542 12 19; MERCEDES-BENZ 002 542 85 19; MERCEDES-BENZ 002 542 86 19; MERCEDES-BENZ 004 545 29 05; MERCEDES-BENZ A 002 542 12 19; MERCEDES-BENZ A 002 542 85 19; MERCEDES-BENZ A 002 542 86 19; MERCEDES-BENZ A 004 545 29 05; OPEL 1235277; OPEL 13100504; OPEL 13266315; OPEL 6238527; OPEL 6238623; OPEL 90414477; OPEL 90511443; OPEL 93172269; SANY 60222129; SOLARIS 1082-008029-00; SOMMER 2800714002; STEINBOCK 510 84979; STILL 7916291277; TEREX 5050247311; TEREX 5050650991; TEREX 5050650993; TOYOTA 0055432; TOYOTA 0055713; VAUXHALL 1235277; VAUXHALL 13100504; VAUXHALL 13266315; VAUXHALL 6238527; VAUXHALL 6238623; VAUXHALL 90414477; VAUXHALL 90511443; VAUXHALL 93172269; YANMAR 5050650993
