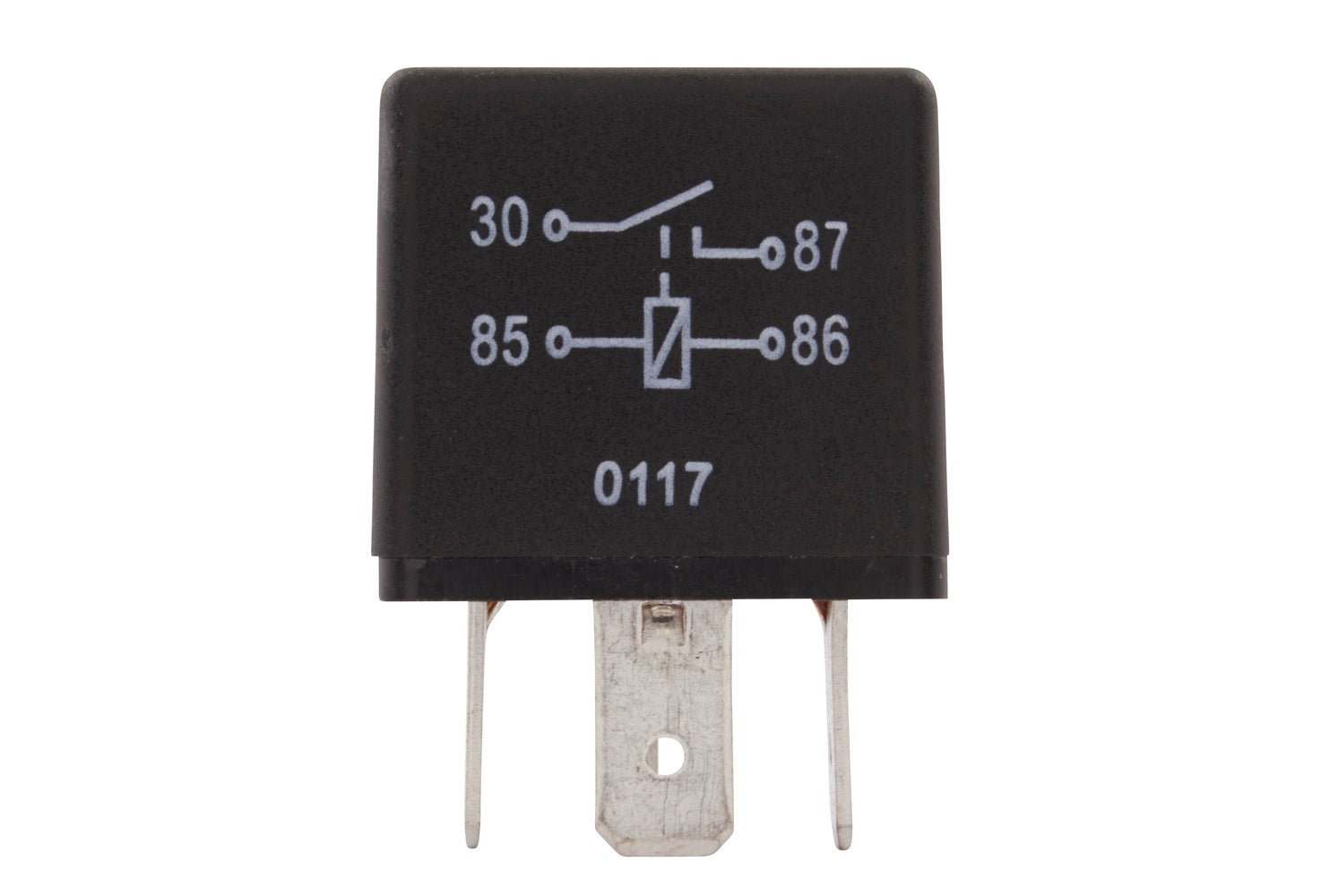

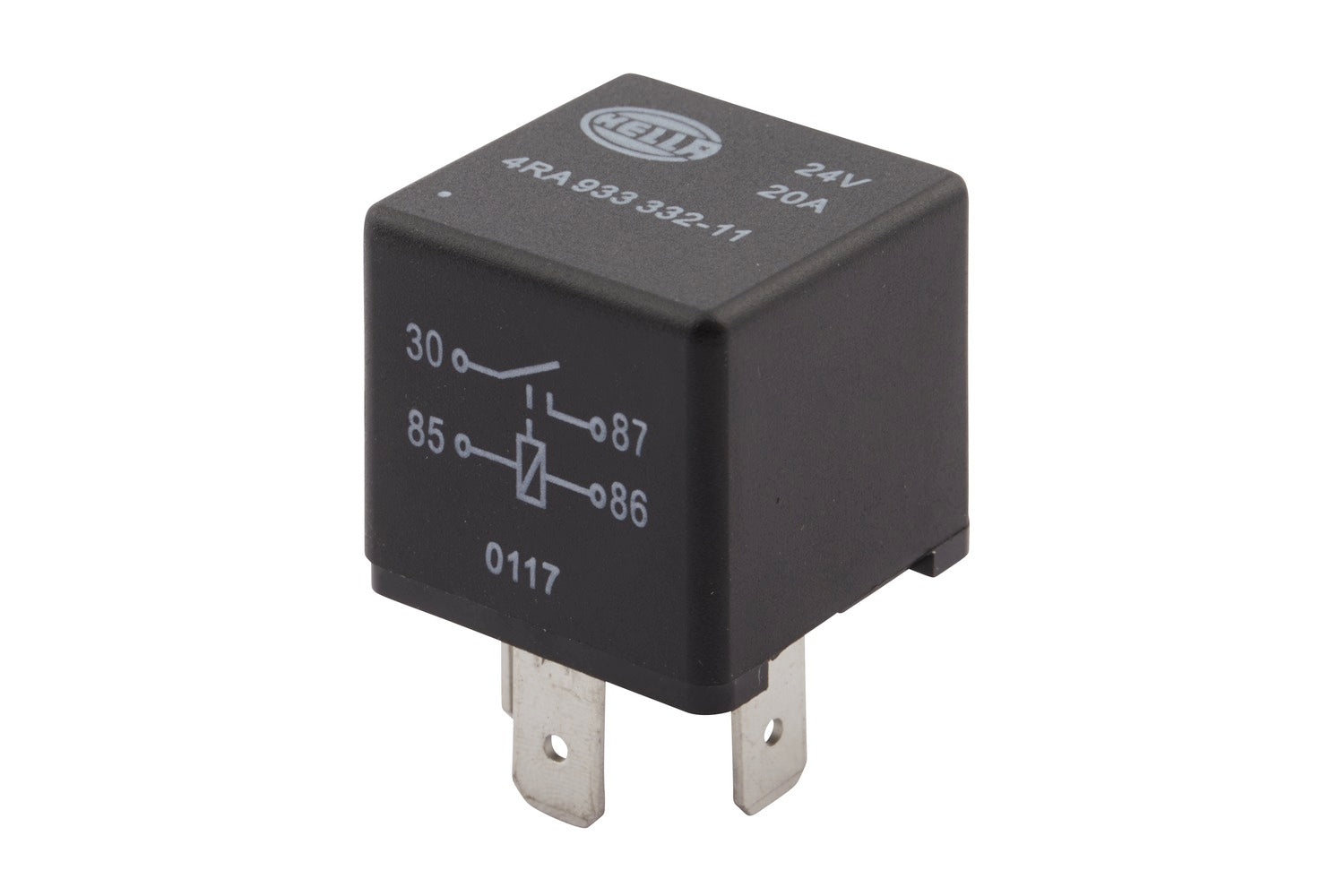

HELLA Relay, main current - 24V - 4-pin connector 4RA933332-111

Relay, main current - 24V - 4-pin connector - Normally Open Contact

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - normally open relay 24 V, 4-pole, without holder
• Rated switching current: min. 16 A, max. 20 A (at 80 °C ambient temperature)
• Number of switching operations: min. 100,000
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 20A - Ohmic Load: 20A - Inductive Load: 5A - Capacitive Load: 5A

Item Attributes:
Voltage: 24 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 5 A
Capacitive Load: 5 A
Rated Current: 20 A
Ohmic Load: 20 A

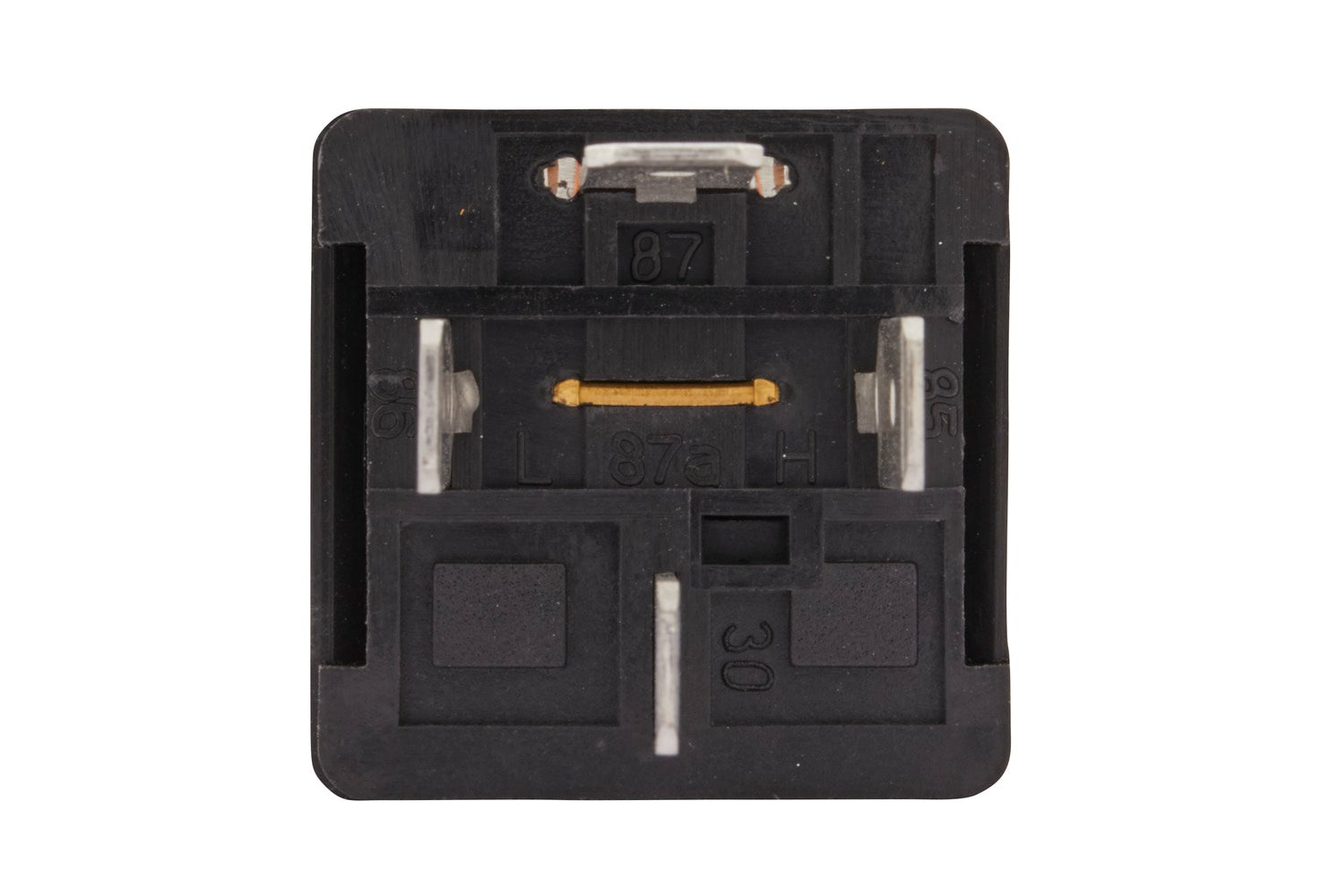

Number of pins: 4 -pin connector
Switch Function: Normally Open Contact
Assembly by qualified personnel required!

OE references: ALEXANDER DENNIS DP012192; HUMBAUR 415.00099; KRONE 515036415; LIEBHERR 1 118 181 0; TEREX 5050247867
