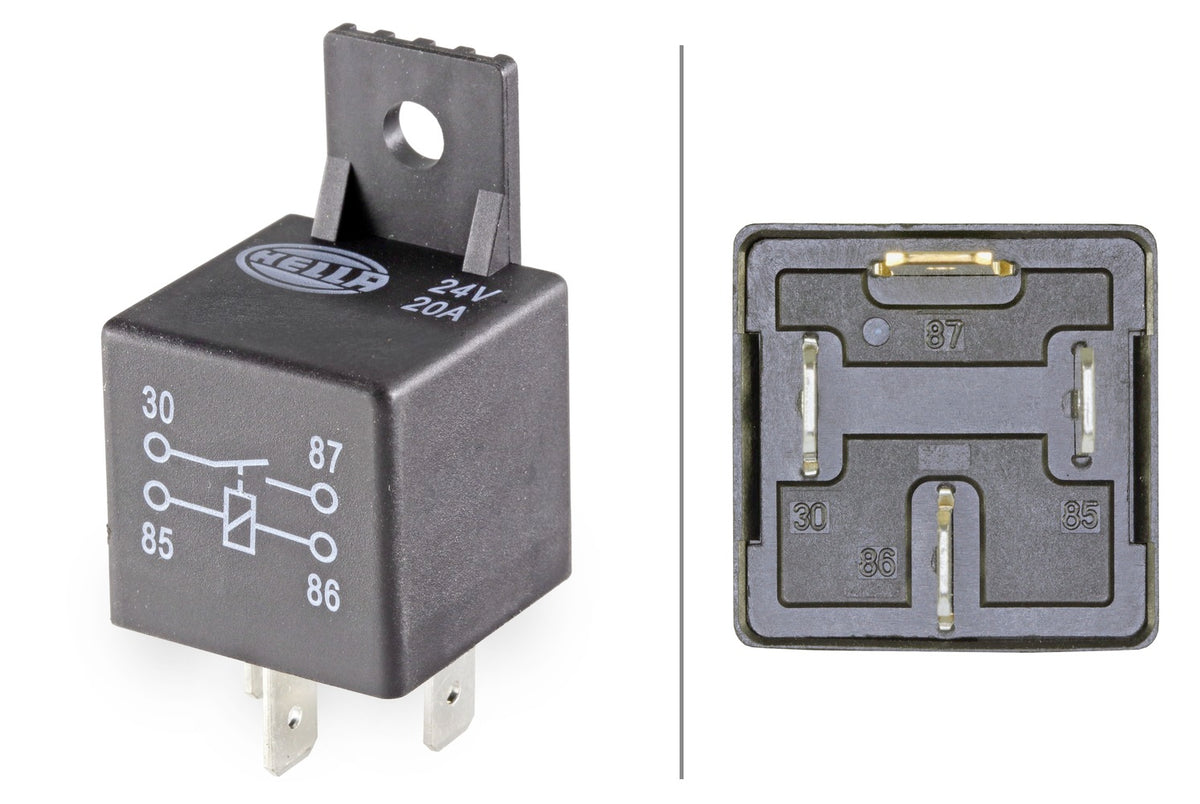

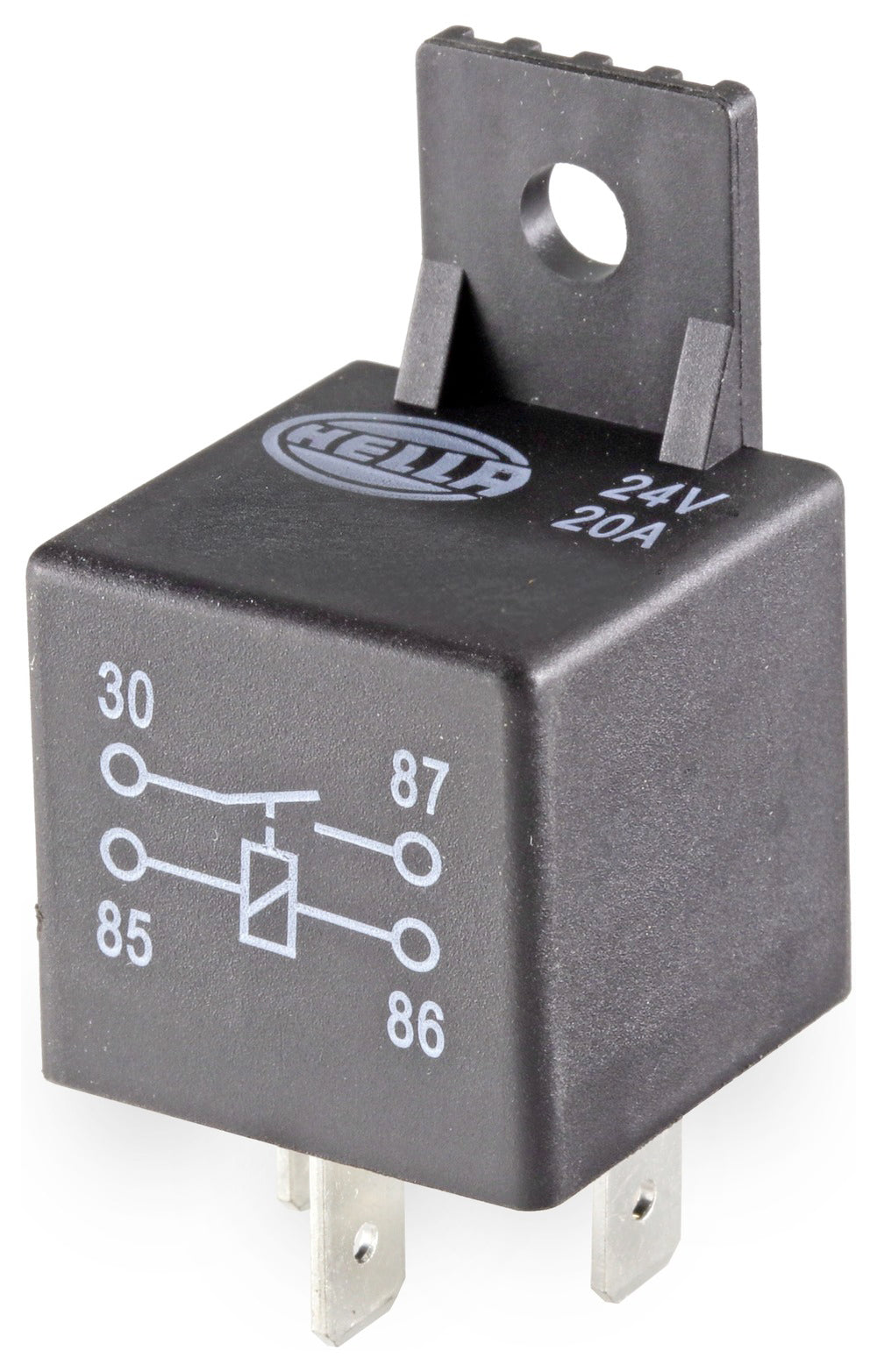

HELLA Relay, main current - 24V - 4-pin connector 4RA965400-101

Relay, main current - 24V - 4-pin connector - Normally Open Contact - with holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - normally open relay 24 V, with holder
• Rated switching current max. 30 A
• Number of switching operations max. 100,000
• Coil resistance: 320 Ohm
• Inductive load: 5 A, ohmic load: 30 A, Capacitive load: 5 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 20A - Ohmic Load: 30A - Inductive Load: 5A - Capacitive Load: 5A - Capacity at 24V: 20A

Item Attributes:
Supplementary Article/Supplementary Info: with holder
Voltage: 24 V
Capacity at 24V: 20A

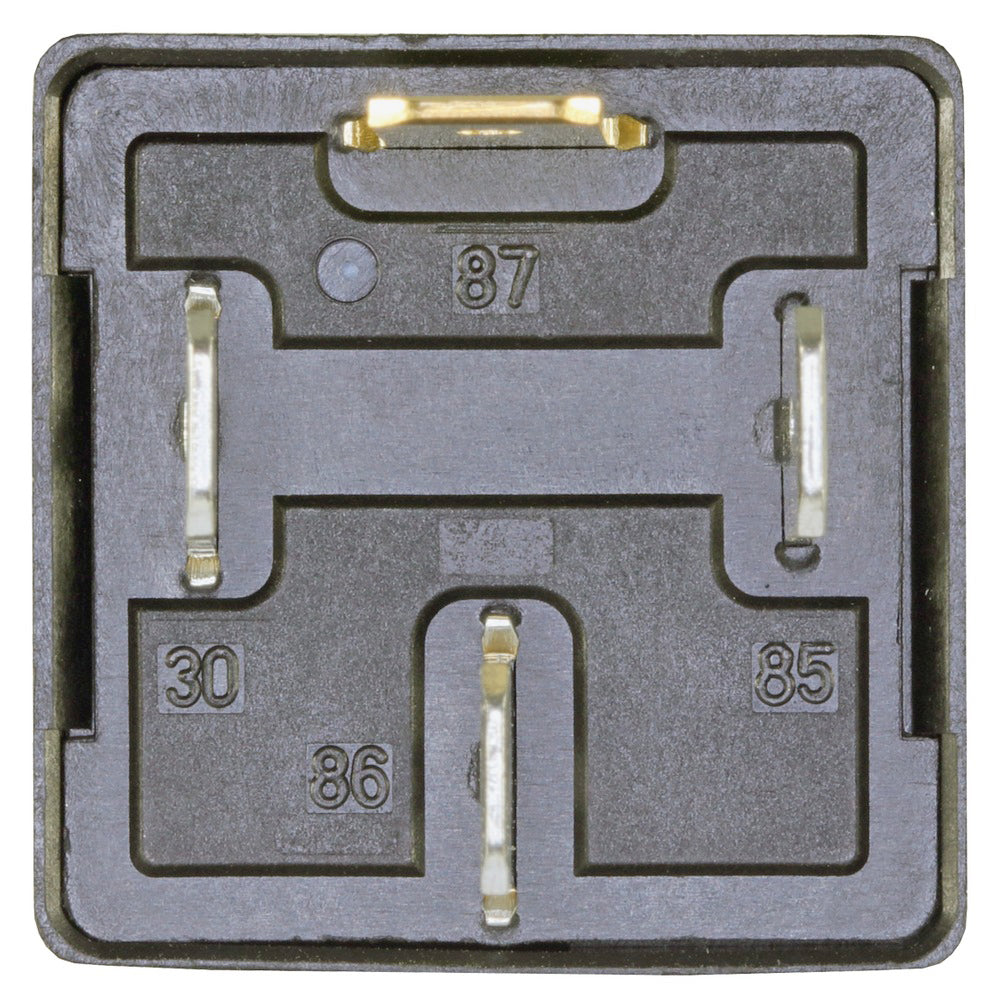

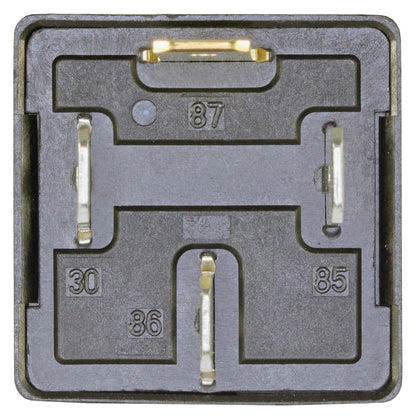

Number of pins: 4 -pin connector
Switch Function: Normally Open Contact
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 5 A
Capacitive Load: 5 A
Rated Current: 20 A
Ohmic Load: 30 A
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: DAF 1541938; DAF 867514; FORD 97CT15K234AA; KRONE 505817036; LIEBHERR 1 226 838 8; LIEBHERR 6301423
