Description

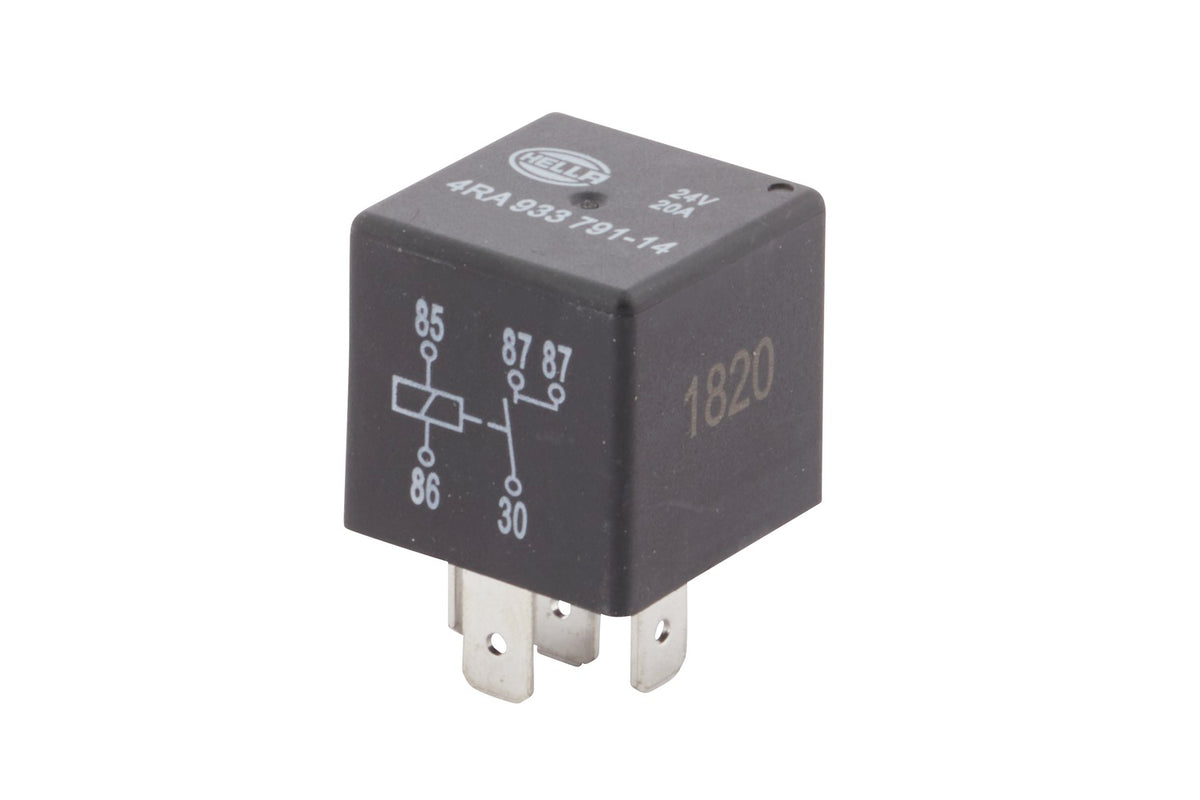

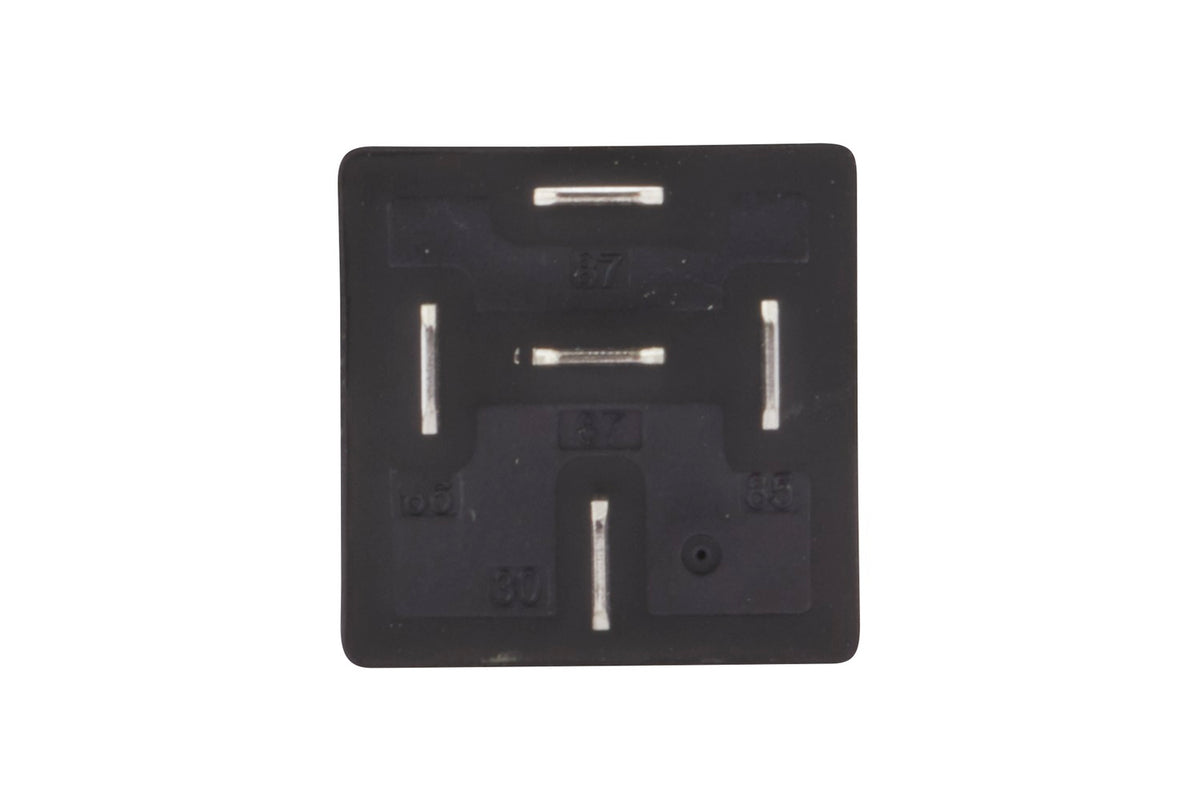

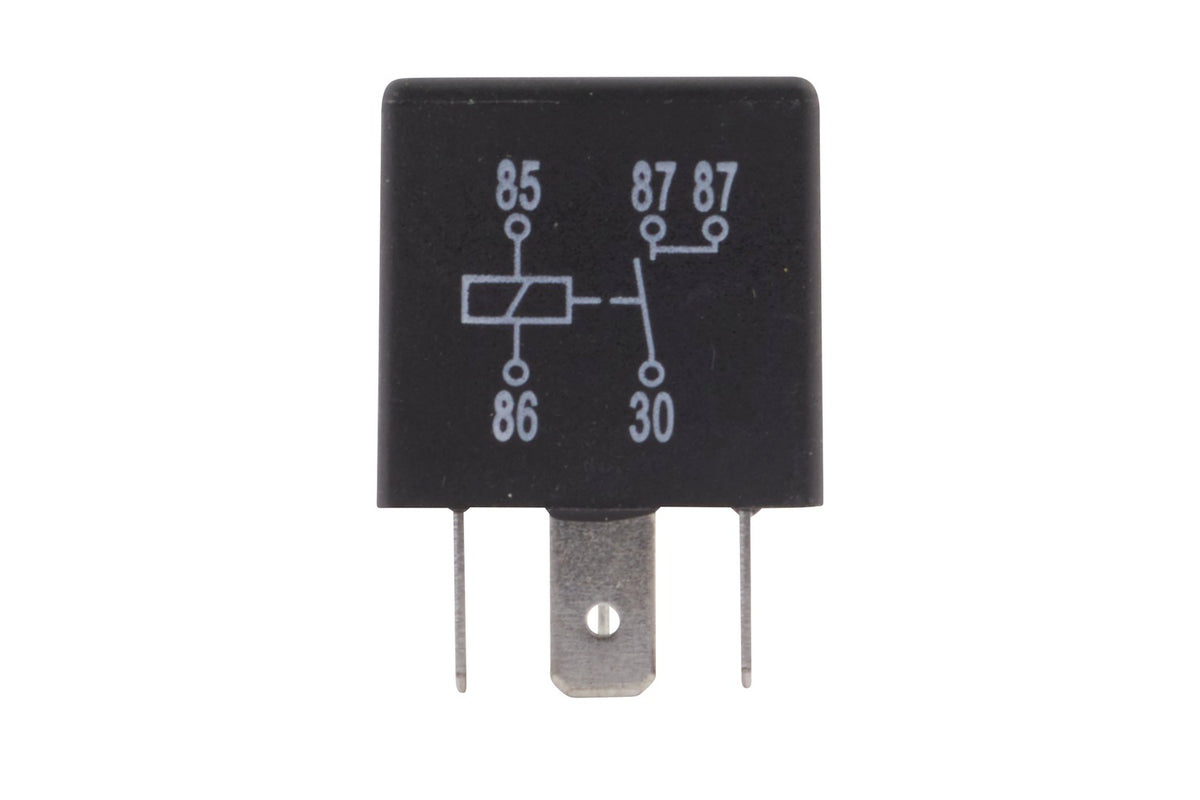

Relay, main current - 24V - 5-pin connector - Normally Open Contact
HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.
- Mini relay - normally open relay 24 V, without holder
- Rated switching current max. 20 A
- Number of switching operations max. 100,000
- Coil resistance: 340 Ohm
- Inductive load: 5 A, ohmic load: 30 A, Capacitive load: 5 A
- Temperature range from: -40°C - Temperature range to: +125°C
- Rated Current: 20A - Ohmic Load: 30A - Inductive Load: 5A - Capacitive Load: 5A - Capacity at 24V: 20A
Item Attributes:
Voltage: 24 V
Capacity at 24V: 20A
Number of pins: 5 -pin connector
Switch Function: Normally Open Contact
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 5 A
Capacitive Load: 5 A
Rated Current: 20 A
Ohmic Load: 30 A
Assembly by qualified personnel required!
OE references: DAF 1523982; DAF 1527511; DAF 1541939; MAN 81.25902-0439; NEOPLAN 1505.521.00; SCANIA 2782076; SCANIA 433294; TEREX 5350248630
