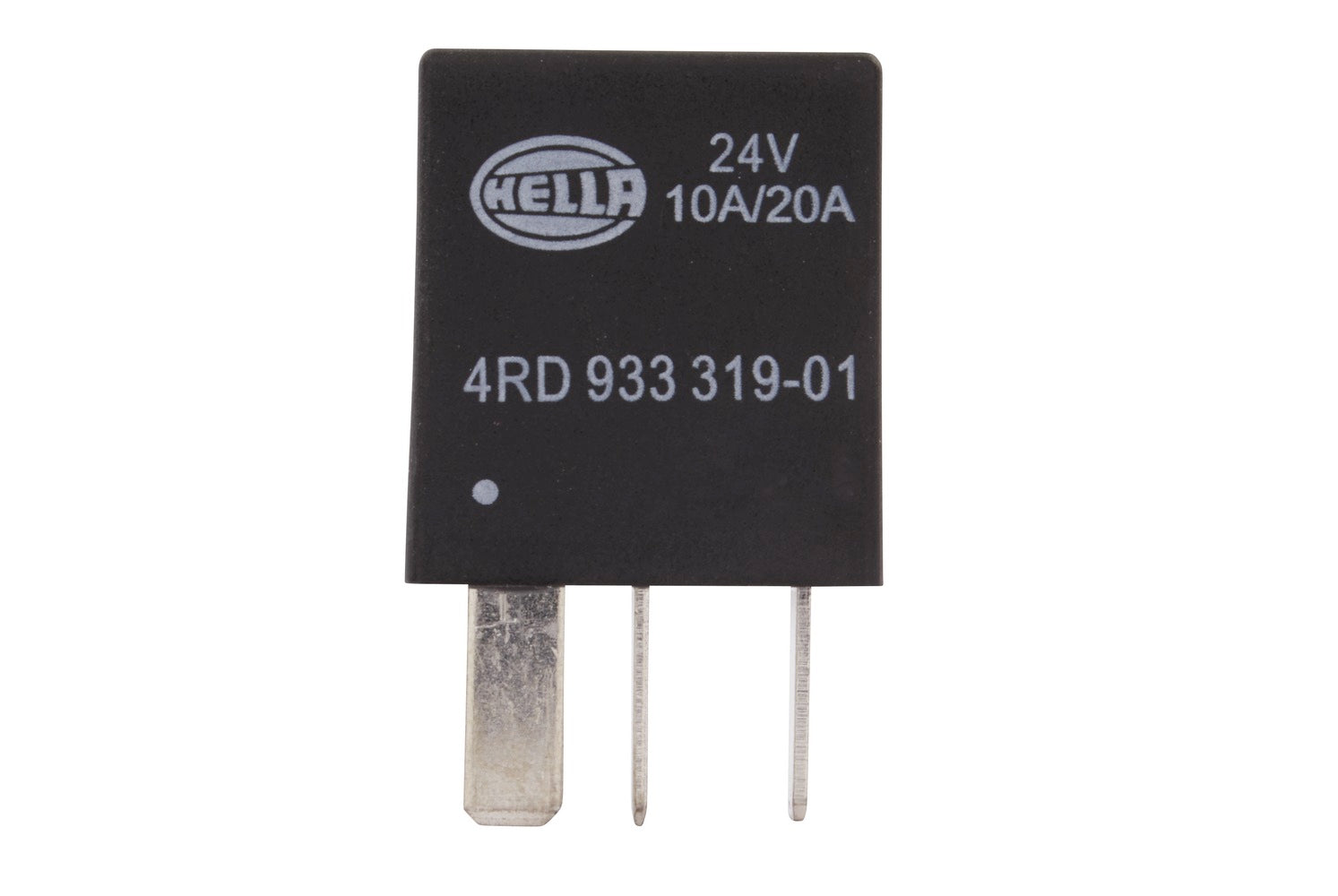

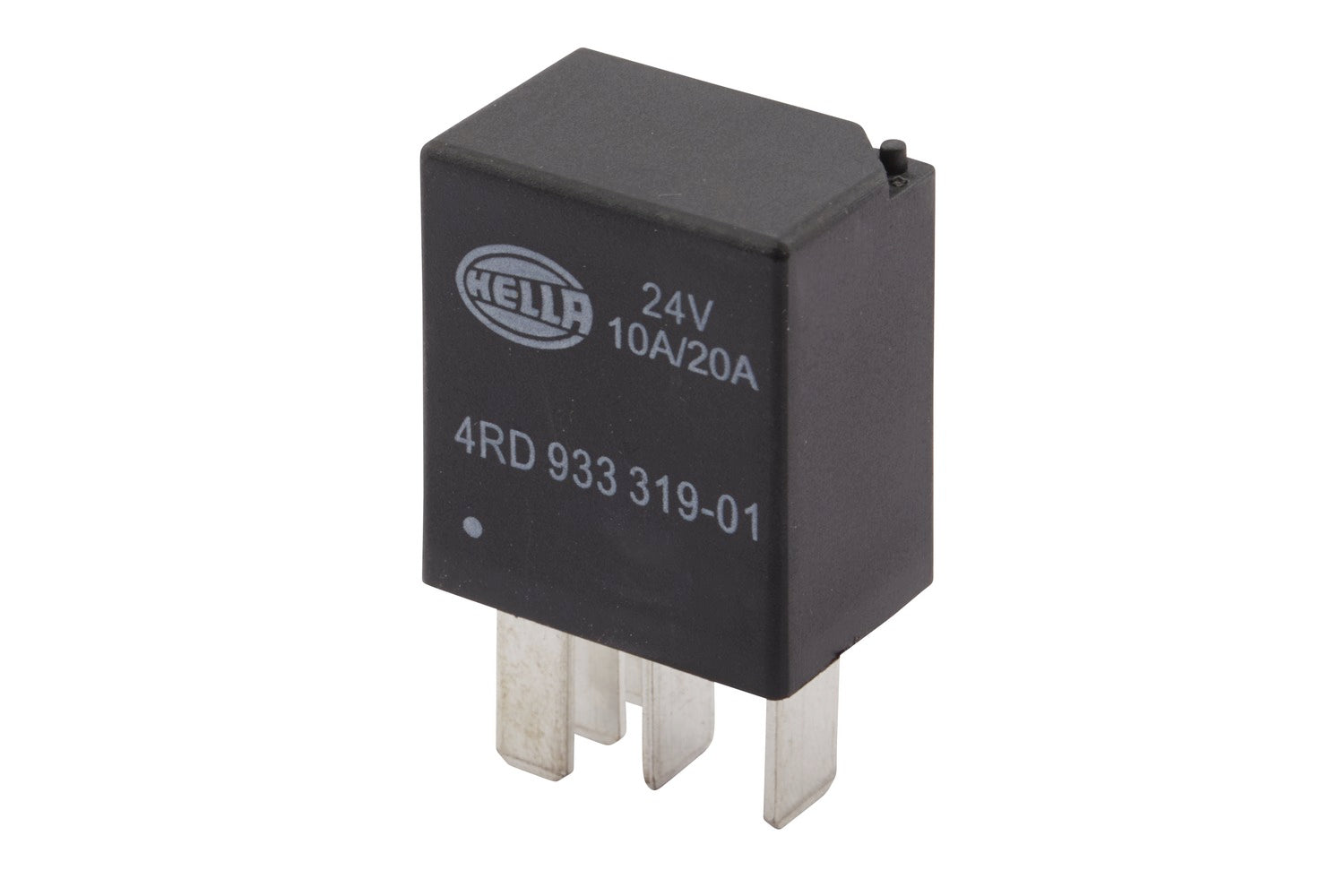

HELLA Relay, main current - 24V - 5-pin connector 4RD933319-011

Relay, main current - 24V - 5-pin connector - Changeover Contact

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Micro relay - change-over relay 24 V, 5-pole, with parallel resistance to coil, without holder
• Rated switching current: min. 5 A, max. 20 A (at 80 °C ambient temperature)
• Number of gear changes: min. 50,000
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 20A - Ohmic Load: 20A - Inductive Load: 6A - Capacitive Load: 5A
• with resistor

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Voltage: 24 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 6 A
Capacitive Load: 5 A
Rated Current: 20 A
Ohmic Load: 20 A
Number of pins: 5 -pin connector

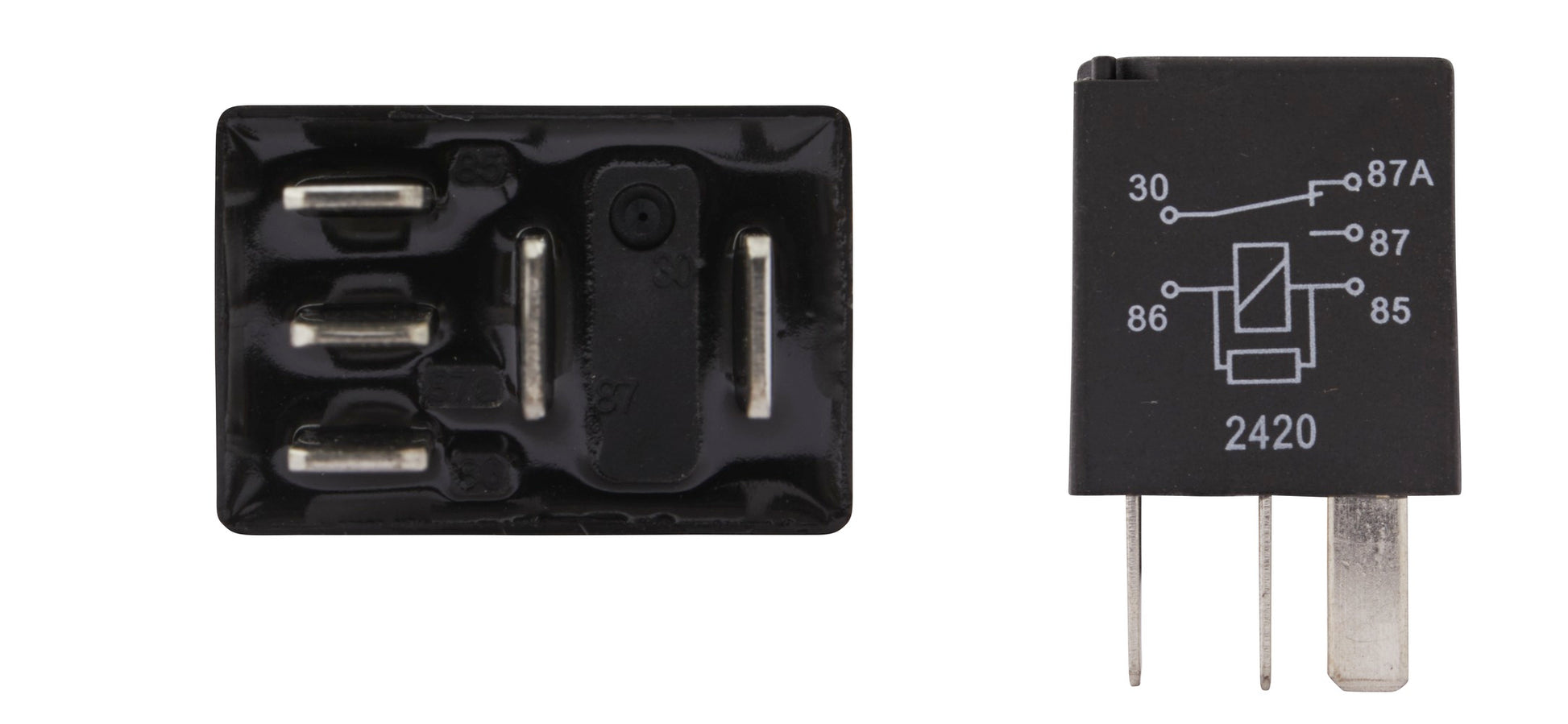

Switch Function: Changeover Contact
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: BUCHER 4056524; MANITOU 52675573; VÖGELE 2350611
