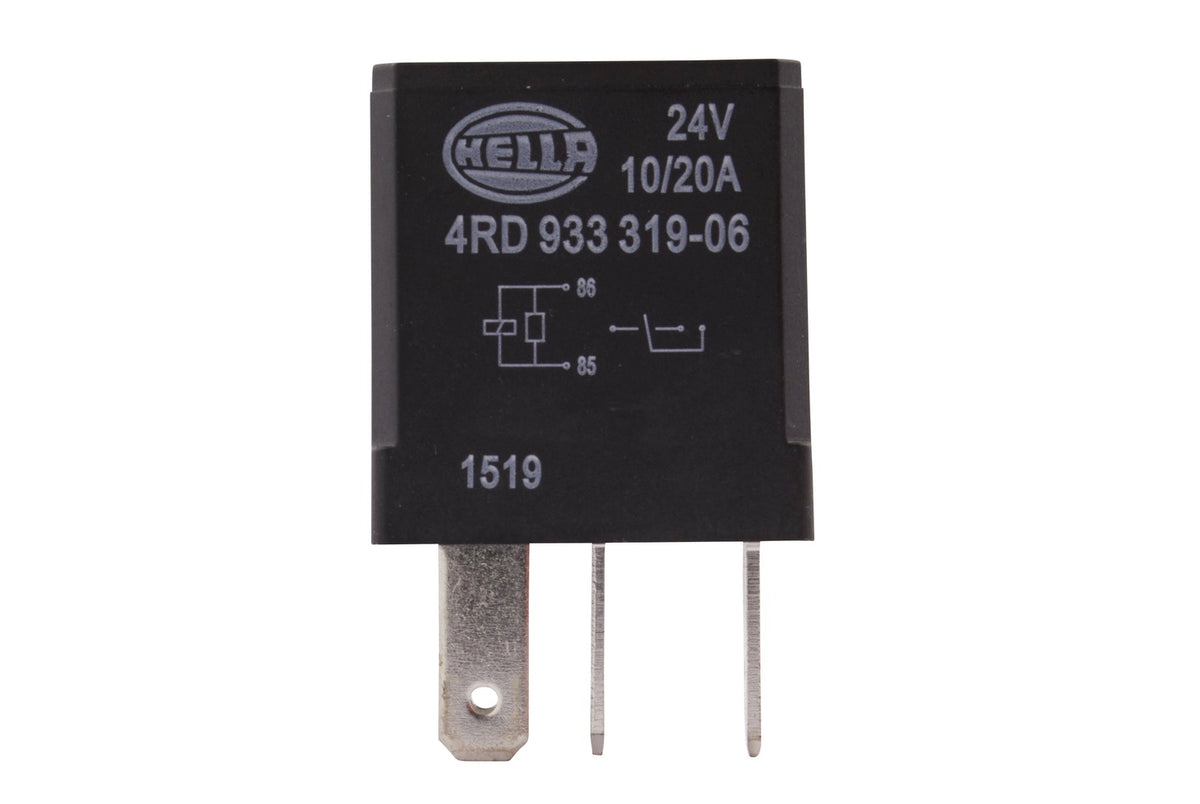

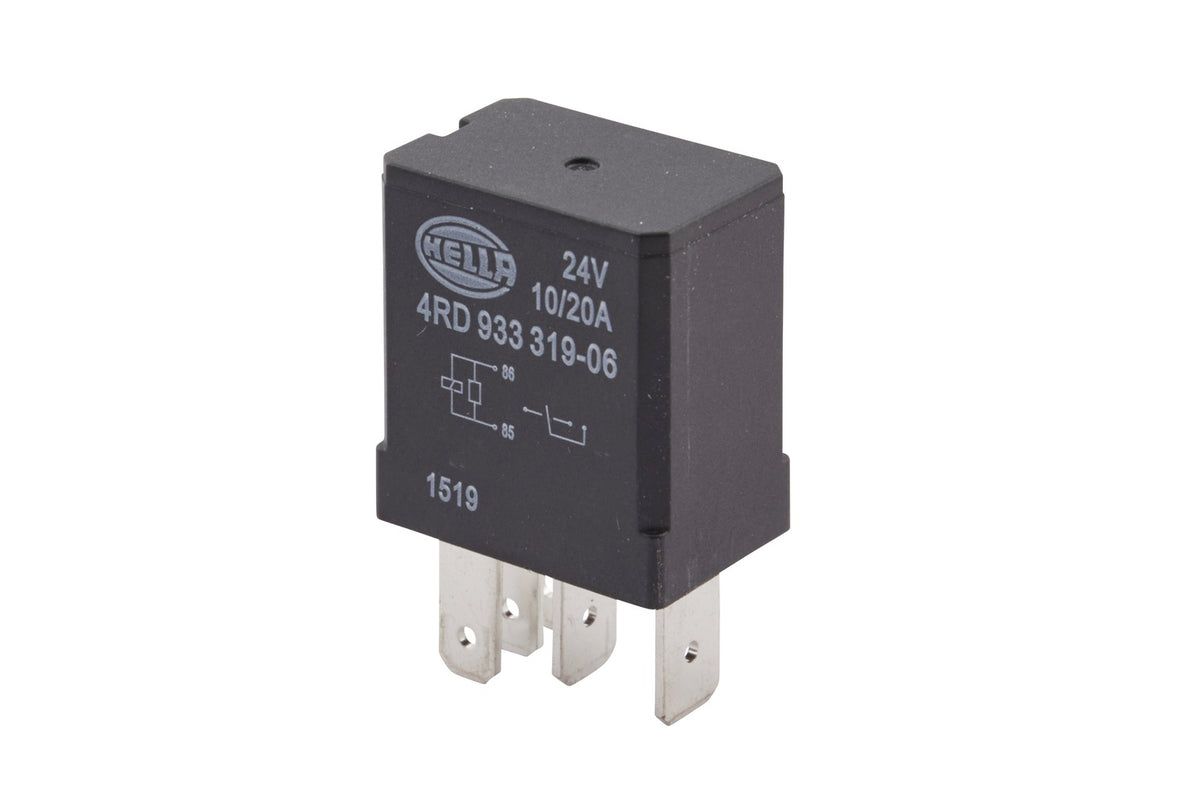

HELLA Relay, main current - 24V - 5-pin connector 4RD933319-061

Relay, main current - 24V - 5-pin connector - Changeover Contact

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Relay - change-over relay 24 V
• Rated switching current max. 20 A
• Inductive load: 6 A
• Capacitive load: 5 A
• Ohmic load: 20 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 20A - Ohmic Load: 20A - Inductive Load: 6A - Capacitive Load: 5A

Item Attributes:
Voltage: 24 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 6 A
Capacitive Load: 5 A
Rated Current: 20 A
Ohmic Load: 20 A

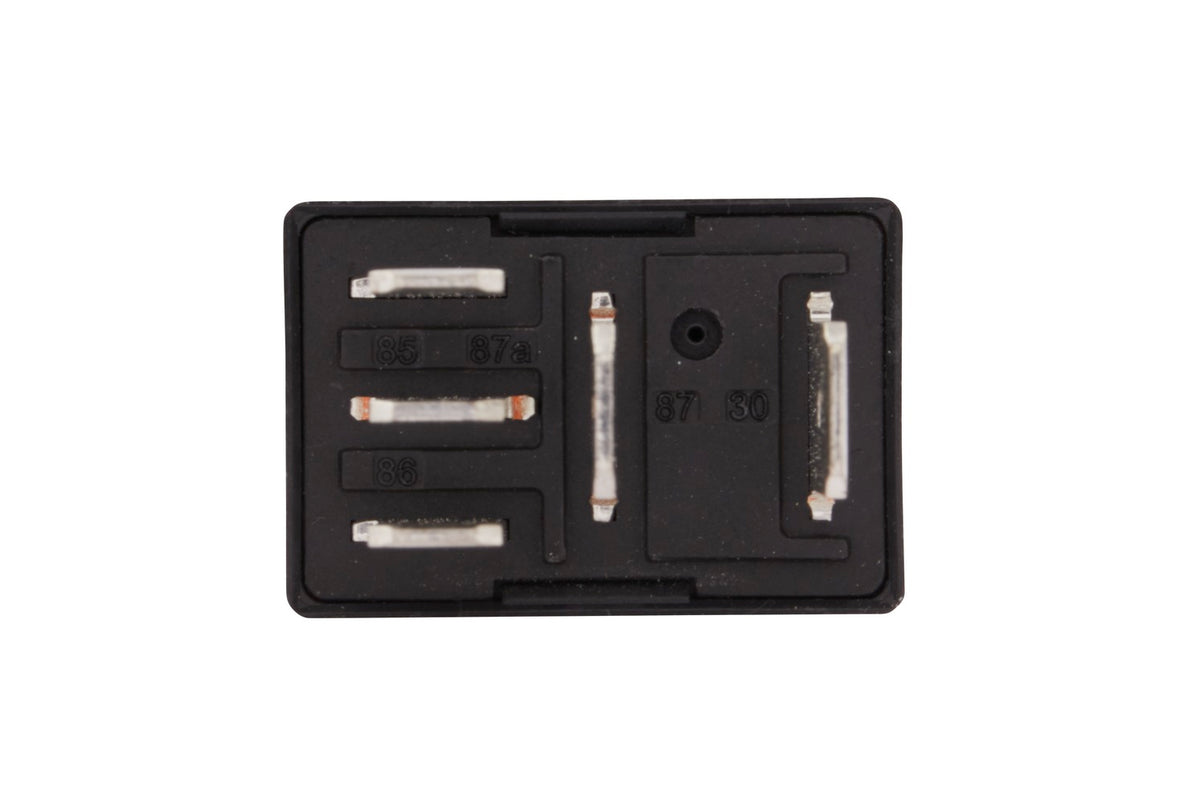

Number of pins: 5 -pin connector
Switch Function: Changeover Contact
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: DAF 1301879; DAF 1448174; DAF 1670141; DAF 3845427119; IVECO 98444017; MAN 81.25902-0541; MERCEDES-BENZ 004 545 09 05; MERCEDES-BENZ 004 545 74 05; MERCEDES-BENZ 958 545 02 05; MERCEDES-BENZ A 004 545 09 05; MERCEDES-BENZ A 004 545 74 05; MERCEDES-BENZ A 958 545 02 05; RENAULT TRUCKS 5010645017; VOLVO 1078690; VOLVO 21244696
