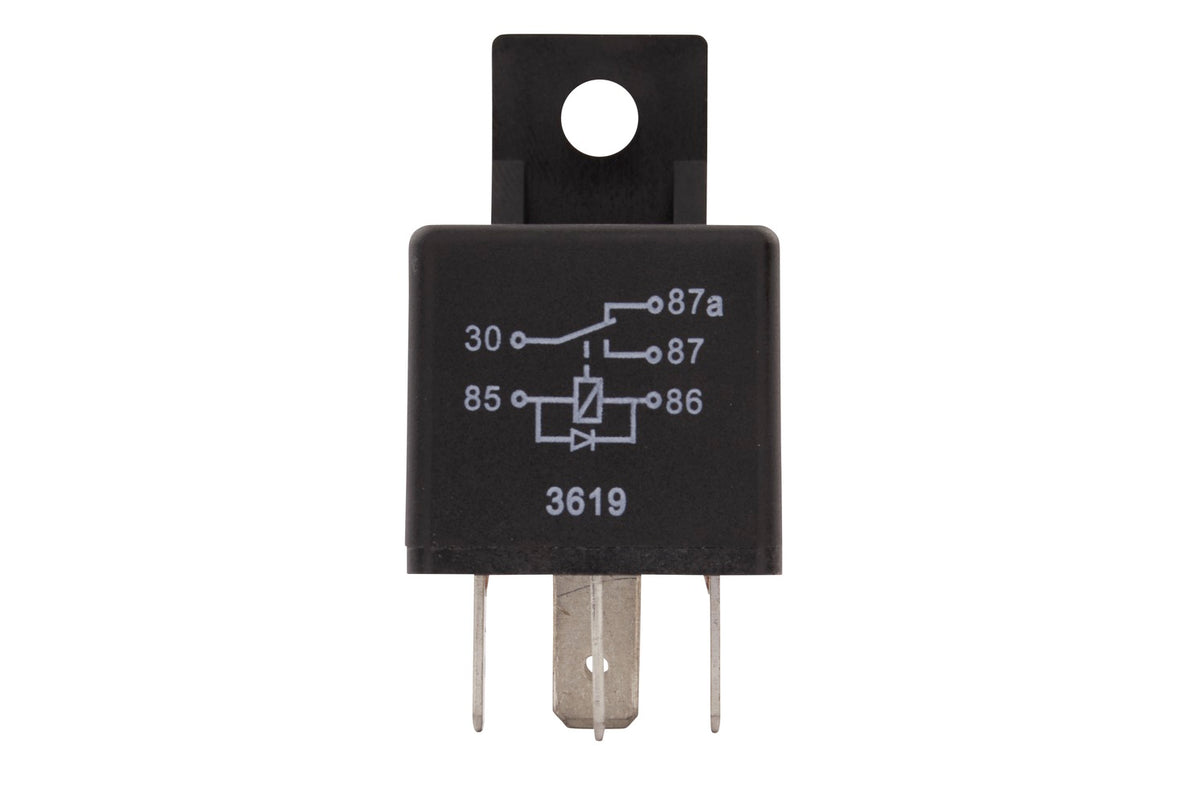

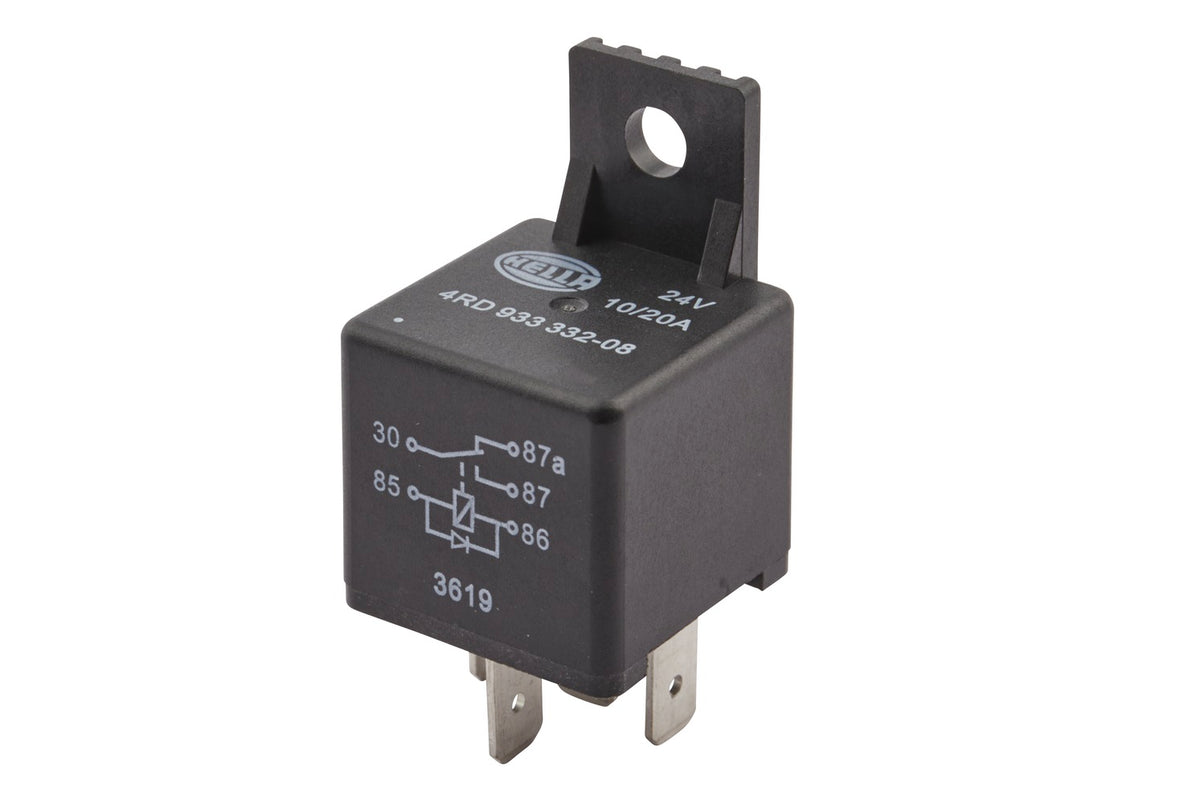

HELLA Relay, main current - 24V - 5-pin connector 4RD933332-081

Relay, main current - 24V - 5-pin connector - Changeover Contact - with holder/with suppression diode

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - change-over relay 24 V, 5-pole, with parallel diode, with holder
• Rated switching current: min. 5 A, max. 20 A (at 80 °C ambient temperature)
• Number of switching operations: min. 100,000
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 20A - Ohmic Load: 20A - Inductive Load: 5A - Capacitive Load: 5A

Item Attributes:
Supplementary Article/Supplementary Info: with suppression diode / with holder
Voltage: 24 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Inductive Load: 5 A
Capacitive Load: 5 A
Rated Current: 20 A
Ohmic Load: 20 A

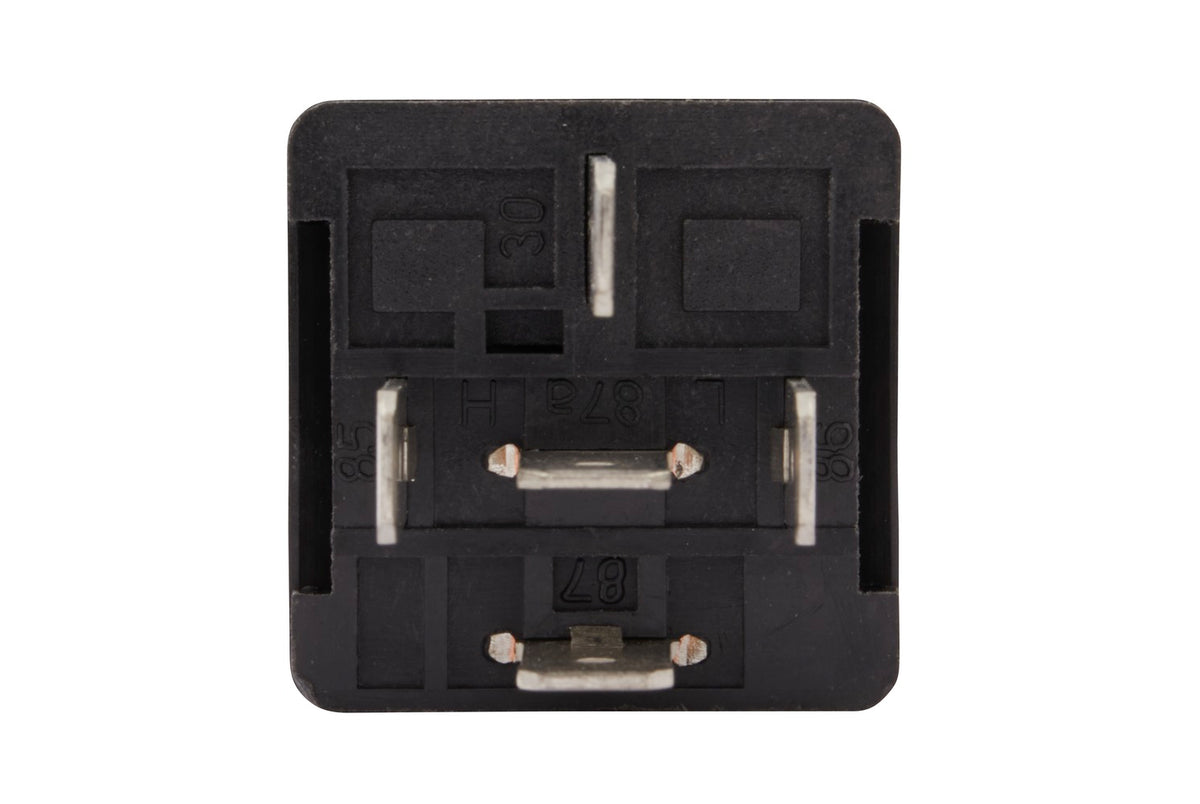

Number of pins: 5 -pin connector
Switch Function: Changeover Contact
Assembly by qualified personnel required!

OE references: DAF 1542653; FAUN 9970 7034820; HAKO 90 69685 7; LIEBHERR 1 019 7021; ROSENBAUER 36070A; SCHMITZ CARGOBULL 1107278; VÖGELE 2003910
