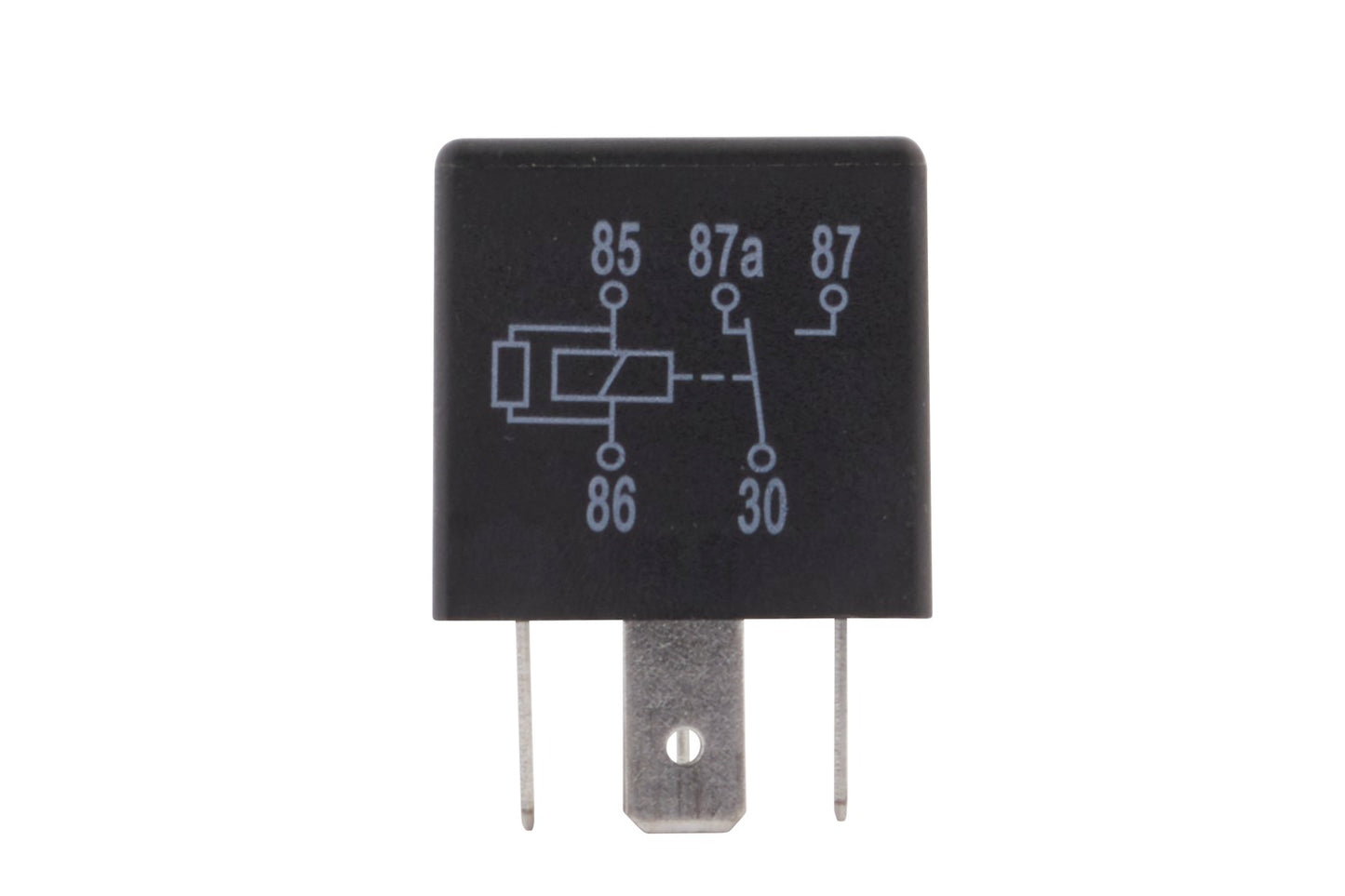

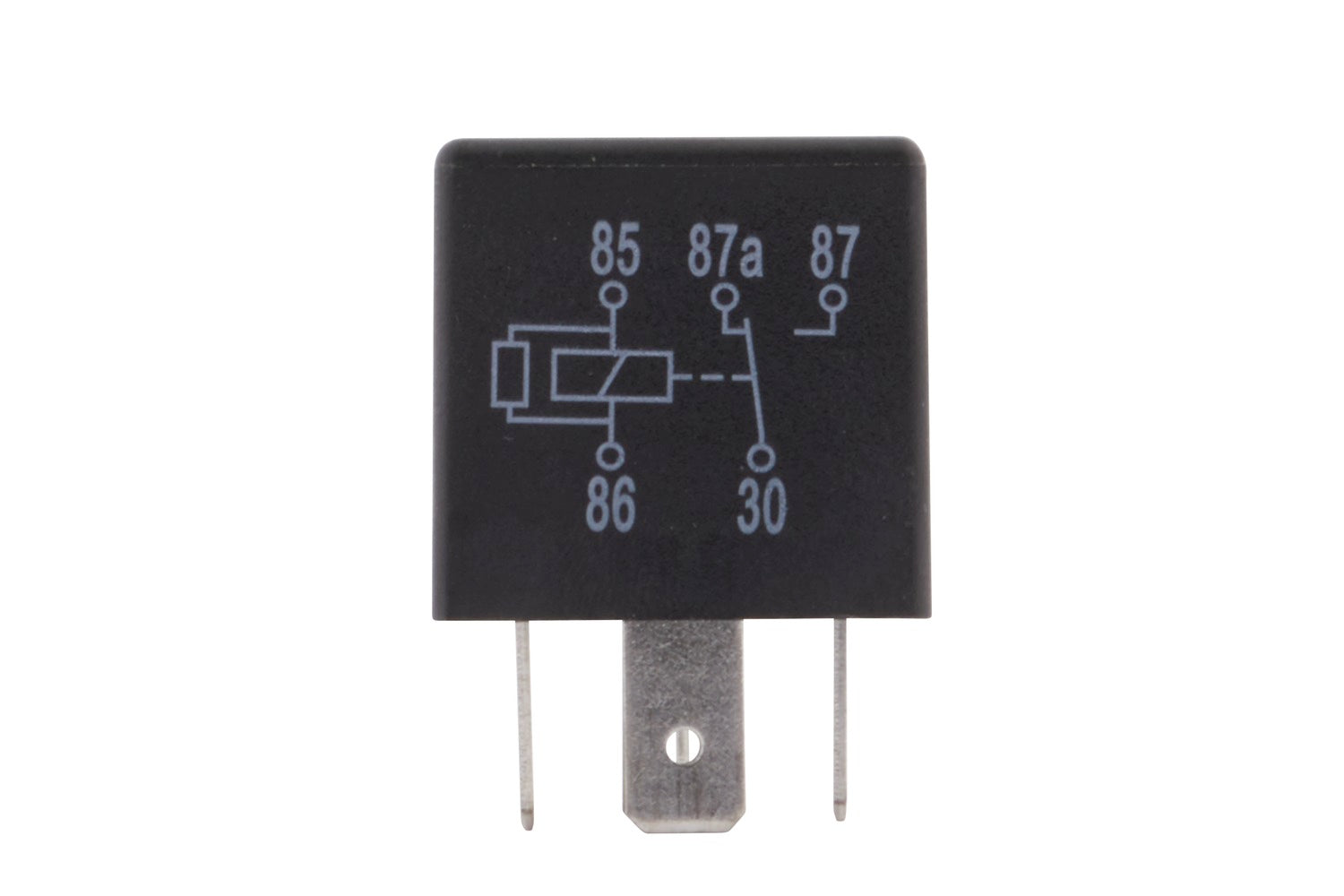

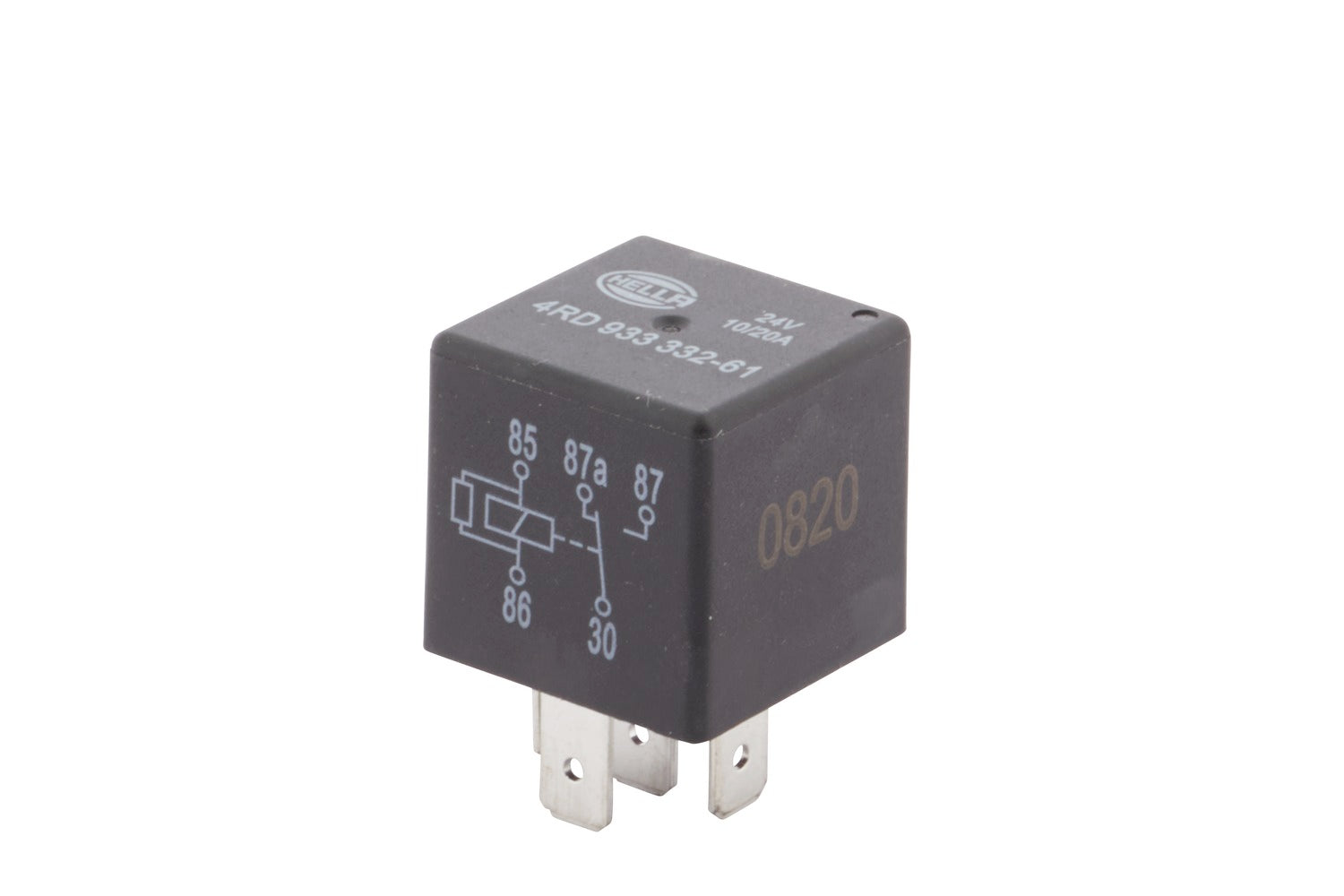

HELLA Relay, main current - 24V - 5-pin connector 4RD933332-611

Relay, main current - 24V - 5-pin connector

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades.

• Mini relay - change-over relay 24 V, without holder, with resistor
• Rated switching current min. 5 A, max. 20 A
• Number of switching operations max. 100,000
• Coil resistance: 340 Ohm, parallel resistor: 2.700 Ohm
• Inductive load: 5 A, ohmic load: 20 A, Capacitive load: 5 A
• Temperature range from: -40°C - Temperature range to: +125°C
• Rated Current: 20A - Ohmic Load: 20A - Inductive Load: 5A - Capacitive Load: 5A

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Voltage: 24 V
Temperature range from: -40 °C
Temperature range to: +125 °C
Weight: 25 g
Inductive Load: 5 A
Capacitive Load: 5 A
Rated Current: 20 A
Ohmic Load: 20 A

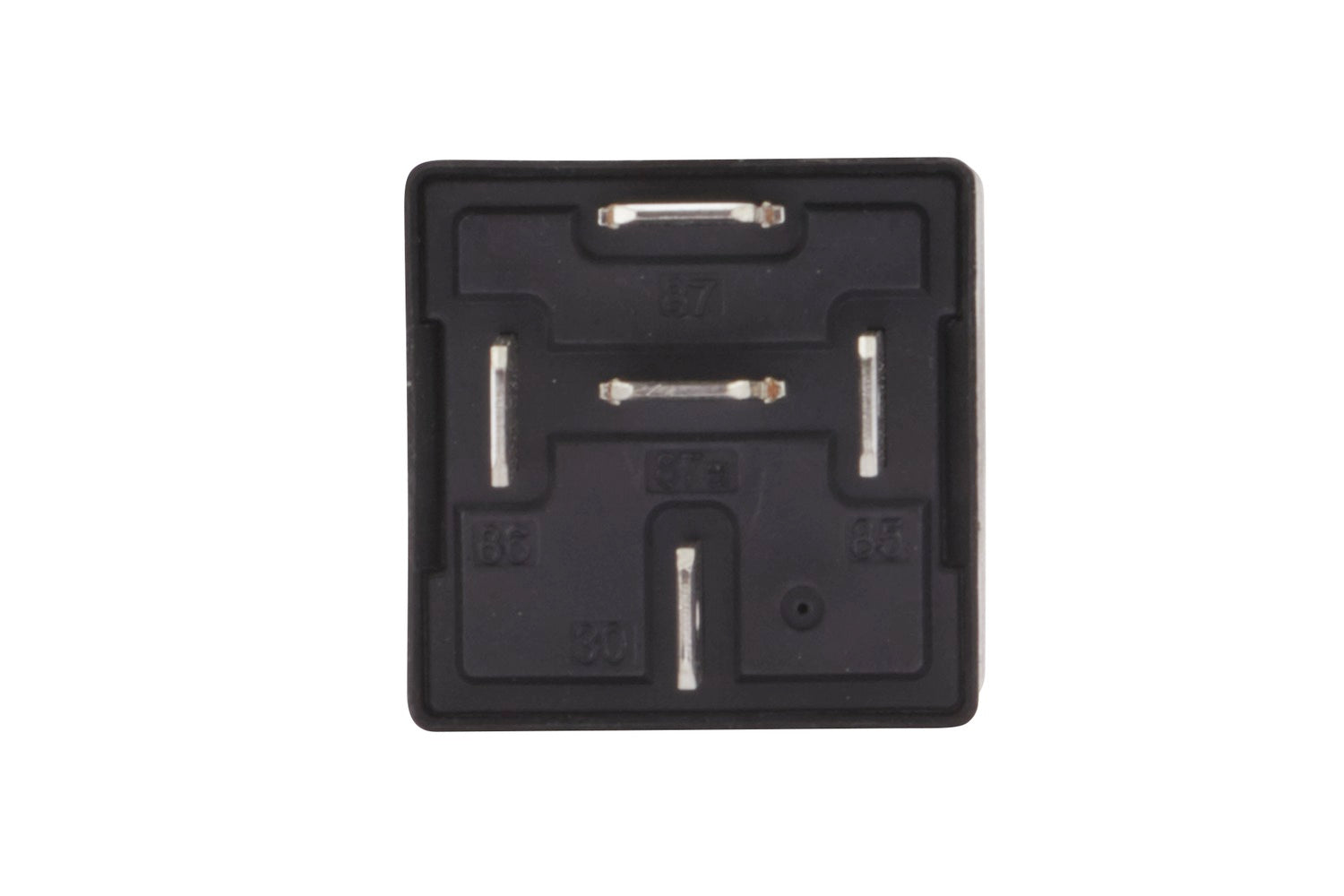

Number of pins: 5 -pin connector
Assembly by qualified personnel required!

OE references: DAF 1193310; DAF 1523983; DAF 1670140; DAF 1745069; DAF 515912; EVOBUS 003 544 80 32; EVOBUS A 003 544 80 32; FELDBINDER 1043619; FENDT 4295879M1; FORD XCT15K235AA; IVECO 5010589426; IVECO 99438605; LIEBHERR 6 301 054 08; MAN 36.25902-0007; MAN 81.25902-0460; MAN 81.25902-0474; MERCEDES-BENZ 000 982 21 23; MERCEDES-BENZ A 000 982 21 23; NEOPLAN 36.25902-0007; VOLVO 20374662; VOLVO 21244697; VOLVO 3171420
