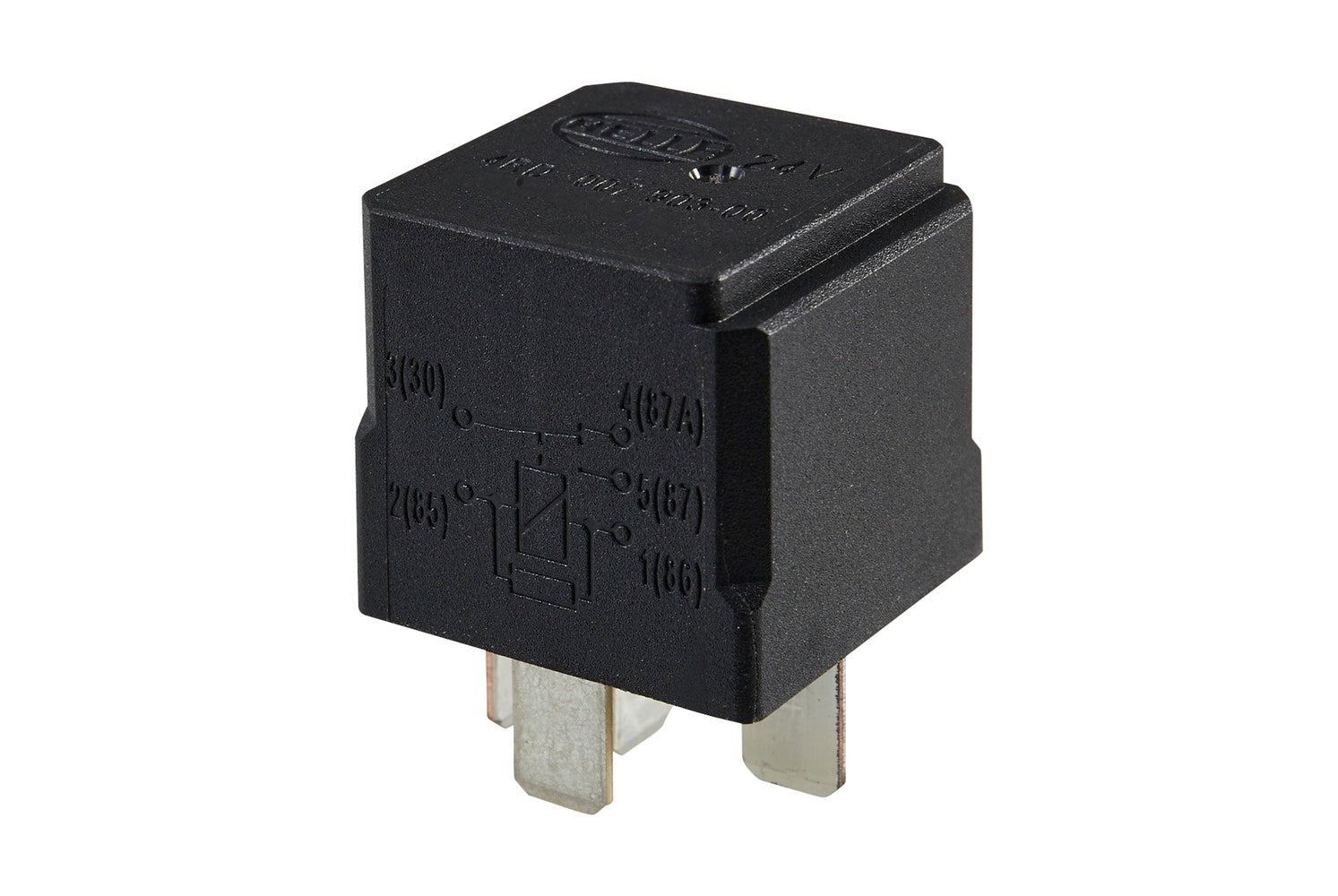

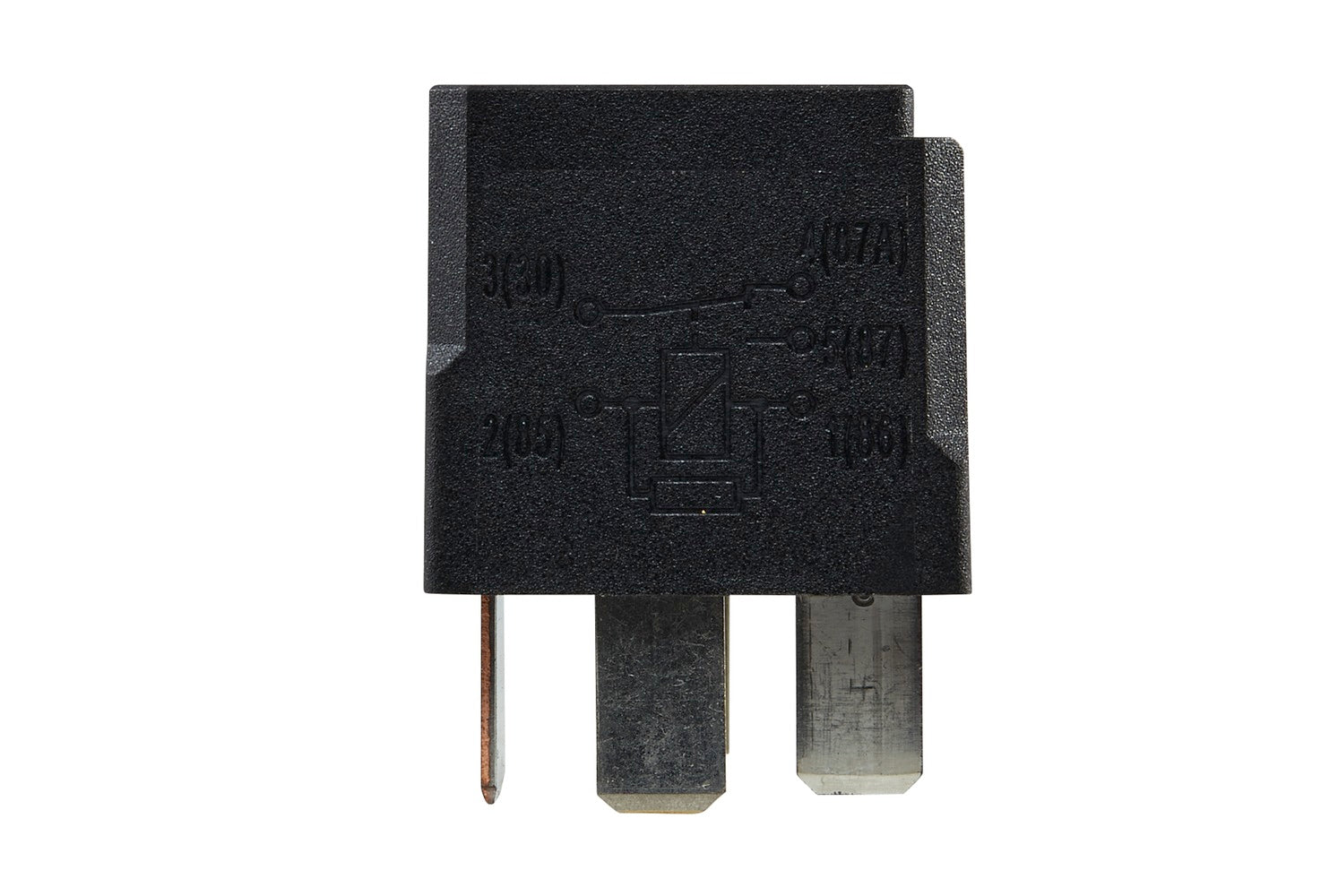

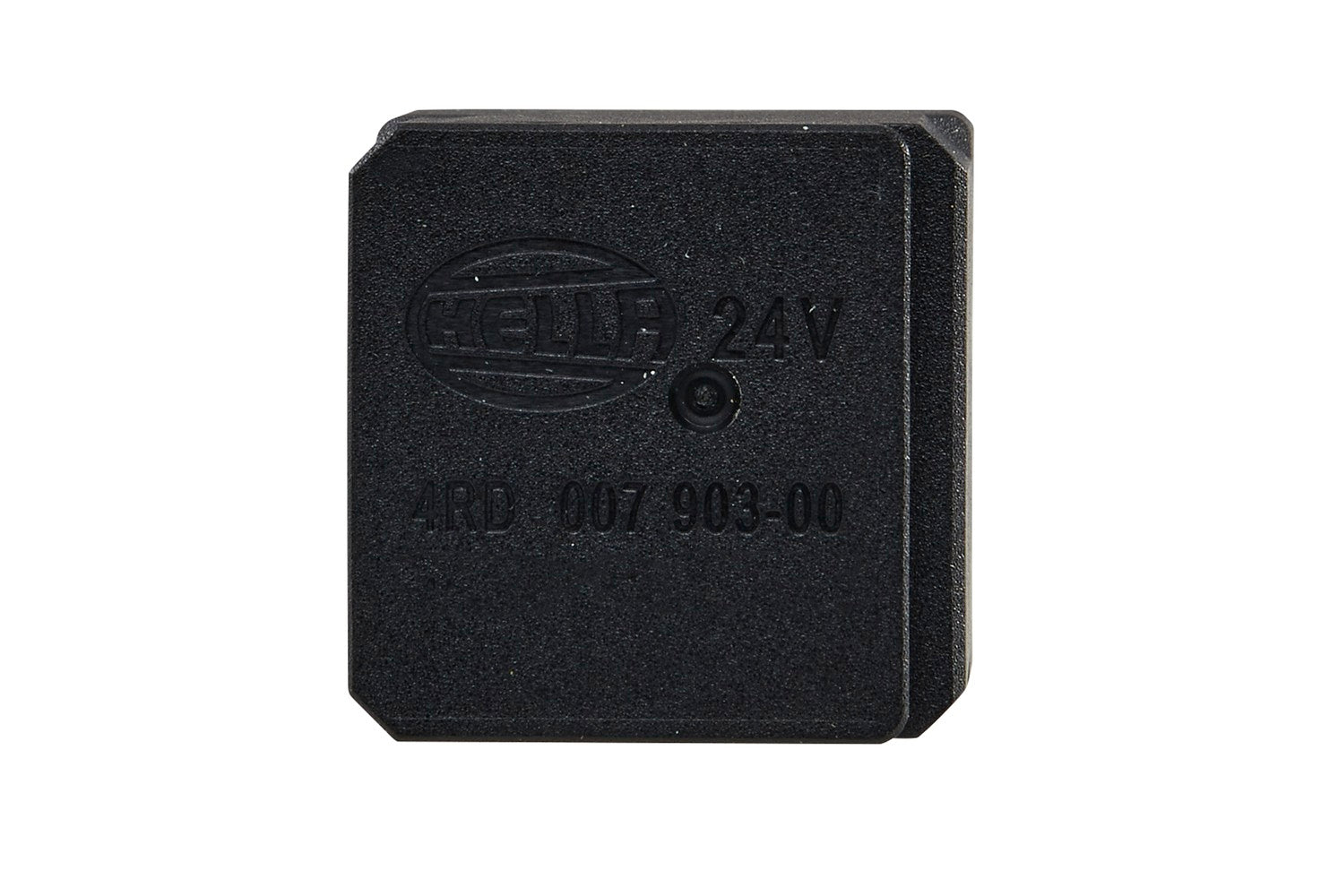

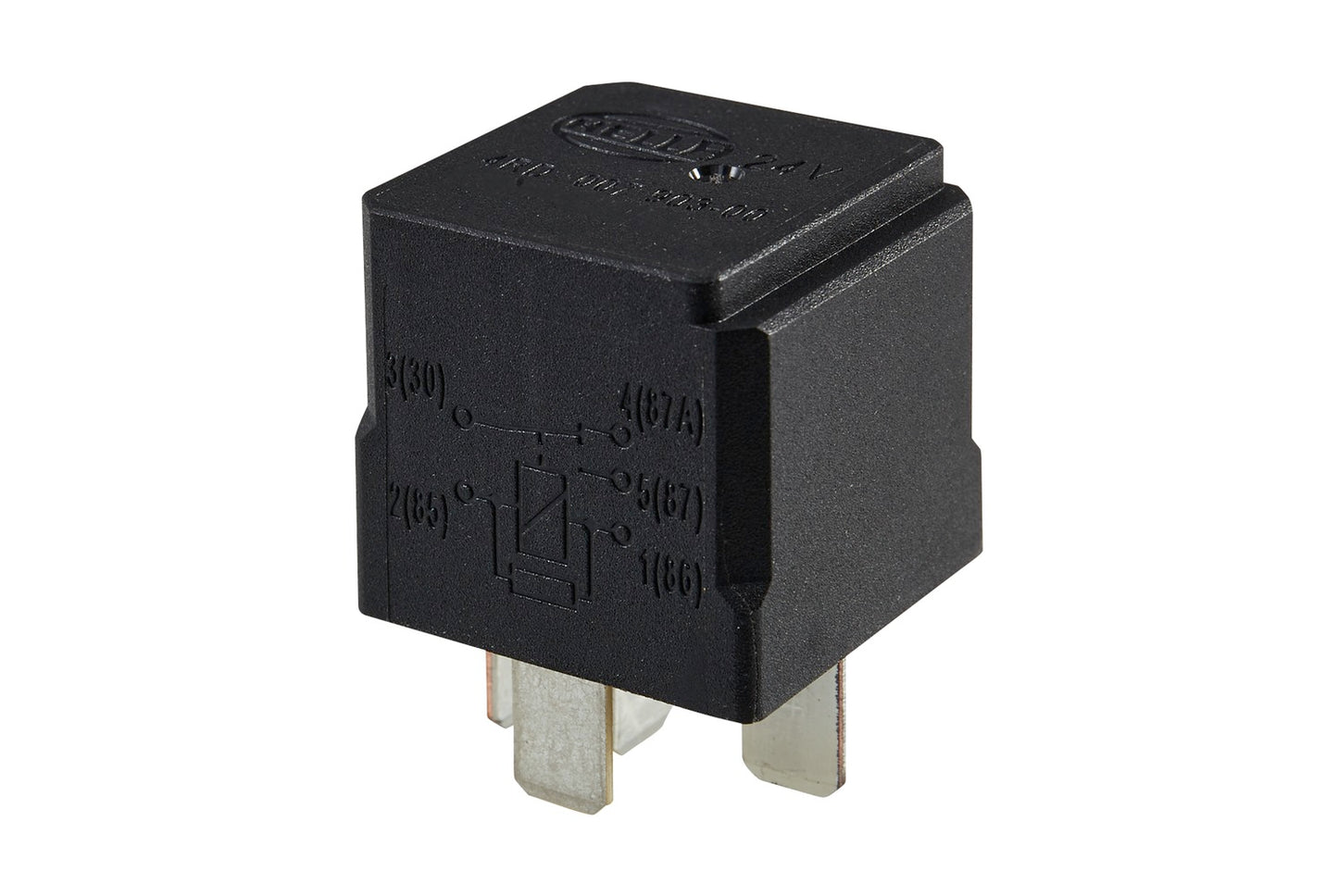

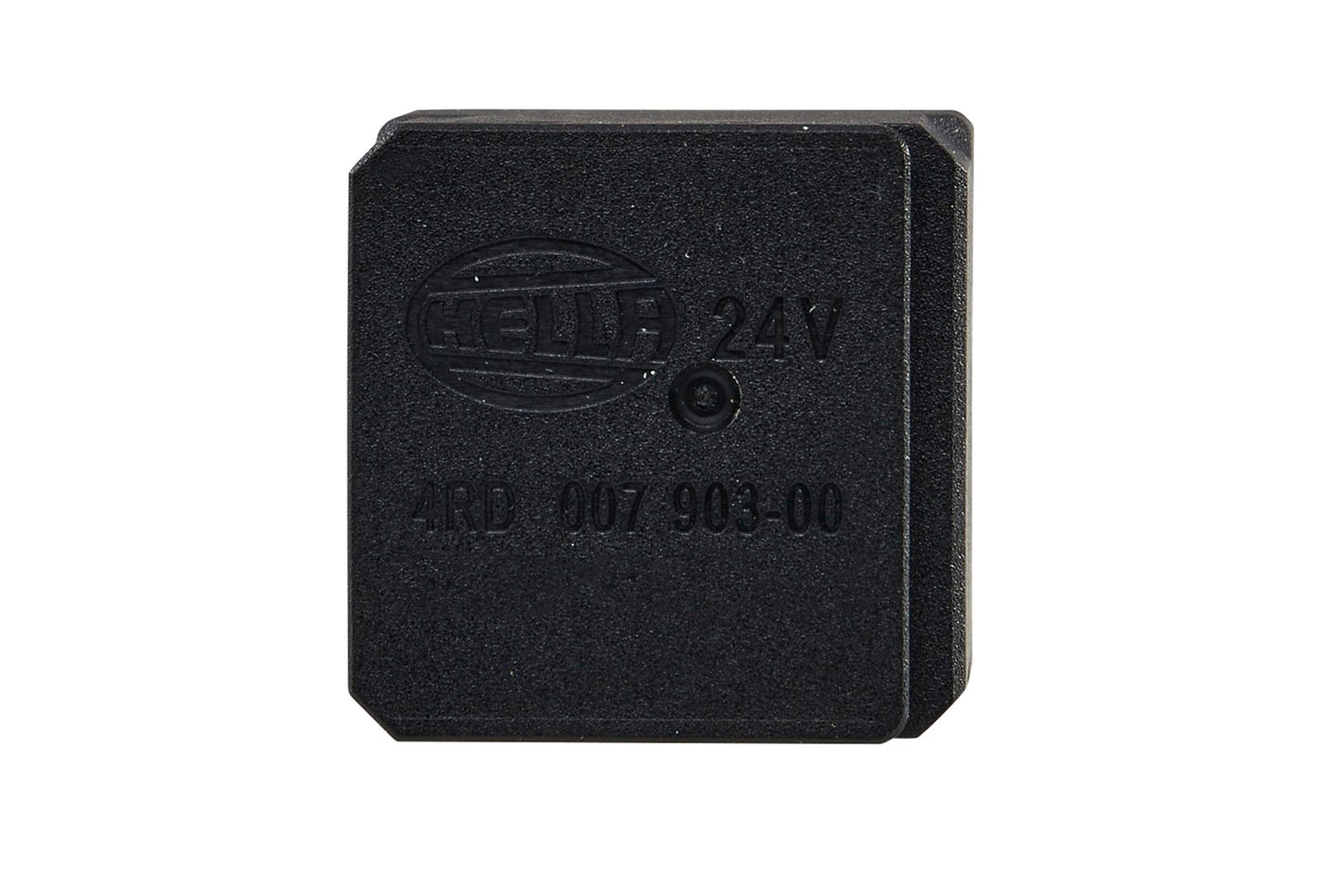

HELLA Relay, main current - 24V - 5-pin connector - W2 - B1 4RD007903-001

Relay, main current - 24V - 5-pin connector - Wiring Diagramme: W2 - Plug: B1 - Normally Closed Contact/Normally Open Contact/Changeover Contact - Colour: Black - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - change-over relay 24 V, 5-pole, with parallel resistance to coil, without holder
• Rated switching current: min. 5 A, max. 20 A (at 80 °C ambient temperature)
• Number of switching operations: min. 100,000
• Temp. Range: 80°C
• Ohmic Load: 20A - Inductive Load: 16A - Capacitive Load: 15/5A - Capacity at 24V: 10/20A
• Prot.type (IP Code): IP54
• with resistor

Item Attributes:
Supplementary Article/Supplementary Info 2: with resistor
Supplementary Article/Supplementary Info: without holder
Prot.type (IP Code): IP54
Voltage: 24 V
Capacity at 24V: 10/20A
Colour: black
Inductive Load: 16 A
Capacitive Load: 15 A / 5 A
Ohmic Load: 20 A
Number of pins: 5 -pin connector
Wiring Diagramme: W2
Switch Function: Normally Open Contact / Normally Closed Contact / Changeover Contact
Plug: B1
Temp. Range: 80 °C
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO 4295879M1; ALEXANDER DENNIS 7660001L15; AUWÄRTER 1111 489 6; DAF 1523983; FAUN 5646367; FELDBINDER 1045974; FENDT 4295879M1; FORD XCT15K235AA; FREIGHTLINER HAL 007903001; IVECO 4718222; KRONE 200851620; LIEBHERR 6 301 054 08; LIEBHERR 9 000 034 75; MAN 36.25902-0007; MANITOU 595373; MANITOU 959237; MCI 7.375.111.000; NEOPLAN 11114896; NEOPLAN 36.25902-0007; PAUS 533739; SANY B240700000262; SOLARIS 1082-004981-00; SOLARIS 1554-981-000; ZOOMLION 1029900185
