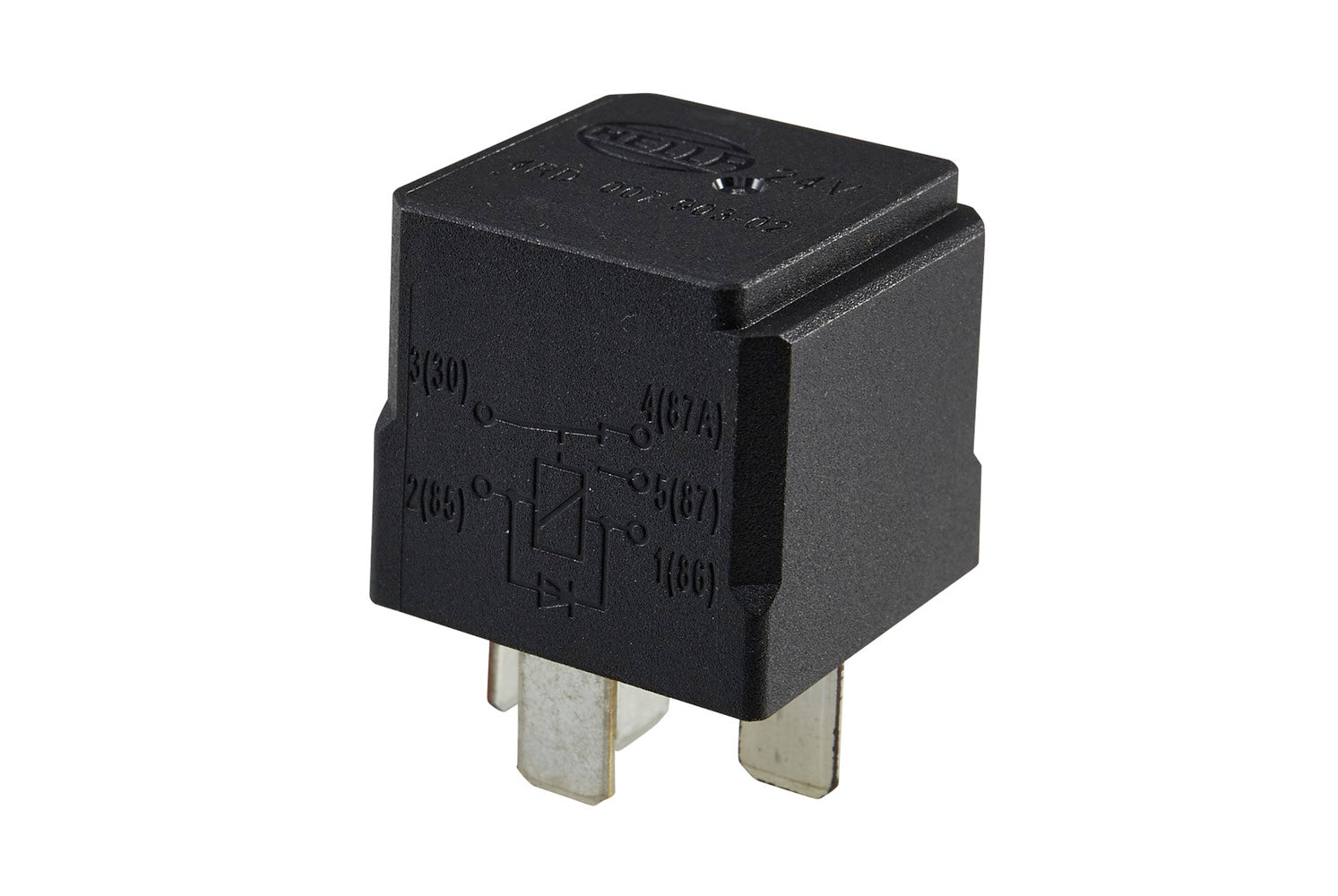

HELLA Relay, main current - 24V - 5-pin connector - W3 - B1 4RD007903-021

Relay, main current - 24V - 5-pin connector - Wiring Diagramme: W3 - Plug: B1 - Normally Closed Contact/Normally Open Contact/Changeover Contact - Colour: Black - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Mini relay - change-over relay 24 V, 5-pole, with parallel diode, without holder
• Rated switching current: min. 5 A, max. 20 A (at 80 °C ambient temperature)
• Number of switching operations: min. 100,000
• Temp. Range: 80°C
• Ohmic Load: 20A - Inductive Load: 16A - Capacitive Load: 15/5A - Capacity at 24V: 10/20A
• Prot.type (IP Code): IP54
• with diode

Item Attributes:
Supplementary Article/Supplementary Info 2: with diode
Supplementary Article/Supplementary Info: without holder
Prot.type (IP Code): IP54
Voltage: 24 V
Capacity at 24V: 10/20A
Colour: black
Inductive Load: 16 A
Capacitive Load: 5 A / 15 A
Ohmic Load: 20 A

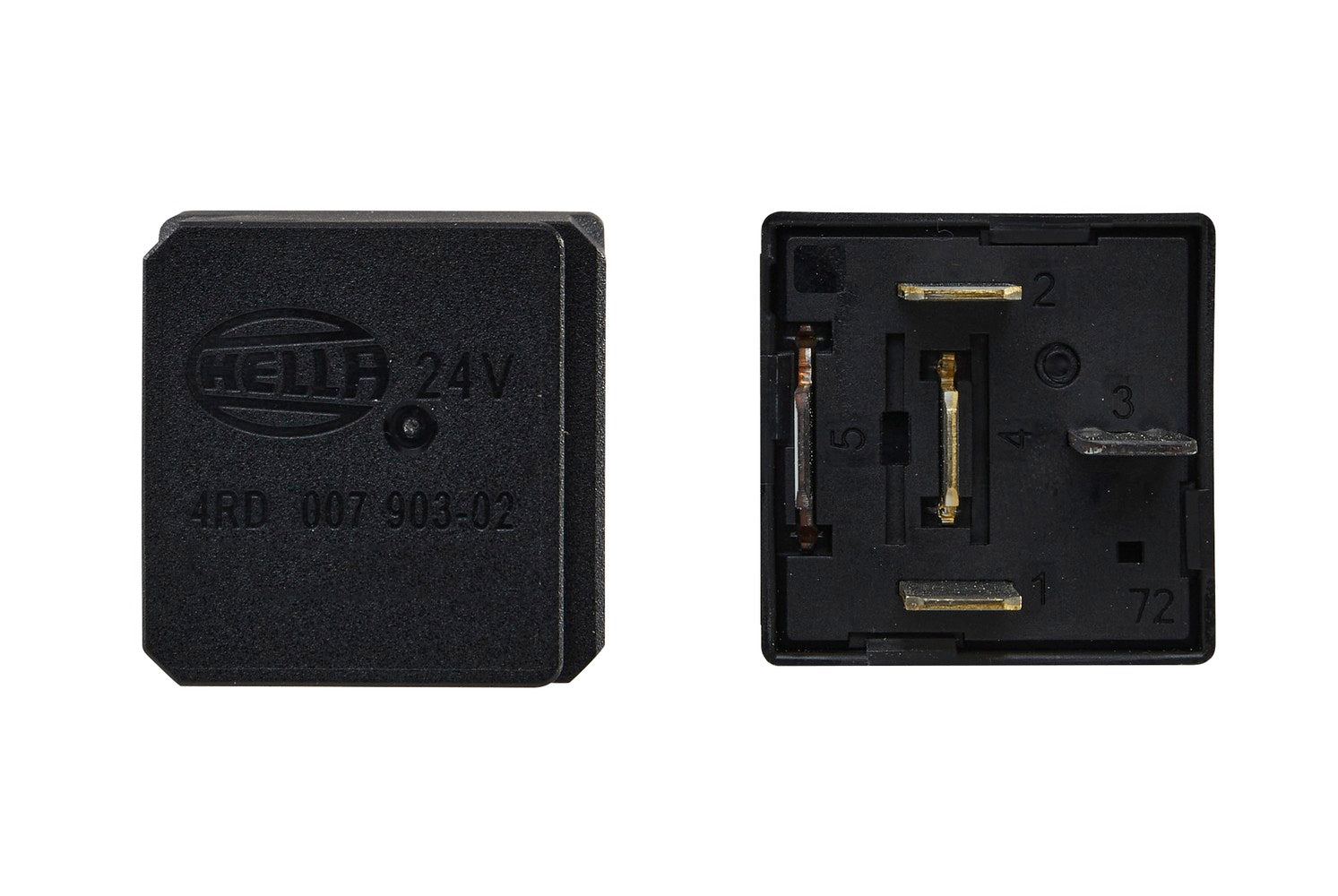

Number of pins: 5 -pin connector

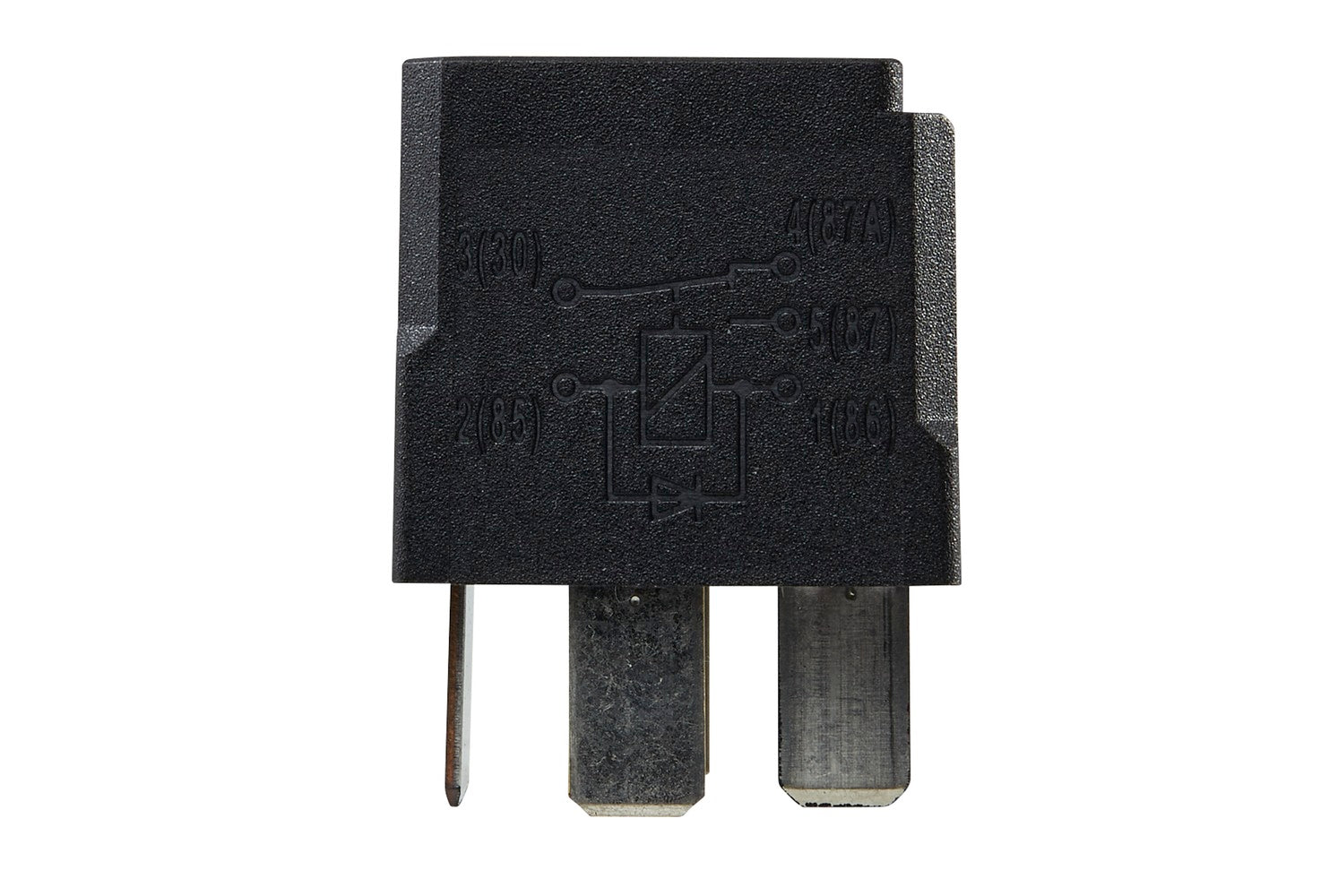

Wiring Diagramme: W3
Switch Function: Normally Closed Contact / Normally Open Contact / Changeover Contact
Plug: B1
Temp. Range: 80 °C
Assembly by qualified personnel required!

OE references: AHLMANN 23132687; ALEXANDER DENNIS 29-0019-000; BARKAS D921830.0002; CARNEHL 26543; DOOSAN 9544-9001; GOLDHOFER 153833; HYSTER 1616235; JCB 716/11100; JUNGHEINRICH 51139816; KAMAG 134306; KÖGEL 134306; KOMATSU 20K 0632 130; KOMATSU 20K0632130; KRONE 505821657; LANGENDORF 1204689; MACK 4381 87427B; NOVABUS N11613; SOLARIS 1082-004597-00; SOLARIS 1570 050 000; STEINBOCK 511 39816; TEREX 1186320
