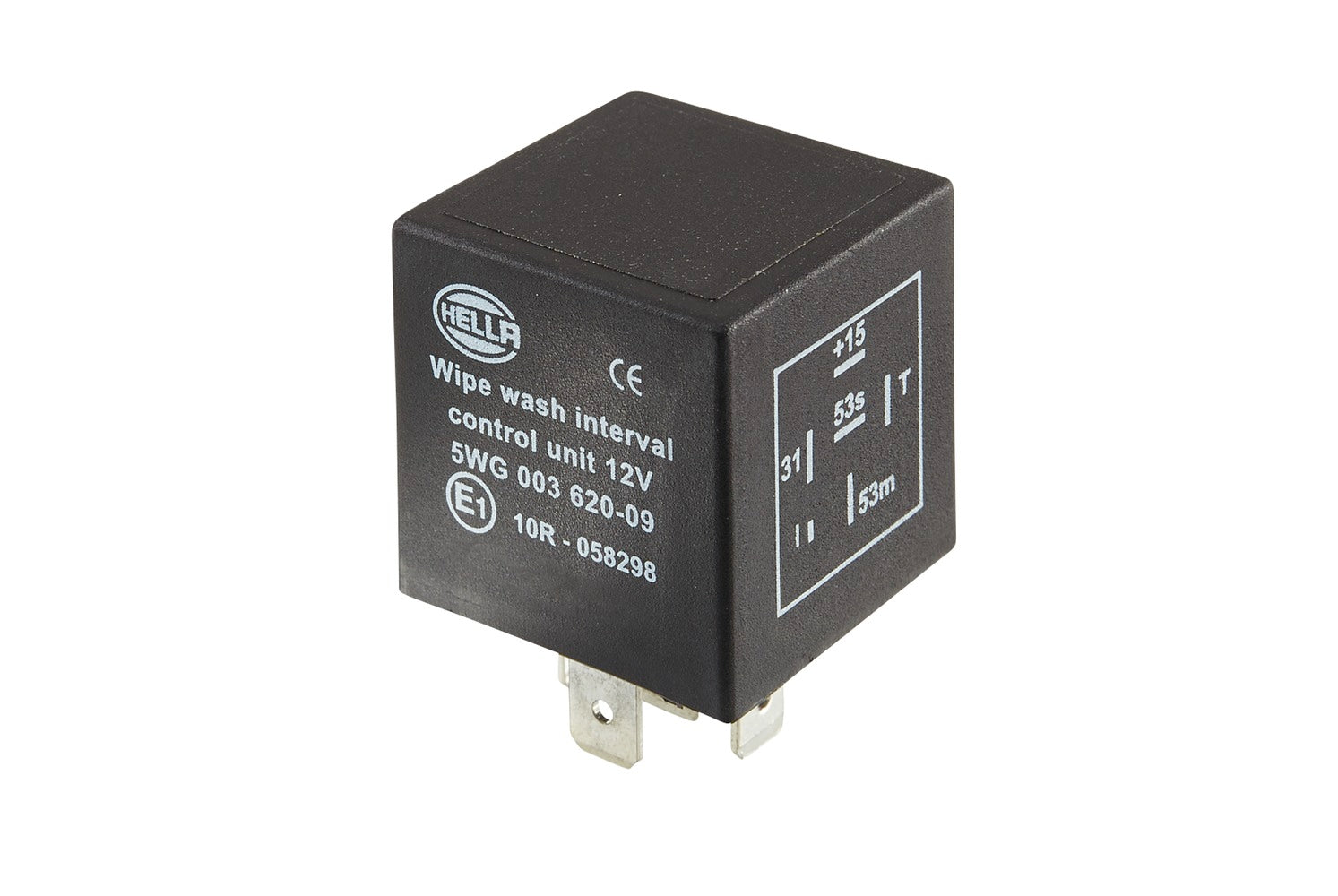

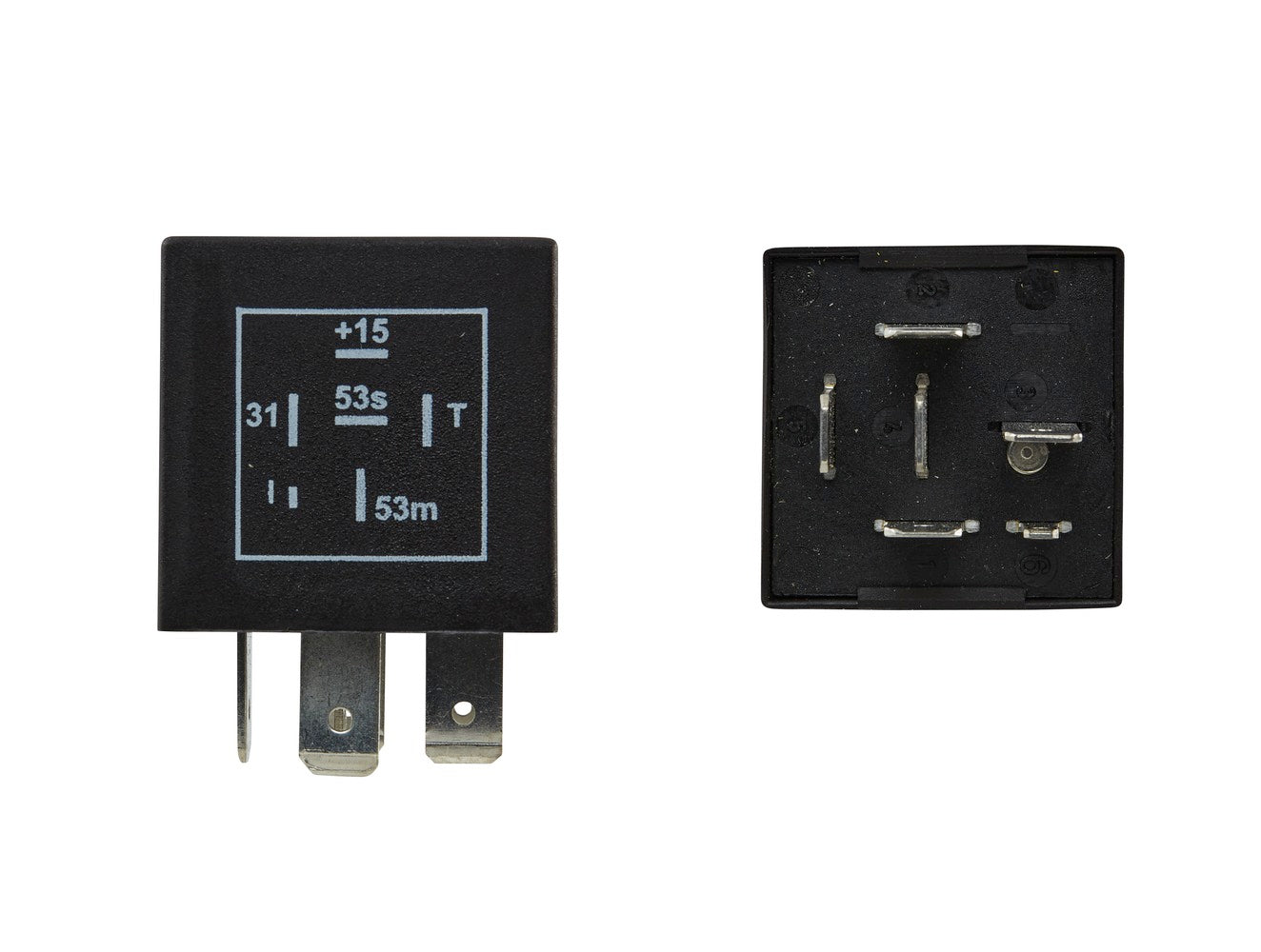

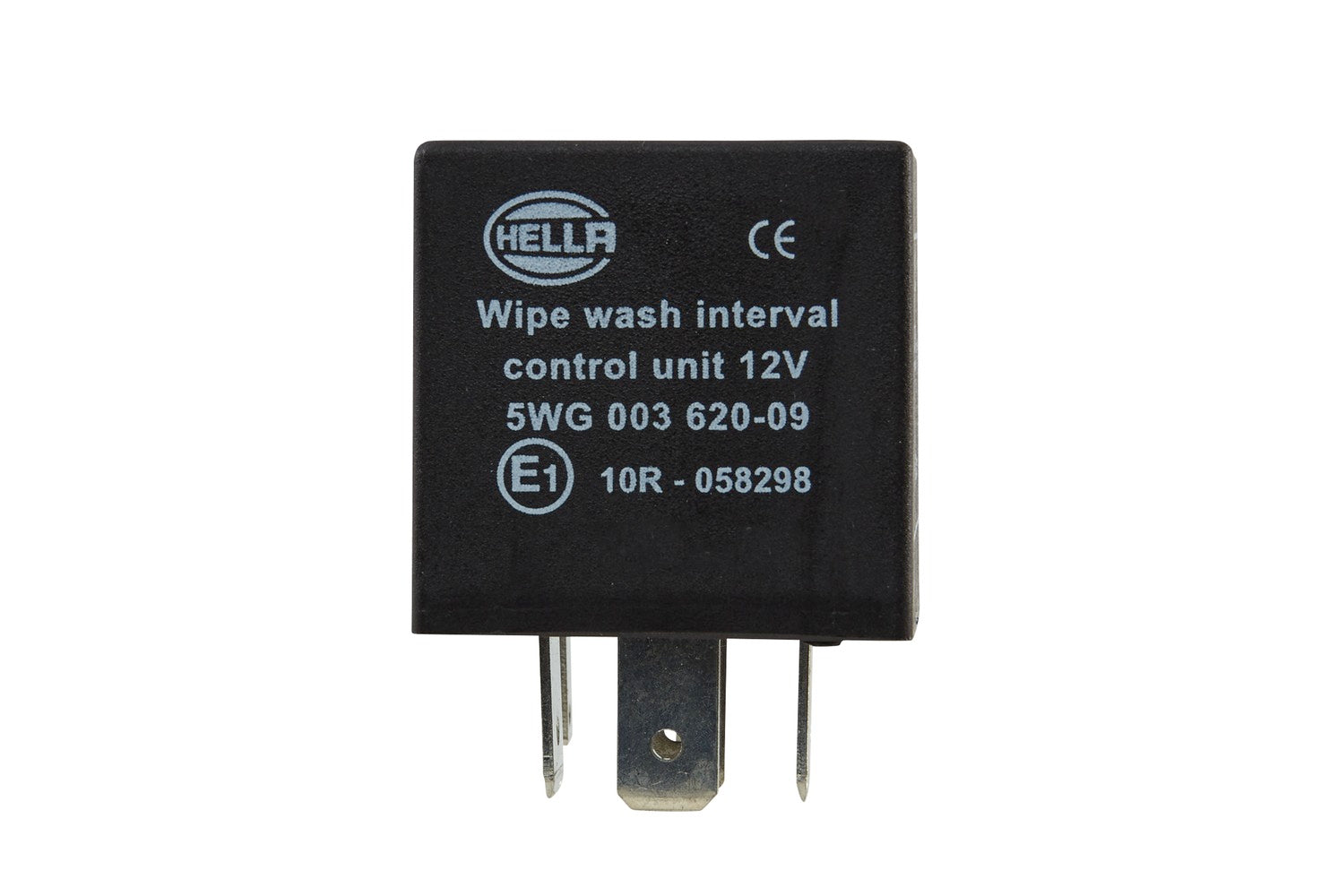

HELLA Relay, wipe/wash interval - 12V - 6-pin connector 5WG003620-091

Relay, wipe/wash interval - 12V - 6-pin connector - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Wiper-washer control unit 12 V, 6-pin, without holder
• Function times: 6 ± 1 s drop-out delay (wipe-wash mode), 1 s switch-on delay (interval mode), 15 s pause time (interval mode)
• Load current: max. 5 A
• Temperature range from: -30°C - Temperature range to: +85°C

Item Attributes:
Supplementary Article/Supplementary Info: without holder
Voltage: 12 V
Temperature range from: -30 °C
Temperature range to: +85 °C
Number of pins: 6 -pin connector
Assembly by qualified personnel required!

OE references: AMMANN 1528369; AUDI 191 955 531; AUDI 321 955 531 A; AUDI 330 955 531; AUDI 431 955 531; CITROËN 6555.11; CITROËN 6555.34; GENERAL MOTORS 13230560; GENERAL MOTORS 90069864; HAKO 0826139; HYMER 3542363; JOHN DEERE AZ49989; KRAMER 100 010 51 46; MANITOU 237432; MANITOU 52626226; MASSEY FERGUSON 163262; OPEL 04 708 100; OPEL 12 38 550; OPEL 13230560; OPEL 2001437; OPEL 90069864; PEUGEOT 6555.11; PEUGEOT 6555.34; PORSCHE 928.615.101.01; PORSCHE 993.615.100.0; REFORM 215441134; RENAULT 38575100; SAAB 13230560; SAAB 85 53 463; SAAB 90069864; SEAT 191 955 531; SEAT 321 955 531 A; SEAT 330 955 531; SEAT 431 955 531; SKODA 191 955 531; SKODA 321 955 531 A; SKODA 330 955 531; SKODA 431 955 531; SOLARIS 1082-007299-00; TEREX 5350661263; VAUXHALL 04 708 100; VAUXHALL 12 38 550; VAUXHALL 13230560; VAUXHALL 90069864; VOLVO 32017246; VOLVO 3414899; VW 191 955 531; VW 321 955 531 A; VW 330 955 531; VW 431 955 531
